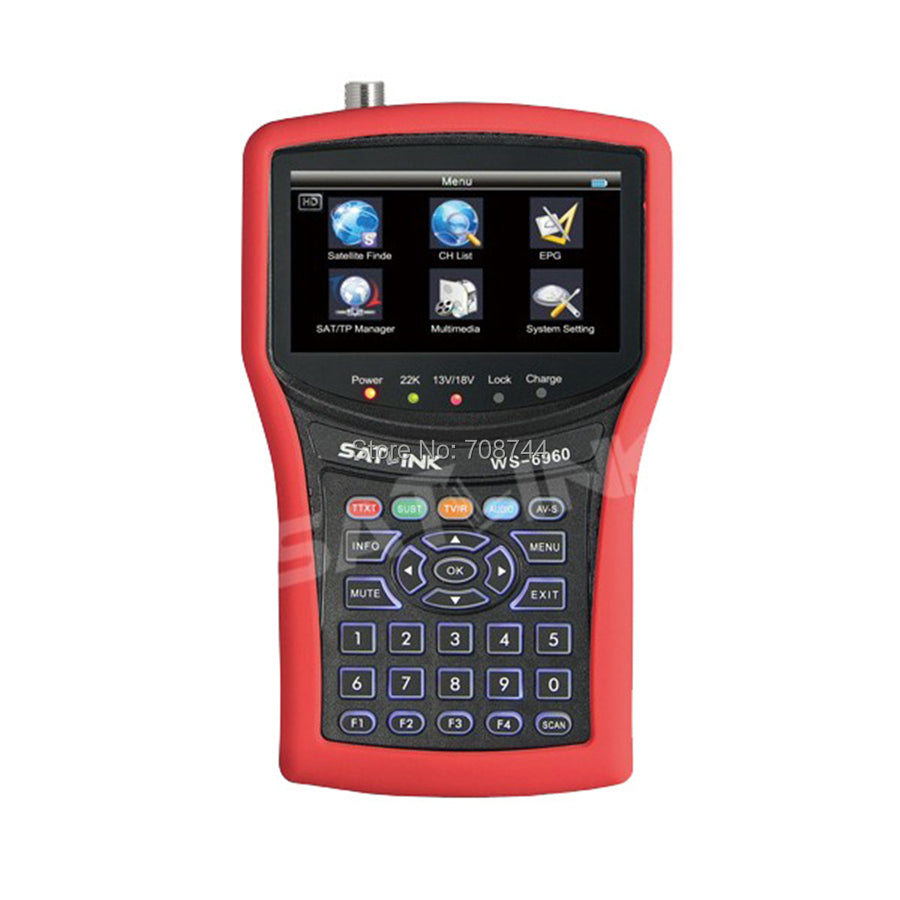

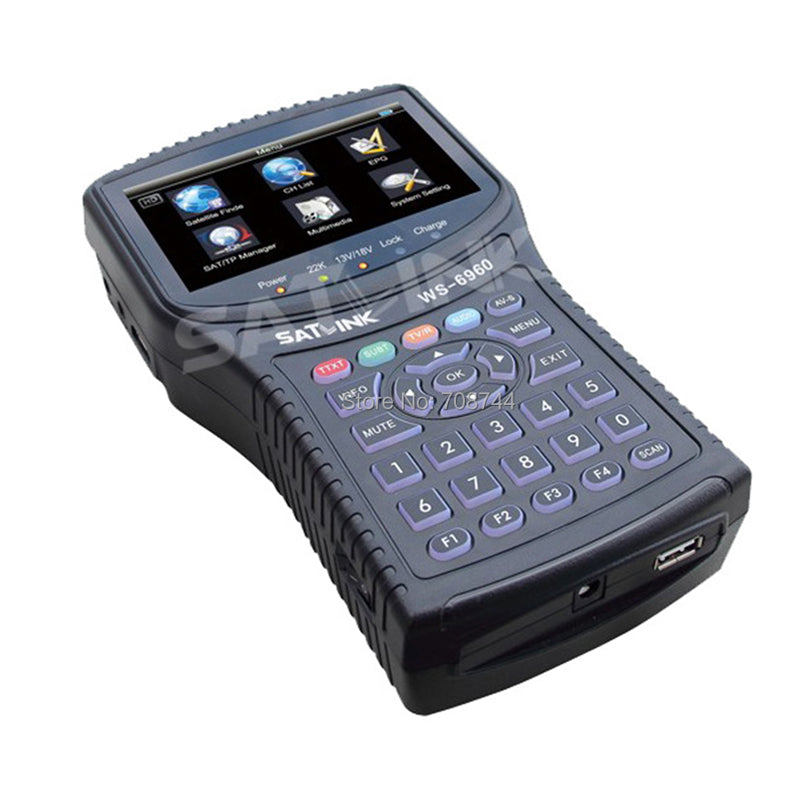

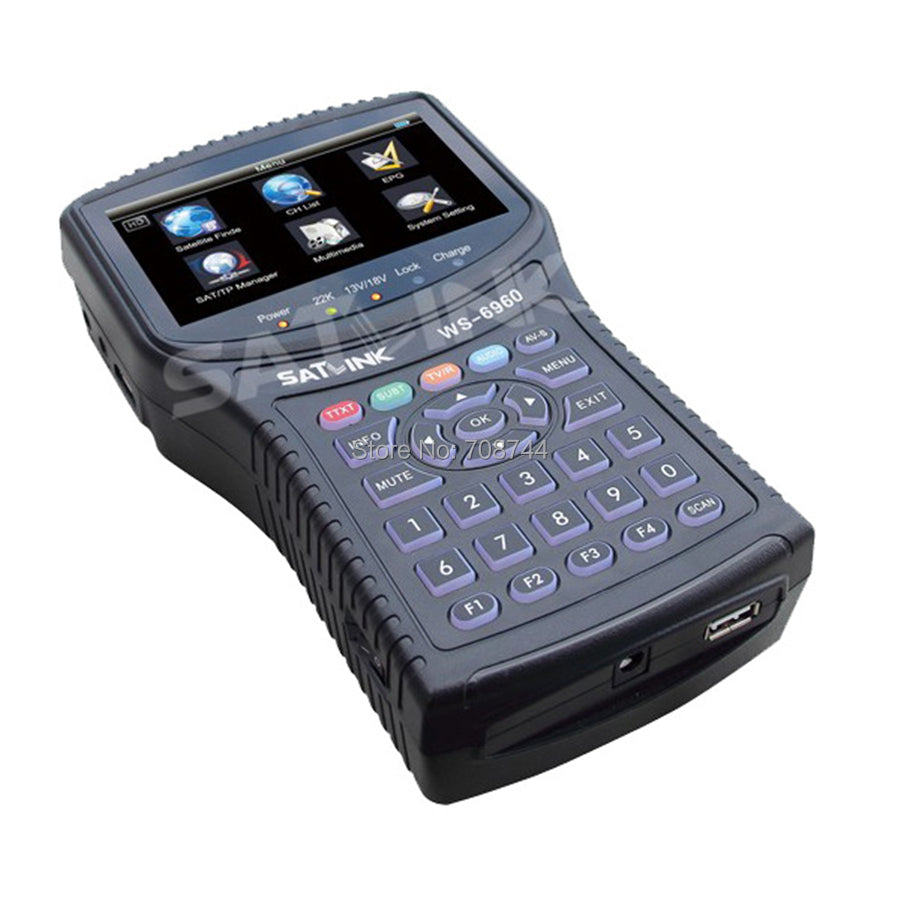

Original New Satlink WS-6960 DVB-S&DVB-S2 HD Satellite Finder Meter WS6960

Feature

4.3 Inch High Definition TFT LCD Screen

Fully DVB-S/DVB-S2, MPEG-2/MPEG4 compliant

MPEG-2 / H.264 Hardware decoding

Input Frequency 950~2150MHz

Input Signal Level -65~ -25dBm

Input Impedance 75Ω

Constellation analyzer

Measurement Type: signal strength,quality; BER; S/N;PWR;MER

Search Mode: Auto,Blind,Manual,NIT

Sound and Light Alarm for Locking Signal

Auto Calculate Angle of AZ ,EL

Support DISEQC 1.0,1.1,1.2 and 22khz Tone

LNB Power Supply:18/13V(IMax 400mA)

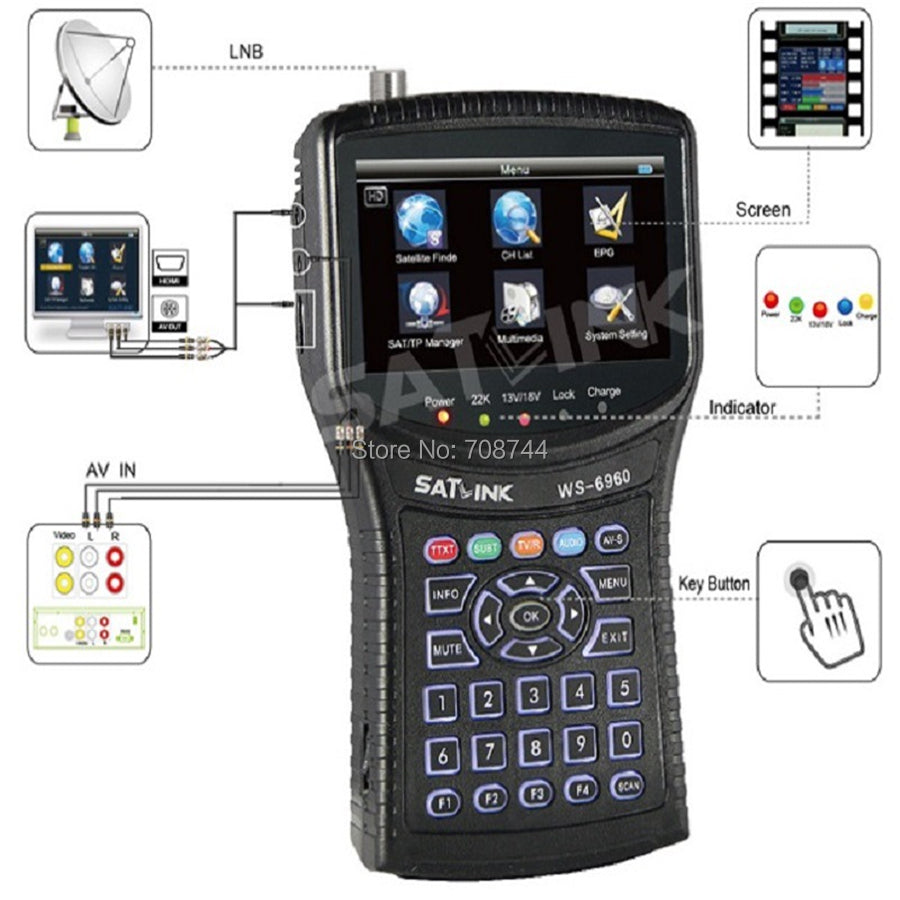

Support both AV out and AV in

Speaker Integrated

7.4V/3000mAh Li-Ion Battery Included

Max Operating Time:2 hours

12V/1.5A DC Adapter

Specification:

      System Capabilities

   Fully DVB compliant

   Yes

       Satellite Input/ Demodulation

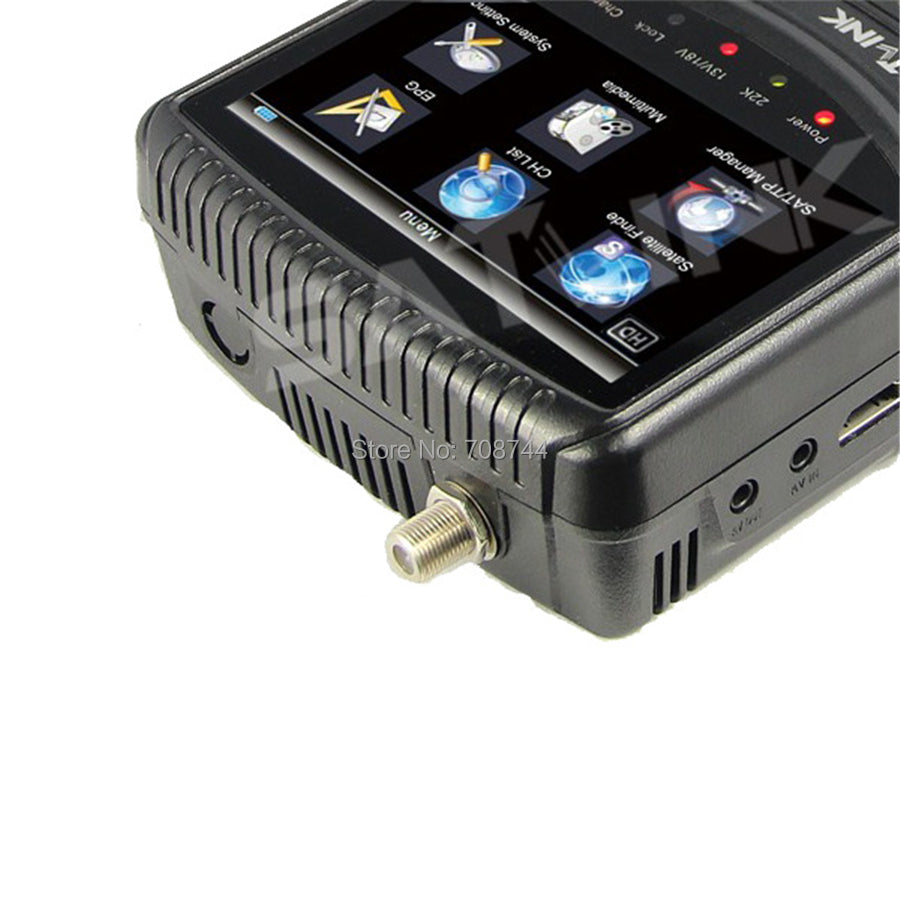

   Connector Type

   FEMALE Type

       Input Frequency

   950MHz to 2150 MHz

       Signal Input Level

   -65dBm ~ 25dBm

       Band Switch Control

   22KHz

       LNB Supply

   13V/18V, Imax 400mA

       Demodulation Type

   QPSK,8PSK

       Symbol Type

   2<Rs<45 M band (SCPC/MCPC)

       LCD Features

   LCD Type

   TFT TRANSMISSIVE

       Number of Dots

   480 (RGB) x272

       Active area (W x H)

   95.04 mmx53.86 mm

       AV Output Interface

   Connector Type

   3.5 mm jack

       Video Output

   CVBS

       Audio output

   Stereo Audio L/R output

       HDMI output connecter

   Format

   HDMI 1.3

       AV input interface

   Connector Type

   3.5 mm jack

       Video input

   CVBS

       Audio input

   Stereo Audio L/R input

       Audio Processing

   Video decompression

   MPEG-2 MP@HL, MPEG-1 Decoding,

       MPEG-4 ASP@L5 HD resolution,

       H.264 MP&HP@L4,HW JPEG decoding

       Resolving rate

   PAL-25 frame@720*576,NTSC-30 frame@720*480,

       Signal compatibility

   Support conversion for different video formats

       Video Format

   4:3,16:9,By Pan & Scan and Letter Box conversion

       Audio decompression

   MPEG-1 Layer I/II ,MPEG-2 Layer I/II,

       Audio output mode

   Stéréo, Mono, R/L

       Data Service Port

   Connector

   USB

       Data protocol

   USB2.0 interface

       File management system

   NTFS, FAT32, FAT16

       File format

   wma, mp3, mp4, avi, jpg, jpeg, bmp, img

       Microprocessor

   Microprocessor

   78326SZ

       Clock Frequency

   550MHz

       SDRAM Memory

   512Mbit DDR2 Integrated

       Power Supply

   Li-Ion Battery

   7.4V/3000mAh

       Adapter

   OUTPUT: DC12V/1.5A

       INTUPT: 100-240VAC 50/60Hz

       Power consumption

   Max. 10W

       Physical Characterstics

   Size (W x D x H)

   125 x 205 x 45mm

       Net Weight

   0.66 KG

Package included:

1 x 6960 Digital Satellite Meter

1 x AV cable

1 x Power Adaptor

1 x Car charger cable

1 x Black cloth bag

1 x CD (User Manual)
