Features:
With automatic, regular and one-shot mode, easy to capture the moment waveform.
Available rising or falling edge trigger.
Adjustable vertical displacement, and with instructions.
Observable previous trigger waveform (negative delay).
Can freeze waveform display at any time (HOLD function).
Comes 1Hz /3.3V square wave test signal source.
With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
Waveform storage function: will not lose the waveform after power off.
Short-circuit and open-circuit detection: can help the user find out the soldering error.
Note: not DIY kit.
Specifications:

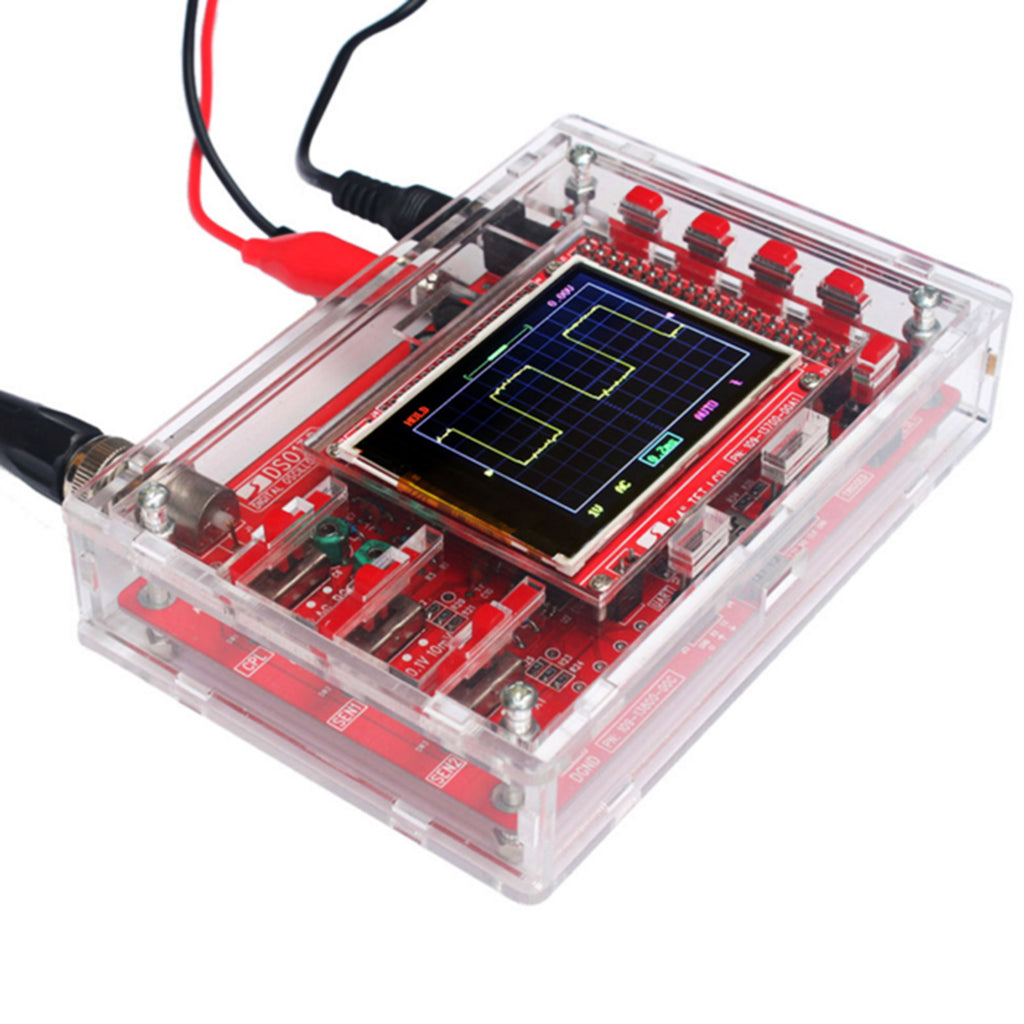

Material: Aluminium Alloy + Acrylic
Maximum Real-time Sampling Rate: 1Msps
Accuracy: 12Bit
Sampling Buffer Depth: 1024 bytes
Analog Bandwidth: 0-200KHz
Vertical Sensitivity: 10mV/ Div - 5V/ Div (1-2-5 progressive manner)
Input Impedance: 1MΩ
Maximum Input Voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe)
Coupling Modes: DC/ AC/ GND
Horizontal Time Base Range: 10μs/ Div - 50s/ Div (1-2-5 progressive manner)
Supply Voltage: DC 9V
PCB Size: 11.7 * 7.6cm / 4.6 * 3.0in
Item Size: 17.5 * 12.0 * 2.5cm / 6.9 * 4.7 * 1.0in
Package Size: 18.0 * 12.5 * 3.0cm / 7.1 * 4.9 * 1.2in
Package Weight: 168g / 5.9oz

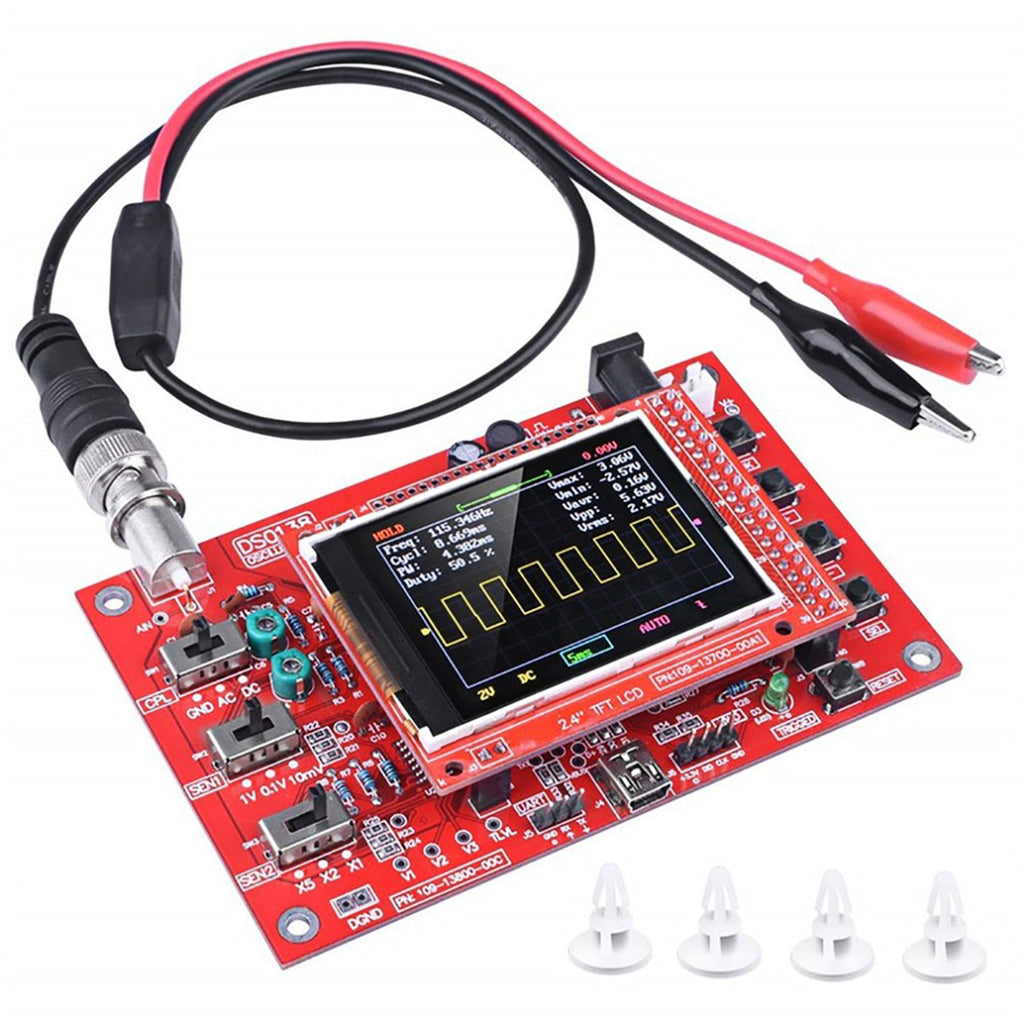

Package List:
1 * Oscilloscope
1 * Probe
2 * User Manual
