Model: DSO150
Number of channels: 1
Analog bandwidth: 0-200khz
Screen size: 2.4-inch high-definition TFT screen
Accuracy: 12Bit
Input impedance: 1M
Buffer depth: 1024 bytes
Maximum test voltage: 50Vpp (1:1 probe) 400Vpp (10:1 probe)
Trigger mode: automatic, regular, single
Trigger level: adjustable position, with indication
Freeze waveform: Freeze at any time for easy viewing
Supply voltage: 9v (cannot exceed 10V)
Vertical displacement: adjustable, with indication

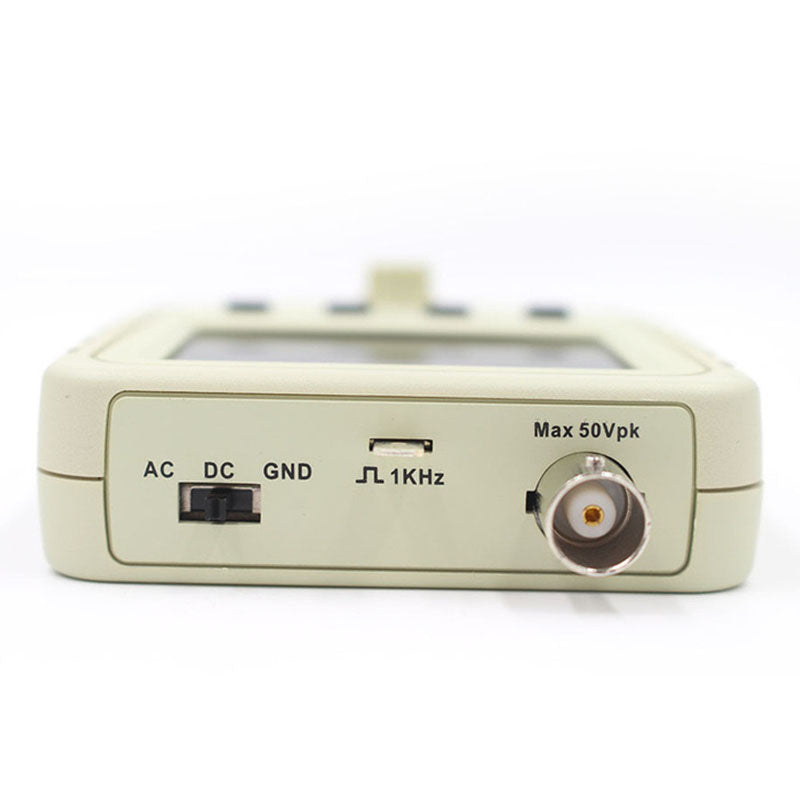

Square wave output: 1K~80KHZ/3.3V
Supply current: more than 200mA
