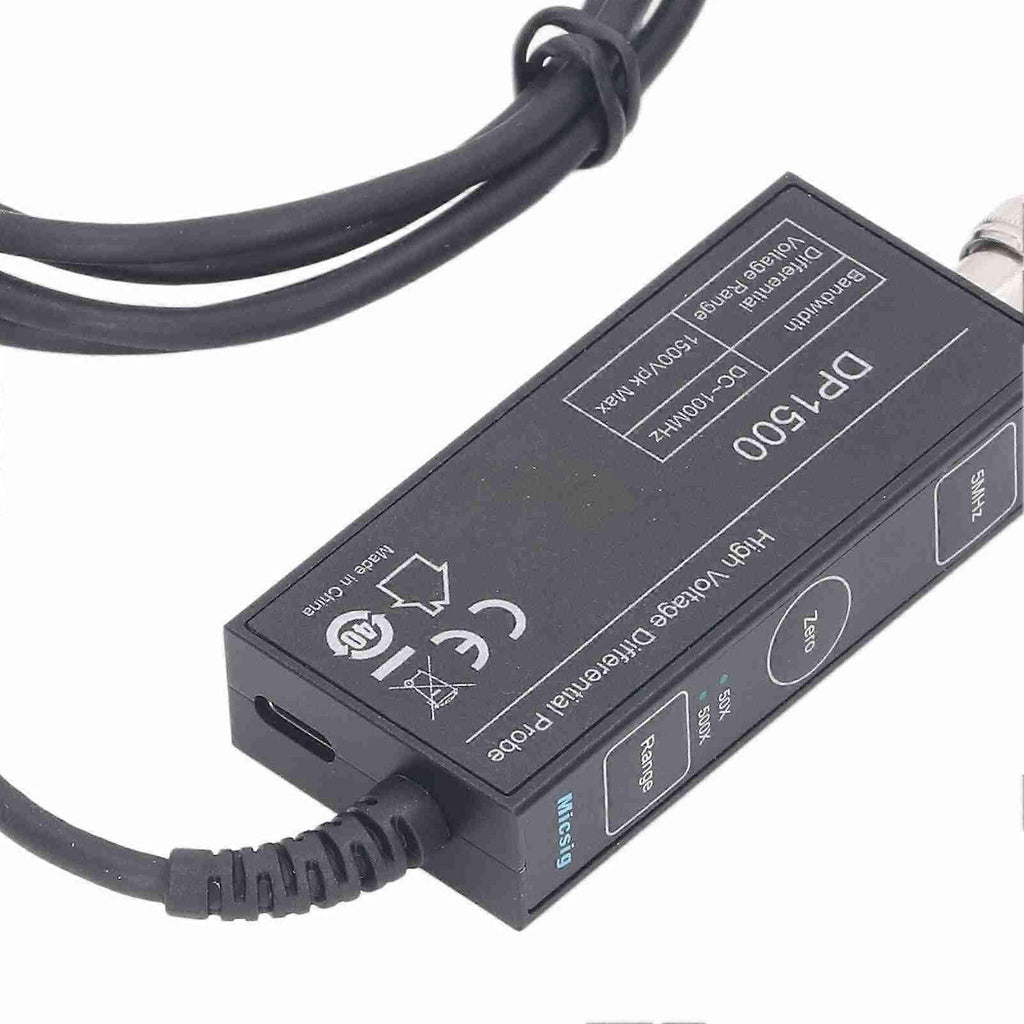

Feature:1. SUITABLE FOR HIGH FREQUENCY: DP series high voltage differential probe with ultra low noise, excellent amplitude frequency characteristics and the higher common mode rejection ratio than the industry, help you easily cope with a variety of high frequency and high voltage signal testing2. EXCELLENT AMPLITUDE FREQUENCY CHARACTERISTICS: The DP series oscilloscope probe has excellent bandwidth flatness, the amplitude fluctuation is less than 0.5dB in half of the bandwidth, and the accuracy of signal testing can be maintained in high frequency bands3. 5MHZ FILTERING LIMIT: Oscilloscope probe is used to measure the switching frequency of FET in most switching power supplies, effectively filtering out high frequency noise and interference4. ONE KEY ZERO SETTING: Short connect the differential probe pen, press the zero key, and the differential probe can be zeroed quickly5. DUAL RANGE SELECTION: The differential probe support dual range switching, effectively improving the signal to noise ratio and more meeting the requirements of the test circuit6. UNIVERSAL INTERFACE: The probe has a universal standard BNC interface, which can be used with all brands of oscilloscopes7. OVERVOLTAGE ALARM: When the voltage is overloaded, the oscilloscope probe range LED light will keep flashing, and the buzzer will keep emitting a drip sound, so that you can use peace of mind8. SMALL AND DELICATE: Thickness of only 2CM, and the traditional differential probe farewell to the clumsy appearance completely; The volume design is more compact and the appearance is more exquisiteSpecification:Item Type: Oscilloscope ProbeModel: DP1500Bandwidth: 100MHzRise Time: 3.5nsAttenuation: 50X or 500XAccuracy: 2%Background Noise: Full Bandwidth: 50X: 0.9mVrms; 500X: 0.4mVrms5MHz Bandwidth Limit: 50X: 0.4mVrms; 500 X: 0.35 mVrms or lessCommon Mode Rejection Ratio: DC: >-80dB; 100kHz: >-60dB; 10MHz: >-30dB; 100MHz: >-26dBDelay Time: 11.99ns (50X); 12.27ns (500X)Input Impedance: 16M/1.5pF (differential); 8M/3pF (single end to ground)Power: 2WPower Supply: Type C portOverload Indicator: LED alarm, buzzerSize: Control Module: Approx. 91 x 33 x 15mm / 3.58 x 1.3 x 0.59inSignal Box: Approx. 100 x 36 x 20mm / 3.94 x 1.42 x 0.79inInput Line Length: Approx. 8cm / 3.1in (manual measurement will have a slight error)Output Line Length: Approx. 120cm / 47.2in (manual measurement will have a slight error)Temperature: Operating State: 0~40; Non Working State: -30 to 70Humidity: Working Condition: 5%~85%RH (0~40); Non Working Condition: 5%-85%RH (40), 5%~45%RH (40~70).Package List:1 x Probe Host2 x Crocodile Clip1 x Type C Line1 x User Manual2 x Extendable IC ClipNote:1. Before starting the measurement, the zero point of the probe needs to be calibrated.First, short circuit the two input terminals, power on, press the "Zero" button, the level indicator flashes alternately, after the 5MHz indicator flashes, the probe emits a "drop" sound, indicating that the calibration is successful; When the probe emits three short "drops", indicateing that the calibration has failed and needs to be recalibrated.2. When the differential probe is connected to the oscilloscope, it is recommended that the bandwidth of the oscilloscope is not less than 100MHz, and the input impedance of the channel is not less than 1M.3. It is recommended to use after 10 minutes of preheating to get more accurate data.4. When the probe gear indicator light has been flashing and emitting a rapid buzzer, it is a situation of overvoltage warning, and it should be switched to the high level.
