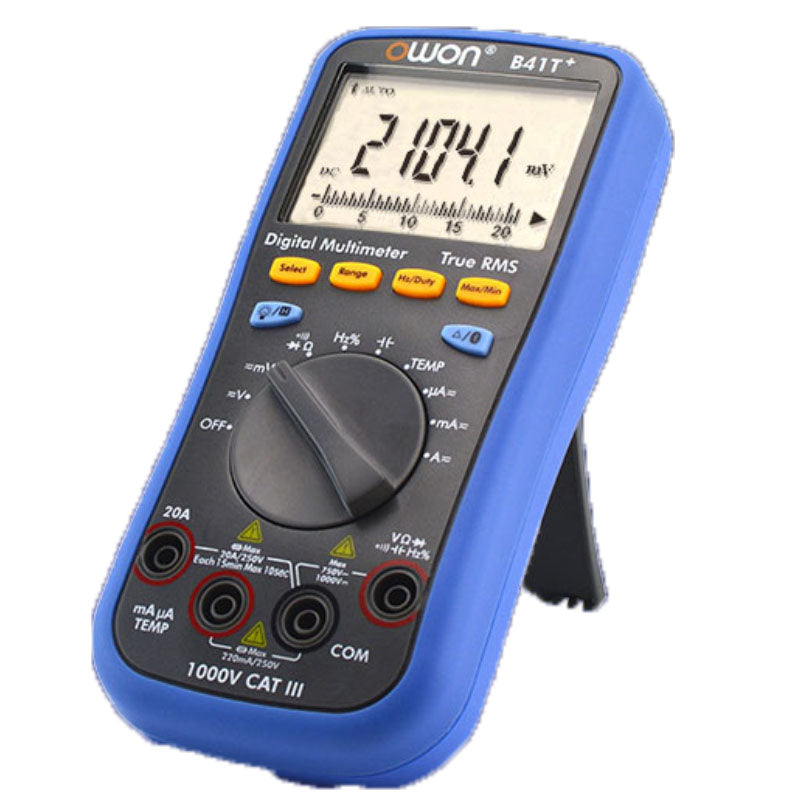

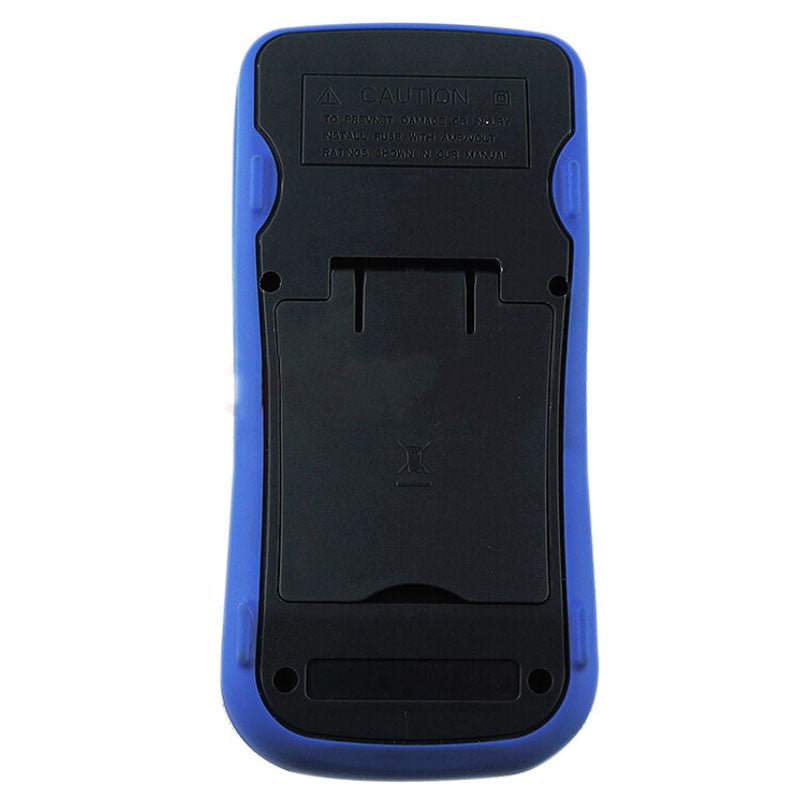

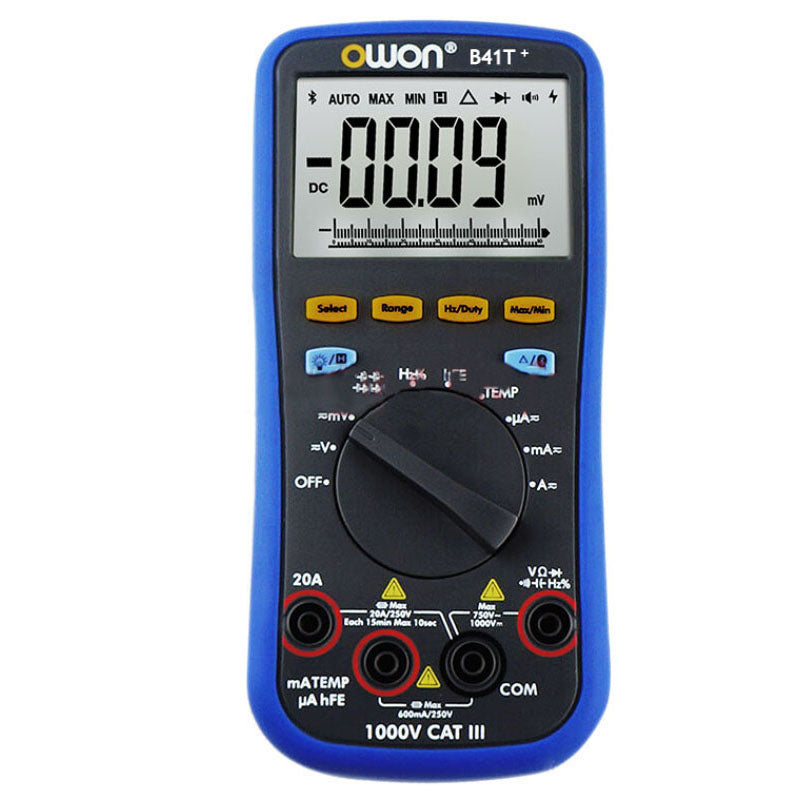

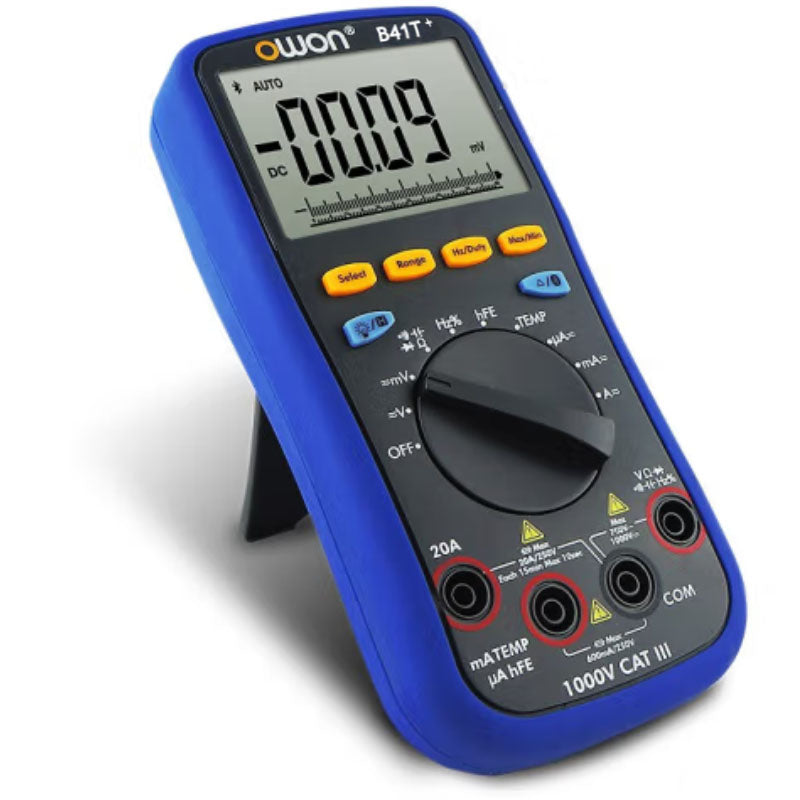

OWON B41T+ 4 1/2 Digital Multimeter With Bluetooth-compatible True RMS Backlight Test Meter
Features:
Function as 3 in 1 : datalogger + multimeter + temperature meter
Multi-connection (more than one device) supported via mobile app
The change trend analysis accessible via special chart mode
Voice warning supported, which assures measurement safety smart voice-reading accessible 4(1/2)-digit counterparts
Smart power-off option extending battery life
Bluetooth-compatible 4.0 version - supports mobile device with Android 4.3 or above / iOS 7.0 or above OS, and equipped with ble 4.0 module offline recording function (only in model with “+” )
Specifications:
Measurement Range
Resolution
Accruacy
DC Voltage (V)
mV
220mV
0.01 mV
±(0.1%+5dig)
V
2.2V
0.1 mV
±(0.1%+2dig)
22V
1mV
220V
10mV
1000V
0.1 V
±(0.1%+5dig)
AC Voltage (V)
mV
220mV
0.01 mV
≤1kHz
±(1.0%+10dig)
＞1kHz
±(1.5%+50dig)
V
2.2V
0.1 mV
≤1kHz
±(0.8%+10dig)
＞1kHz
±(1.2%+50dig)
22V
1mV
≤1kHz
±(0.8%+10dig)
＞1kHz
±(1.2%+50dig)
220V
10mV
≤1kHz
±(0.8%+10dig)
＞1kHz
±(2.0%+50dig)
750V(continuity)/1000V(typical)
0.1 V
≤1kHz
±(1.2%+10dig)
＞1kHz
±(3.0%+50dig)
DC Current (A)
μA
220μA
0.01 μA
±(0.5%+10dig)
2200μA
0.1 μA
mA
22mA
1 μA
220mA
10 μA
±(0.8%+10dig)
A
20.00A [1]
1mA
±(2%+25dig)
AC Current (A)
μA
220μA
0.01 μA
≤1kHz
±(0.8%+10dig)
＞1kHz
±(1.2%+50dig)
2200μA
0.1 μA
≤1kHz
±(0.8%+10dig)
＞1kHz
±(1.2%+50dig)
mA
22mA
1 μA
≤1kHz
±(1.2%+10dig)
＞1kHz
±(1.5%+50dig)
220mA
10 μA
≤1kHz
±(1.2%+10dig)
＞1kHz
±(1.5%+50dig)
A
20.00A [1]
1 mA
≤1kHz
±(1.5%+10dig)
＞1kHz
±(2.0%+50dig)
Resistance (Ω)
220Ω
0.01 Ω
±(0.5%+10dig)
2.2kΩ
0.1Ω
22kΩ
1Ω
220kΩ
10Ω
2.2MΩ
100Ω
±(0.8%+10dig)
22MΩ
1kΩ
±(1.5%+10dig)
220MΩ
10kΩ
±(5.0%+10dig)
Capacitance (F)
22nF
1pF
±(3.0%+5dig)
220nF
10pF
2.2μF
100pF
22μF
1 nF
220μF
10 nF
2.2mF
100 nF
±(4.0%+10dig)
>220mF
/
/
Frequency
22.00Hz
0.01Hz
±(0.1%+4dig)
220.0Hz
0.1 Hz
22.000kHz
1 Hz
220.00kHz
10 Hz
22.00Hz
100 Hz
2.2000MHz
1k Hz
22.000MHz
10k Hz
>220MHz
/
/
Duty Ratio (%)
5.0% - 94.9% (typical value：Vrms=1 V, f=1 kHz)
0.1%
±(1.2%+3dig)
0.1% - 99.9%(≥1 kHz)
±(2.5%+3dig)
Temperature (°C/°F)
(－50 ℃) – (400℃)
0.1 ℃
±(1.5%+5dig)
(－58 ℉) - (752 ℉)
0.1 ℉
±(1.4%+6dig)
Auto ranging
√
Max / Min Value
√
Offline Recording Function
B41T+
Bluetooth Module
√
Record Period
168 hours（7 days )
Record Length
10,000 points
True RMS
√
LCD Backligth
√
Diode Test
√
Simulated Chart
√
Audion Test
√
Input Protection
√
Auto Test
√
Input Impedance
10MΩ
On-off Warning
LCD Size
69mm x 52mm
Low- battery Indicator
√
Battery
3V（1.5V x 2）AA
Data Hold
√
Dimension(WxHxD
85mm x185mmx30mm
Relative Measurement
√
Device Weight
0.32 kg
Notes:The batteries not included package
