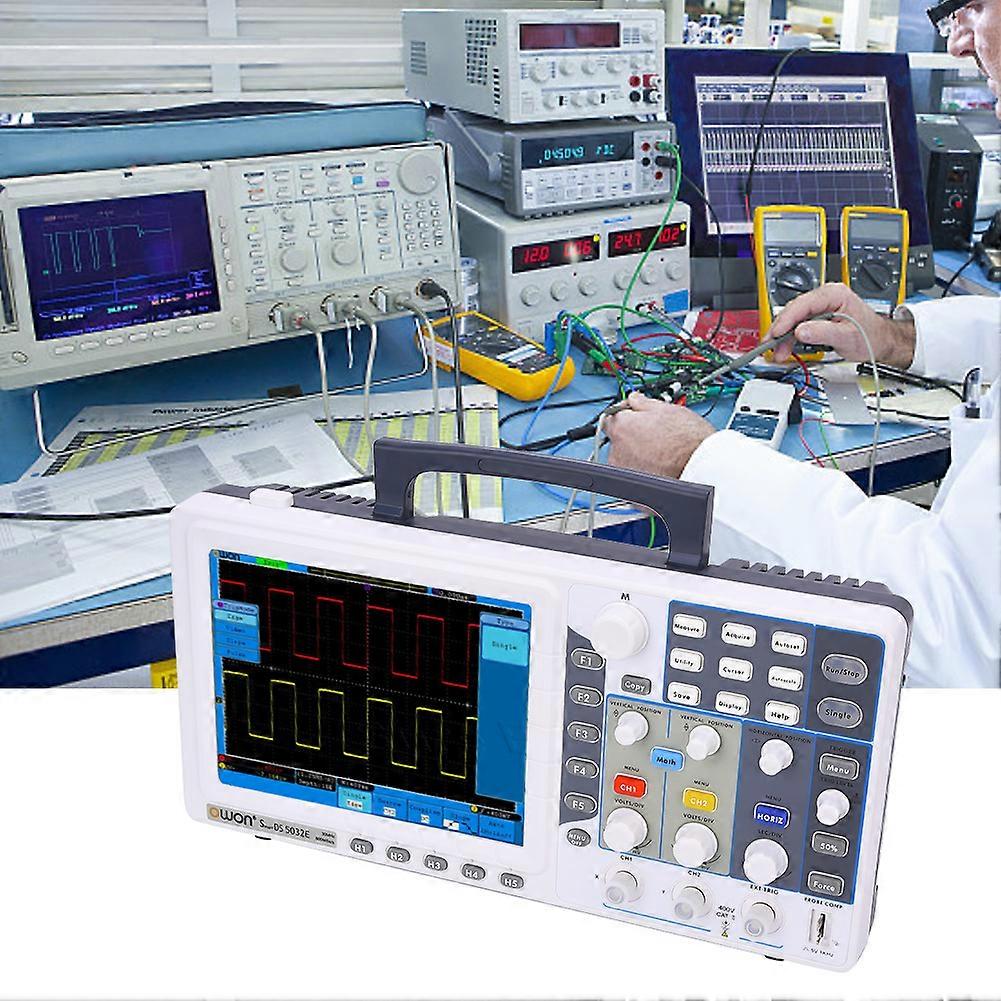

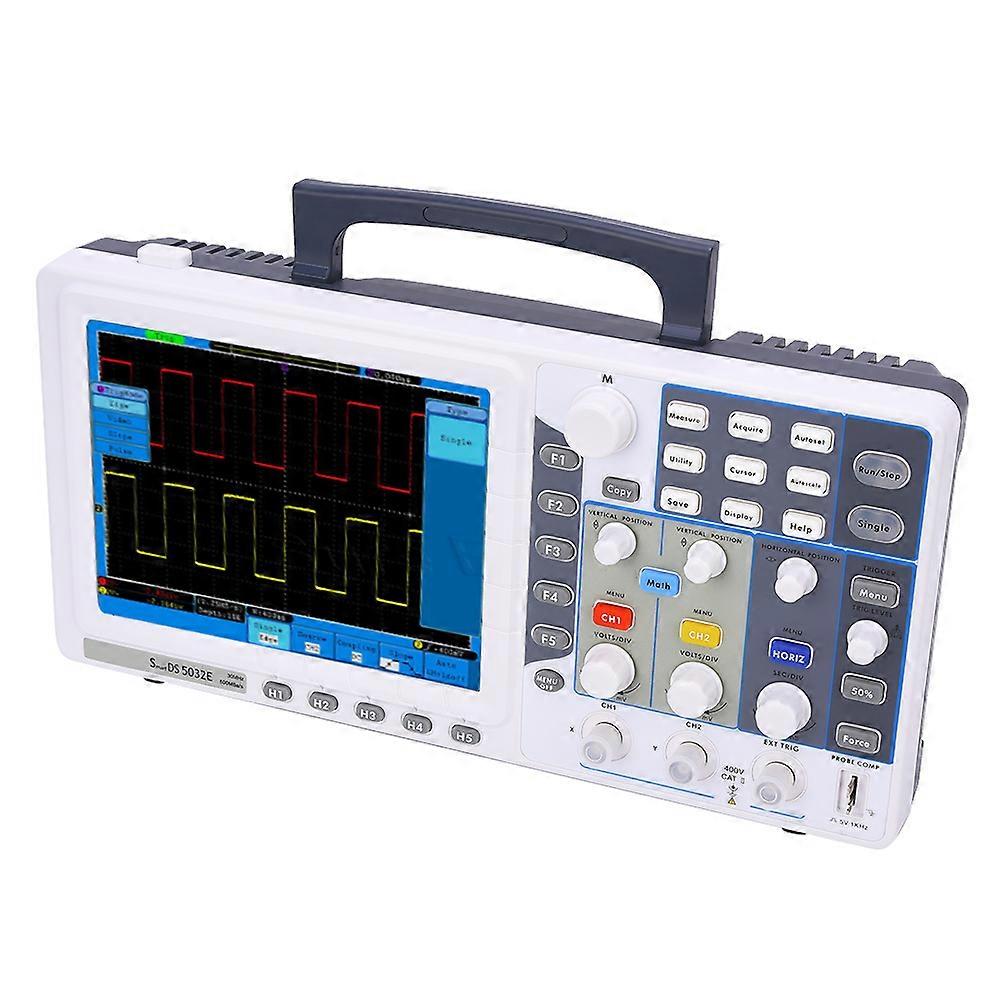

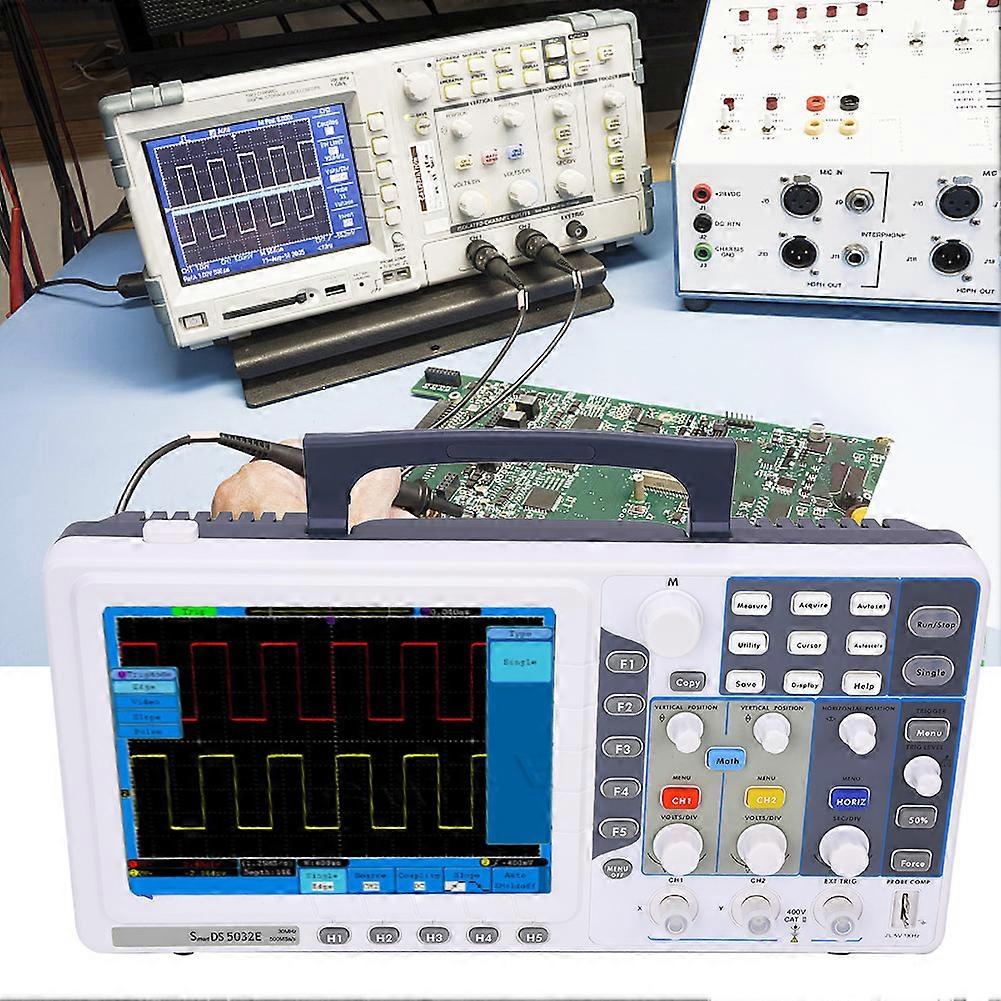

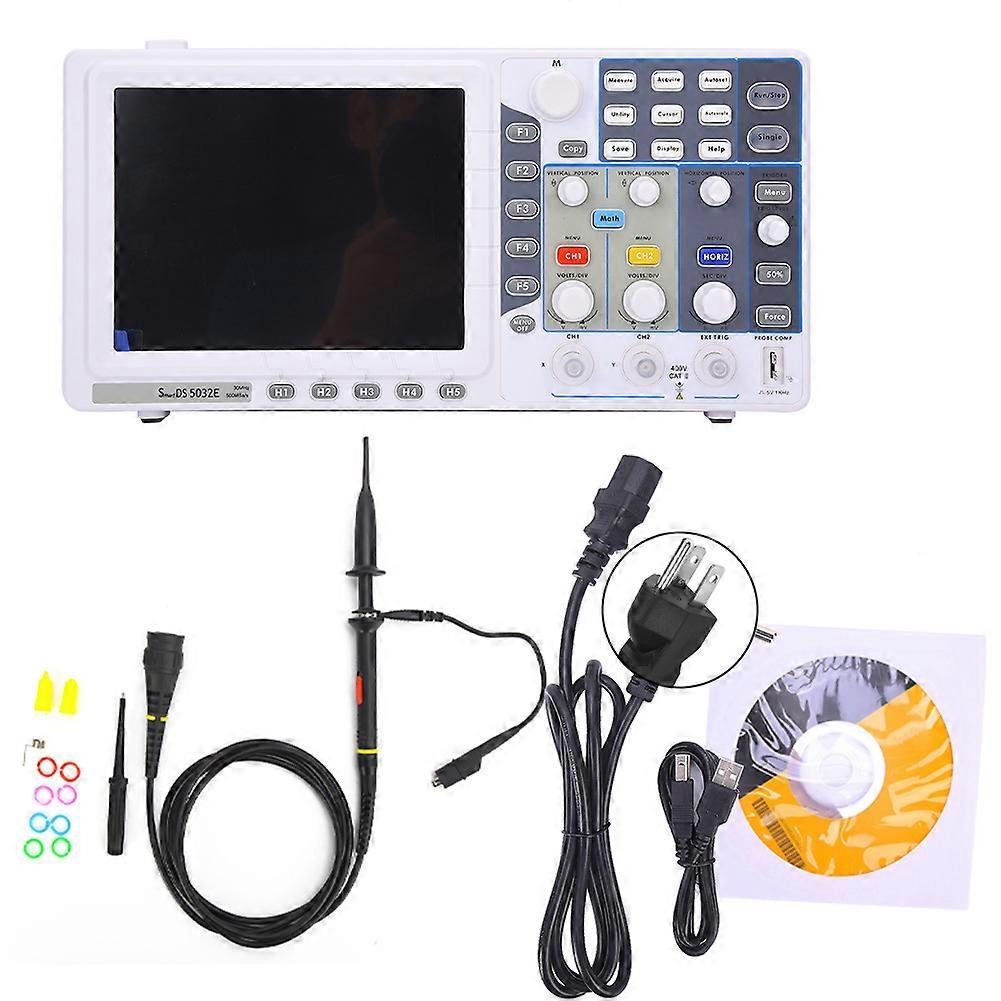

Feature:1. The real time sampling rate is up to 1GS/s and the bandwidth is up to 70MHz.2. This oscilloscope is powerful in function, practical to use and has long service life.3. With 8-inch (800x600 pixels) high resolution display, 100K storage depth, convenient to use.4. Support for pass/fail function and support for custom measurement menus to make work easier.5. Support for SCPI, occupying less operating space, easy to operate, easy to use, portable and easy to carry.Specification:Condition: Item Type: OscilloscopeMaterial: ABSModelSDS7072EBandwidth70MHzReal-time Sampling Rate1GS/sRise Time (Typical on BNC)5nsStorage Depth100KChannel2 Channels + External TriggerDisplay8-inch TFT (true color) LCD screen, 65535 colors, 800 600 pixelsTime Interval (T) Measurement AccuracySingle Time: (1 sample interval + 100ppm x reading + 0.6ns), > 16 average: (1 sample interval + 100ppm x reading + 0.4ns)Input CouplingDC, AC, GroundInput Resistance1M 2%, in parallel with 15pF 5pFTime Base Range2ns/div~100s/div, step by step in 1~2~4Vertical Sensitivity2mV/div~10V/div (at the input BNC)Vertical Resolution8bit resolution (simultaneous sampling of two channels)Maximum Input Voltage400V (DC+AC peak, 1M input impedance) (10:1 probe attenuation)Trigger TypeEdge trigger, video trigger, pulse width trigger, slope trigger, alternate triggerProbe Attenuation Coefficient1X, 10X, 100X, 1000XIsolation Between Channels50Hz: 100:1, 10MHz: 40:1Waveform InterpolationSin(x)/xSingle BandwidthFull BandwidthLow Frequency Response (AC Coupling, -3Db)10Hz (on the BNC)DC Gain Accuracy3%Trigger CouplingDC coupling, AC coupling, LF suppression, HF suppressionTrigger Level RangeInternal6 grids from the center of the screenEXT600mVEXT/53VTrigger Level Accuracy (Typical) for Signals with Rise and Fall Times 20nsInternal0.3 gridsEXT(40mV+6% set value)EXT/5(200mV+6% set value)Trigger Sensitivity (Video Trigger, Typical)Internal2 grids peak-to-peak valueEXT400mVEXT/52VTrigger ModeAutomatic, Normal, SingleSignal System and Line/Field FrequencySupport for NTSC, PAL and SECAM broadcast systems any field or line frequency(Video Trigger Type)Automatic MeasurementPeak-to-peak, mean, rms, frequency, period, maximum, minimum, top value, bottom value, amplitude, overshoot, preshoot, rise time, fall time, positive pulse, negative pulse width, positive duty cycle, negative duty cycle, delay AB, delay ABMathematical OperationAdd, subtract, multiply, divide, FFTStorage Waveform15 sets of waveformsLissajous GraphicsBandwidthFull BandwidthPhase Difference3 degreesCursor MeasurementVoltage difference between cursors (V), time difference between cursors (T)Standard InterfaceUSB HOST (USB storage), USB DEVICE, LAN, AUX (trigger output / PassFail)Power Supply110-240VAC RMS, CATIIProduct Size (Length x Height x Width)Approx. 348 x 170 x 78 mm / 13.7 x 6.7 x 3.1 in.Package List:1 x Oscilloscope1 x English User Manual1 x CD2 x Probe2 x Probe Adjustment Set1 x Power Line1 x USB Cable
