Introduction

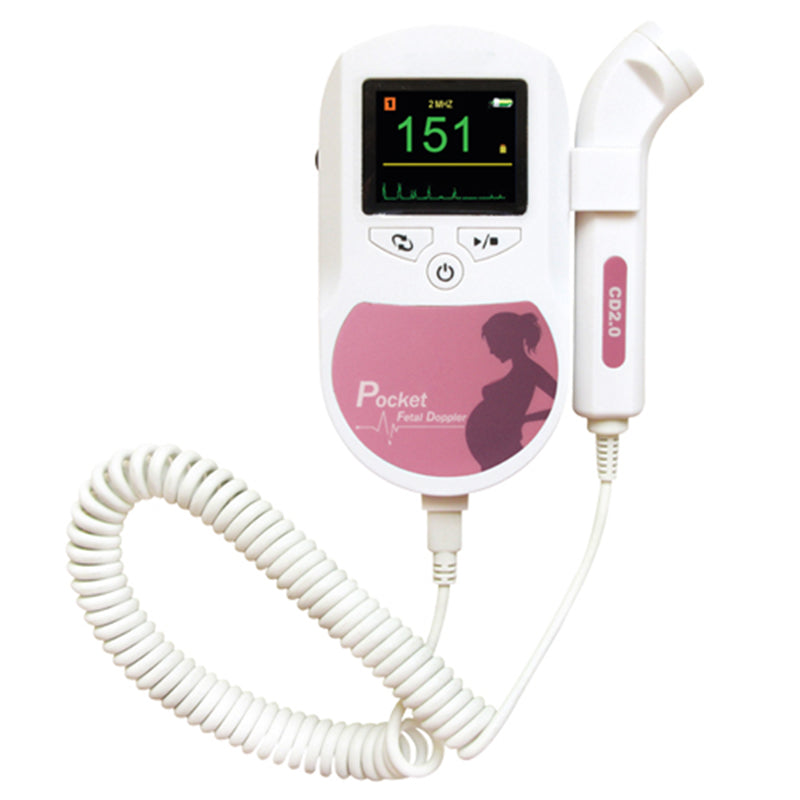

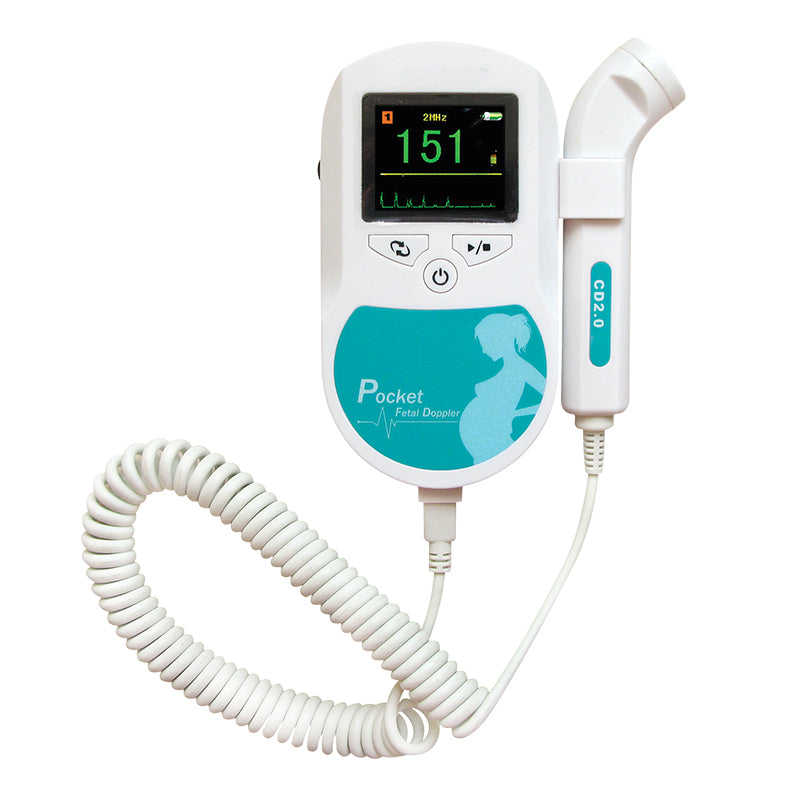

Sonoline C1 Pocket Fetal Doppler is a hand-held fetal
heart rate detecting device adopted Doppler theory. It displays fetal heart rate
on digital LCD screen. With easy and convenient operation, it can be used in
hospital and clinic for daily self-check by pregnant woman, realizing early
monitoring and care for life.
Features
1) Delicate and compact design, portable and easy to
use
2) Crooked probe structure, which is easy to operate and increases the
feeling of comfort, embodies the humanized design.
3) Three working mode:
Real-time FHR Display Mode, Averaged FHR Display Mode and Manual Mode
4) High
precision FHR digital LCD screen
5) Probe falls off detection, battery status
indication
6) Pluggable USB probe interface, probe can be replaced
7)
Automatic shutdown: The device will automatically turn off if there is no signal
within 1 minute.
8) Audio interface: Can be connected to other recording
devices by recording cable, record fetal heart sound in real-time
9) Two 1.5V
batteries (AA LR6) can last more than 8 hours for normal use
Performance
1) Safety classification: internally powered equipment,
type CF applied part
2) Display: 38 mm × 32 mm LCD screen
3) Range of
fetal heart rate: 50 BPM ～ 240 BPM (BPM: beats per minute)
4) Resolution: 1
BPM
5) Accuracy: ± 2 BPM
6) Power consumption: ＜1 W
7) Rated
operational voltage: DC3 V
8) Battery: two 1.5V batteries (type: AA
LR6)
Probe
1) Nominal Frequency: 2.0 MHz
2) Working Frequency: 2.0 MHz
± 10%
3) Maximum Output Sensitivity: ≥90 dB
4) Ultrasonic Output Power: P
＜ 20 mW
5) Negative Peak Sound Pressure: P_ ＜ 1 MPa
6) Output Beam
Intensity: Iob ＜ 20 mW/cm2
7) Spatial-peak Temporal-average Derived
Intensity: Ispta ＜ 100 mW/cm2
8) Working Mode: Continuous wave doppler
9)
Effective Radiating Area of Transducer: < 157 mm2
Accessories
User manual 1
2MHz crooked probe 1
Physical
characteristic
Dimension:
135 mm(L)×92 mm(W)×29 mm(H)
Weight: about 245 g (with
battery)
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
