Features:

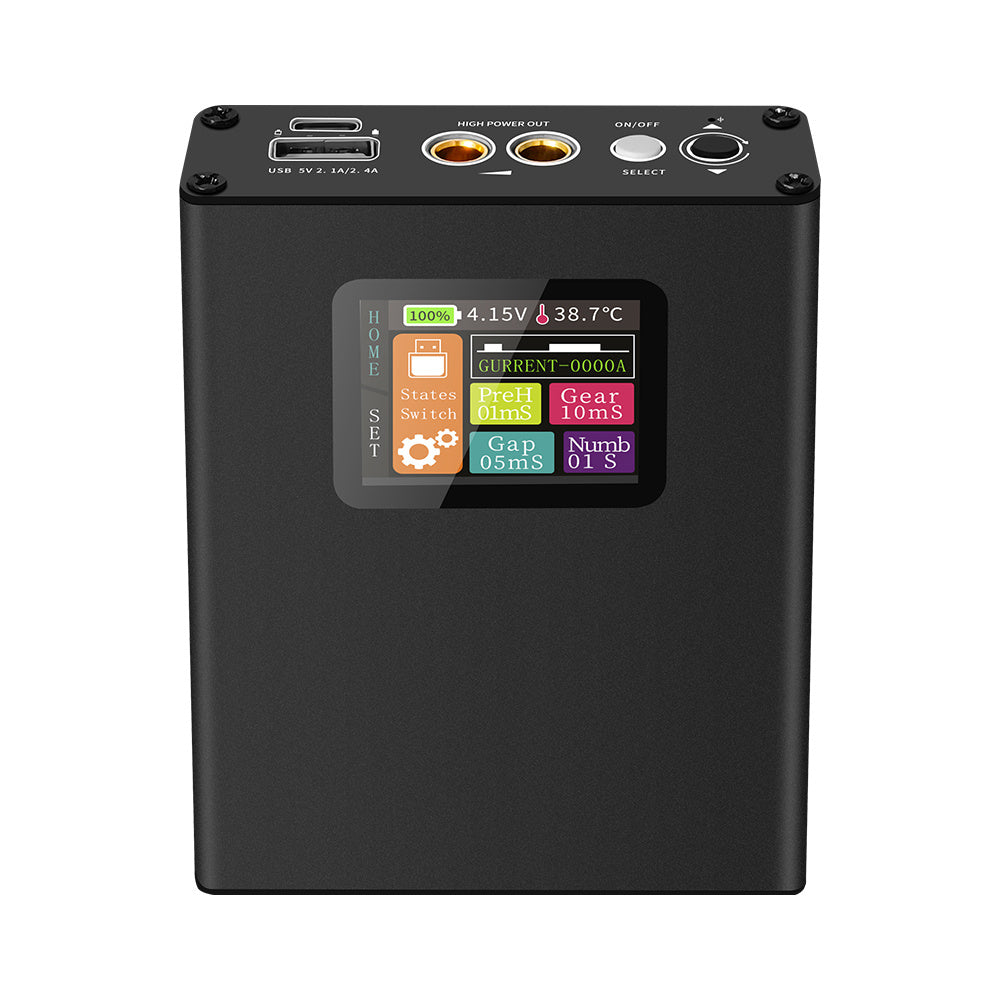

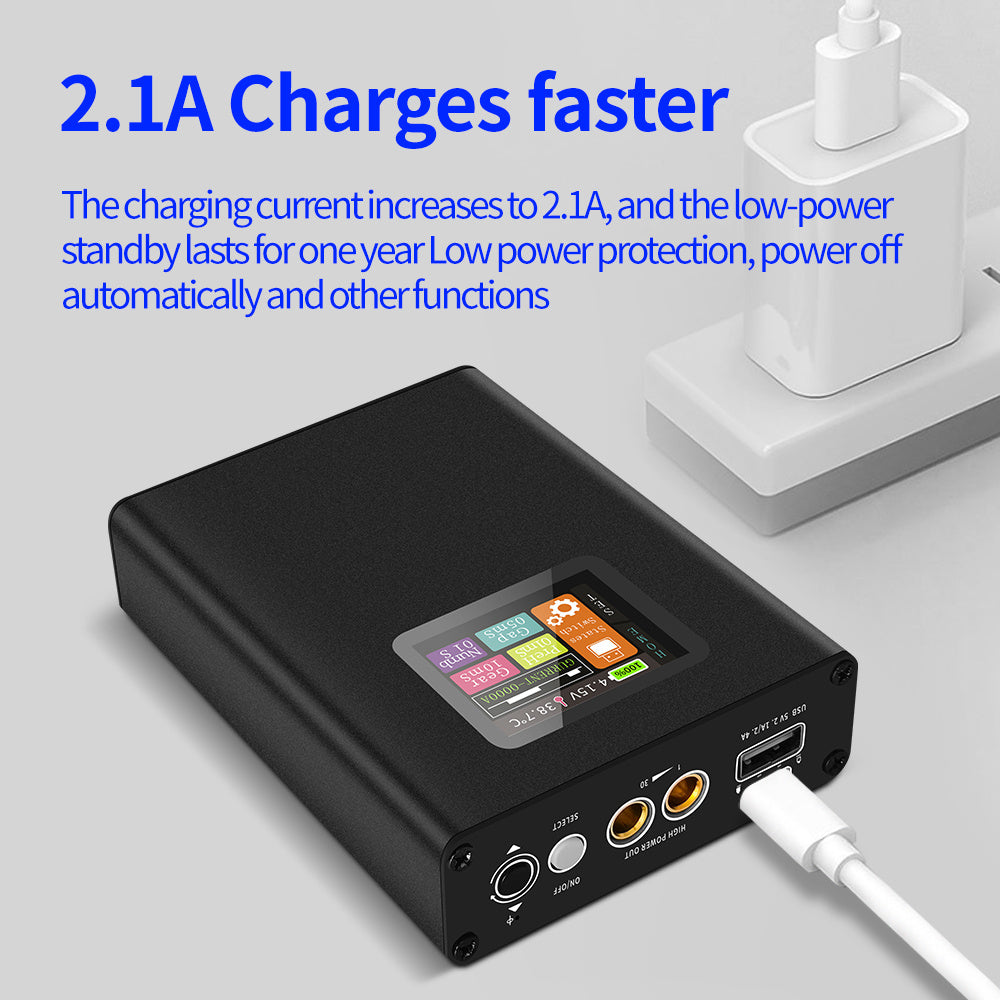

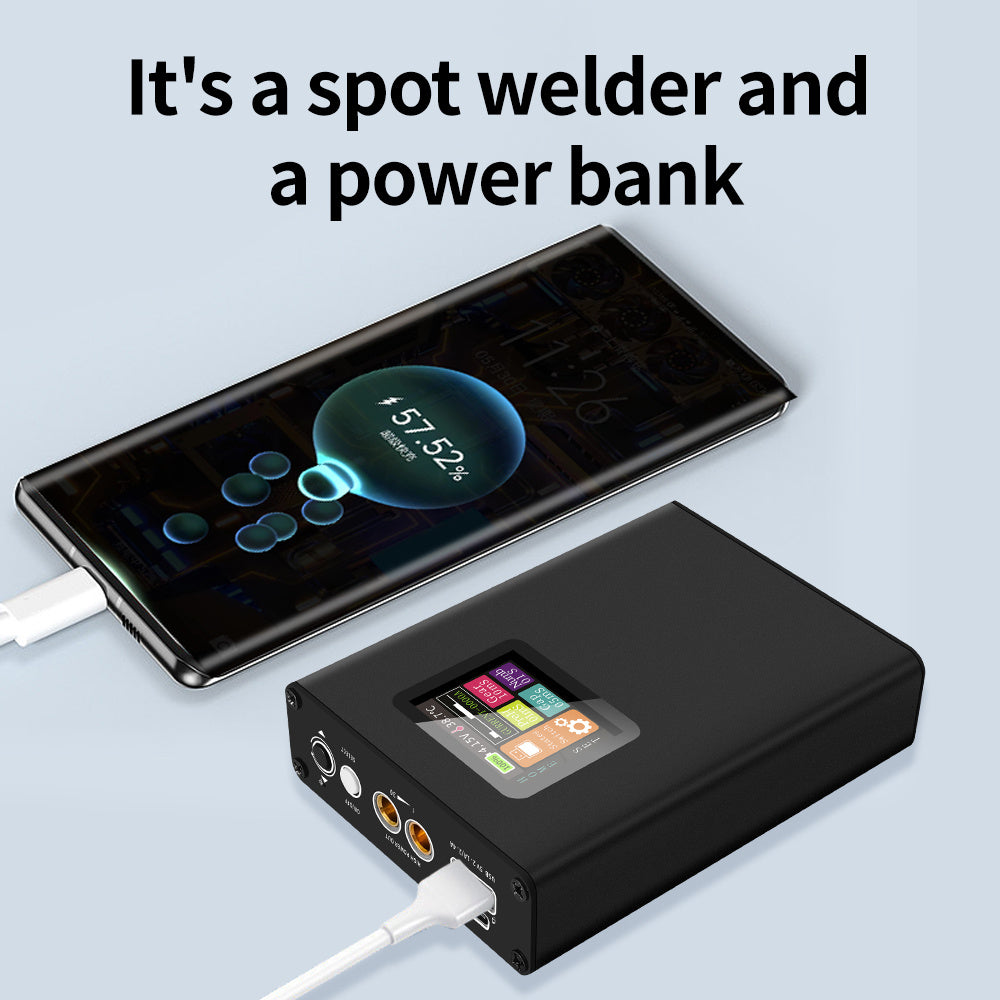

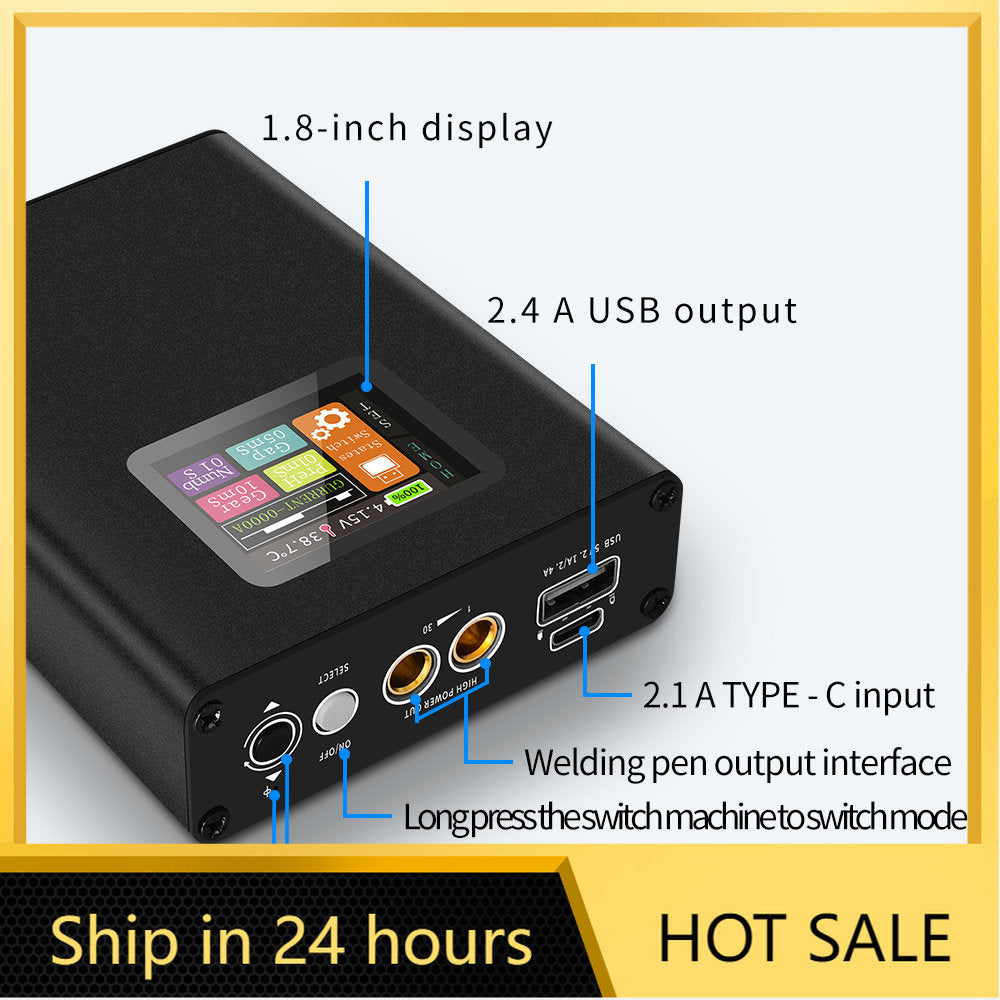

Multifunctional Design: With rechargeable capability, fast charging, built-in welding ammeter, low power consumption standby, with silent mode.

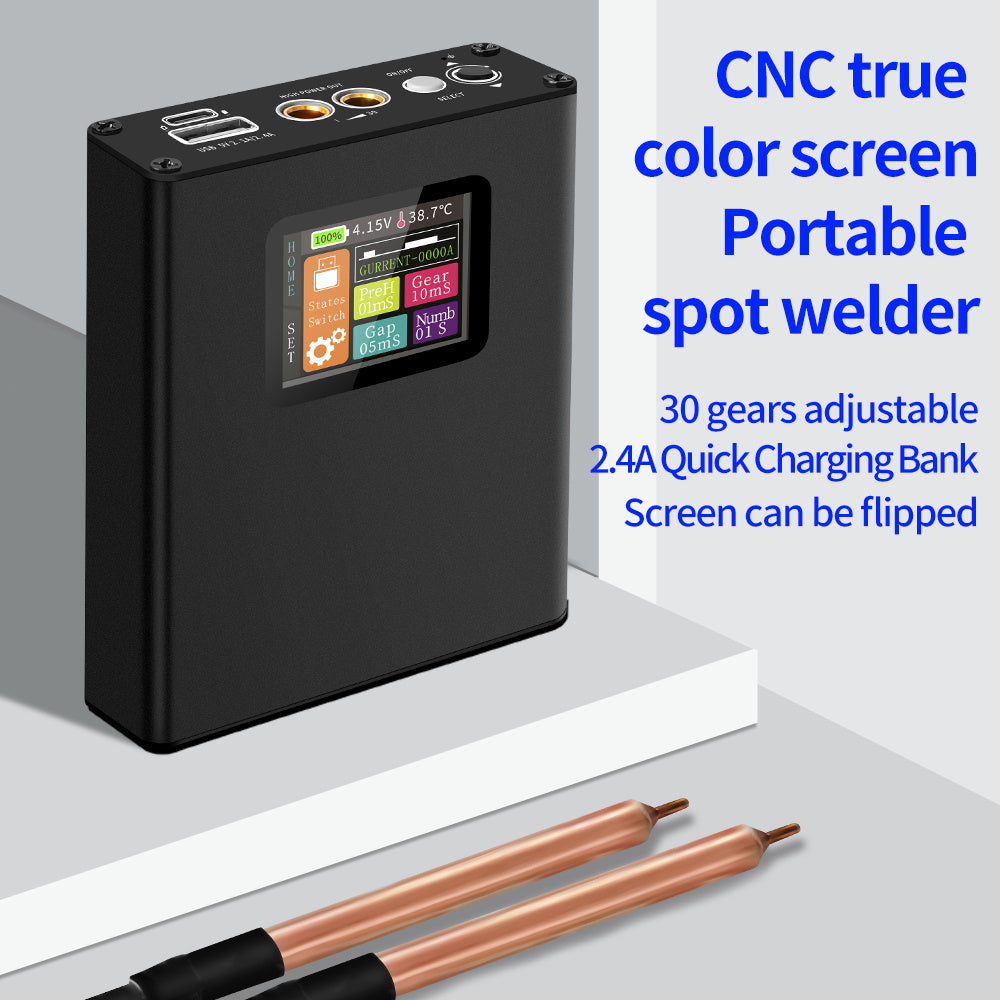

Strong Welding Capacity: The spots welding machine has two built-in high-rate power lithium batteries, and the single-chip CNC outputs a powerful pulse current for spots welding. It can firmly welds 0.25mm nickel-plated steel sheets and 0.15mm pure nickel sheets at full-charged. The welding process is more accurate and the welding spots are more solid and beautiful.
Multiple Protections: over-current protections, short-circuit protections, low battery protections, over-temperature protections, over-temperature alarms, and with automatic shutdown function.
Premium Welding Pen: 8 mm diameter, 400 mm length, 8AWG wire consists of multiple strands of high-temperature wire with high torsional resistance and more sensitive operation. Thick gold-plated interfaces with alumina copper spots welding needles to ensure high current passing capacity and durability
Specifications:
Name: Spots Welding Machine Set
Material: printed circuit board
Battery: 1 * 3.7V, 5000mAh battery (included)
Input: 4.2V±0.05V
Welding current: 6-800A
Over current protections: 1.12KA
Input voltage: 5.2V, 2.1A
Output voltage: 5V, 2.4A
Welding delay: 0.5-2s
Continuous point interval: 0.8-1.2s
Save voltage: 4.0-4.15V
Shutdown voltage: 3.3-3.7V
Active shutdown: 5-120min
Alarm temperature: 50-75℃
Language: Chinese and English switch
Storage temperature: 55℃
Storage humidity: 50%RH
Welding thickness: 0.1-0.25mm
Item size: 112 * 80 * 30mm / 4.41 * 3.15 * 1.18in
Package size: 180 * 110 * 50mm / 7.09 * 4.33 * 1.97in
Package weight: 390g / 13.76ounce

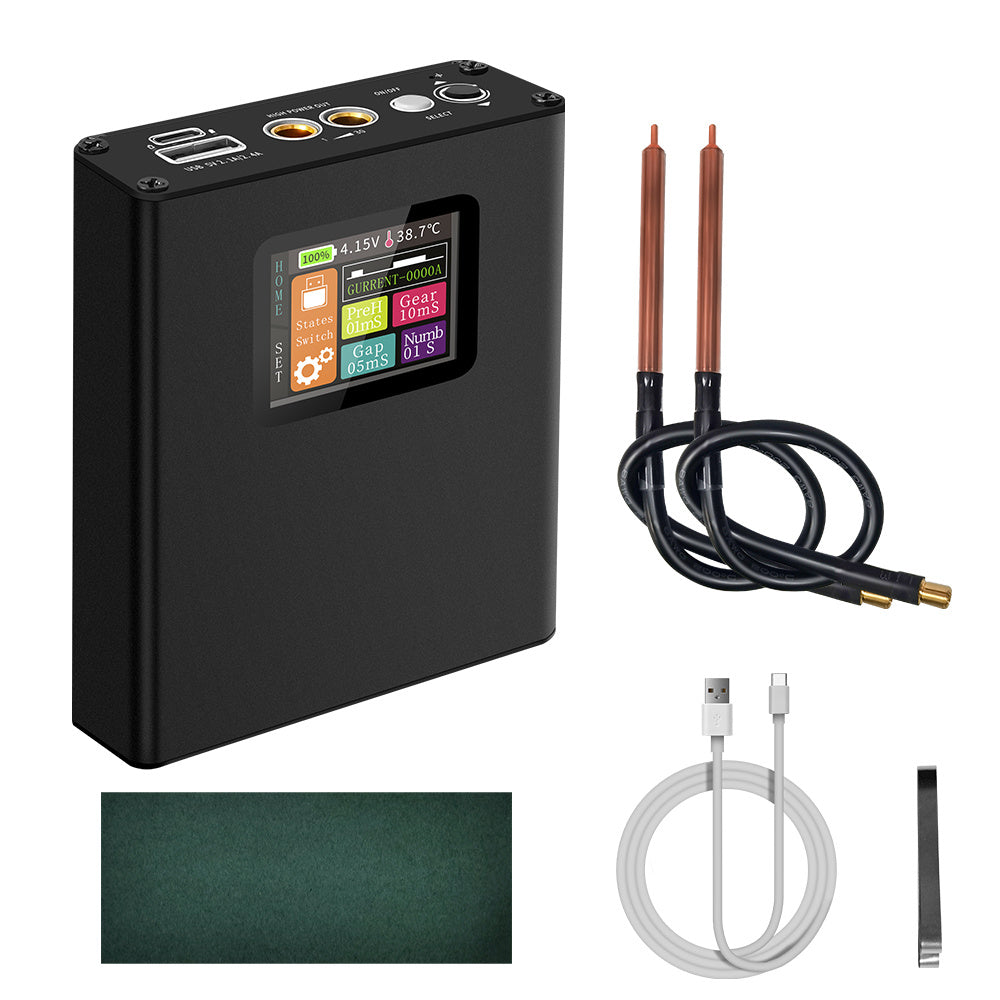

Packing List:
1 * Welding Machine
2 * Welding Pen
1 * Nickel Sheet
1 * Type-C Cable
