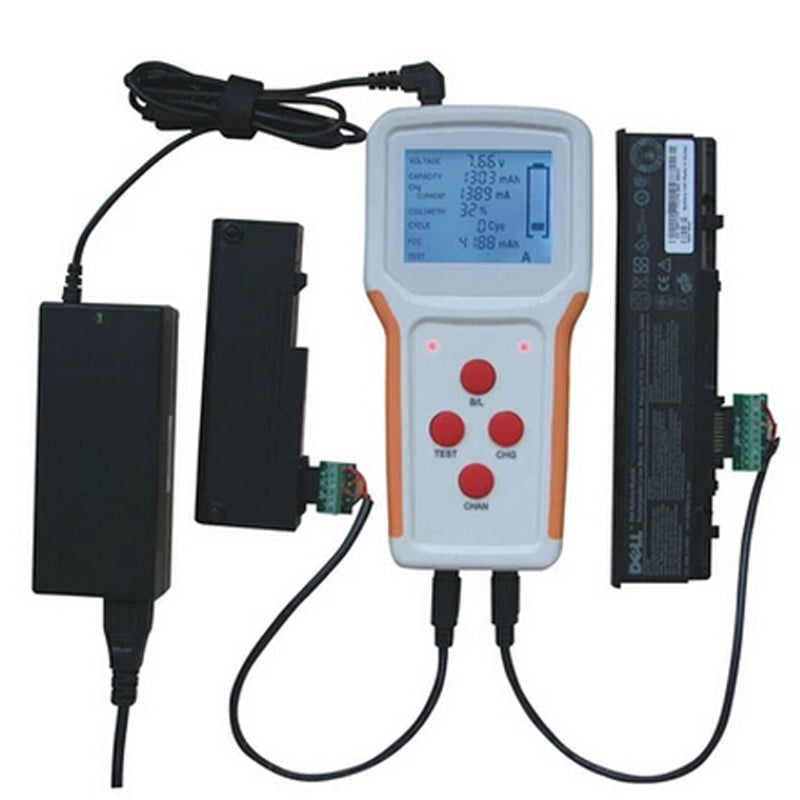

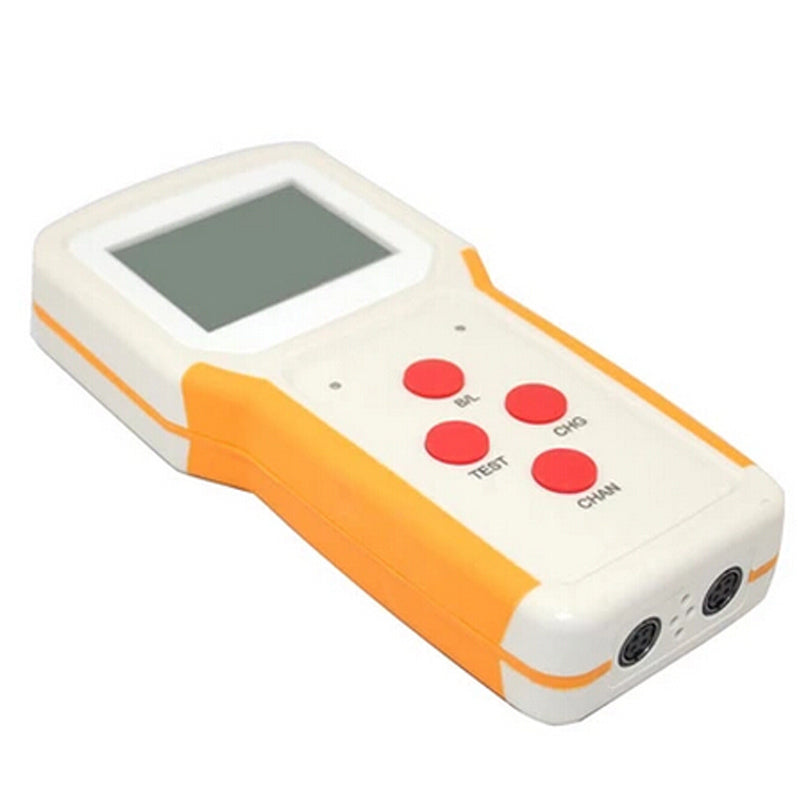

Function:
*Charging: Two channels can work independently and serve two intelligent batteries separately. Active, pre-charge, constant current and constant voltage are the stages of charging mode. The initial charging mode depends on the battery voltage, so active and pre-charge don't happen to every batteries.
*Test: Testing time is 30s and the purpose is to check both the charging and discharging performances.
*Online Functions:Tester can be connected with master machine via a USB port. Users can monitor, control and set parameters via Battery Manager software in the master machine.
*Monitoring:Battery information can be monitored via three windows.
*Control:Battery Manager can control slave machine completely. Right-click menu on the battery bar includes the related commands.
*Parameters:Users can set working parameters via set parameter window in Battery Manager.
Features:
*Supporting two intelligent batteries at once
*With charge and test functions
*LCD for displaying battery informaiton
*LED for indicating working status
*Pre-charge, fast charge and constant voltage charge for charging stages
*With a USB port for connecting with computers, master machine can monitoring and control slave machine
Basic Parameters:
*Dimensions: 201 x 99 x 35 mm
*Weight: 1.5kg
*Adapter
Input: AC 100 ~ 240 V
Output: DC 19V 4.74A
*Display mode
Segment LCD with white backlight + LED in red and green
*Charging mode
Constant current + constant voltage
*Charging current
Maximum charging current of each channel: 2.5A
*Standby power consumption
Less than or equal to 1W
*Working temperature
0~40 degree C 20%-90% RH (Non condensation)
*Storage temperature
-20 DEG C~65 DEG C 10%-95% RH (Non condensation)
*Maximum charging time: 8 hours
Accessories:
1 x Tester
1 x Load
1 x Load wire
1 x Adapter
1 x USB Cable
1 x CD
14 x Connecting wire
10 x cable
10 x Jumper Wire
