Characteristic:

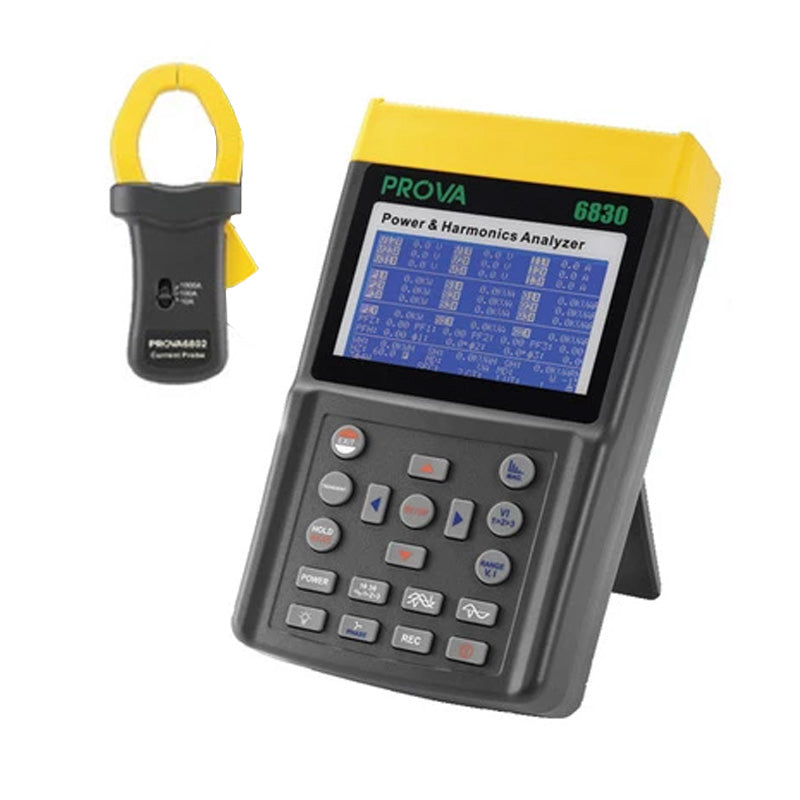

TES-6800+3007

Applicable to various power systems (three-phase four wire, three-phase three wire, single-phase two wire, single-phase three wire)

Current and voltage are true root mean square values (True RMS)

Real power, Watts (W, KW, MW, GW)

At power (VA, KVA, MVA), virtual power (VAR, KVAR, MVAR)

Power factor (PF), phase angle（ Φ）

Watt hour, power consumption (WH, KWH, KVARH, PFH)

The current measurement ranges from 0.1mA to 3000A, which can measure the standby power consumption of small IT to the large demand of large power systems

One screen simultaneously displays 35 three-phase four wire power parameters

CT ratio (1 to 600) and PT ratio (1 to 3000) can be set

Display voltage and current waveforms at the same time to understand the relationship between them

Large demand of display system zui (average power consumption AD is expressed in W, KW, MW)

Display the large demand of the system zui (the large demand MD of zui is represented by W, KW, MW, and the user can set the evaluation time)

Large dot matrix LCD display with backlight

Optical USB interface

Built in clock and perpetual calendar for record

Current and voltage harmonic analysis can be up to 99 times

One screen displays waveform and 50 harmonics at the same time

High speed sampling speed (1024 points per cycle) to display the waveform, and point out that the zui is big and the zui is small

Analysis of percentage of total harmonic (% THD-F)

Show various power system phase diagrams (Phasor Diagram) to understand the voltage current relationship between phases

Detect the transient instability of voltage, record 28 occurrence points (time+several cycles), and the user can set the upper and lower limit percentage (%)

Display three-phase voltage unbalance ratio (VUR)

Display three-phase voltage unbalance factor percentage (d0%, d2%)

Display unbalanced current of neutral line (In)

The memory capacity can record 17000 records of three-phase four wire system, and the user can set the time for regular recording (2 to 6000 seconds)

Instantly output waveform, power system parameters or 100 harmonics and other data

Part diameter (Model 3007 is the diameter of soft sensor): - Model 6801 30mm (approx) - Model 6802 55mm (approx), 64 * 24mm (bus bar) - Model 3007 170mm (approx)

Specifications:

AC Watt (50 or 60Hz, PF 0.5 to 1. CT=1)

                  Range

   Resolution

   Reading accuracy (6830+6801)

   Reading accuracy (6830+6802)

   Reading accuracy (6830+3007)

       5.0 – 99.9W

   0.1W

   ±1% ± 0.8 w

   ±1% ± 0.8 w

   ±1% of Range

       1.000 – 9.999 KW

   0.001 KW

   ±1% ± 8 w

   ±1% ± 8 w

   ±1% of Range

       10.00 – 99.99 KW

   0.01 KW

   ±1% ± 8 0w

   ±1% ± 8 0w

   ±1% of Range

       100.0 – 999.9 KW

   0.1 KW

   ±1% ± 0.8kw

   ±1% ± 0.8kw

   ±1% of Range

       1000 – 9999 KW

   1 KW

   ±1% ± 8kw

   ±1% ± 8kw

   ±1% of Range

       0.000 – 9.999MW

   0.001MW

   –

   ±1% ± 8 0kw

   –

AC (alternating current) current (50 or 60Hz, automatic gear, true root mean square value, wave crest factor<4, CT=1)

   Range

   Resolution

   Reading accuracy

       6830+6801(Overload protection AC200A)

   0.050 – 9.999A

   0.00A

   ±0.5%

       10.00 – 60.00A

   0.01A

   ±0.5%

       60.00 – 99.99A

   0.01A

   ±0.1%

       6830+6802(Overload protection AC2000A)

   0.04 – 10.00A

   0.01A

   –

       0.4A – 100.0A

   0.1A

   ±0.5%

       4.0 – 1000.0A

   1A

   ±0.5%

       6830+ 3007(Overload protection AC3500A)

   4 – 300A

   0.1A

   ±1% of Range

       300.0 – 999.9A

   0.1A

   ±1% of Range

       1000 – 3000A

   1A

   ±1% of Range

AC (alternating current) voltage (50 or 60 Hz, automatic gear, true root mean square value, wave crest factor<4, input impedance 10M Ω, VT (PT)=1CT=1800V overload protection)

                    Range

   Resolution

   Reading accuracy

   Range

   Resolution

   Reading accuracy

       4.0V – 500.0 （Phase to Neutral）

   0.1V

   ± 0.5% ± 5dgts

   4.0V – 600.0V （Phase to phase）

   0.1V

   ± 0.5% ± 5dgts

Harmonic intensity of AC (AC) current (order 1-99) 6801 small current hook, suitable for CT

                  Range

   %

   Current value (A)

       Resolution

   Reading accuracy

   Resolution

   Reading accuracy

       1 – 10 th

   0.001

   ±0.25 of reading ±1%

   0.1mA / 0.1A

   ±0.2% of reading ±7dgts

       11 – 20 th

   ±2% of reading ±1%

   ±2% of reading ±7dgts

       2 1 – 50 th （A range）

   ±5% of reading ±1%

   ±5% of reading ±7dgts

       2 1 – 50 th （mA range）

   ±10% of reading ±1%

   ±10% of reading ±7dgts

       5 1 – 99 th

   ±35% of reading ±1%

   ±35% of reading ±7dgts
