Advanced, Innovative DAW Control

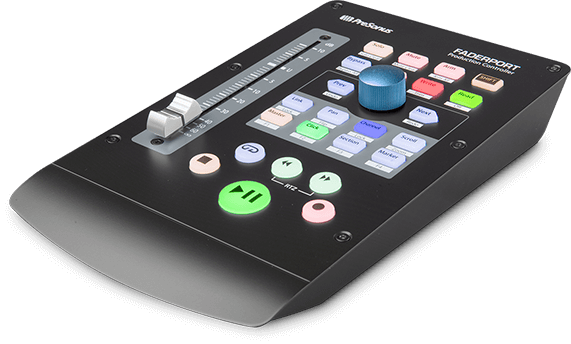

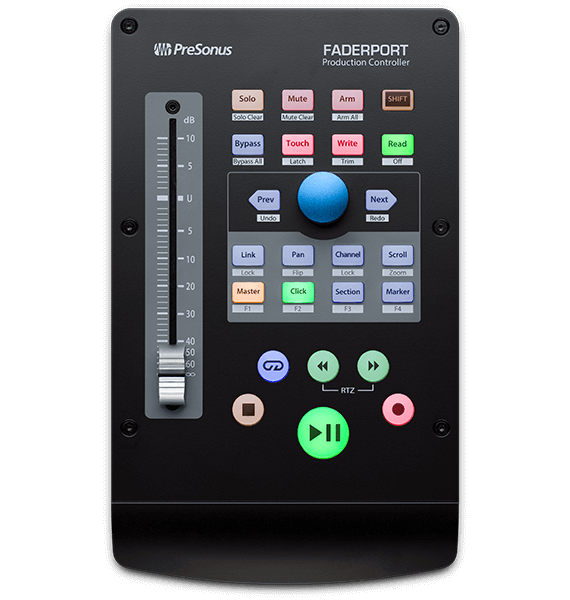

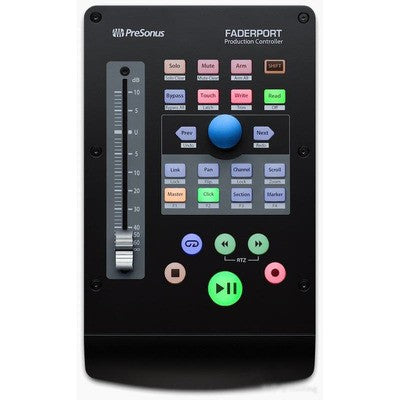

FaderPort®: USB Production Controller

Don’t kill that mouse—give it a companion.

Although a keyboard and mouse are tried-and-true DAW-control devices, they’re far more effective when used in tandem with the FaderPort®’s precise tactile control over mix and automation functions. A superior solution for anyone who mixes in the box, the FaderPort provides a 100 mm touch-sensitive, motorized fader for writing fades and automation in real-time and 24 buttons covering 40 different functions, all in a compact chassis that easily sits on any desk. Quickly zoom in on audio files for editing. Control track levels with the touch of a finger. With the FaderPort, you’ll enjoy the fastest, most efficient workflow you’ve ever experienced.

Work smarter.

We've incorporated elements from the award-winning FaderPort 8 into our new and improved FaderPort. Rather than forcing you to revise your mixing method, the FaderPort augments the way you currently mix. You still use your faithful keyboard and mouse for things they do well, and the FaderPort handles what you really want to get your fingers on: your mix. This is DAW control the way you always hoped it could be!

One-button access to key functions.*

The FaderPort's unique Session Navigator provides easy access to eight mission-critical functions for maximum flexibility. Use the large encoder button and companion buttons to edit and mix with greater efficiency and speed. Scroll through your timeline, using the encoder, or work measure by measure with the arrow buttons; zoom in and out on the timeline with the encoder and make your tracks larger or smaller with the arrow buttons; navigate and drop markers; and maintain constant control of your main level. Once you start using the Session Navigator, you’ll wonder how you mixed without it.

* Features may vary depending on your software.

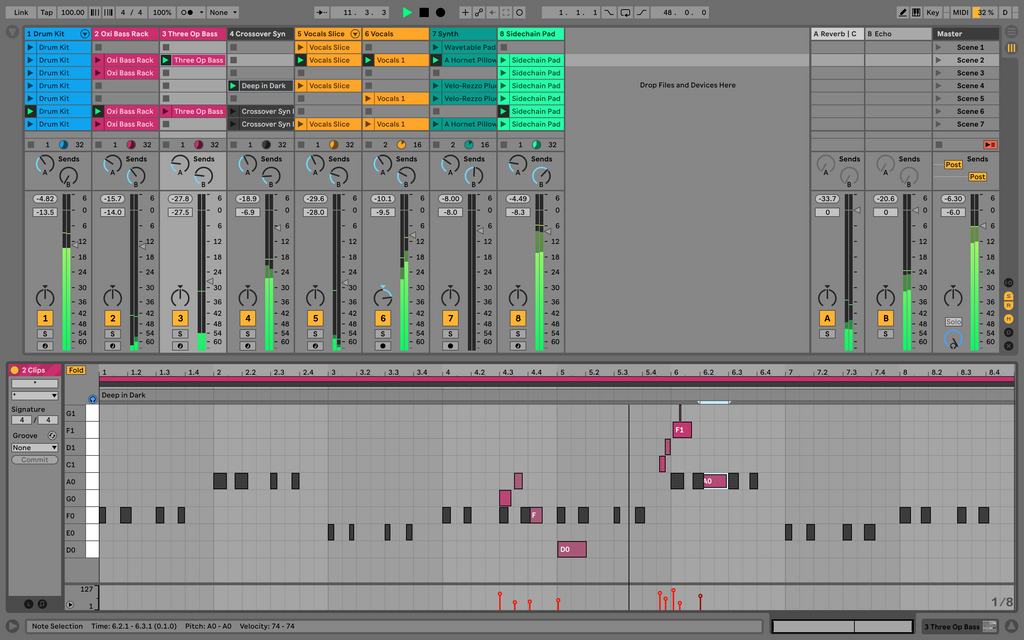

Universal compatibility. Integrated with Ableton Live.

While compatible with most third-party software, FaderPort offers deeper integration with Ableton Live (version 10.1.5 and later). Navigate clips and scenes, change track volume and panning, and switch between Session and Arranger views — the FaderPort will help you work faster than ever. Even better: If you purchase a FaderPort after January 18, 2020, a free copy of Ableton® Live Lite will be dropped in your My.PreSonus account.

FaderPort’s streamlined workflow and support for the Mackie Control and HUI protocols also make it fast and easy to control Logic Pro X, Cubase, Pro Tools, and more. No driver installation is necessary; just plug the control surface into a USB port and take command of your mix.

An amazingly fast, efficient studio workflow awaits you!

With the compact, easy-to-use FaderPort, you’ll enjoy the fastest, most efficient workflow and the most session control you’ve ever experienced. But don’t just take our word for it; visit your favorite PreSonus dealer and try the FaderPort for yourself!

Apple Silicon, iOS, and iPadOS compatibility—standard.

The PreSonus FaderPort is natively compatible with Apple Silicon-based Mac computers*, as well as iOS and iPadOS devices, including iPad Pro, iPad, iPad Air, iPad Mini, iPod Touch, and iPhone. Because it's USB class-compliant, there are no special drivers or applications to download and install. You'll be able to produce on the go—everything from podcasts to folk rock to trap—wherever sound takes you.

For more on iOS/iPadOS compatibility, click here.

*Universal Control 3.4.2 or later is required for Native Apple Silicon compatibility.

 Feature:

  Single touch-sensitive, 100 mm long-throw, motorized fader

 Large, 360° button encoder

 Complete recording-transport controls: Play, Stop, Fast Forward, Rewind, Record, Loop

 Drop Marker, Next/Prev Marker, Next/Prev Event

 General session controls: Undo/Redo, Arm All, Solo/Mute Clear, Click On/Off

 Session Navigator provides quick control over Track Scrolling, Timeline Scrolling, and much more

 Channel Controls: Level, Pan, Solo, Mute, Rec Arm

 Automation Controls: Touch, Latch, Trim, Write, Read, Off

 macOS®- / Windows®-compatible with native Studio One® support and HUI and Mackie Control Universal emulation

 Footswitch input for hands-free start/stop (footswitch not included)

 USB 2.0 connectivity

Tech Specs

Computer system requirements:

Below are the minimum computer-system requirements for use for FaderPort®.

macOS®

 macOS version 10.13 or later

 200 MB storage space for Universal Control (required for firmware updates)

 Available USB port

Windows®

 Windows 10 or later (64-Bit Only)

 200 MB storage space for Universal Control (required for firmware updates and low-latency ASIO support)

 Available USB port

The above are the hardware system requirements for this product.

DAW software and Operating System requirements vary.

Click here for Studio One’s system requirements.

PreSonus® FaderPort has been tested and approved to work with the following software:

      Native Mode

     PreSonus Studio One® 3.5.6 with extension*** or Studio One 4.0.1 or later

      HUI Emulation

     Supported by Pro Tools 12 and higher

      Mackie Universal Control Emulation**

     Supported by Logic, Cubase, Nuendo, and Ableton

* A firmware update is currently required for full functionality. Please download and install the latest version of Universal Control and run the firmware updater when prompted. See the FaderPort Owner's Manual for instructions.

** Users of third-party DAWs not listed that support the Mackie Control protocol, such as Reason, Bitwig Studio, and Reaper, should contact their DAW vendor for support.

*** For more information, please see https://support.presonus.com/hc/en-us/articles/360005017651-How-do-I-use-new-FaderPort-with-Studio-One-3-5-6-.

As a commitment to constant improvement, PreSonus Audio Electronics, Inc., reserves the right to change any specification stated herein, at any time, without notification.

 Technical Specifications

          Input / Output

    1 USB 2.0 port

    1 Footswitch jack for hands-free stop/start

          Faders

    1 100 mm long-throw, touch-sensitive, motorized fader

    Dual-servo motorized drive belt system for fast and quiet operation

    Ultra-smooth feel and lightning fast

    Heavy-duty construction

    Resolution: 10-bit, 1,024 steps

      Buttons and Knobs

       General Controls

   360° button encoder, Undo/Redo, Arm All, Solo/Mute Clear, Click On/Off, 4 Function buttons, Parameter Link, Bypass Plug-ins

       Channel Controls

   Level, Pan, Solo, Mute, Rec Arm

       Automation Controls

   Touch, Latch, Trim, Write, Read, Off

       Transport

   Play, Stop, Fast Forward, Rewind, Record, Loop, Return to Zero (Functionality varies slightly, depending on the DAW.)

       Navigation

   Track Scroll, Timeline Scroll, Horizontal Zoom, Vertical Zoom, Drop Marker, Pre/Next Marker, Prev/Next Event, Scrub, Nudge

      Power

   Motorized fader requires 12 VDC, 1.2A external power supply (factory configured, included)

      Physical

       Dimensions

       Height

   1.8” (45 mm)

       Depth

   5.5” (140 mm)

       Width

   9” (230 mm)

       Weight

   1.5 lb. (0.68 kg)
