Product Features:
- 4-20mA, with 1 A resolution
- Basic Accuracy 0.025% + 5 A
- Auto-Ramp and Easy Step Functions
- 1-100% Input
- 0-20mA, 0-24mA Selectable
- Easy Just-Type-in Number Operation
Specifications:
Electrical Specifications: (23C5C)
mA DC Current: (1K Max. Load, 24V Loop Supply)
Range
Resolution
Accuracy
0 4mA
1A
0.025% 10A
4 20mA
1A
0.025% 5A
20 24mA
1A
0.025% 5A
Beeper warning when output is open and specified output > 1mA
V DC Voltage
Range
Resolution
Accuracy
0 4V
1mV
0.05% 10mV
4 20V
1mV
0.05% 5 mV
20 24V
1mV
0.05% 5 mV
Beeper warning when output is short and specified output > 100mV
General Specifications:
Dimension:
88 x 168 x 26 mm (3.46" x 6.61" x 1.03")

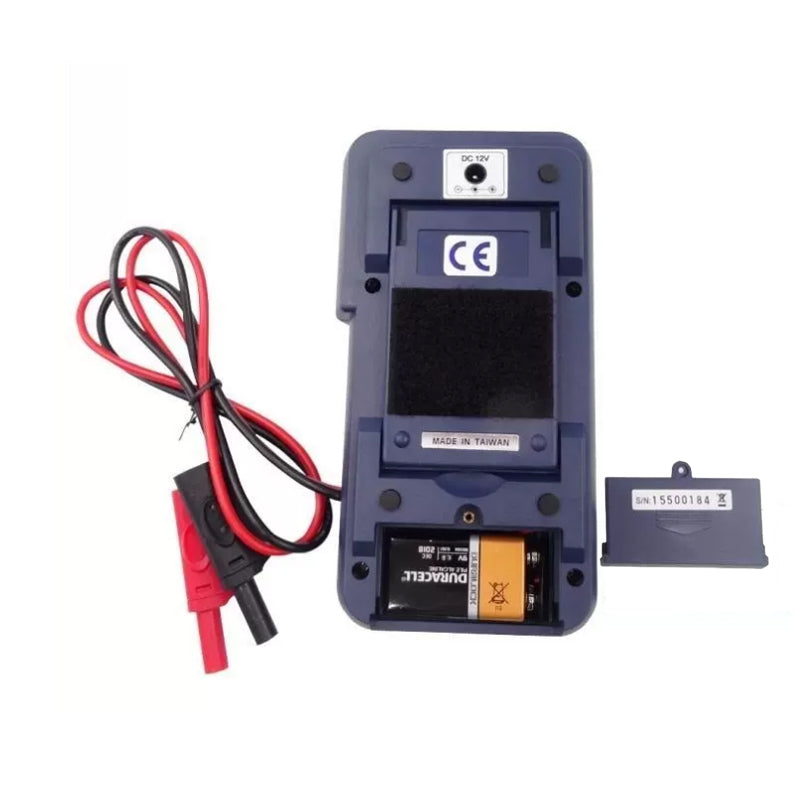

Battery Type:
9V Alkaline Battery
Display:
4+ 5 Digits
Power Consumption:
25 mA at 100 load
Operating Temperature:
0C to 50C (32F to 122F)
Operating Humidity:
less than 85% relative
Storage Temperature:
-20C to 60C (-4F to 140F)
Storage Humidity:
less than 85% relative
Weight:
330g / 11.63 oz

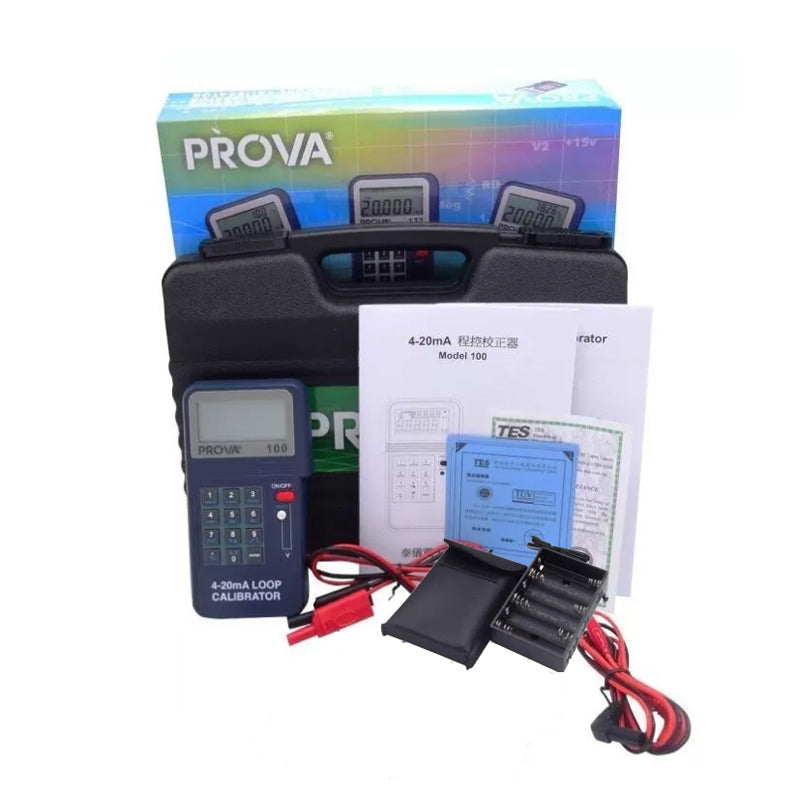

Accessories:
Carrying case x 1; Users Manual x 1;
