Feature:

 1. Support measurement frequency up to 2700MHz, can measure resistance, reactance, standing waves, s11.

 2. Built‑in protection against overvoltage, overcurrent and short circuit, with stable performance.

 3. Equipped with a 2.4in TFT display with a resolution of 320x240 and can be set to automatically shut down.

 4. Selected high‑quality alloy materials, durable and can be used for a long time.

 5. Antenna analyzer has high measurement accuracy, stable appearance and good performance.

         Specification:

         Item Type: Antenna Analyzer

 Material: Alloy

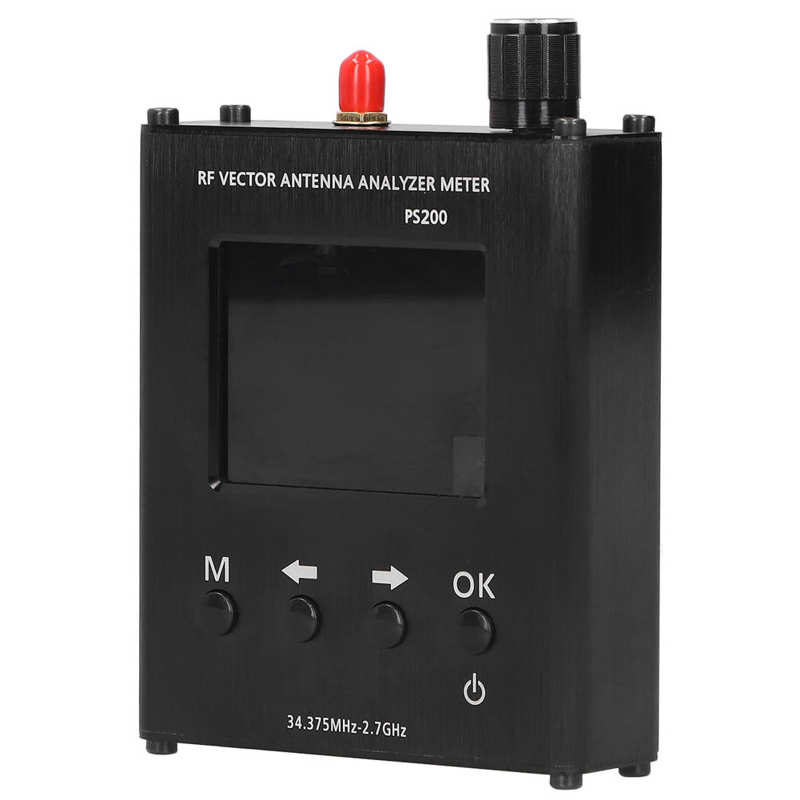

 Model: PS200

 Working Frequency:34.5MHz-2700MHz

 Frequency Step: 1kHz

 Display: 2.4in TFT Resolution 320x240 (QVGA)

 Battery Capacity: 3600mAH (7.4Wh) (Built-In Battery)

 Power Consumption: <1.5W

 Charging Current: 400mA

 Charging Interface: USB (for the time being only used as a charging interface, data transmission is temporarily not open)

 Automatic Shutdown: Can be set (always on, 5 minutes to 60 minutes optional)

 Measurement Parameters: Resistance, reactance, standing waves, s11

 Resolution: 4 effective digits

 Frequency Accuracy: <±3ppm

 Connector: SMA-K

 Impedance: 0.1Ω-1000Ω (absolute value of impedance)

 Standing Waves: 1.000-65

 Measuring Range: S11 (DB) 0dB ~ -60dB

 Impedance:                  Standing Waves:                    Error: (single point measurement) s11 (dB/°) 5dB/20° (-20dB ~ -40dB)

           Directivity: <35dB (140MHz-2GHz after calibration), <30dB (2GHz-2.7GHz)

           Scanning Points          : 280

           Output Le          vel: -18          dBm

           Working Temperature: 0℃-40℃

 How to Use:

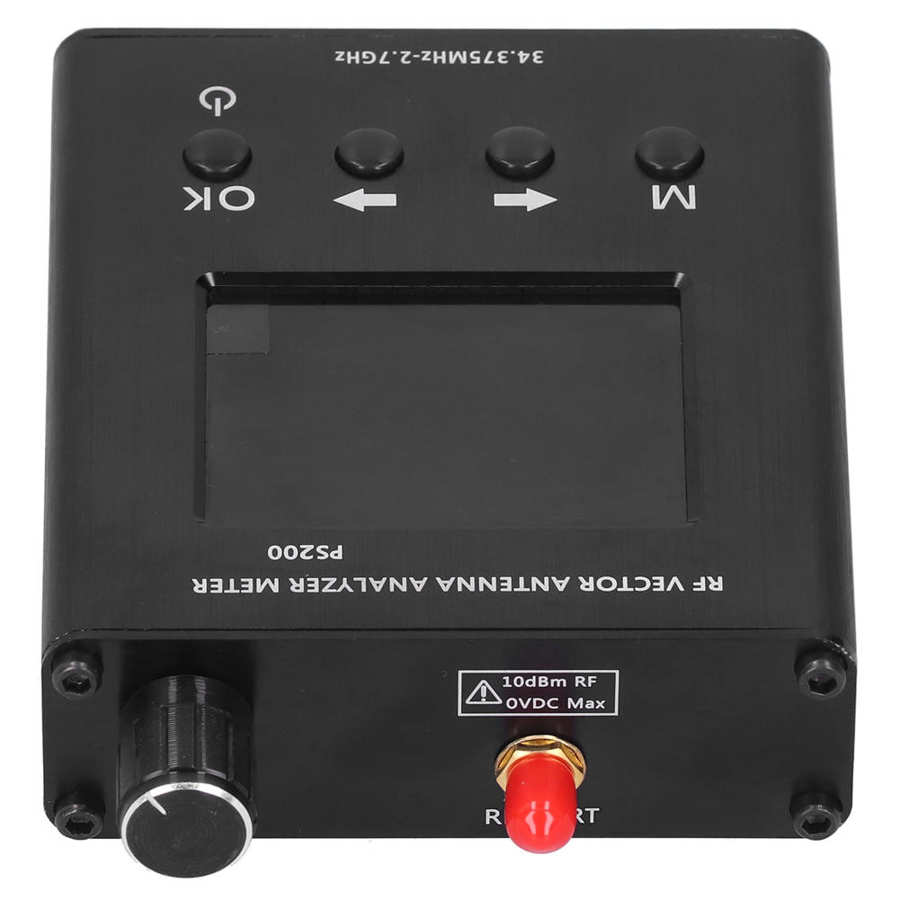

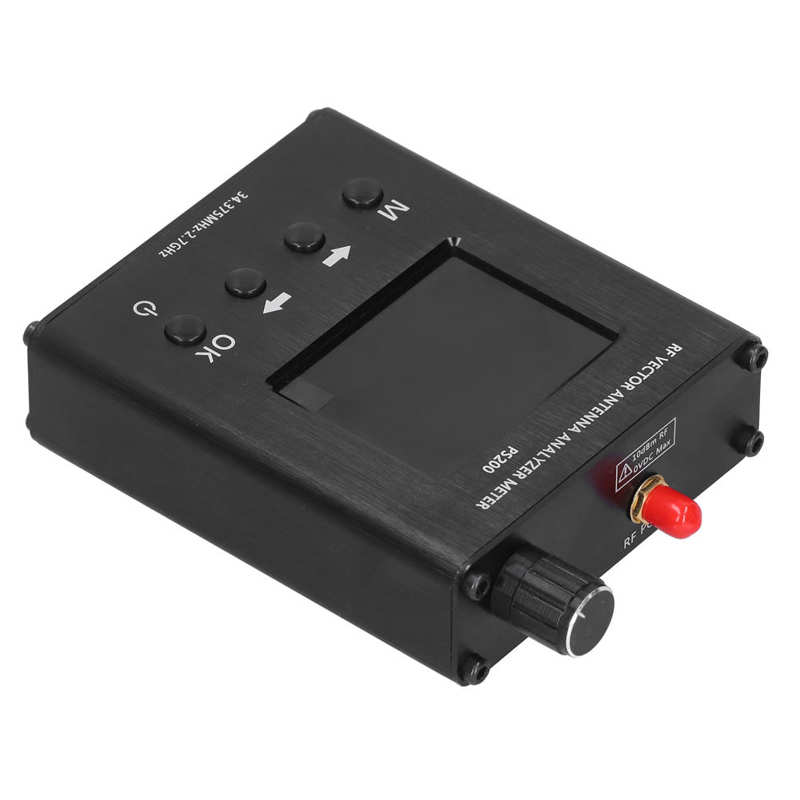

 When you get the product, there is a RESET button at the bottom, press it once to turn it on. The M button can switch between different data observations. The left and right buttons are the switch buttons. Can turn off the product by pressing the ok/power button for 2 seconds. The upper rotate button can adjust the maximum and minimum measurement value of the product, which is very convenient to use.

         Package List:

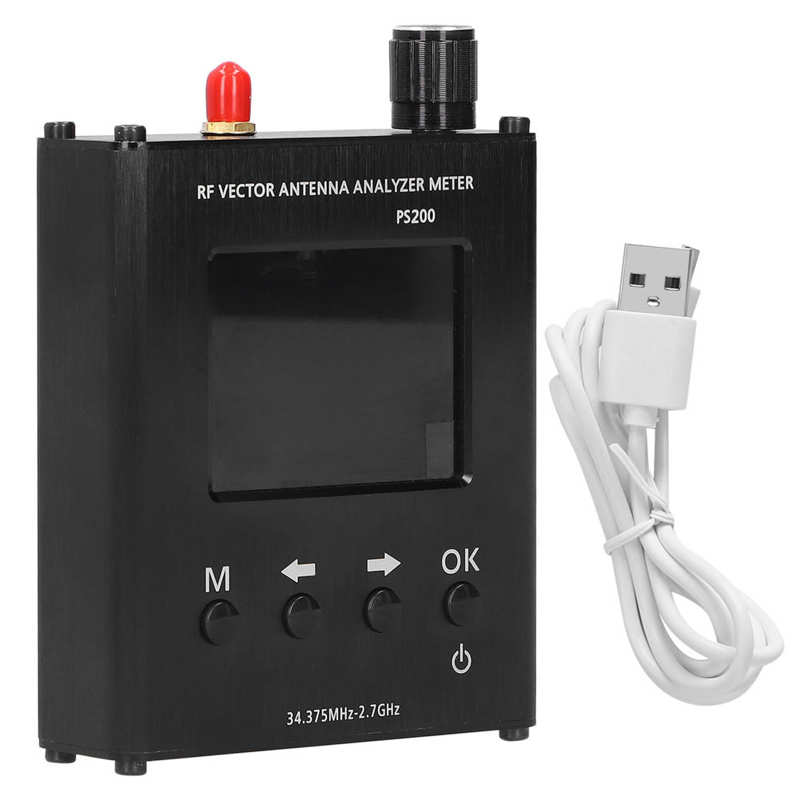

         1 x Antenna Analyzer

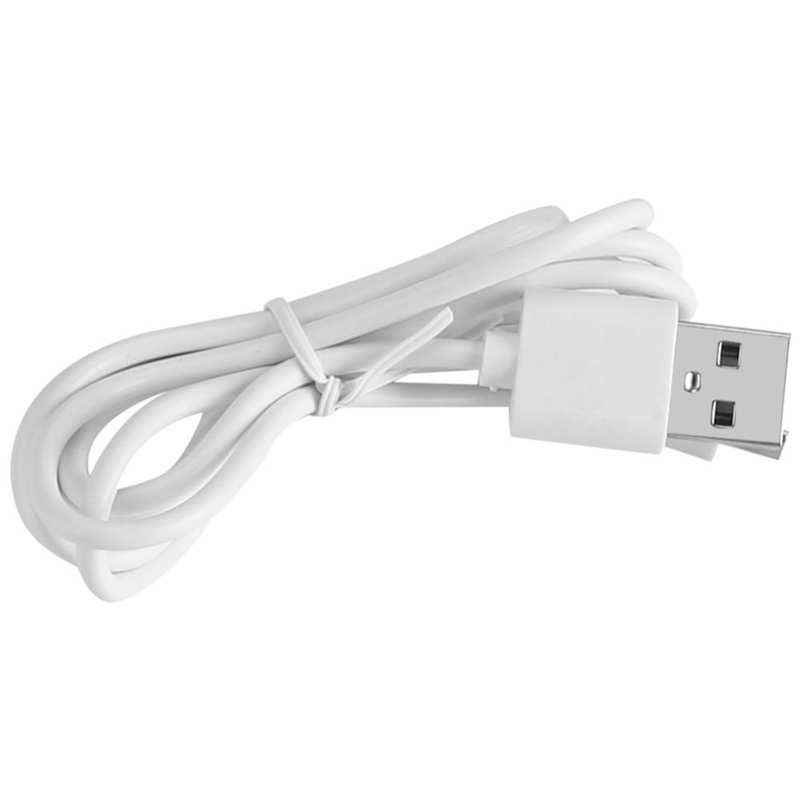

         1 x USB Cable

         1 x Manual
