2. The waterproof rating of the dial is IP67, and the back cover is IP5, can be used for a long time even in the cold sea environment.
3. The maximum depth indicator is about 100m/110yd, allowing you to know the depth of the bottom in real time.
4. Easy to install, good durability and anti‑vibration, equipped with alarm performance, flexible and simple operation.
5. Suitable for yachts, small and medium‑sized boats, fishing boats and other marine vehicles to better meet your needs.
Specification:
Item Type: Depth Gauge
Material: Stainless Steel 316L + Anti-Fog Glass
Installation Diameter: Approx. Φ52mm/2in
Depth Indication Range: Approx. 100m/110yd

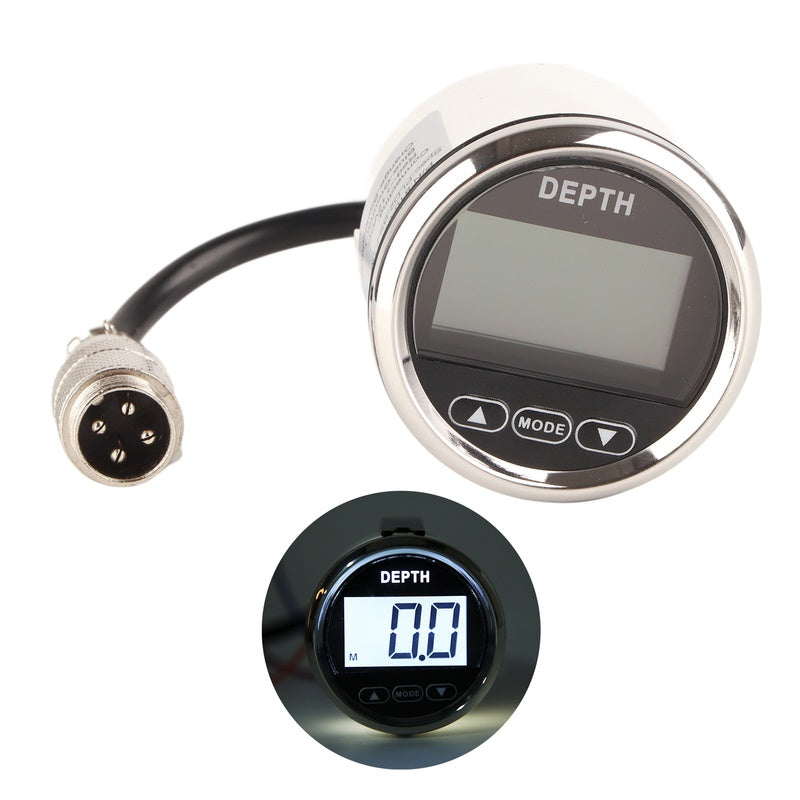

Backlight Color: White
Working Current: ≤60mA
Working Temperature: -30℃ to +75℃
Storage Temperature: -40℃ to +85℃
Protection Grade: IP67, the back cover is IP5
Operation:
A. This device is work with 12V system only, to indicate the depth appointed. Normally, the buzzer beeps once when it was connected correctly then turn on the power.

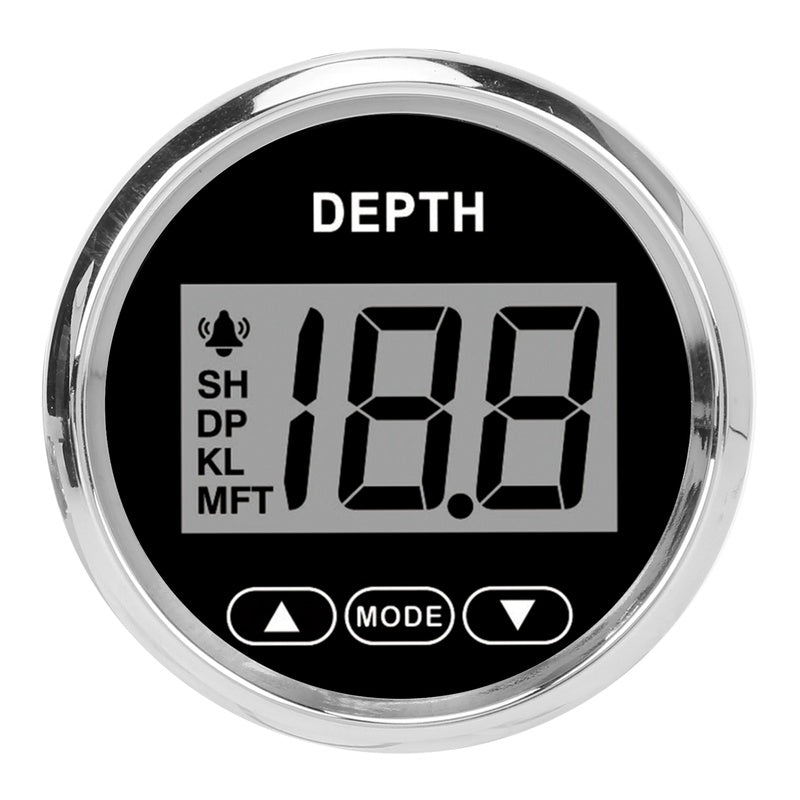

B. Keypad "Mode": Quick press the keypad "Mode" to switch SH/DP/KL/ UN Hold the keypad "Mode" to turn on/off the monitor. Short press the keypad “▲"“▼"to set the value required. Hold the keypad “▲”“▼"to keep the digital increasing/decreasing fluently.
Parameter: SH: (Low level alarm) Range : 0-0.6-19.9, when the level no more than value(SH) appointed,the symbol flickering and the buzzer beeps all the time. If SH=0, no alarm alarm setting range is 0.6-19.9
Range:
1. Unit “M”: 0-99
2. Unit “FT": 0-199
3. Unit “F”: 0-49 If the level exceed the a pointed value , the buzzer will beeps twice Keel offset (KL):
Range:
1. Unit“M”: 0-6.0
2. Unit“FT": 0-19.9
3. Unit“F”: 0-3.3
Installation Notes:
3. Connect the wires and connect the instrument case directly to the 12 power supply.
4. Insert the wire harness and fix it firmly on the table.
Wiring Instructions:
Red wire to the positive
Orange wire to the backlight
Blue wire to the negative
How to Use:
Fix the instrument on the dashboard of the center console and connect the power cord.

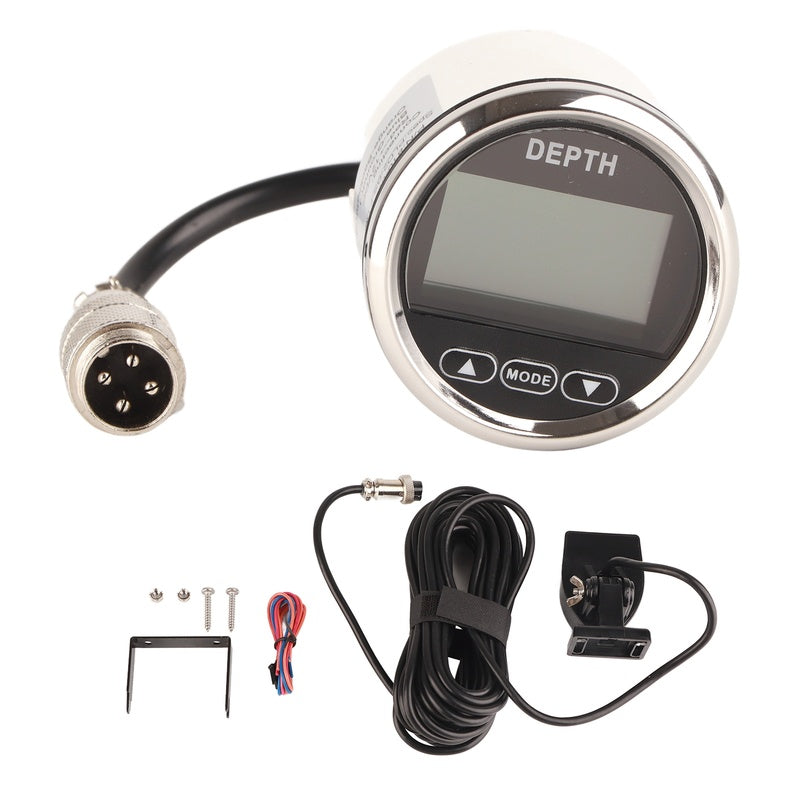

Package List:
1 x Depth Gauge
1 x Sensor (with Wire)
1 x Bundle of Power Cord
1 x Instruction Manual
