Feature:
1. Intelligent Protection: Built in over voltage protection, over current protection, short circuit protection, over temperature protection, fault prompt, etc. function, very reliable for use.
2. High Conversion Rate: This solar inverter converts the energy efficiently, which the conversion efficiency is up to 97%, greatly reduces energy loss.

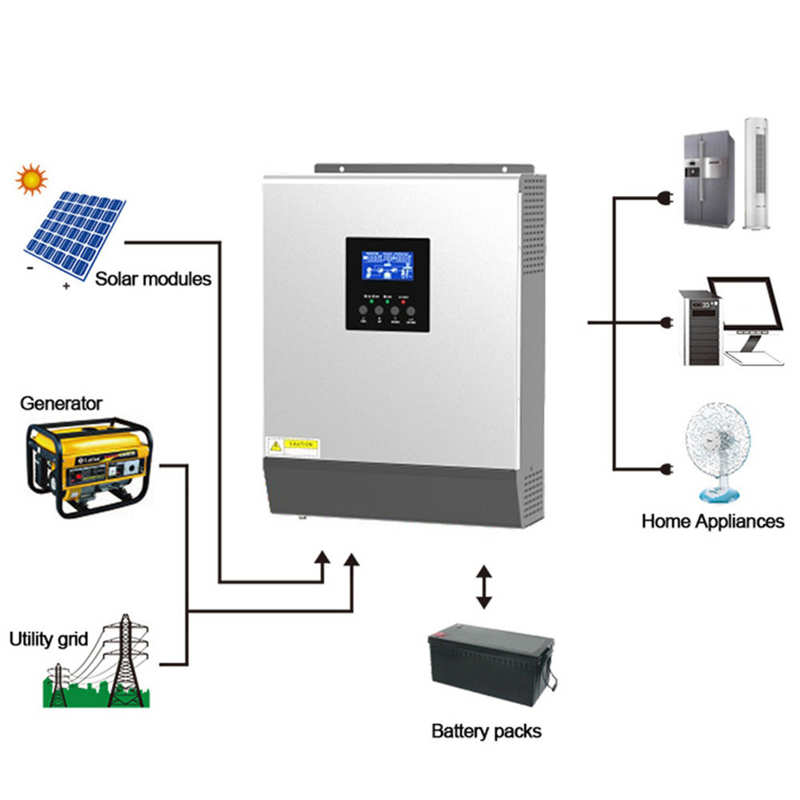

3. 4 Charging Modes: Support 4 charging modes, utility power priority, solar priority, solar and household power, battery and solar.
4. High Battery Performance: Designed with smart battery charger, optimize battery performance, compatible with utility power voltage or generator power.
5. Wide Purpose: This inverter charger can be connected to various household and office loads, including refrigerator, lamp, TV, fan, air conditioner and more.
Specification:
Item Type: Solar Inverter
Material: Aluminum alloy
Purpose: Solar power conversion
Basic Parameters:
Rated Power: 3000VA 2400W
Input:
Voltage: 230VAC
Optional Voltage Range: 170-280VAC (PC), 90-280VAC (household appliances)
Frequency Range: 50/60Hz
Output:
AC Voltage Regulation (Battery Mode): 230VAC+5%
Surge Power: 6000VA
Efficiency (Peak): 93%
Transmission Time: 10ms (PC), 20ms (household appliances)
Output Waveform: Pure sine wave
Battery and AC Charger:
Battery Voltage: 24VDC
Float Charge Voltage: 27VDC
Over Charge Protection: 30VDC
Peak Charging Current: 20A 30A
Solar Charger and AC Charger:
Charging Current: 50A
Peak PV Array Open Circuit Voltage: 80VDC
PV Range at Working Voltage: 30-32VDC
Standby Function: 2W
Package List:

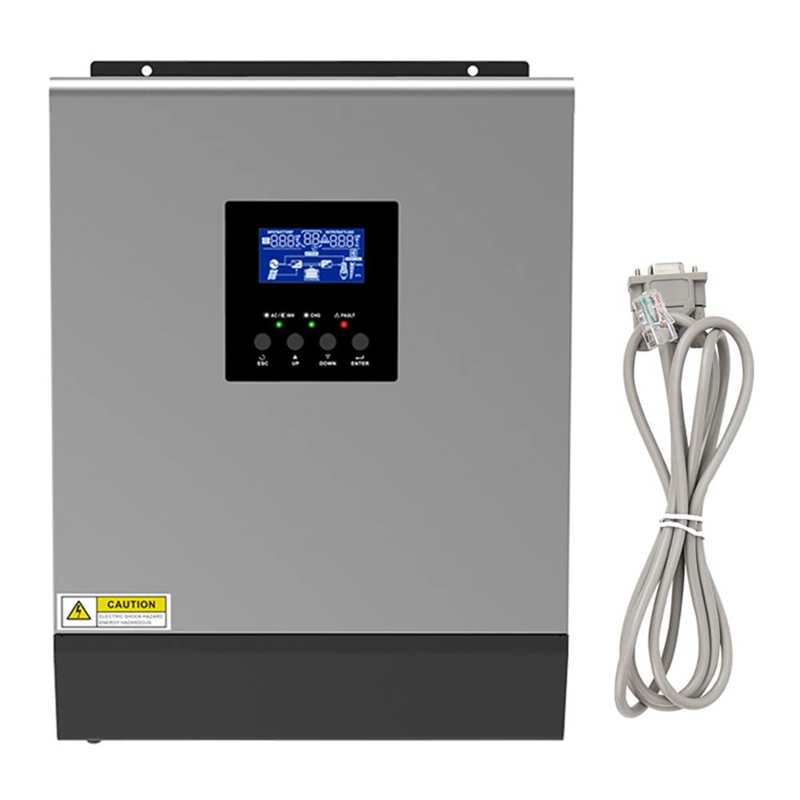

1 x Solar Inverter 1 x Manual
1 x Host Computer Connection Cable
How to use:
Directly install and use.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
