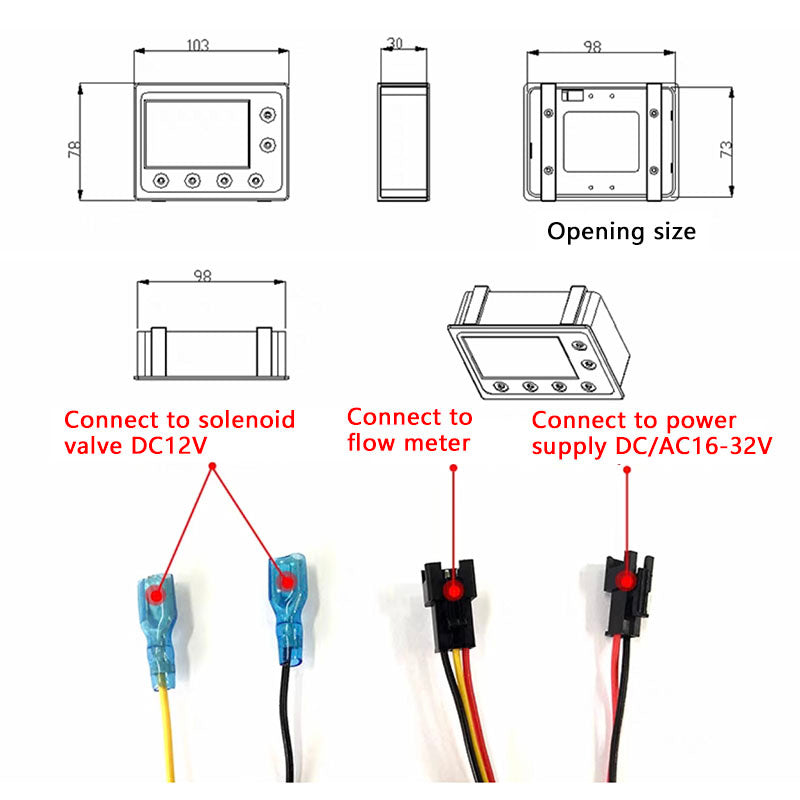

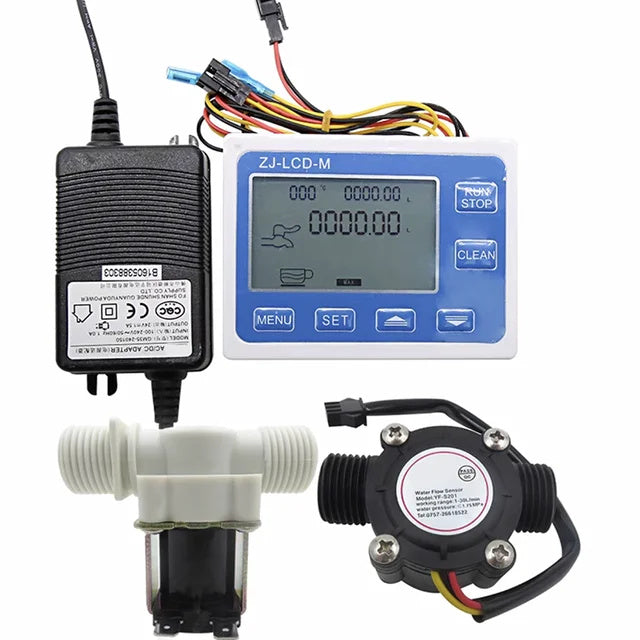

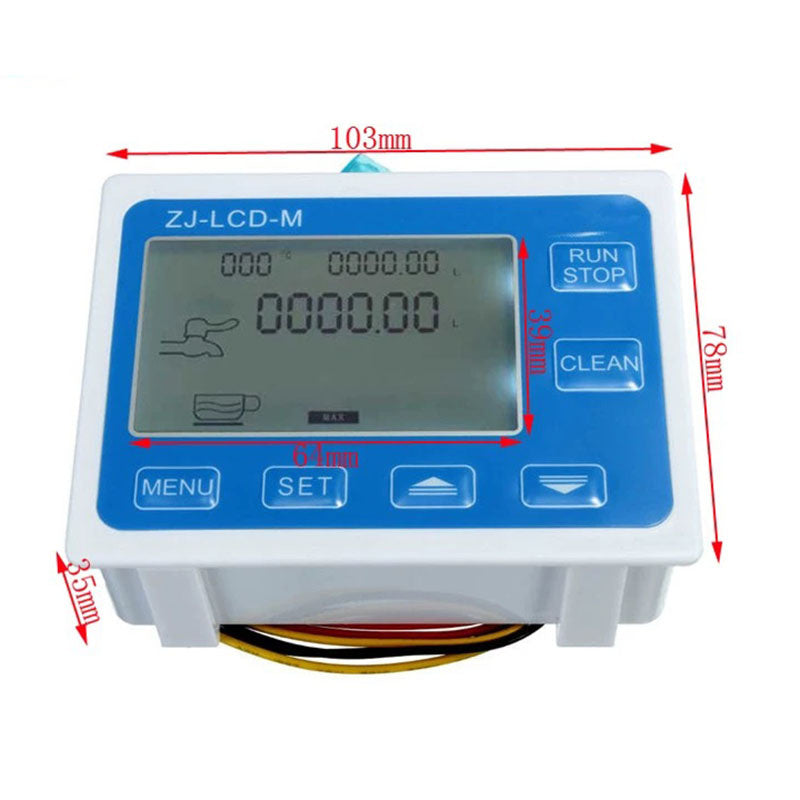

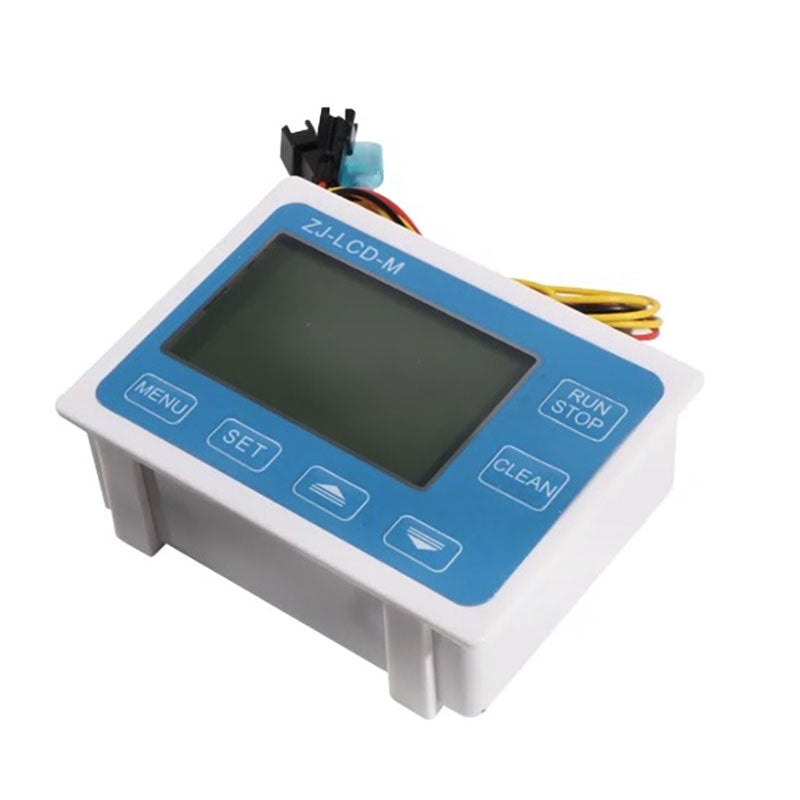

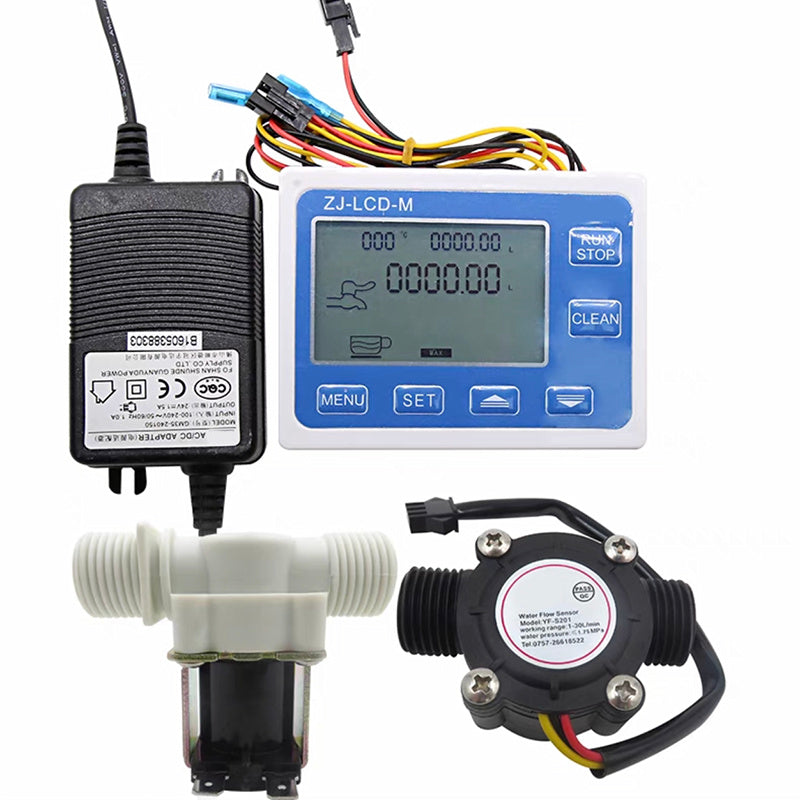

Model:ZJ-LCD-M
Working voltage range: DC24V±8V/1A
Solenoid valve working voltage: DC12V/0.3A-0.5A (normally closed solenoid valve)
Quantitative range: 0.1-9999 liters/gallon, K value can be inserted into the instrument constant, maximum value 1-9999 liters/minute, gallons/minute

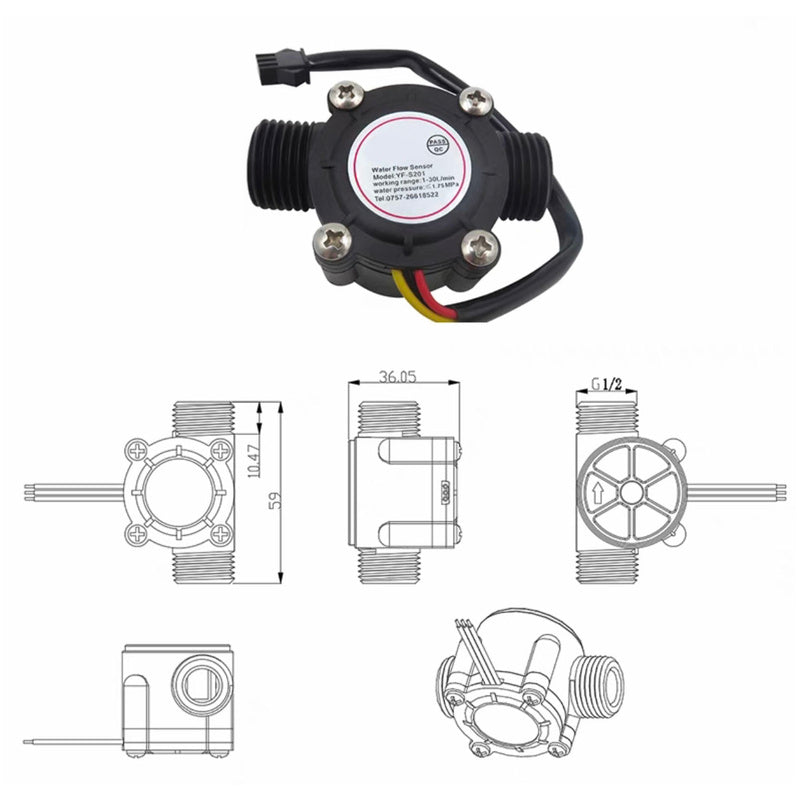

Flowmeter parameters
Model: YF-S201
Interface size: 4 points (G1/2)
Working voltage range: DC3.5-24V
Inner diameter/outer diameter: 10.9mm/20mm
Thread length: 14.5mm12.5mm
Material: nylon
Water pressure resistance: ≤1.75MPa
Output pulse high level: DC4.7V (input voltage DC5V)
Output pulse low level: DC0.5V (input voltage DC5V)
Insulation resistance: 100MΩ
Flow range: 1~30L\MIN

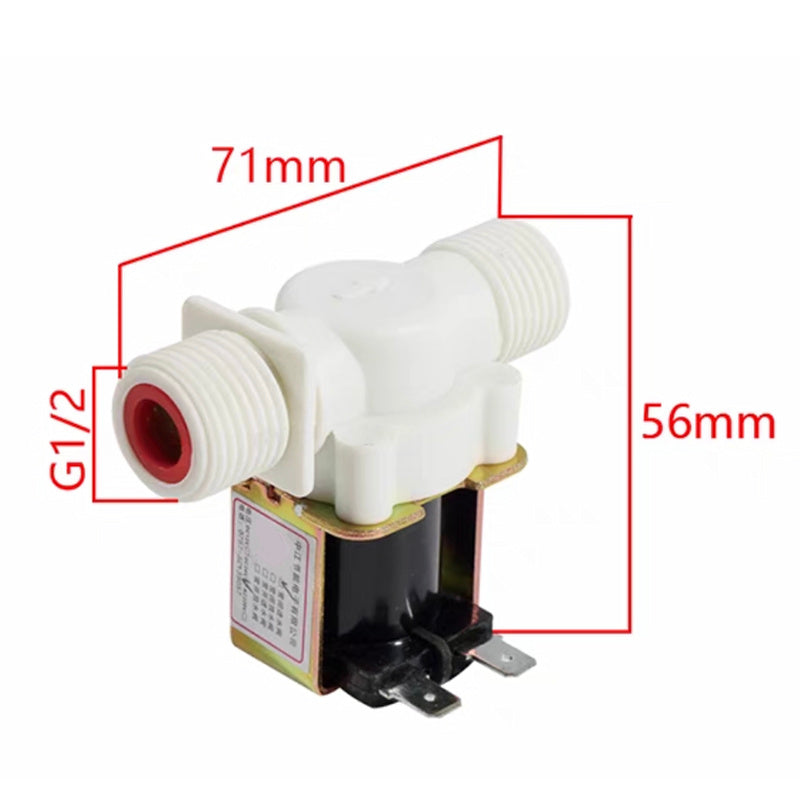

Solenoid valve parameters
Model: FPDJ-23
Working voltage: 12VDC/24VDC/AC220V
Inner diameter/outer diameter: 13mm/20.5mm
Thread length: 13.5mm
Specifications: G1/2 quarter
Power: 5W
Connection method: water inlet G1/2 water outlet G1/2
Medium temperature: 0~80℃
Working pressure: 0.02~0.8MPa
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
