EP06 is a series of LTE Advanced category 6 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel. 11 LTE technology, it delivers M2M-optimized speeds of 300Mbit/s downlink and 50Mbit/s uplink peak data rates. Designed in the Mini PCIe form factor, EP06 is compatible with Quectel future Cat 12 module EP12 and Cat 16 module EP16, which will help customers to migrate between different categories in the future.
EP06 supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows 7, Windows 8/8.1, Windows 10, Linux, Android) extend the applicability of the module to a wide range of M2M and IoT applications such as industrial router, home gateway, STB, industrial PDA, rugged tablet PC, video surveillance and digital signage, etc.
Key Advantages:
LTE-A Cat 6 module with Mini PCIe form factor, optimized for M2M and IoT applications
Support LTE-A carrier aggregation
Worldwide LTE-A and UMTS/HSPA+ coverage
Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
Feature refinements: supports DFOTA and DTMF
MIMO technology meets demands for data rate and link reliability in modem wireless communication systems
Type: A / B
color:Silver
Material:plastic
Package Contents:

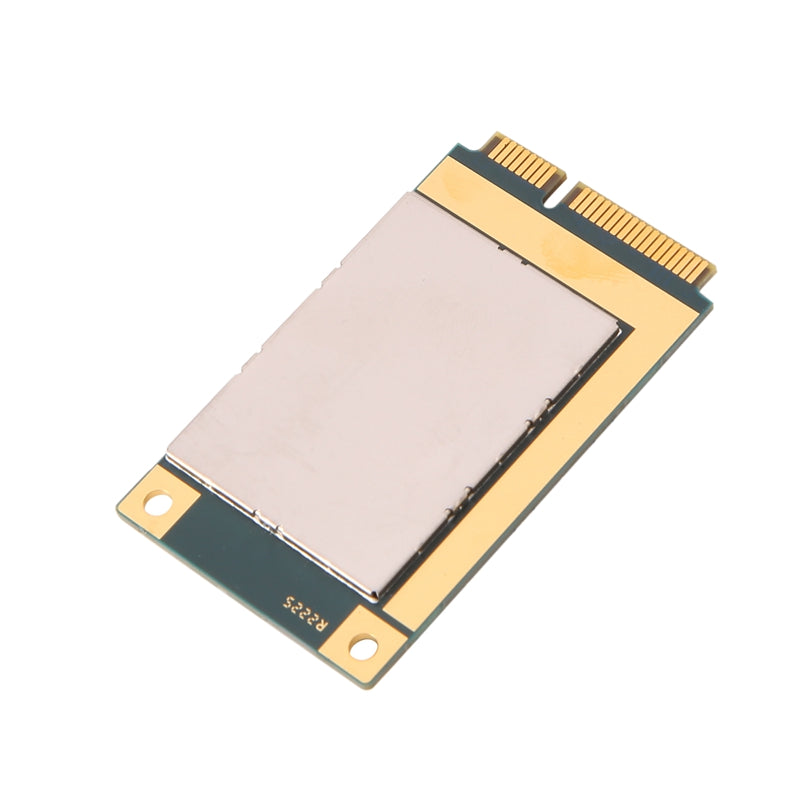

1 x EP06-E Module
/

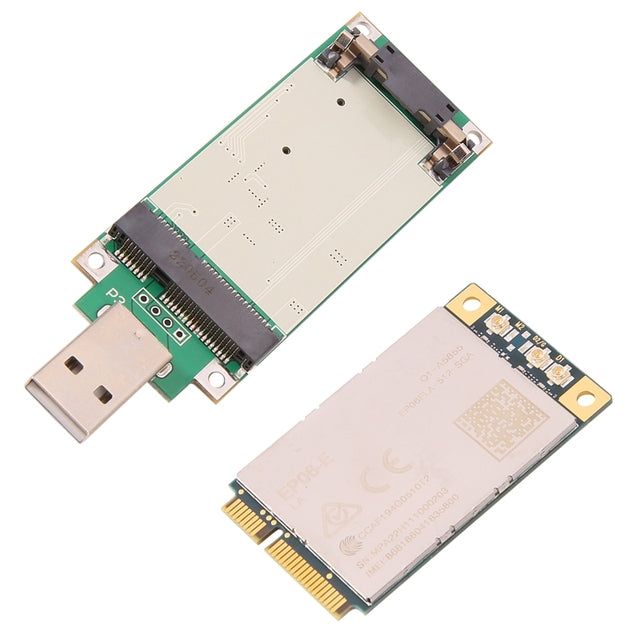

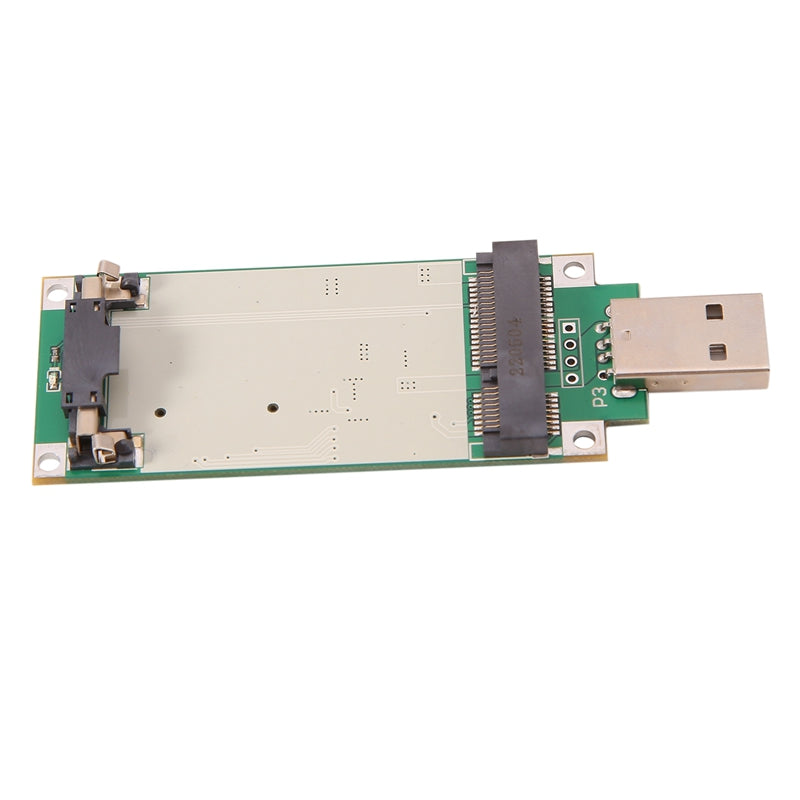

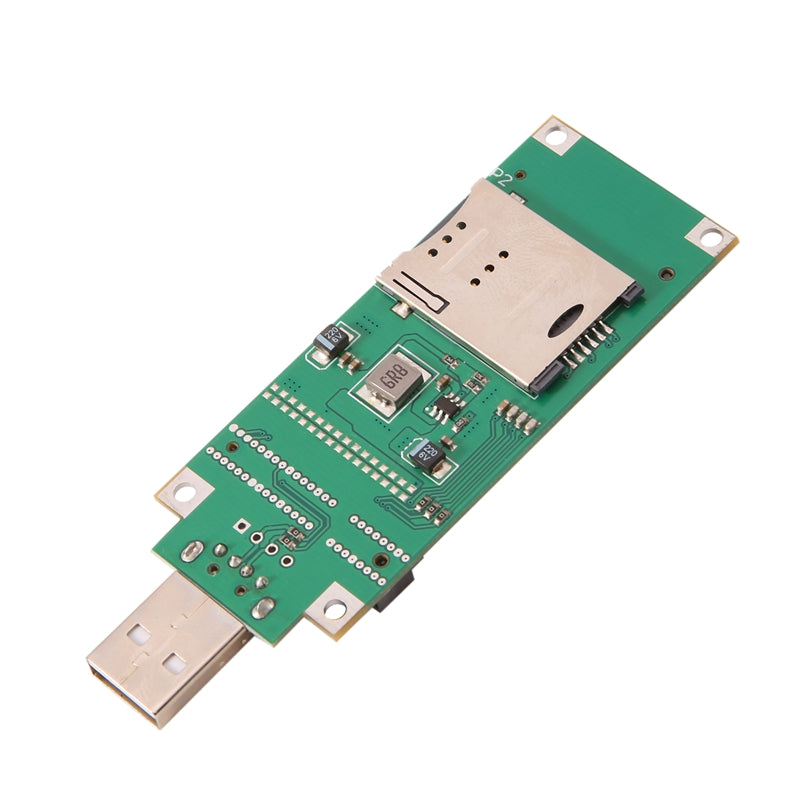

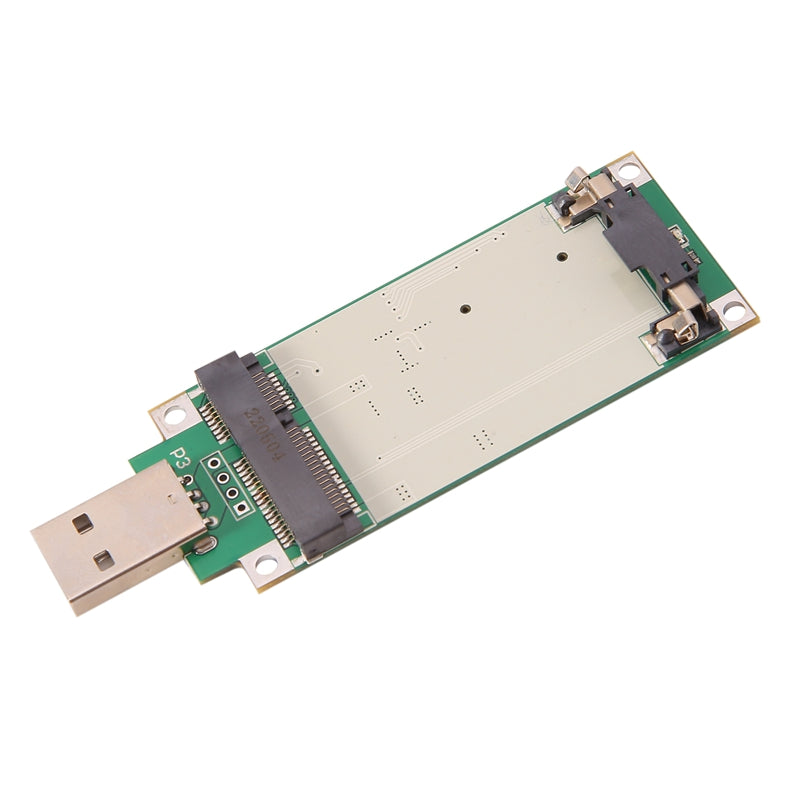

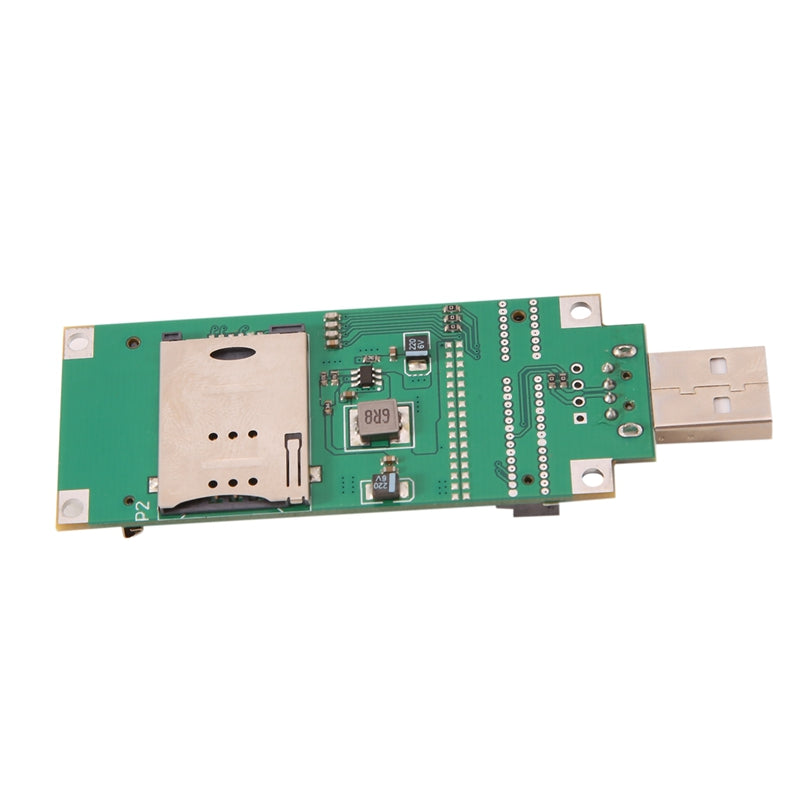

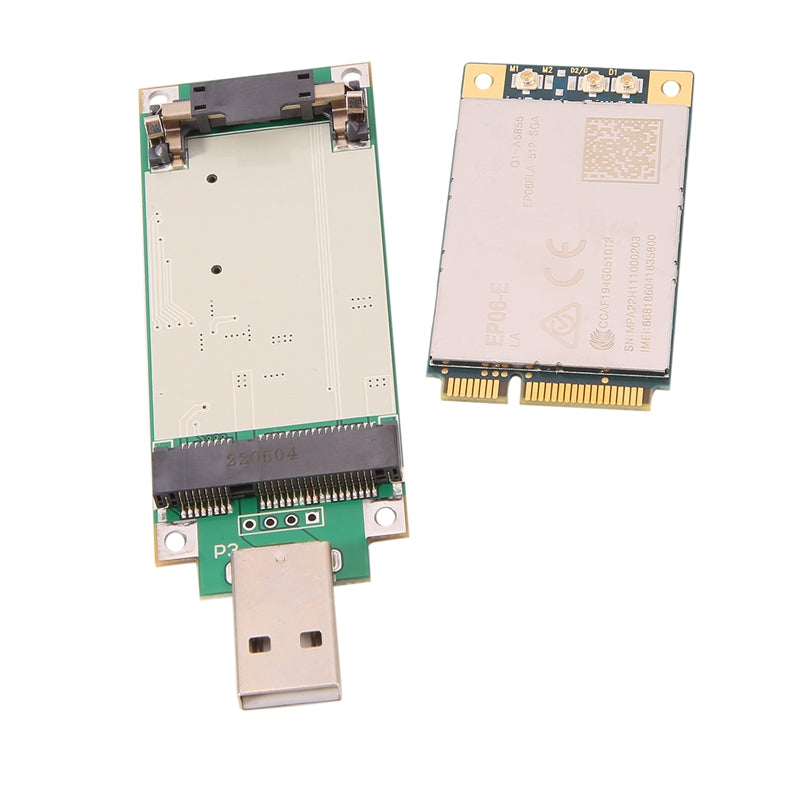

1 X EP06-E With Mini PCIE USB Adapter
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
