Feature:

         1. The electronic throttle controller can provides a sooner and more aggressively acceleration, when get 10 percent pedal input, there will be 30 percent throttle signal to the ECU instead of original standard 10 percent.

2. RT804 electronic pedal accelerator is specially designed to fit for Nissan Navara D23 NP300 2015‑2020, can get better acceleration performance with quicker and more responsive acceleration.

3. Signal to ECU will be sent straight away, as opposed to smoothing the ramp‑up out over time. Brings 15% increase in fuel economy and 60% increase in power response speed.

4. Electronic accelerator support Normal/Econ/Race three differect modes. Compact size, easy and flexible to install without interfering with the interior design.

5. Plug and play without external power supply (absolutely no cutting of wire & does not use OBDII socket ), specific plug for each specific car model, safer and more reliable to use.

    Specification:

    Item Type: Electronic Throttle Controller

Material: Acrylic Panel + ABS Frame

    Display Size: Approx. 50 x 30 x 9mm/2.0 x 1.2 x 0.35in

    Installation: Plug-n-Play Installation, DIY Tuning

    3 Drive Mode: Normal/Econ/Race, Each Mode comes with 10 Level Adjustment, ‘0’ = less sensitive, ‘9’ = most sensitive

    Normal Mode: Your car is returned to its original factory setting, recover its natural performance.

    Econ Mode: Slower throttle response, more comfortable and environmentally friendly, suitable for congested roads, perfect fuel consumption.

    Race Mode: The fiercest acceleration mode, the fastest acceleration response among the sport mode, suitable for racing, pursue  driving pleasure.

    MT/AT Adjustment: YES (Can switch between manual or automatic transmission)

    Part Number: RT804

    Fitment: Fit for Nissan Navara D23 NP300 2015‑2020

How to Use:

    1.Turn off the car for 10-15 Mins before removing the acceletor plug. This is necessary to avoid checking the light going on.

2. Unplug the OEM connector from the acceletor pedal.

3. Plug in the acceletor in line with the and accelerator module.

4. Connect the other side of the accelerator with the accelerator pedal moudule.

5. Connect the module with the accelerator.

Package List:

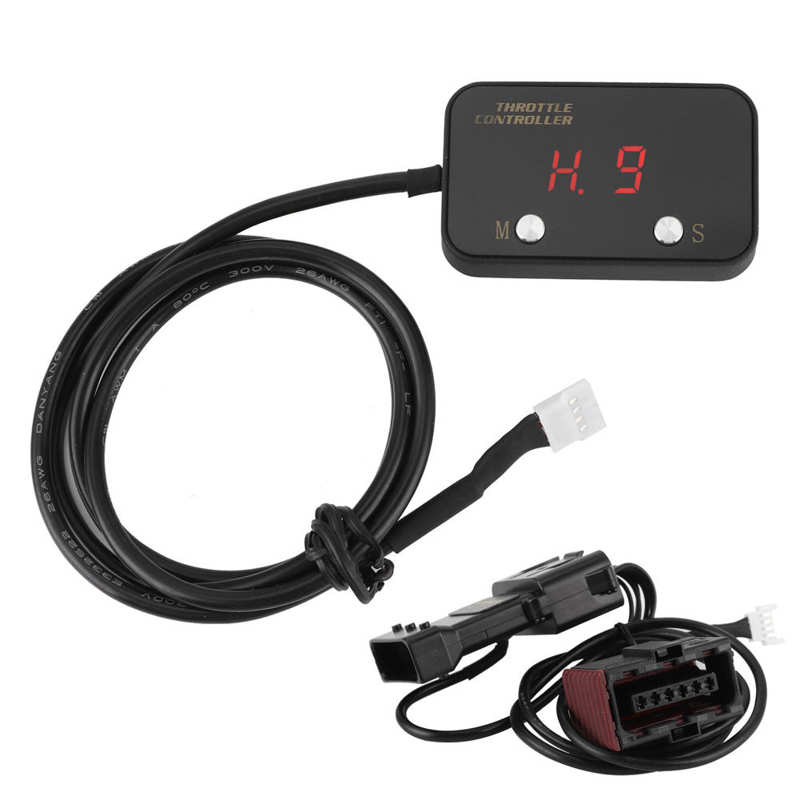

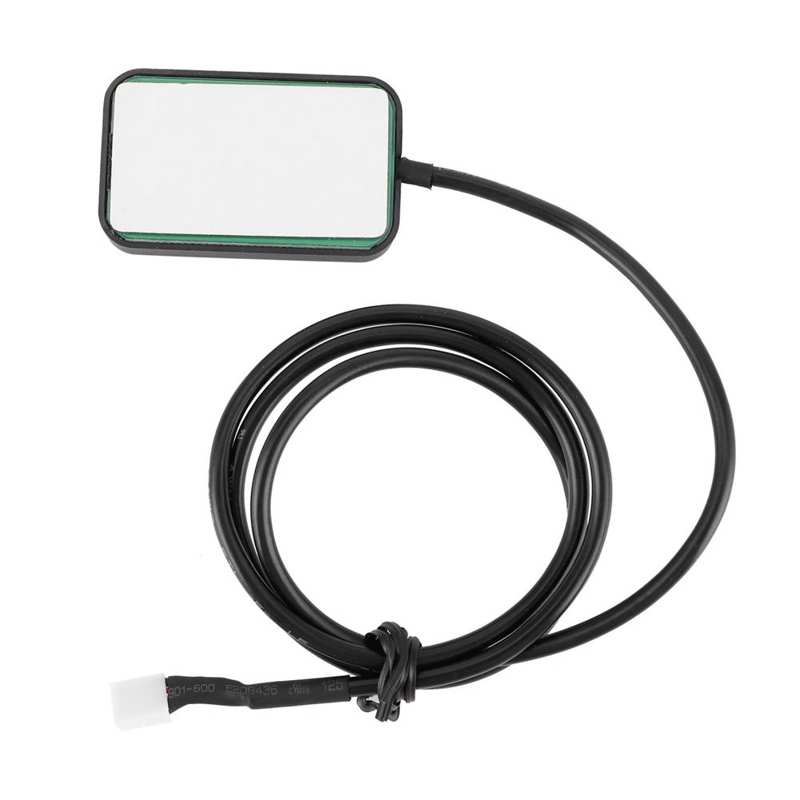

         1 x Throttle Controller Display

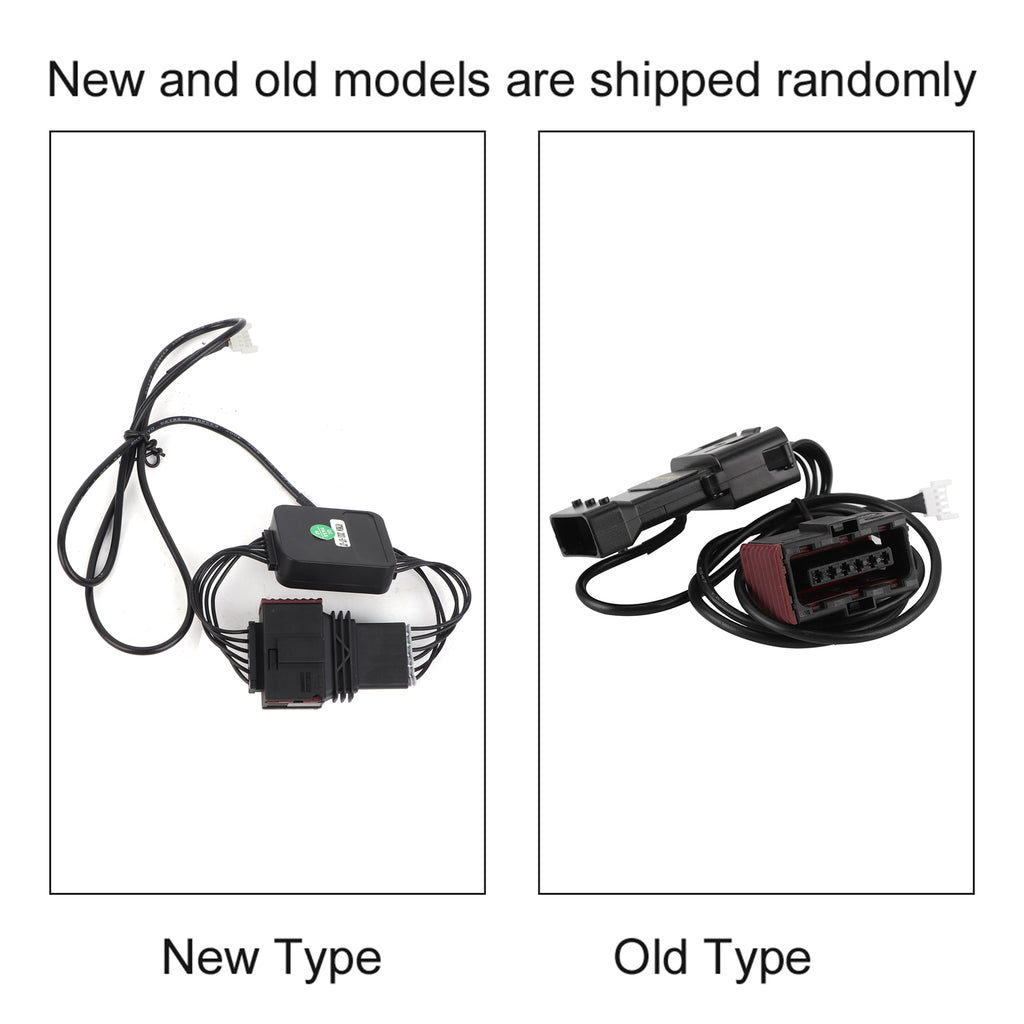

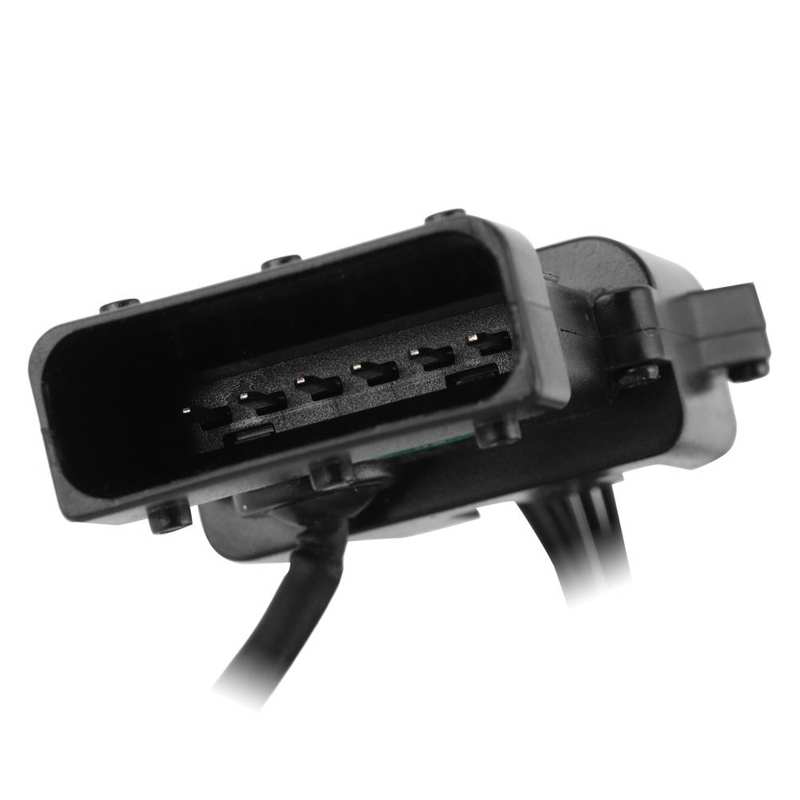

    1 x Electronic Throttle Controller Adapter Harness

    1 x Manual
