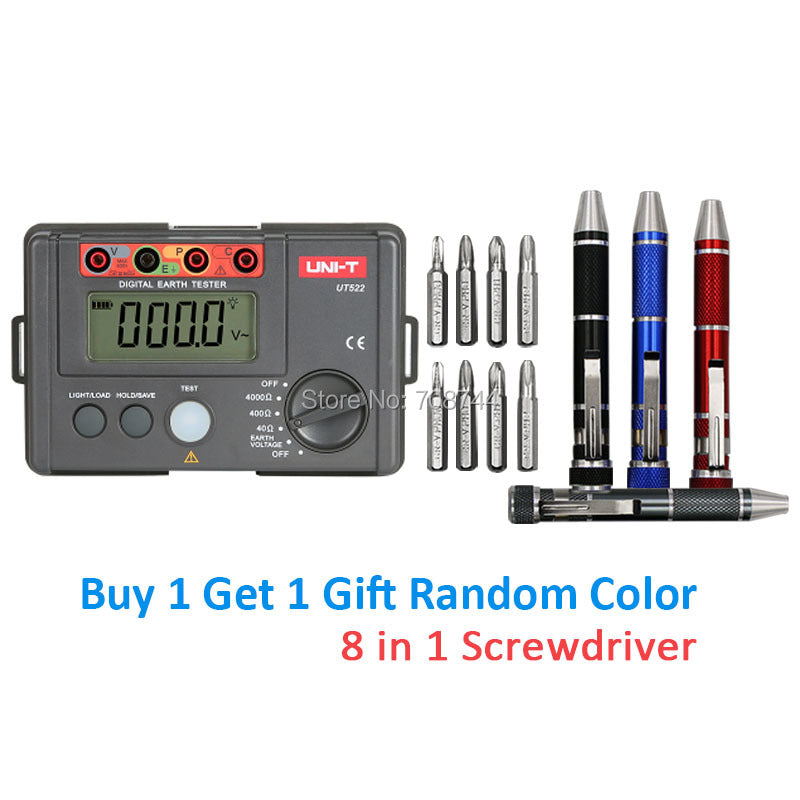

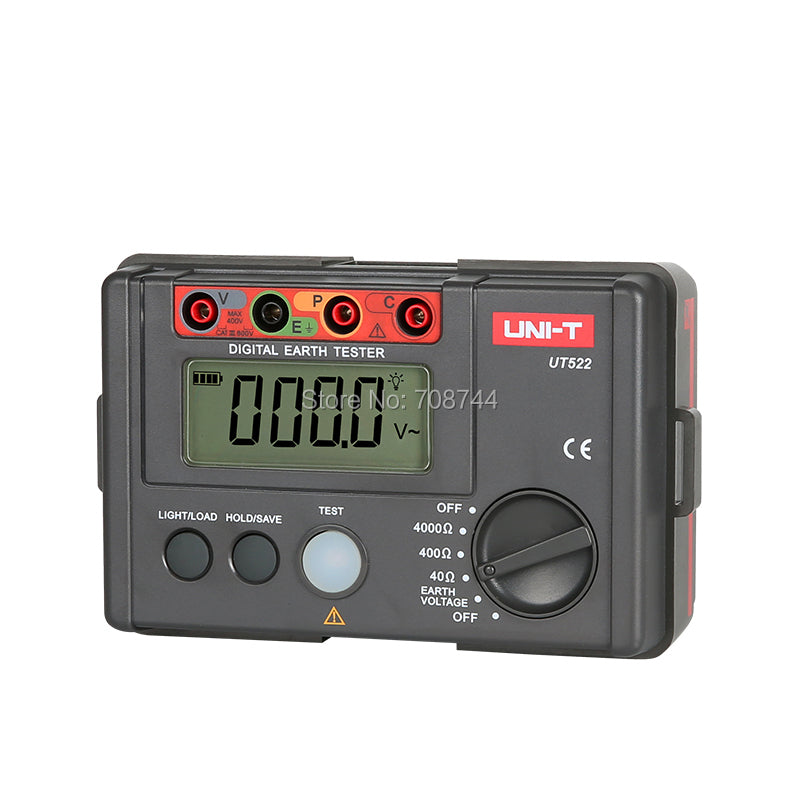

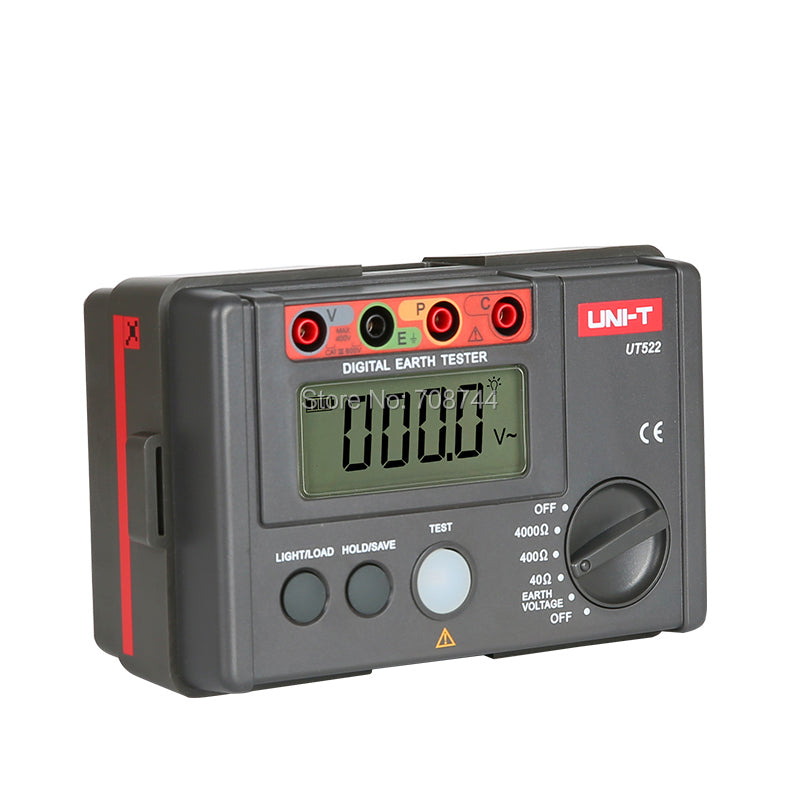

Range 0-40ohm-400ohm-4000ohm Earth Resistance Test AC Earth Voltage Tester UT522
Earth Ground Tester
UT520 series can perform precise 3-wire and simple 2-wire earth resistance measurement for power and electrical systems,lightning protection equipment, and ground system of all electrical equipment. This series is UNI-T's introductory earth resistance tester with high economic value.
Its lightweight design is convenient for fieldwork.
Features:
1. Over range indication, test lead connection alarm
2. TEST button for fast capture of measurement values
3. 20-group data storage/recall
4. Backlight
5. Data hold
6. Auto power off/battery check
7. Earth voltage measurement
Specifications:
Range
Accuracy
Model
UT522
Earth Resistance (Ω)
0～40Ω
±(2%+20)
0～400Ω
±(2%+3)
0～4000Ω
±(2%+3)
AC Earth Voltage (V)
0～400V
±(1%+6)
Frequency: 50Hz/60Hz
√
Features
Display Count
4000
Manual Range
√
Auto Power Off
About 10 minutes
√
Low Battery Indication
√
Data Hold
√
Data Storage
20 groups
LCD Backlight
√
Full Icon Display
√
Double Insulation Protection
√
Contact Badness Indication
Port C or Port E don`t contact display”---Ω”
√
Over-Range Display
Display OL
√
Simple 2-Wire Testing
√
Precision 3-Wire Testing
√
General Characteristics
Power
1.5V batteries (5#) X 6
LCD Size
70.6mm X 34mm
Product Color
Red and grey
Product Net Weight
560g
Product Size
160mm X 100mm X 70.5mm
Standard Accessories
Batteries, carrying bag, test lead,
simple test lead, test probe
The battery is not included in the package.
