Features:

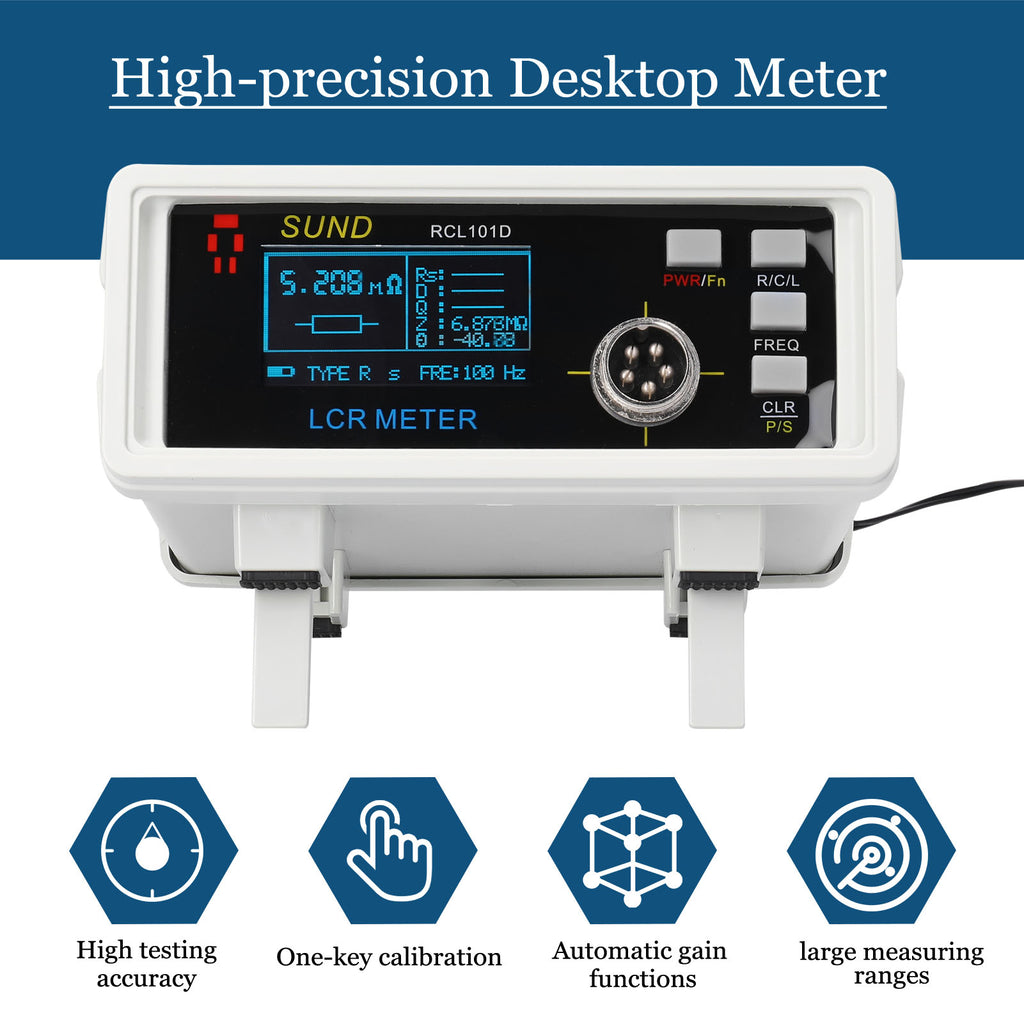

With the intelligent automatic ranges and automatic gain functions, give you a better using experience.
Adopt high speed ARM architecture processor, with high testing accuracy and improve your working effeciency.
Using OLED display, unlike LCD's passive luminescence technology, it shows clearly even in sunlight.
All the parameters are displayed on the display at the same time, and the data can be viewed without cumbersome switching, which is very convenient.
Built-in large-capacity rechargeable lithium battery, long standby time, also with power display function.
The metal cover is used to shield the test line and has fine anti-interference performance.

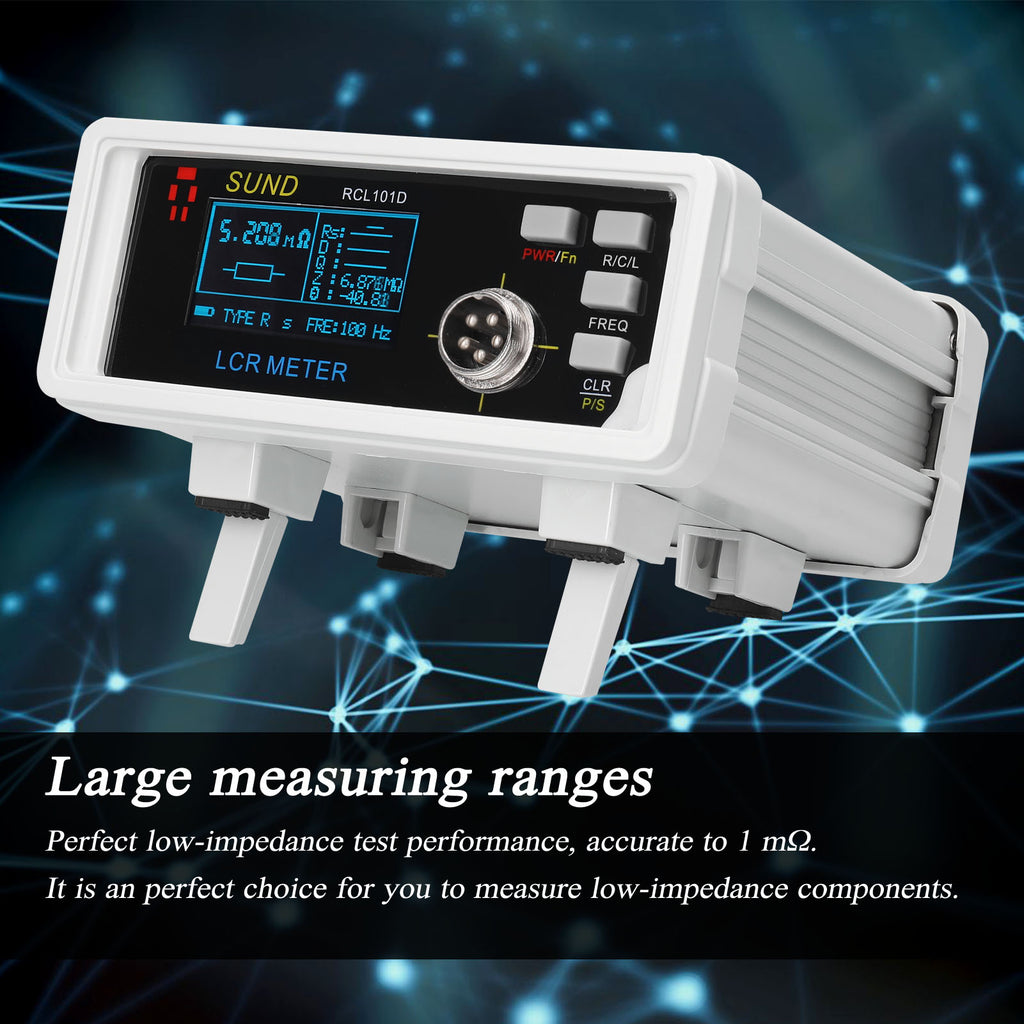

It has a large measuring ranges and perfect low-impedance test performance, accurate to 1 mΩ. It is an perfect choice for you to measure low-impedance components.

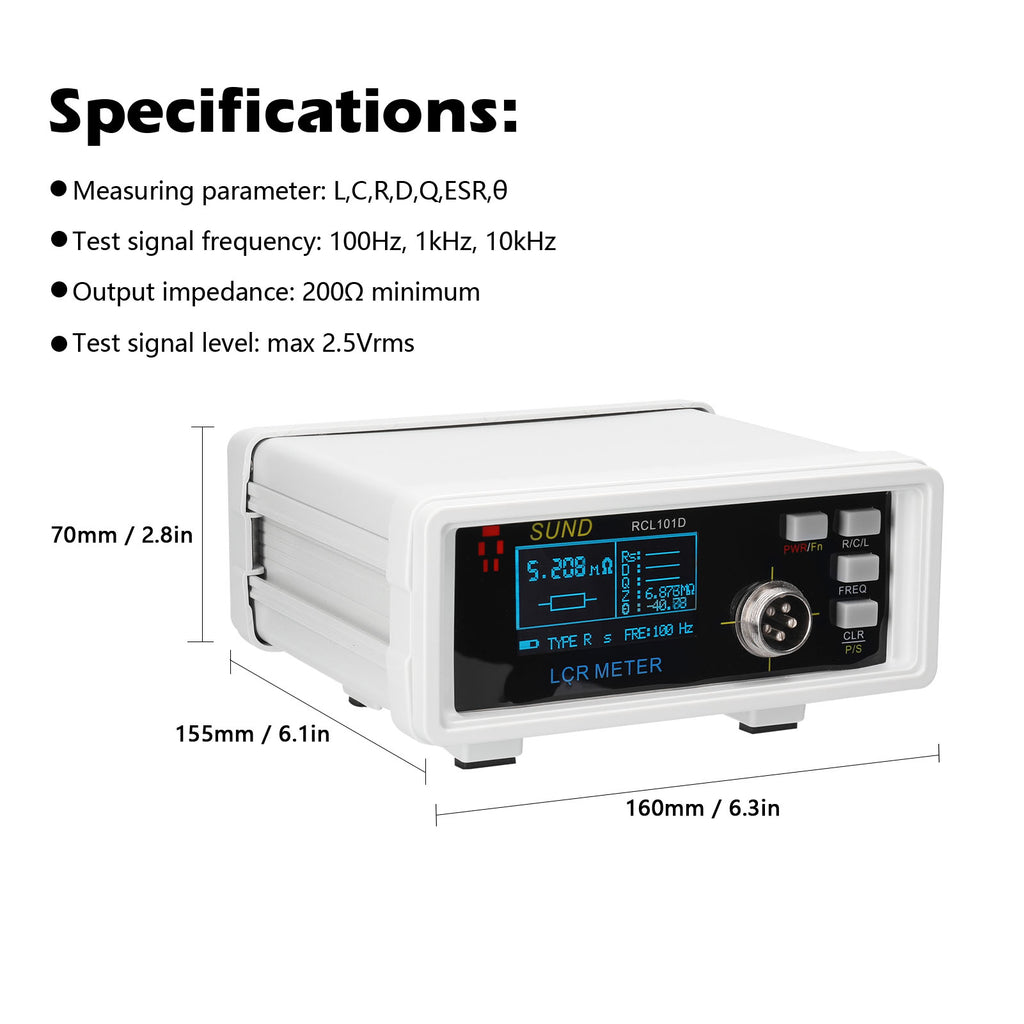

Specifications:
Material: metal
Measuring parameter: L,C,R,D,Q,ESR,θ
Basic accuracy: 0.25%
Equivalent circuit: series/parallel
Ranges method: automatic
Test speed: 2 times/S
Calibration function: one-key calibration
Test terminal configuration: Four-terminal test line
Display mode: direct reading
Backlight: self-luminous
Power display: support
Low battery shutdown: support
Test signal frequency: 100Hz, 1kHz, 10kHz
Output impedance: 200Ω minimum
Test signal level: max 2.5Vrms
Measurement display ranges:
R: 0.001 Ω~99.99 MΩ
C: 0.001 pF~999.9mF
L: 0.001 μH~9999 H
D,Q: 0.001~9999
Working temperature and humidity: 0~40°C, ≤90%RH
Power consumption: ≤1.2W
Power: lithium battery (included) or direct current 9V
Item size: 160 * 155 * 70mm / 6.3 * 6.1 * 2.8in
Item weight: 810g / 1.8lb
Package size: 190 * 180 * 100mm / 7.5 * 7.1 * 3.9in
Package weight: 900g / 2.0lb

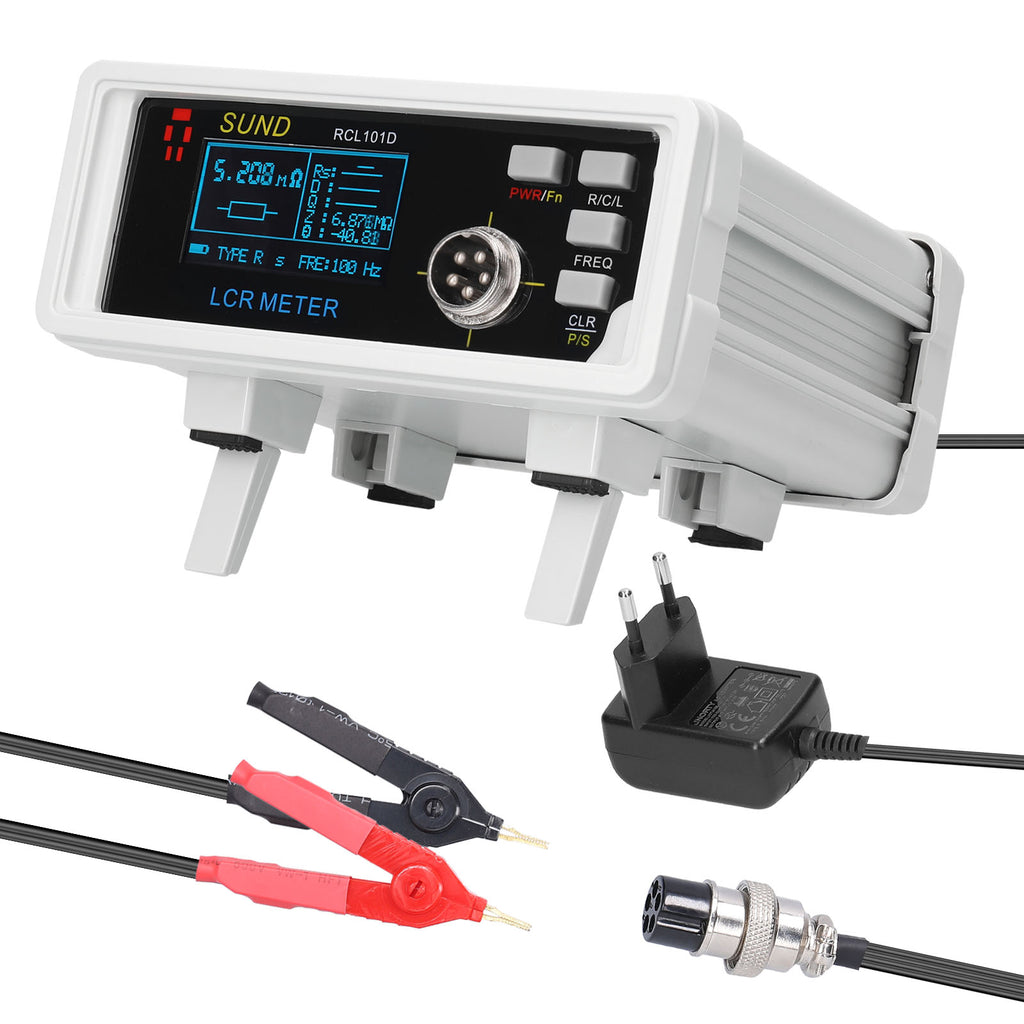

Packing list:
1 * RCL101D Meter
