Technical indicators
Working frequency: 2K-3000MHz
Amplifier gain: as shown in the following figure
F= 0.1MHz gain=32dB
F= 500Mhz gain=32dB
F=1000MHz gain=32dB
F=1500Mhz gain=31.5dB
F=2000MHz gain=31.0dB
F=2500MHz gain=30.5dB
F=3000MHz gain=29.0dB
Maximum output power:+10dBm (10mW) @ 1dB compression point
Noise Figure: 1.9dB (refer to the main view image)
Supply voltage: 9-12VDC
System impedance: 50 ohms

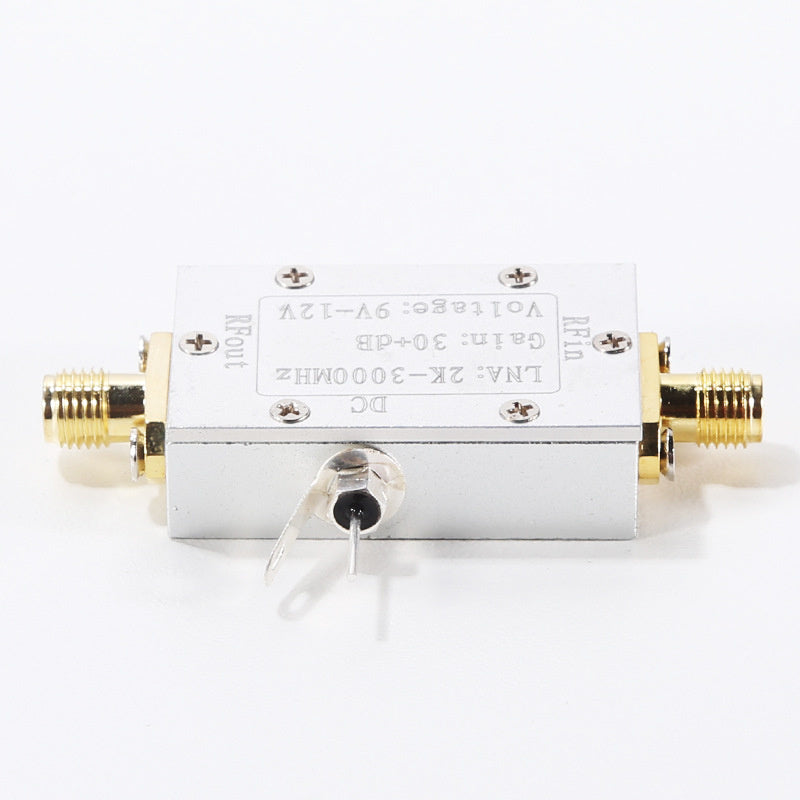

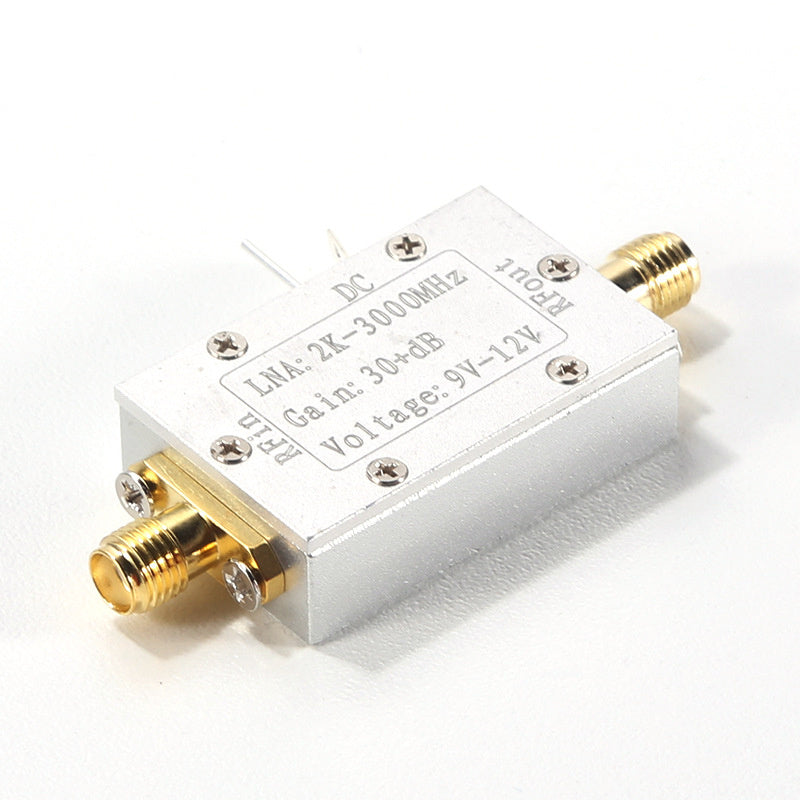

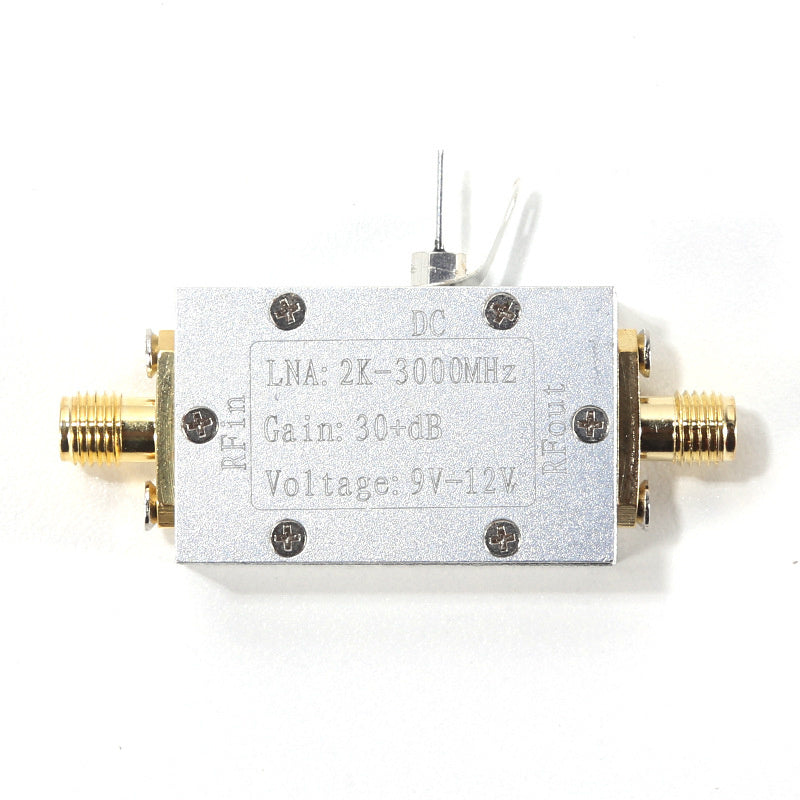

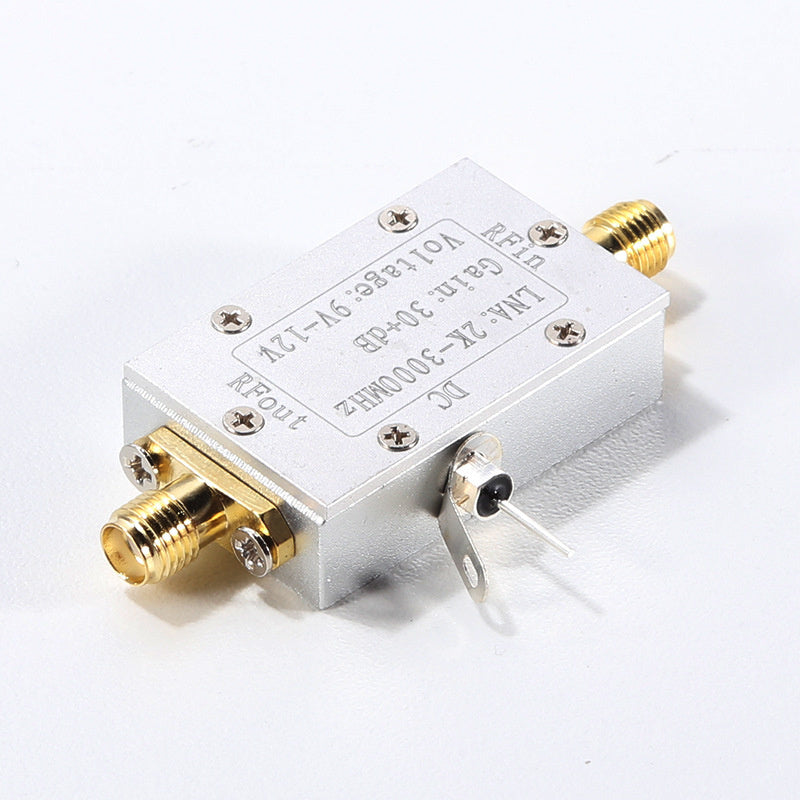

3. Product photos
