RF Explorer ISM Combo PLUS Spectrum Analyzer Sweeper Interference Tester Amplitude
Resolution: 0.5dBm
Frequency Band:
Left connector: 0.05 – 960MHz
Right connector: 2350 – 2550MHz
Frequency Span:
Left connector: 0.1 – 960MHz
Right connector: 2 – 85MHz
Internal selectable LNA 25dB gain with the left connector
Internal selectable Attenuator 30dB with the left connector
Signal generator covering up to +11dBm output power with the right connector.
Wifi Analyzer for the 2.4GHz band

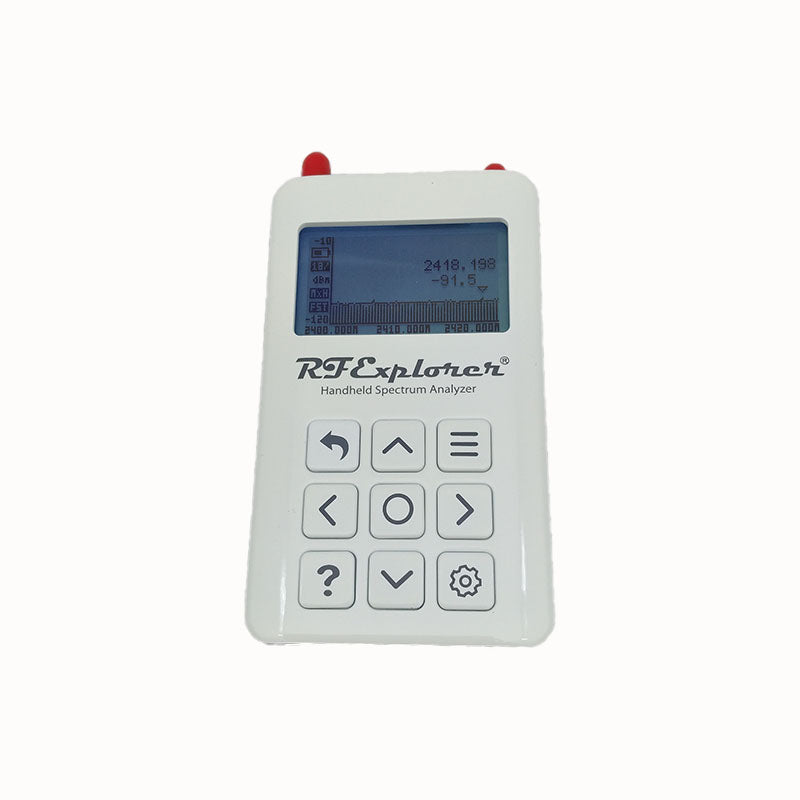

Graphics LCD 128x64 pixels, great visibility outdoors
Support included for Windows, Linux and MacOS X
Backlight for great visibility indoor
Internal Lithium Ion 1800mA/h rechargeable battery

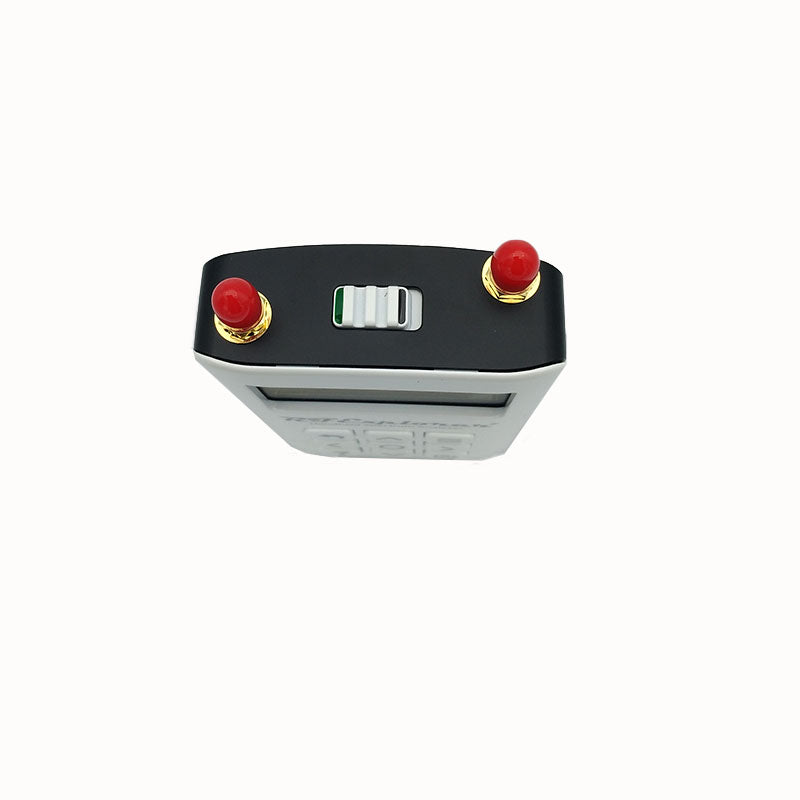

Standard SMA 50 ohms connector
Wideband 144/433MHz dual band telescopic antenna included
UHF 400-900MHz rubber duck articulated antenna included
2.4GHz whip antenna included
Amplitude resolution: 0.5dBm
Dynamic range: -125dBm to 10dBm
Absolute Max input power: +30dBm
Average noise level (typical LNA): -125dBm
Frequency stability and accuracy (typical): +-10ppm
Amplitude stability and accuracy (typical): +-2dBm
Frequency resolution: 1Khz
Resolution bandwidth (RBW): automatic 2.6Khz to 600Khz
Internal LNA amplifier and selectable attenuator in the sub-1GHz band.
Low frequency support from 50KHz covering LF, MF, HF, VHF and UHF up to 960Mhz
High frequency support for 2.4GHz band starting at 2.35GHz and covering up to 2.55GHz.
New HELP and SET buttons to improve user interface and configuration selection with 2-clicks
Excellent performance to diagnose and generate signals in the 2.4GHz ISM band.
Wide band coverage to all popular sub-1Ghz bands, including FM, TV and DTV, ISM, RFID, GSM, etc.
Ideal choice for HAM bands from 160meters to 33cm.
Pocket size and light weight
Solid metal case
Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes

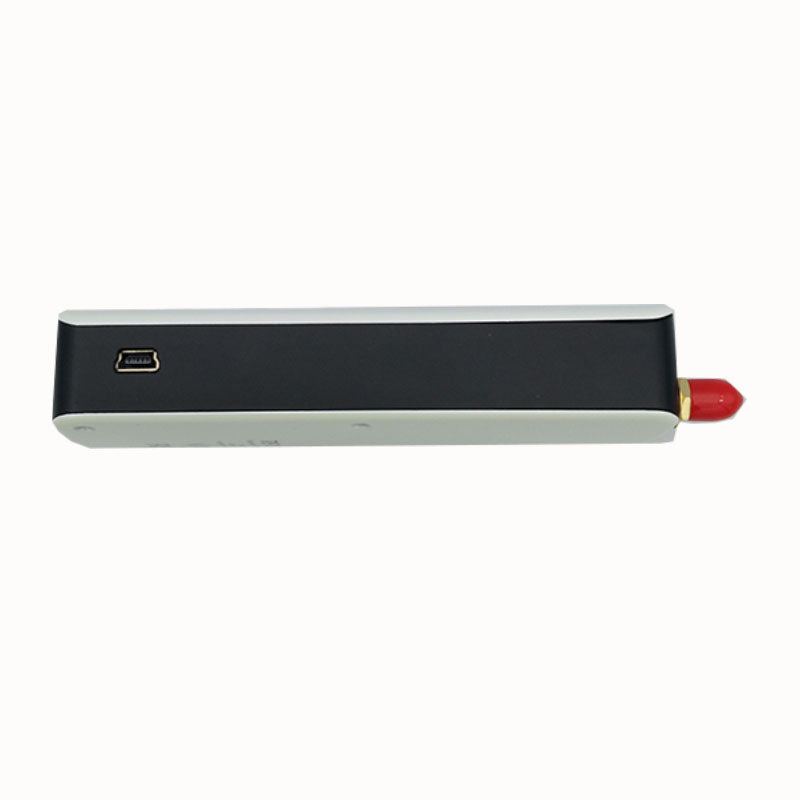

High capacity internal Lithium battery for 20hs+ of continuous run, rechargeable by USB
Multi-platform Windows/Linux/MacOS Open Source software and API libraries
