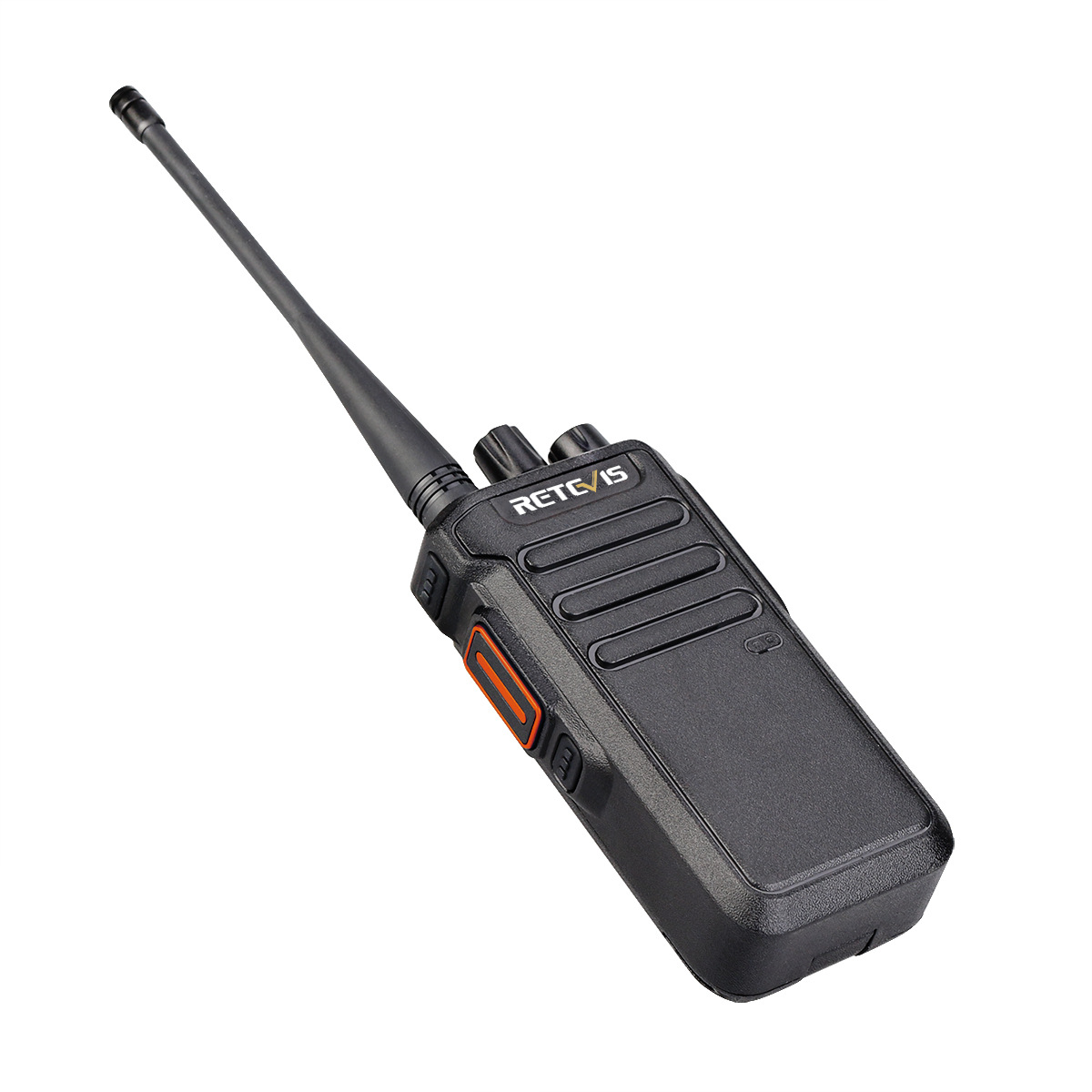

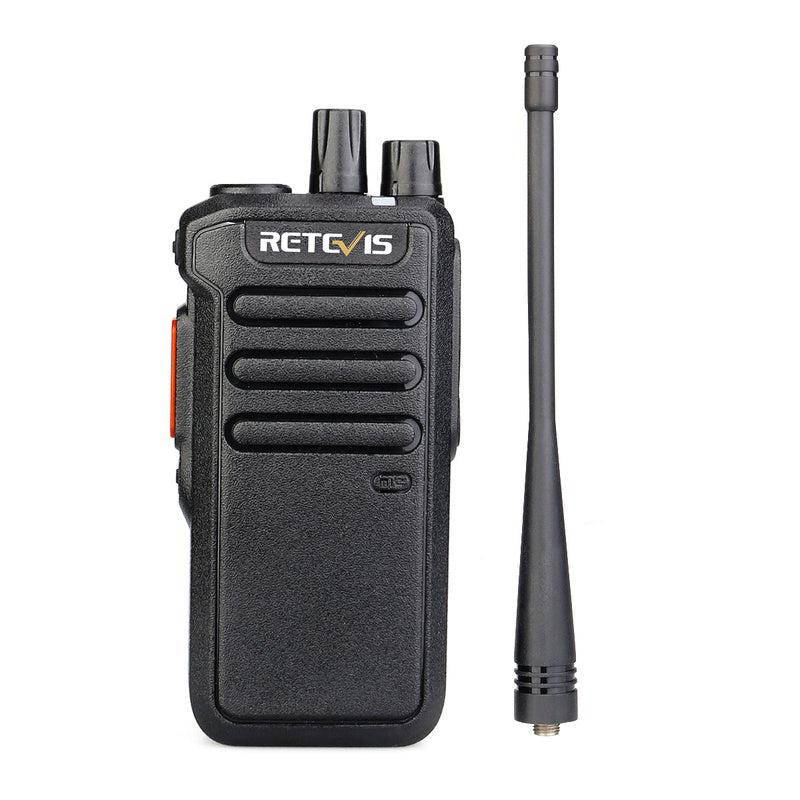

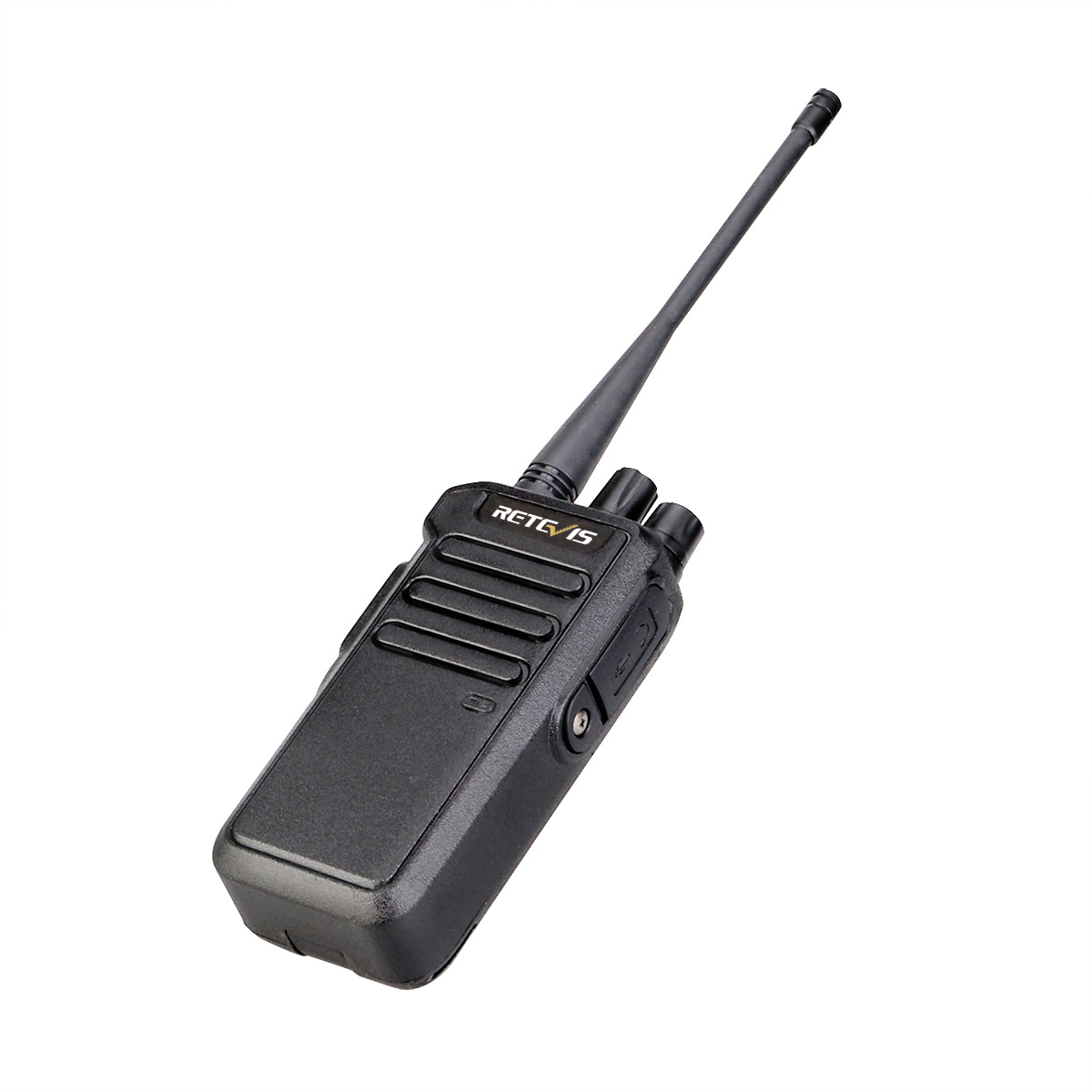

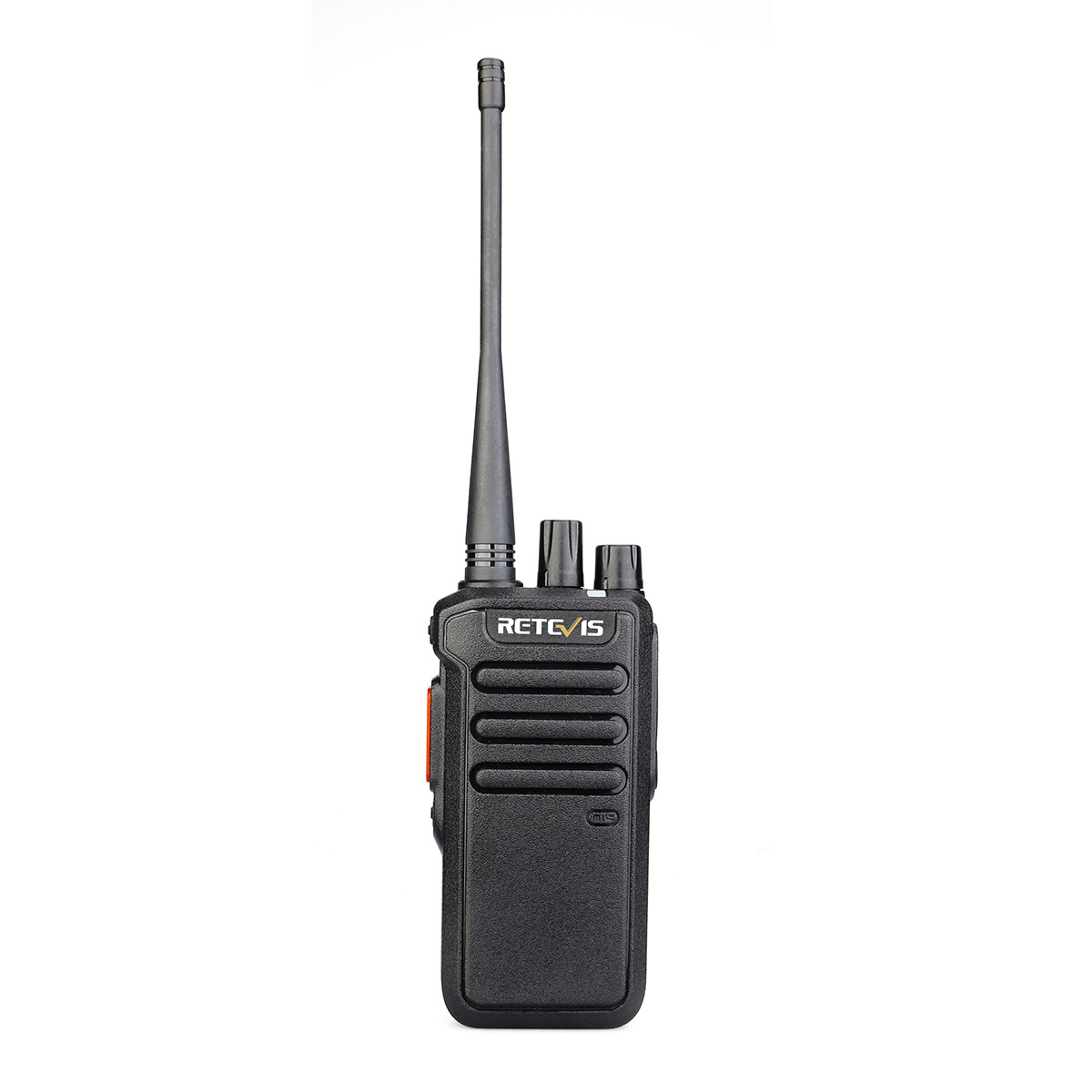

UHF full frequency radio station
Frequency range: UHF 400.000-480.000MHz
● Digital and analog compatibility
● Digital signal function
● High sound quality
● High/low power switch
5W/1W power switch to meet power requirements for different communication distances and save more energy
● It is possible to customize the side buttons without changing the user's operating habits
Main technical indicators
Frequency range UHF: 400-480MHz
Channel capacity 32CH
Channel spacing 25KHz/12.5KHz
Working temperature -25 ℃? 9? 1+ 60℃
Working voltage DC 7.4V
Antenna impedance 50 Ω
Microphone impedance 2.2K Ω

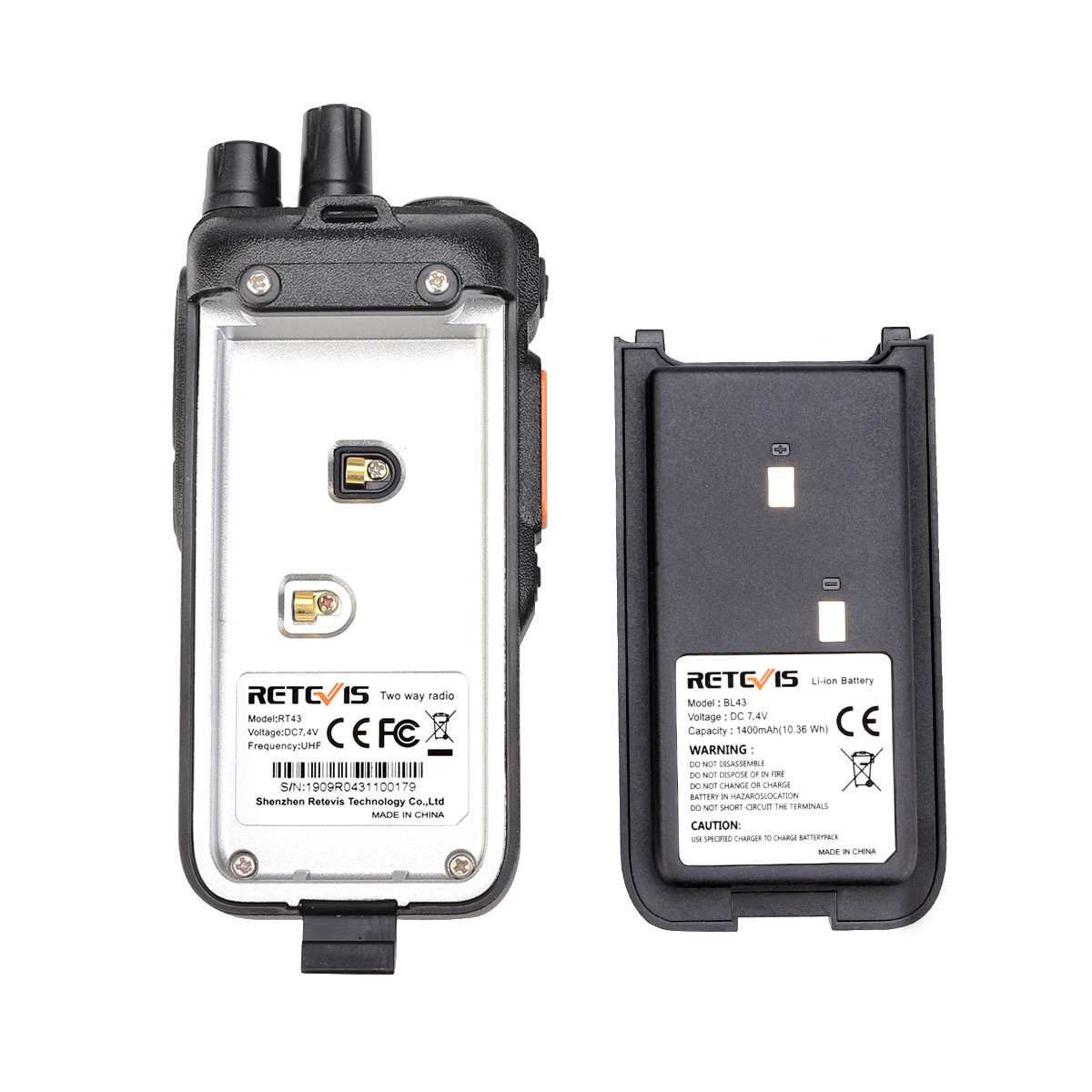

Lithium ion battery DC7.4V 1400mAh

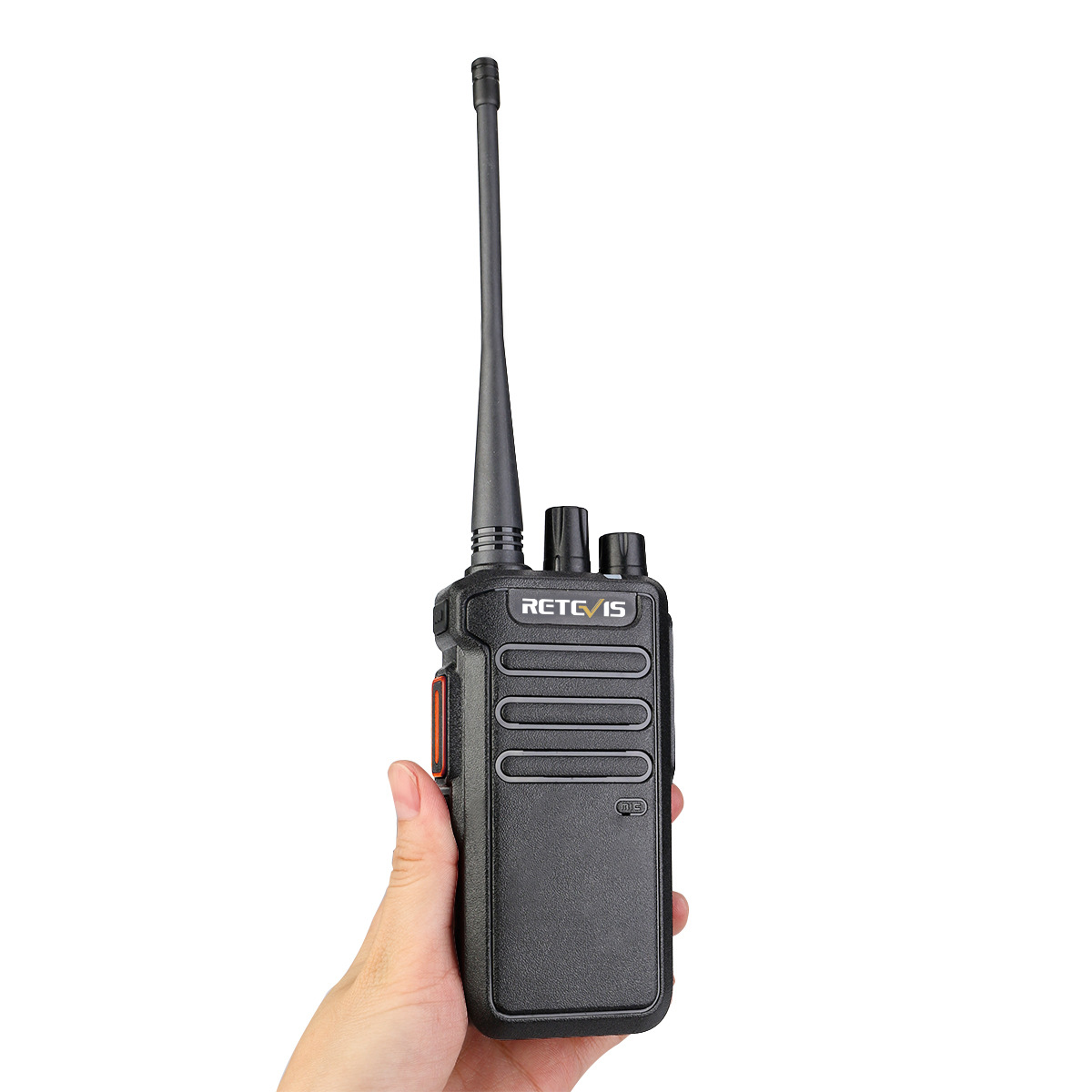

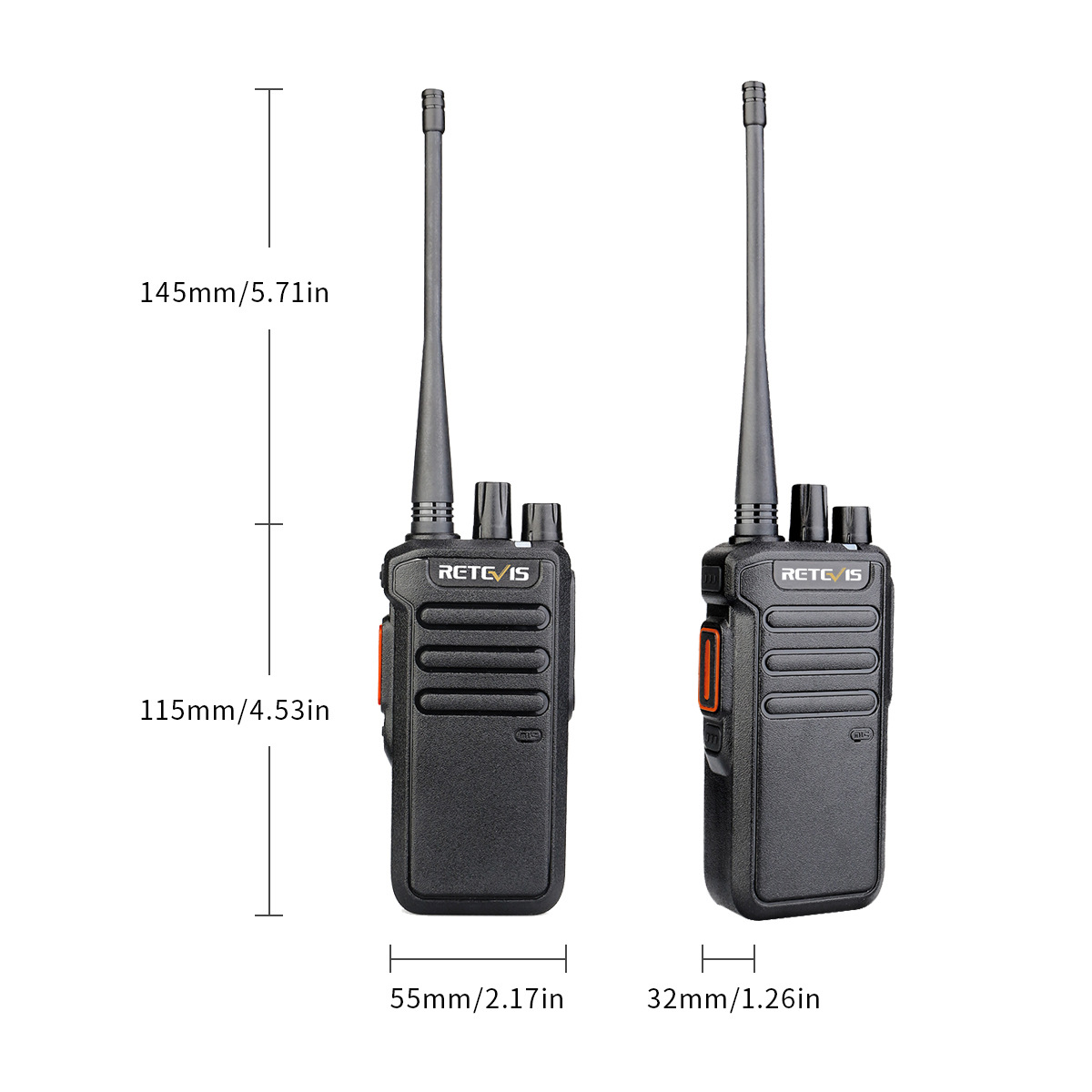

Size 116 × 54 × 35mm (excluding antenna)
Weight 316G
transmission
High output power: 5W Low: 1W
FM modulation 25/16K ¢ F3E 12.5K/8K ¢ F3E
4FSK digital modulation 12.5KHz data: 7K60FXD 12.5KHz data and voice: 7K60FXE
Vocoder type AMBE++or SELP
Digital protocol ETSI-T102 361-1, -2,
Harmonic ≥ 70dB
Signal to noise ratio radio (wide/narrow) 25K ≤ -45dB 12.5 ≤ -40dB
Rated audio distortion ≥ 5%
Frequency stability ± 2.5ppm
Reception desk
Sensitivity (12dB SINAD) Analog 25K ≤ -121dB 12.5K ≤ -119dB
Digital 0.3 μ V/BER5%
Signal to noise ratio wireless 25K ≥ 45dB 12.5K ≥ 40dB
Adjacent channel selectivity 25K ≥ 65dB 12.5K ≥ 60dB
Middle (wide/narrow) 25K ≥ 60dB 12.5K ≥ 55dB
Stray response suppression ≥ 65dB
Audio power 1W
Audio distortion<5%
Frequency stability ± 2.5ppm
