56.5 * 35.5 * 50.5 cm, weight: 18kg per pack of 5
Description:
1. Easy installation and flexible operation; Repeaters can be fixed or moved for flexible operation.
2. Sturdy body and more flexibility: The sturdy design complies with military standards and can prevent dust, wind, and other adverse conditions
3. Multiple charging options: The matching power adapter can work under DC12V~24V power supply or car power supply, meeting your needs.
4. Antennas can be selected according to actual needs.
Main technical indicators
Frequency TX 463.3125MHz/RX 453.3125MHz
Standard form DMR/FM/DMR+FM
Channel capacity 8CH
Channel spacing ± 12.5KHz narrow/± 25KHz wide
Working temperature -30 ℃~+60 ℃
Working voltage DC12V-24V
Antenna impedance 50 Ω
Frequency stability ± 0.5ppm
Dimensions 280 × 210 × 75mm
Weight 2624g
transmitter
Output power 10W
Transmission current ≤ 2.5A
FM modulation 11k μ F3E/16k μ F3E
Digital modulation 4FSK
Modulation distortion ≤ 5%
FM noise ≥ 40dB (25KHz)/≥ 35dB (12.5KHz)
Adjacent channel power ≥ 70dB (25KHz)/≥ 60dB (12.5KHz)
Audio response+1~-3dB
DMR protocol ETSI-T102 361-1, -2, -3
Recipient
Simulated receiving sensitivity 0.25 μ V (12dB) SINAD
Digital receiving sensitivity -120dBm (BER ≤ 5%)
Adjacent channel selectivity ≥ 70dB (25KHz)/≥ 60dB (12.5KHz)
Intermodulation ≥ 60dB/≥ 65dB
Signal imitation ≥ 70dB
Audio response+1~-3dB
Audio distortion<5%
FM noise ≥ 45dB (25KHz)/≥ 40dB (12.5KHz)

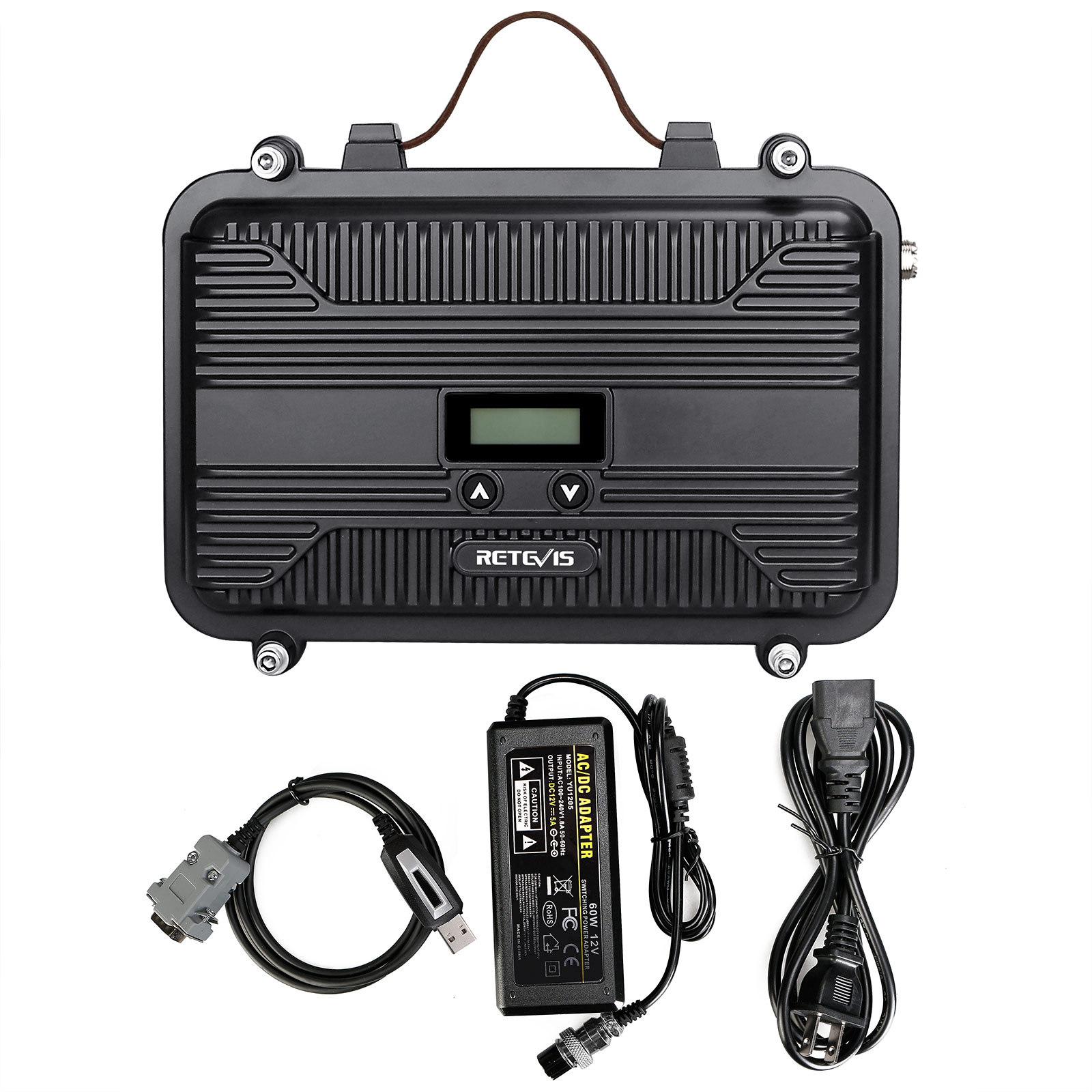

The package includes

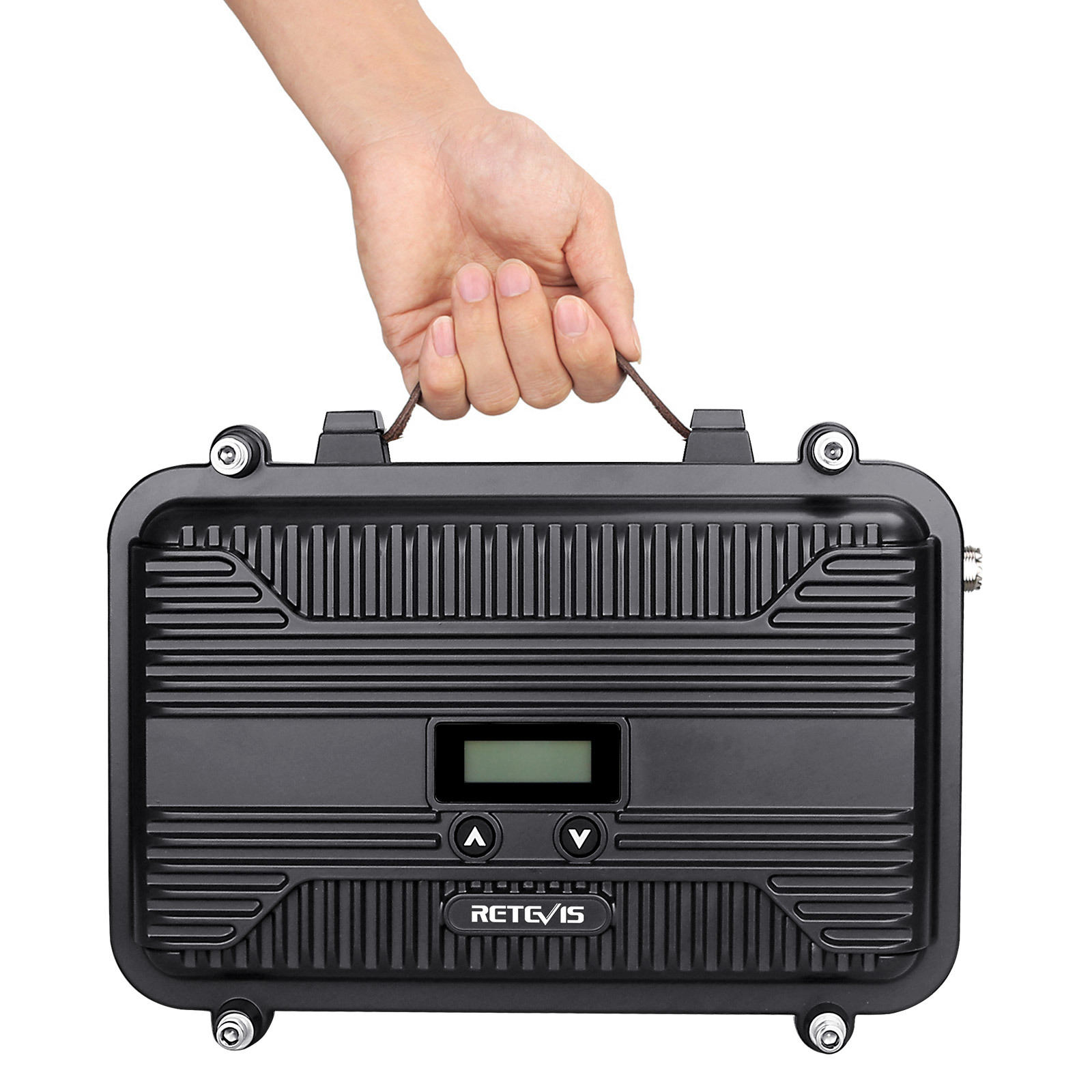

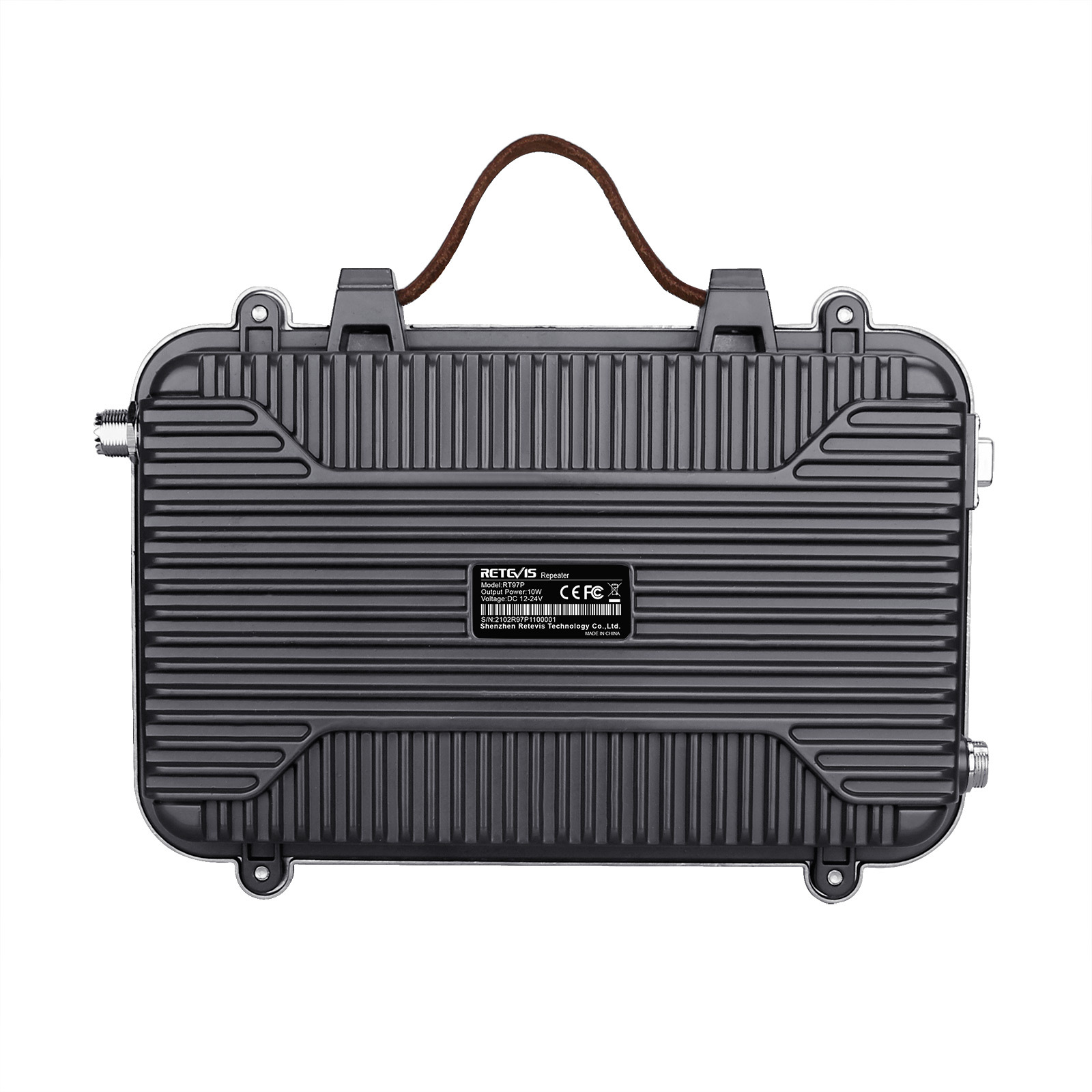

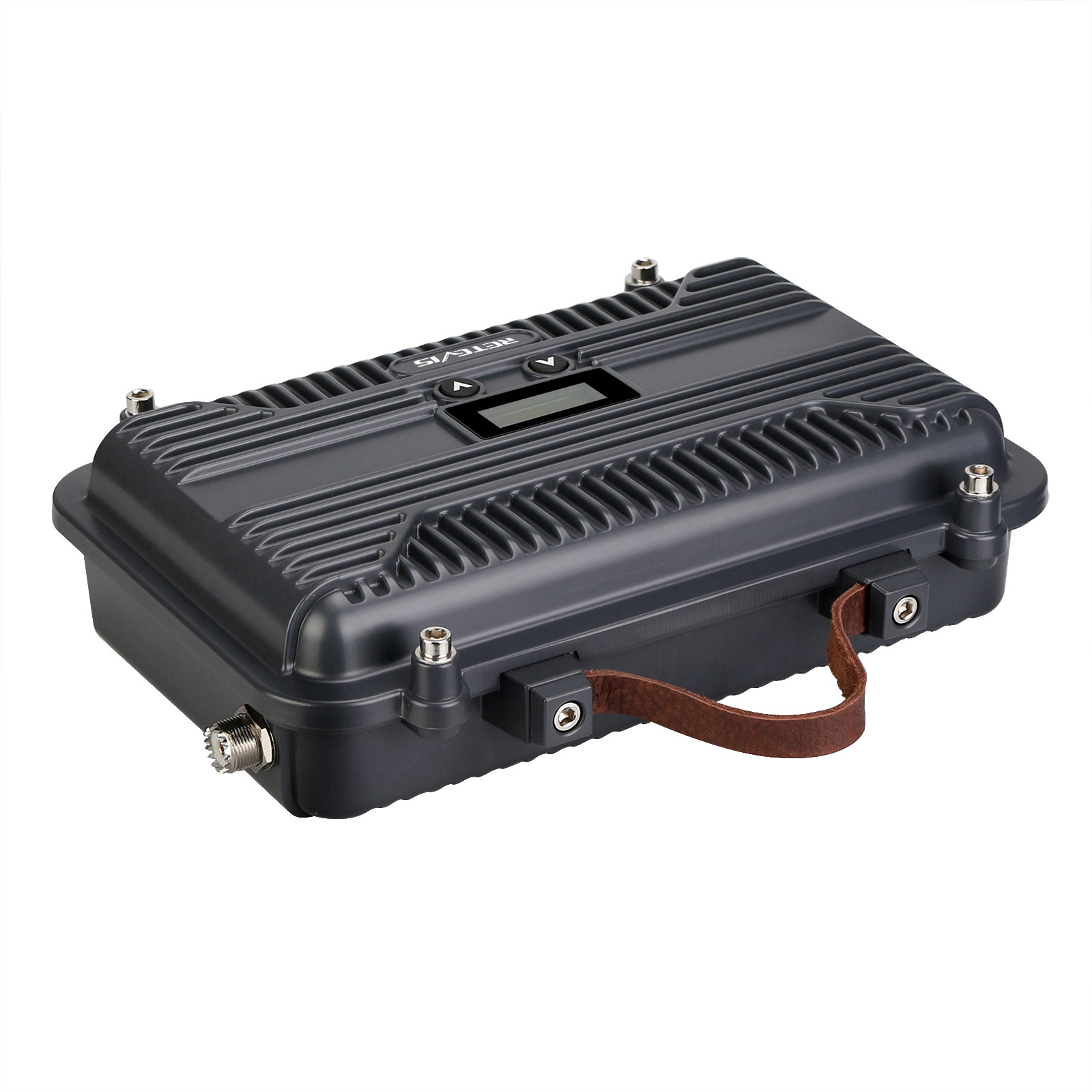

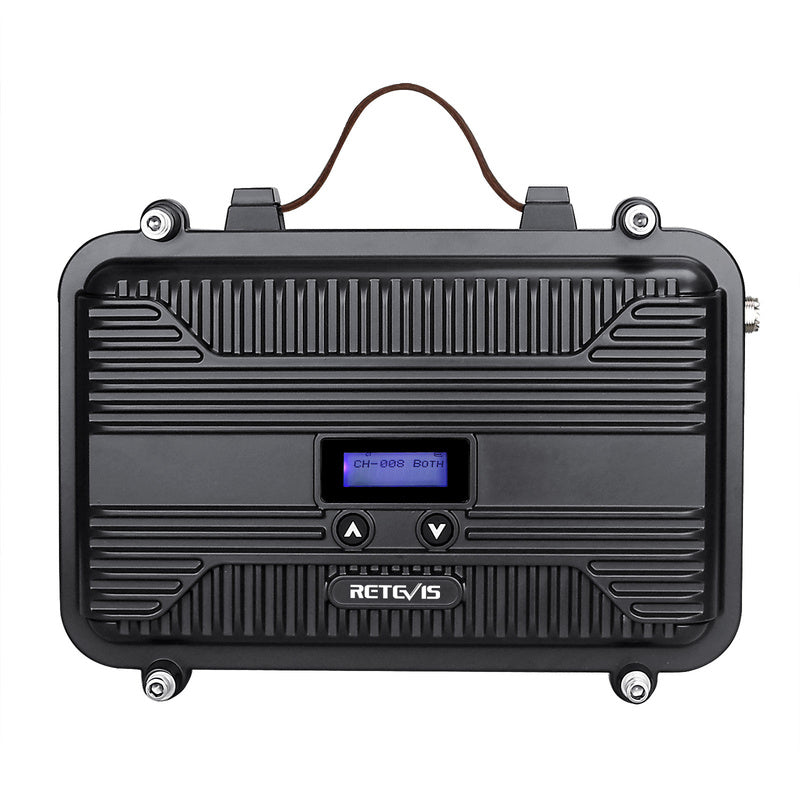

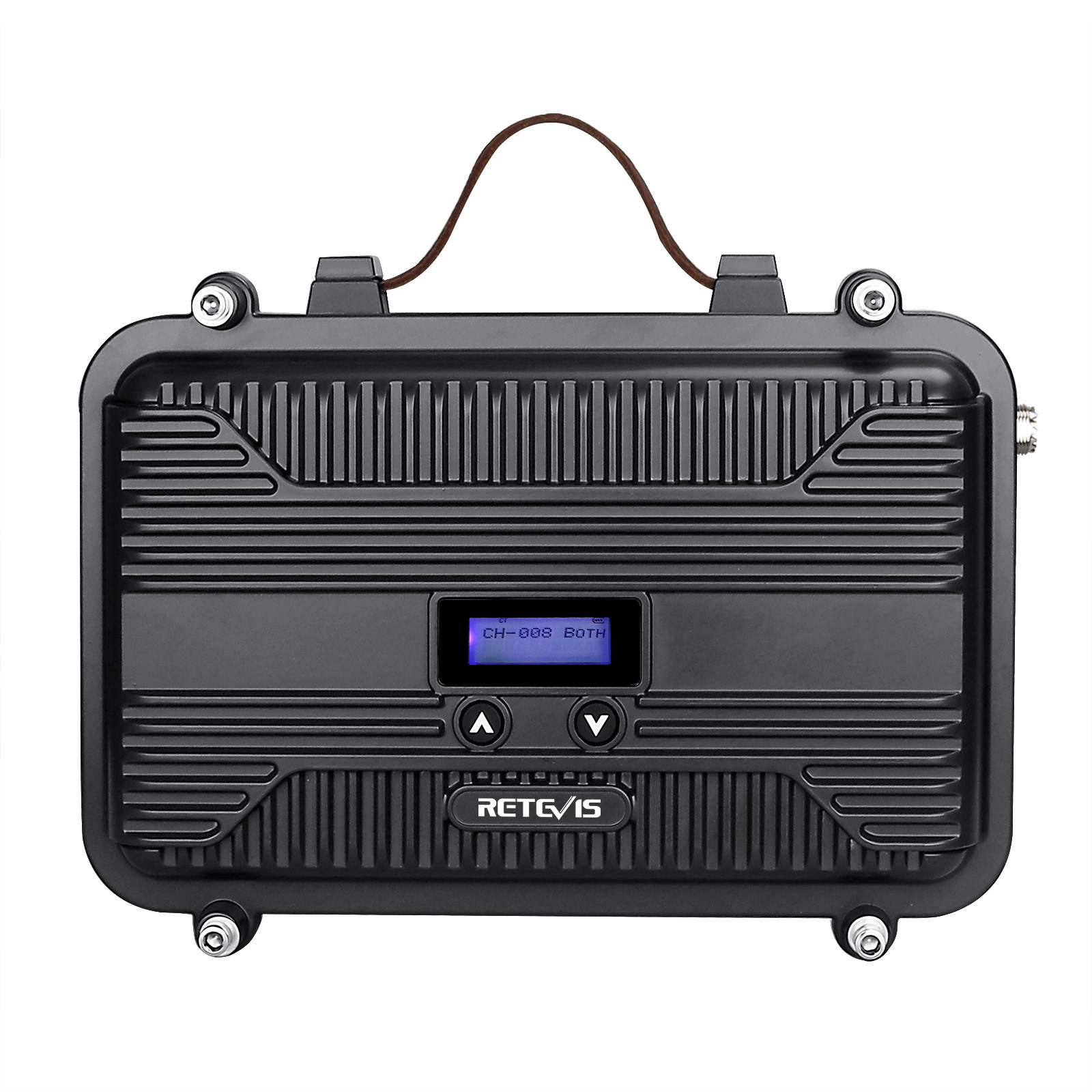

1 x RT97P repeater
1 x charger

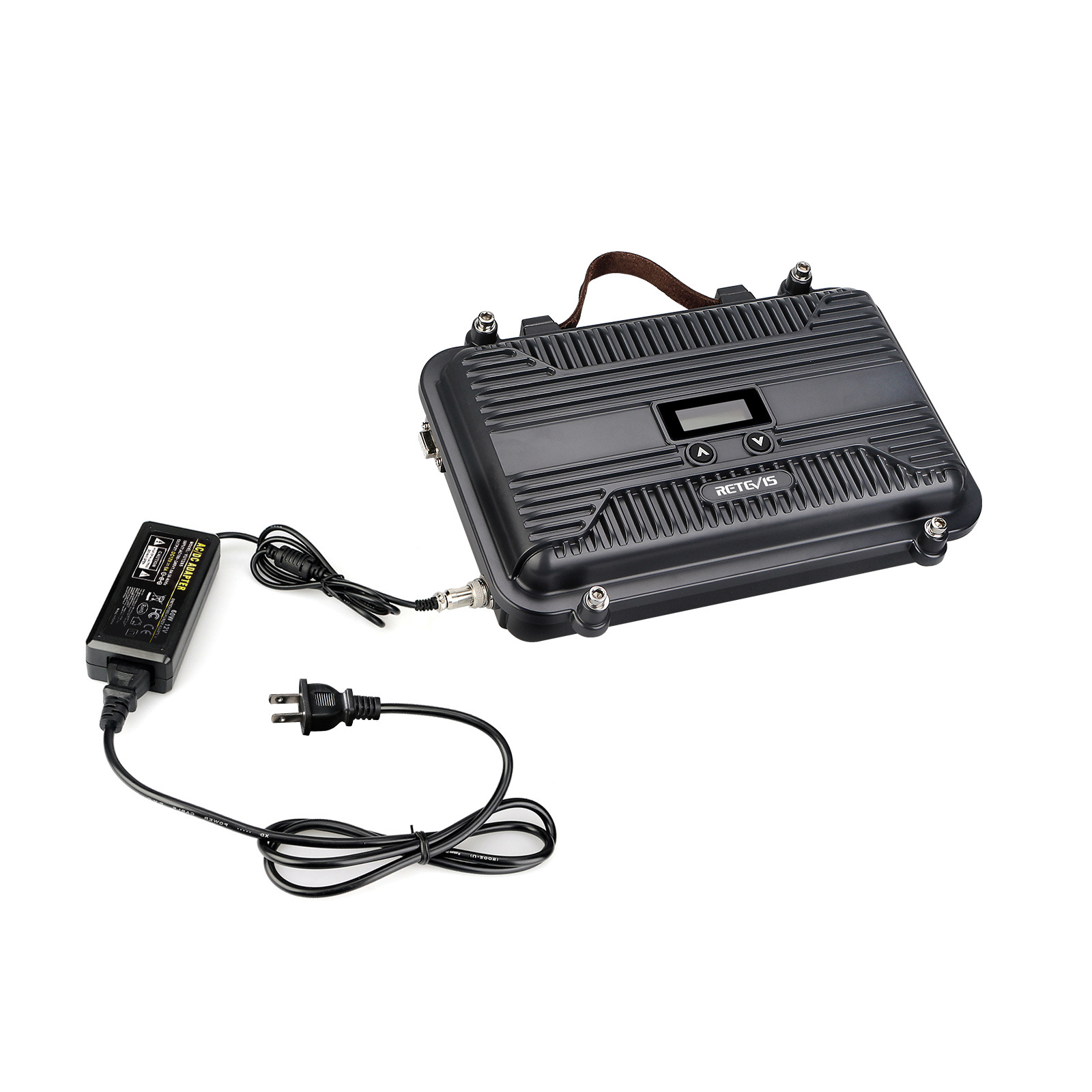

1 x power supply
1 x car charging cable

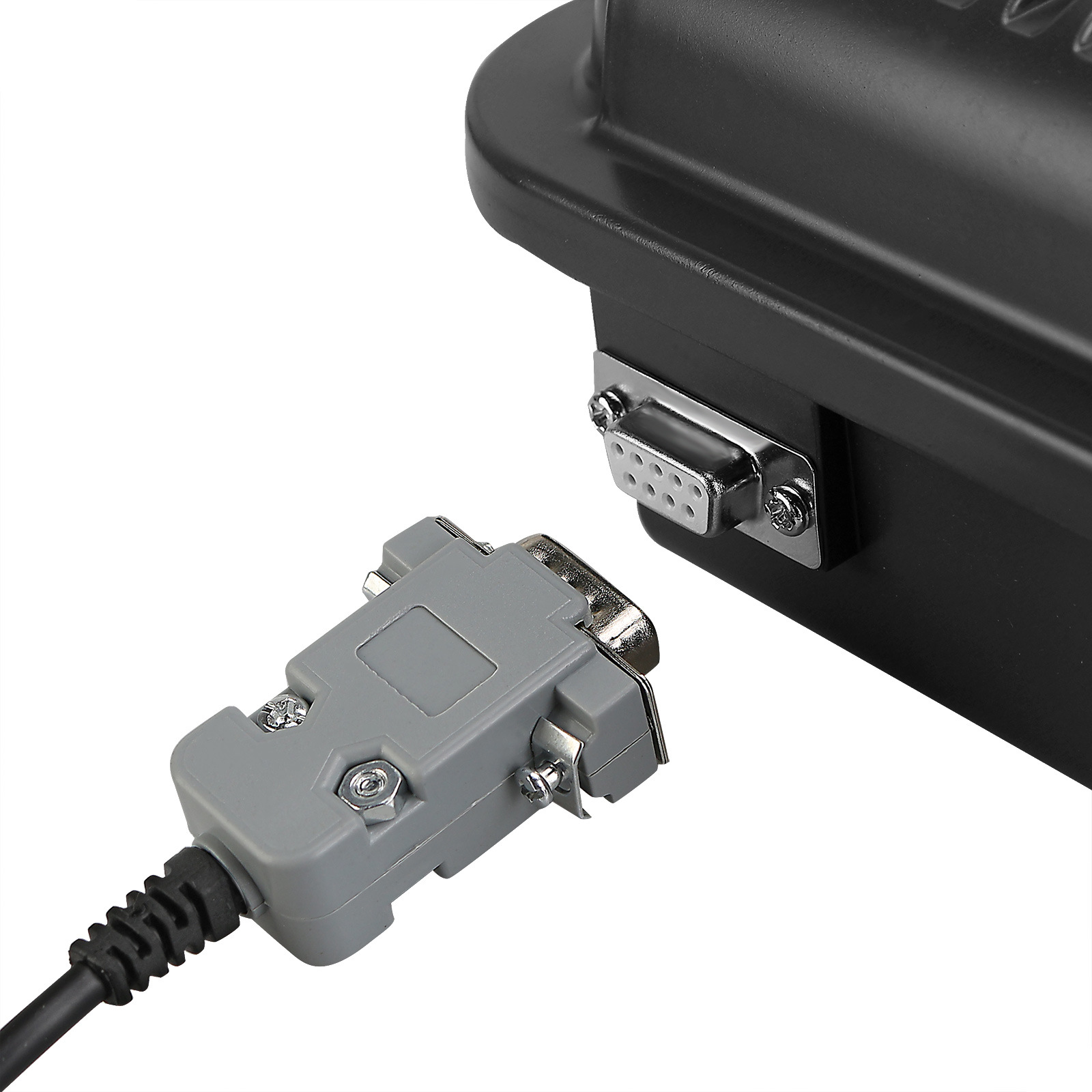

1 x programming cable
1 x User Manual
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
