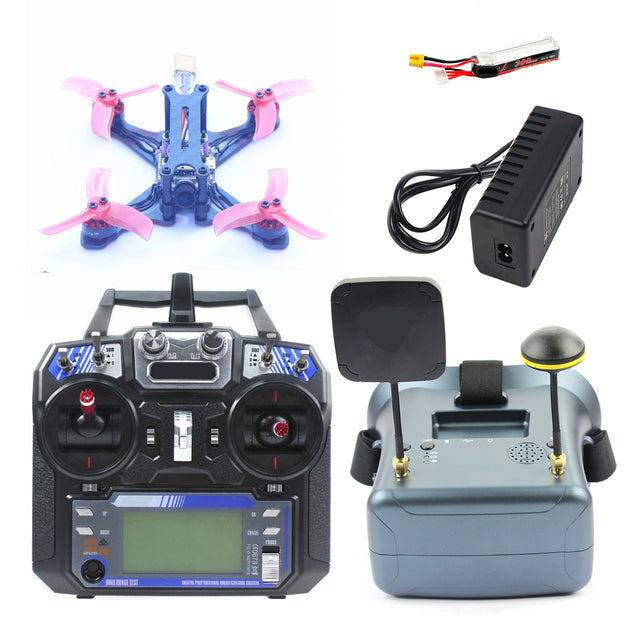

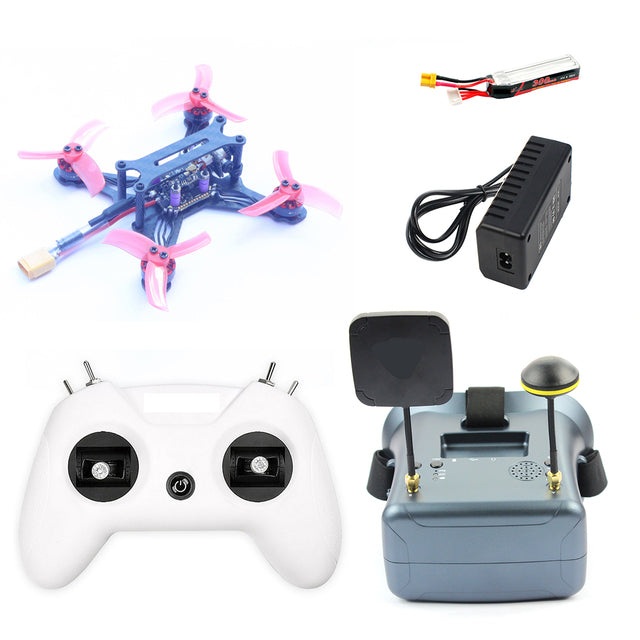

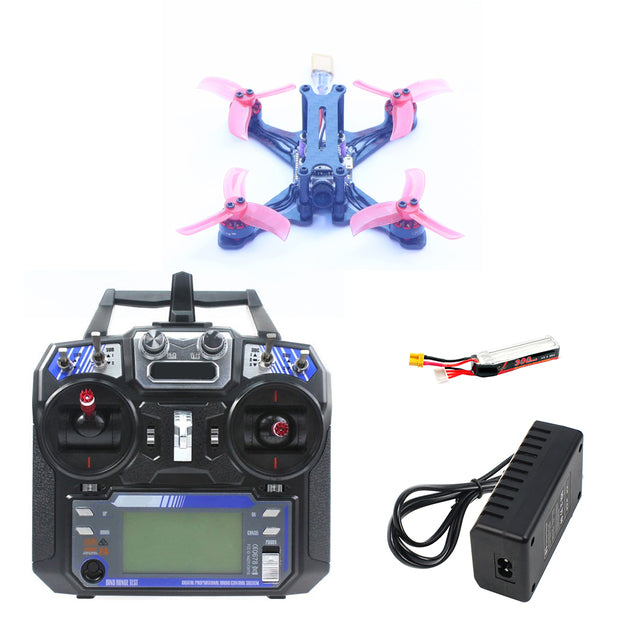

Package Listing:

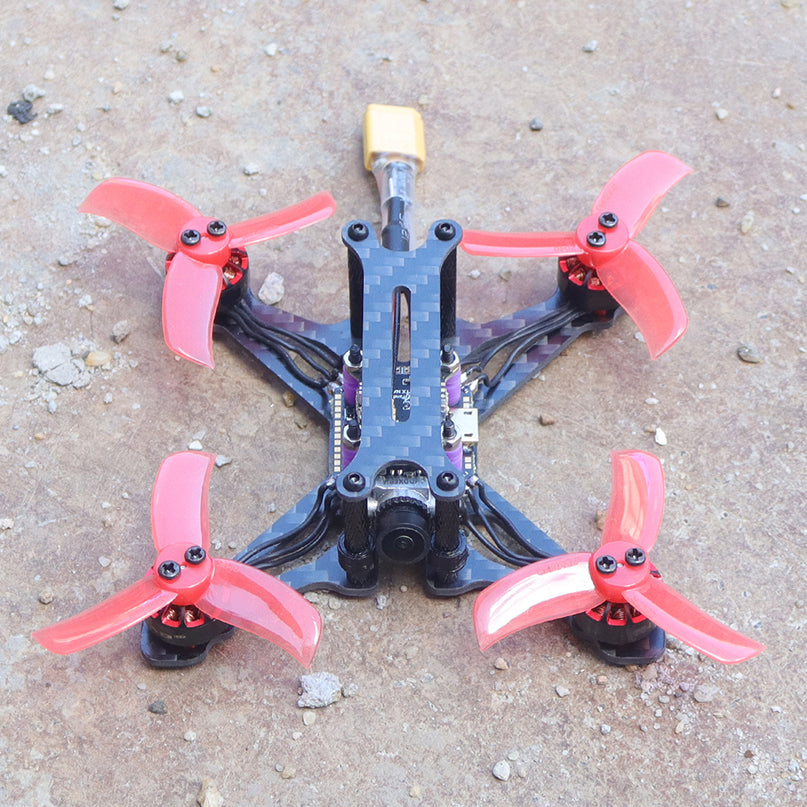

XY-2 2inch 100mm Wheelbase Frame Kit

 X1

GHF13AIO F411 OSD flight control built-in 13A 4in1 ESC X1

1102 8500KV 1.5mm Shaft Brushless Motor X4

Caddx. Ant 1200TVL 1.8mm Lens FPV Camera X1

NANO 5.8G 400MW VTX X1

5V Buzzer Alarm X1

2040 2inch 3-Blade CW CCW Propellers X2

FLYSKY Receiver/FRSKY Receiver/ELRS Receiver/DSMX/2 Receiver X1(Optional)

RC B3 PRO 2s-3s Blance Charger X1(Optional)

300mAh 3S 11.4v XT30 Lipo Battery(Optional)

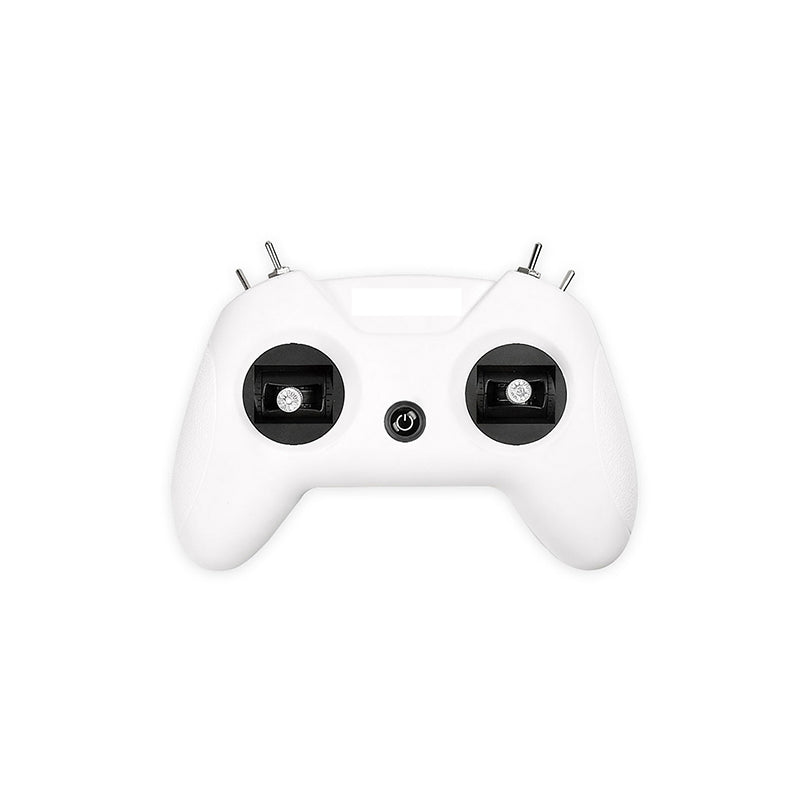

FLYSKY i6 or LiteRadio 2 SE ELRS Radio Transmiter(Optional)

Goggles 5.8G FPV VR 40CH Goggles(Optional)

Functions and Features:

Wheelbase 100mm

Support voltage 2-3S

Battery life: about 5 minutes

Remote control distance: about 400 meters

Goggles can record video

Frame kit

Wheelbase: 100mm

Bottom plate thickness: 2mm

Upper plate thickness: 1.5mm

Colour: Black

Motor installation size: 9mm

Camera fixed size: 14mm

Aluminum column height: 24mm

Flight control installation size: 16x16mm, 20x20mm

Weight: 12g

Propellers:

Specifications: 2040

Length: 2inch

Material: PC

Weight: 0.86g

Center hole size: 1.5mm

Motor

Specification: 1102

KV: 8500KV

Configuration: 9N12P

Stator diameter: 11mm

Stator length: 2mm

Shaft diameter: Φ1mm or Φ1.5mm

Motor size (Dia.*Len): Φ13.5mm*16mm

Weight: 2.8g

Support voltage: 2S-3S

Flight Controller

F411 OSD flight control built-in 13A 4in1 ESC

Size: 24.2*28.1mm (M3)

Mounting hole: 16*16mm

Weight: 4.3g

CPU: STM32F411CE (100MHZ)

MPU: MPU6000 (SPI)

Firmware: Betaflight MATEKF411.HEX

Built-in Betaflight OSD (AT7456E)

BEC output (two): 5V2.5A

USART: UART1 ,UART2

Receiver;SBUS,IBUS,DSM2,DSMX,TBS (UART2)

Blackbox: NO

Built-in current sensor

Support WS2812 LED

BUZZER

Input Voltage: 2-4S Lipo

ESC current: 13A

Firmware: BLHELI_S GH-30.HEX

Supports PWM, Oneshot42, Oneshot125, Multishot, Dshot150 and Dshot300, Dshot600

VTX

Full format video format: NTSC/PAL

Weight: 12g

Input voltage: 5V

Frequency: 48CH

Output power: 25MW/100/200/300/400MW switchable

Camera

Resolution: 1200TVL

FOV: 165°

Lens: 1.8mm

Video format: NTSC/PAL (switchable)

Ratio: 16:9

Input voltage: 3.7-18V

Installation size: 14/19mm

Weight: 2g

Goggles

1. Dual antennas at the same time, the signal is stable

2. Built-in DVR recording function, support 32G memory.

3. Built-in 3.7V 2000mah battery, which can support 3 hours of work per charge.

4, USB interface fast charge.

5. USB data export.

6. Support multiple languages.

7. Multi-function menu.

8. One-key search frequency.
