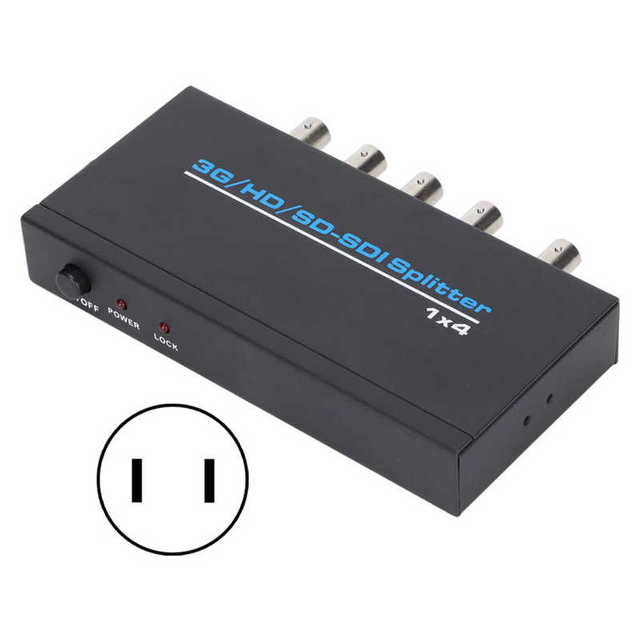

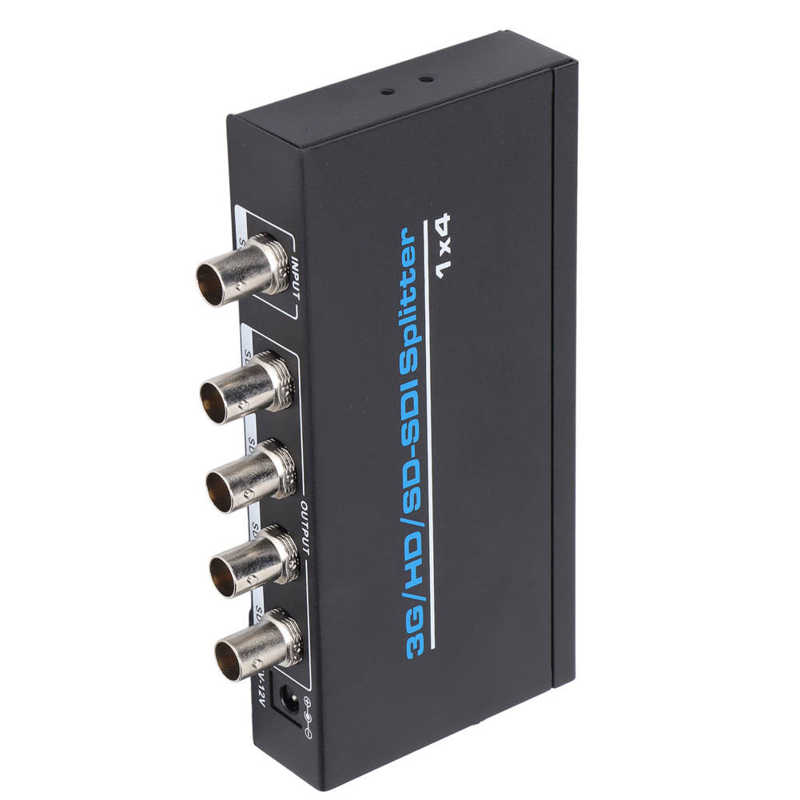

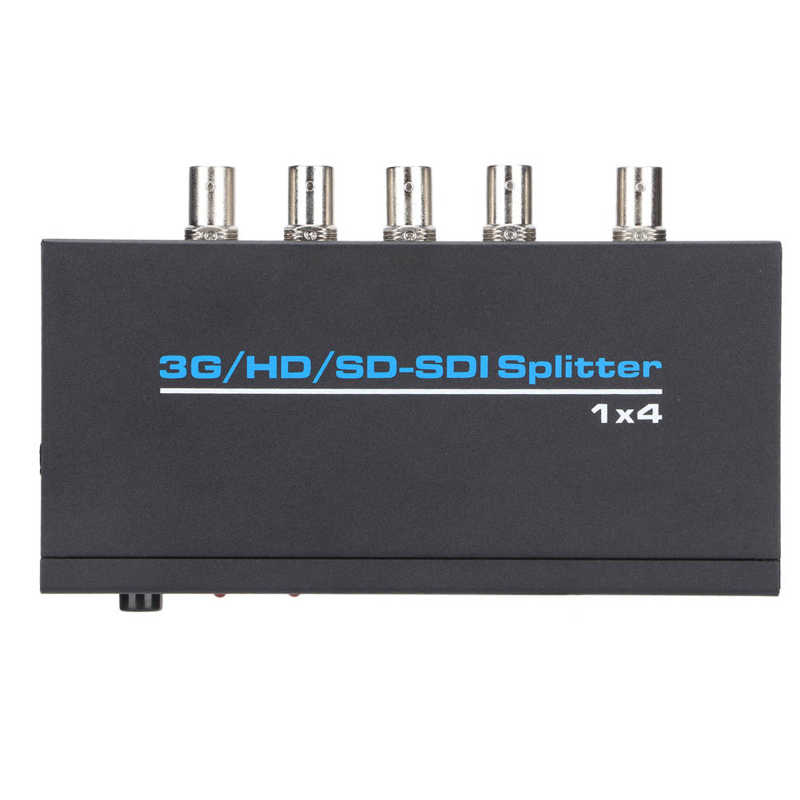

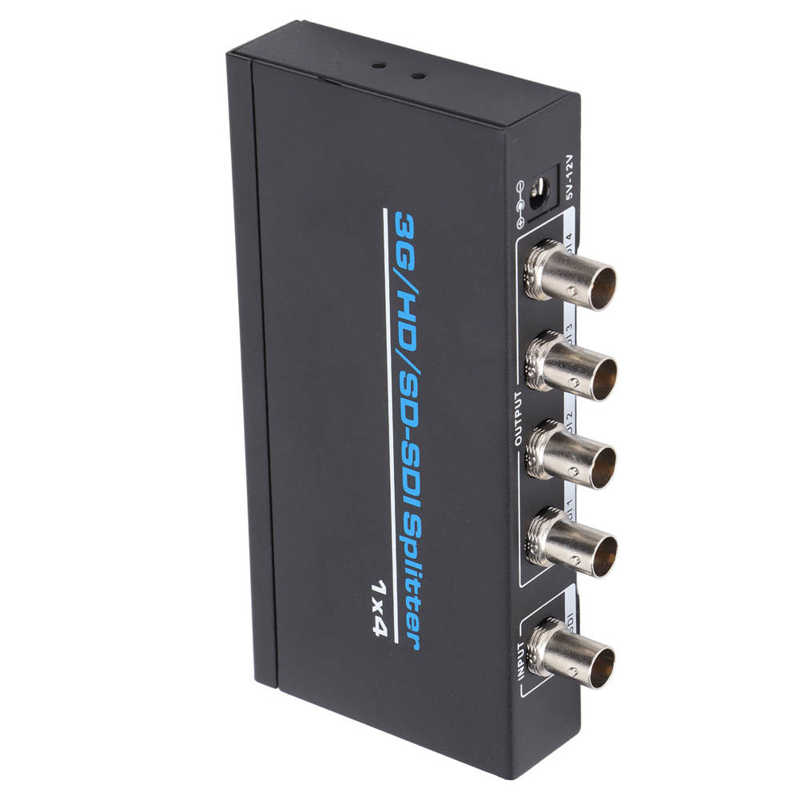

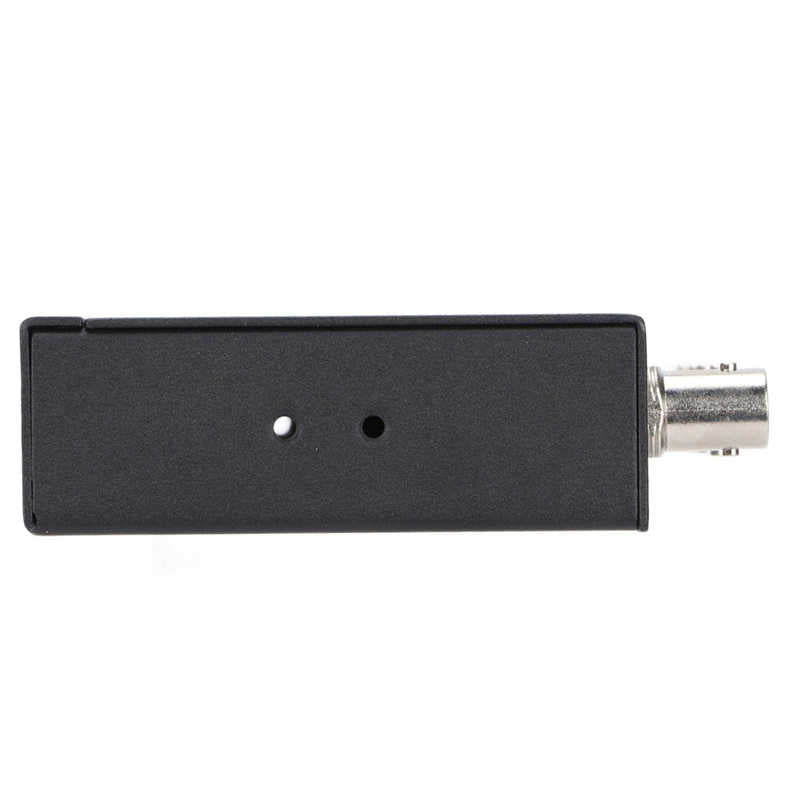

S114 SDI 1 Input 4 Output Splitter Digital SDI Dispenser Supports‑SDI HD‑SDI 3G‑SDI Up to 1320 Feet AC 100‑240V
Feature:
1. SDI 1X4 Splitter: 1 SDI input signal is distributed to 4 SDI receiver units. One signal is divided into four signals. The input signal is 1080p, and the output signal is also 1080p.
2. Multi Distribution Support: Support‑SDI (270Mbps), HD‑SDI (1.485Gbps) and 3G‑SDI (2.97Gbps) and distribute to 4 simultaneous SDI outputs.
3. SDI Relay Function: Provides equalization and reclocking transmission, signal input and output distance: 300m for clear signal, 200m for HD signal, and 100m for 3G signal.
4. Plug and Play: This SDI signal distributor is equipped with a durable metal shell, intelligent design, plug and play, and can automatically detect SDI signals.
5. Wide Voltage Design: This signal distributor can support DC 5V~30V voltage input (minimum 5V), which is more suitable for engineering use.
Specification:
Item Type: SDI One in Four out Distributor
Model: S114
Colour: Black
Material: Metal
Function: Digital Audio Distribution
Scope of Application: Widely Compatible

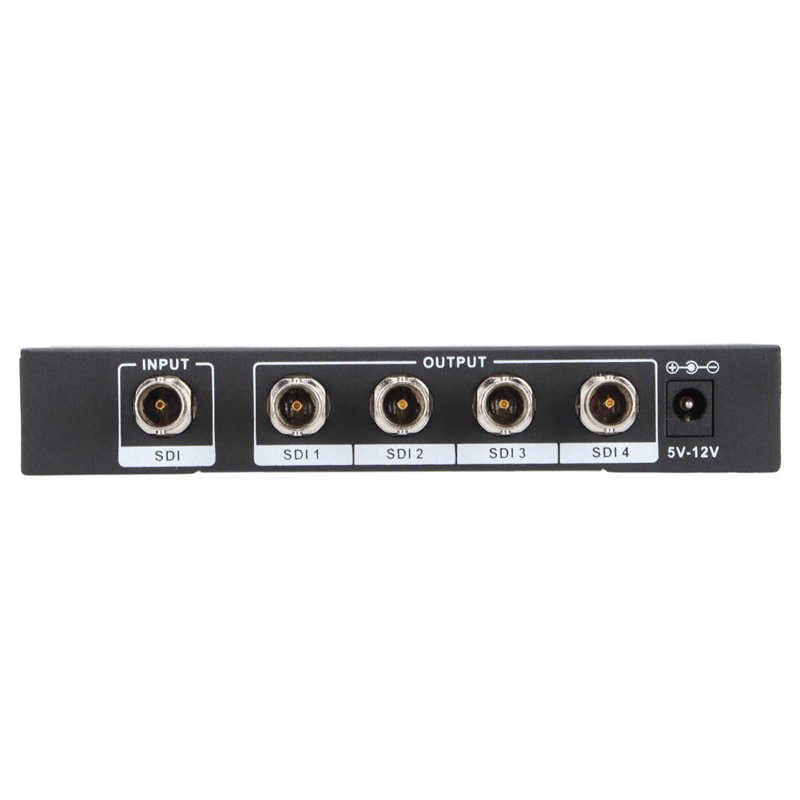

Input Port: 1 Female BNC Input Port
Output Ports: 4 Female BNC Output Ports
Frequency Bandwidth: 3 Gbps
Input Voltage: DC 5 V 1A
Working Temperature: 0°C~40°C / 32 °F ~ 104 °F
Power Consumption (Maximum): 1.5 W
Package List:
1 x SDI 1 in 4 out Distributor
1 x Power Adapter
1 x Manual
How to use:Plug and play
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
