Number of channels: 2
Analog bandwidth: 10MSa/S (1 CH)
Actual bandwidth: 2MSa/S (1 CH)
Measurement voltage: X1 (± 40V), X10 (± 400V)
Input impedance: 1M Ω
Storage depth: 20KB
Parameter display: 12 types
Current measurement: 0-6A
Minimum accuracy: 2mA
Display: 3.2inch LCD, 320 x 240 resolution
Charging voltage: 5V
Battery capacity: 2500 mA
Continuous working hours: 4.5-6H
Support for high-pressure anti burning function.Support upper computer software. Users can update the system through software and will support FTT in the future
size: 120mm x 66mm x 18.5mm
Material: plastic+metal
colour: Black

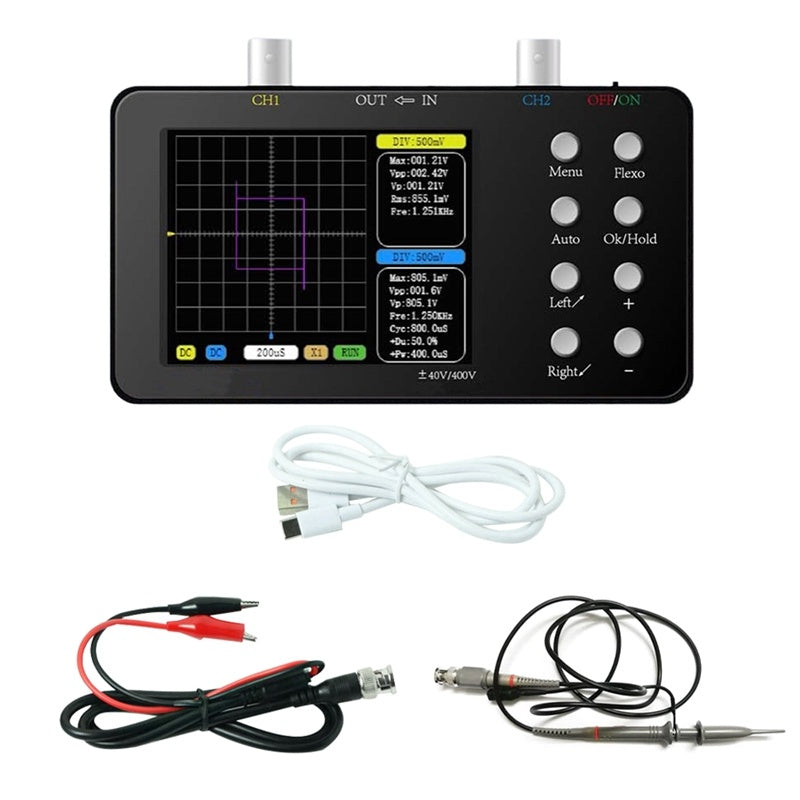

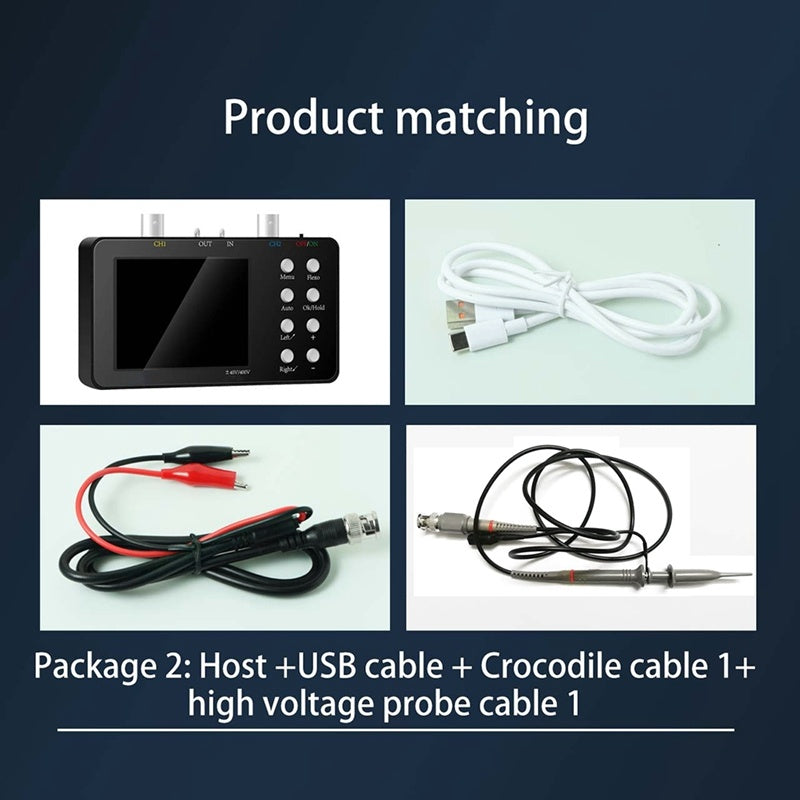

Package Contents:
1 x SCO2 oscilloscope
1 x alligator clip
1 x high voltage probe
1 x usb cable
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
