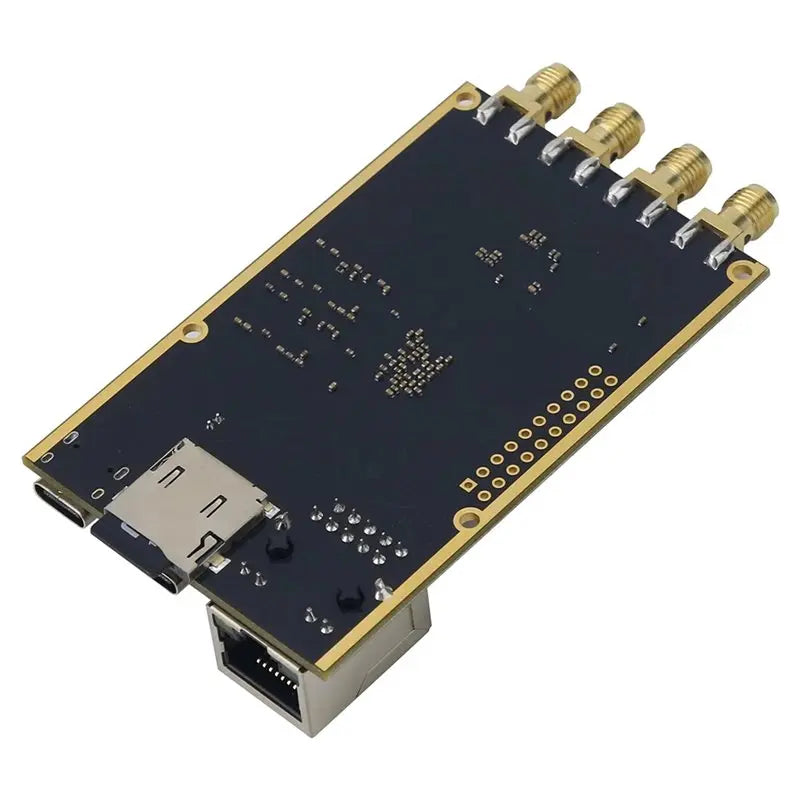

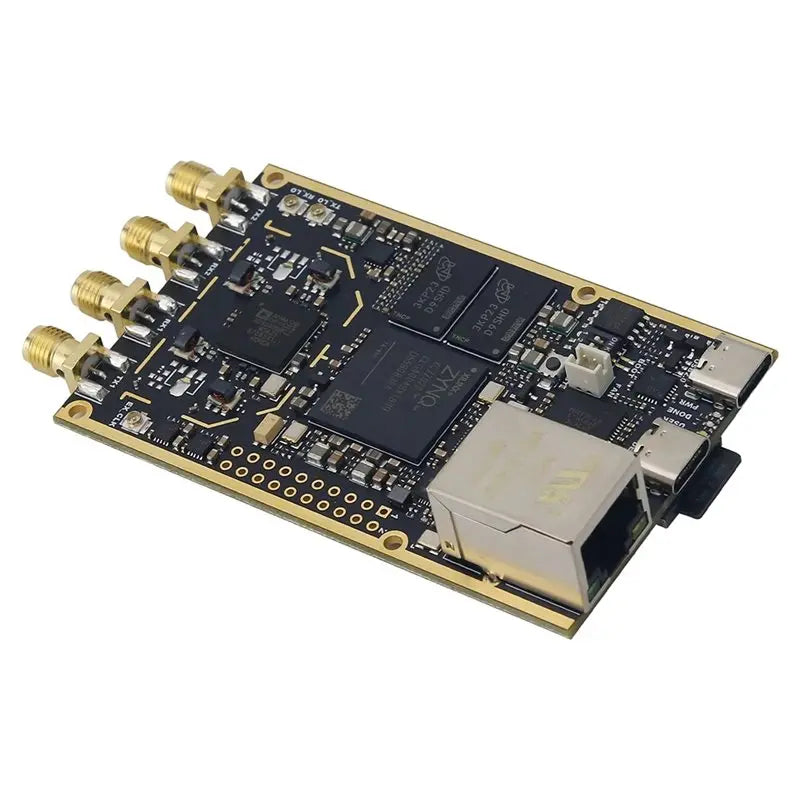

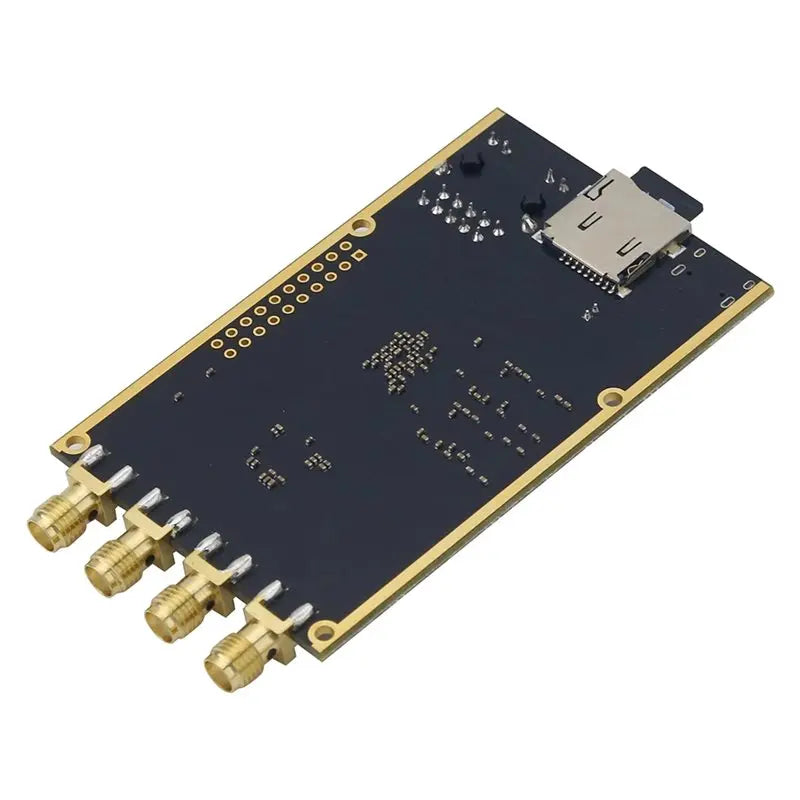

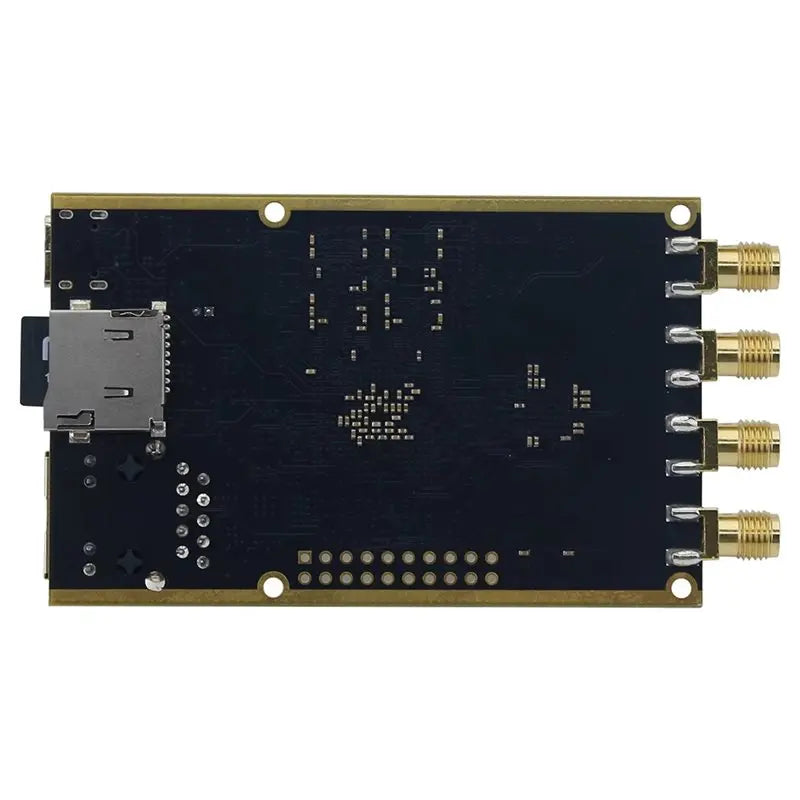

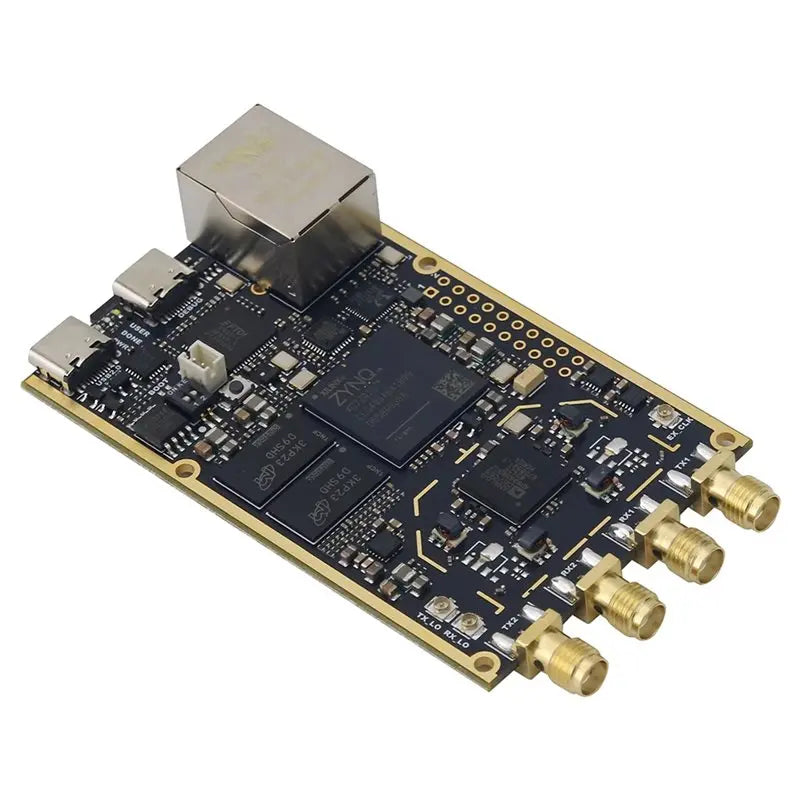

Board size: about 5 x 8cm.
Peripheral: double DDR, 1GB.
Integrated FT2232 debugger, with serial port.
Supports external input of local oscillator and various software including IIO Oscilloscope, SDR Sharp, GNU Radio, and MATLAB.
Processor: XC7Z020-2CLG400I
LO frequency: 70MHz - 6GHz
BW: 200K - 20MHz
PA: PGA102+ (10dB gain, bypassable)
RF interface: 2T2R
DDR3: 1GB
Flash: 16MB
1000/100/10M ETH: One (PS)
UART + JTAG: One (Type-C)
USB2.0: One (Type-C)
SD card slots: one
Extend IO: 1.8V IOx8, 3.3V IOx4
PTT out: one (5V level)
RFIC clock: 0.5ppm TCXO/FPGA/ (default TCXO)
Color: Black
Material: PCB

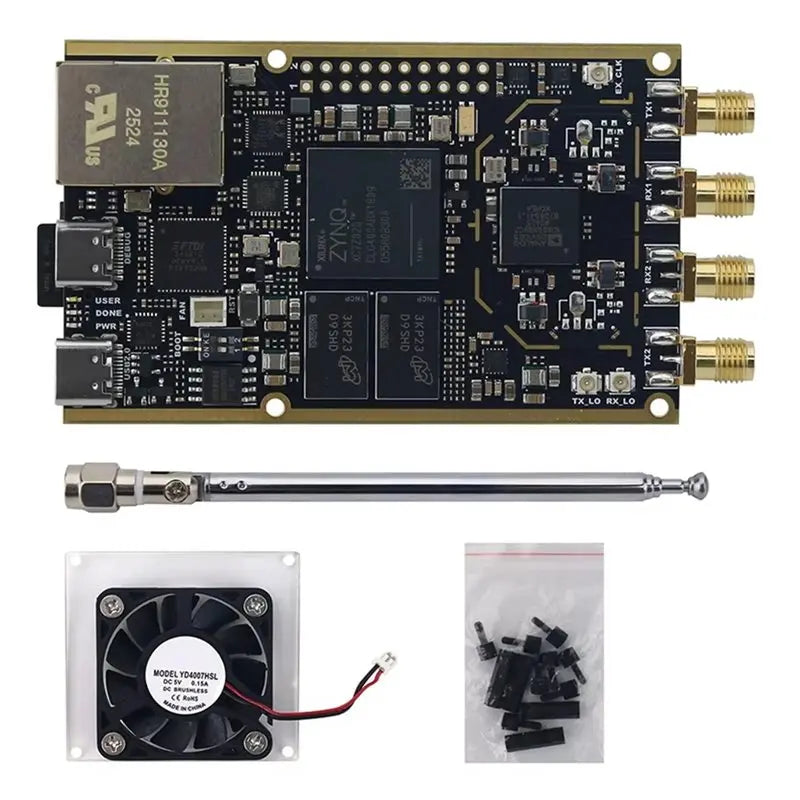

Package Contents:
1 set of SDR Development Board
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
