Specification:
Descriptions:

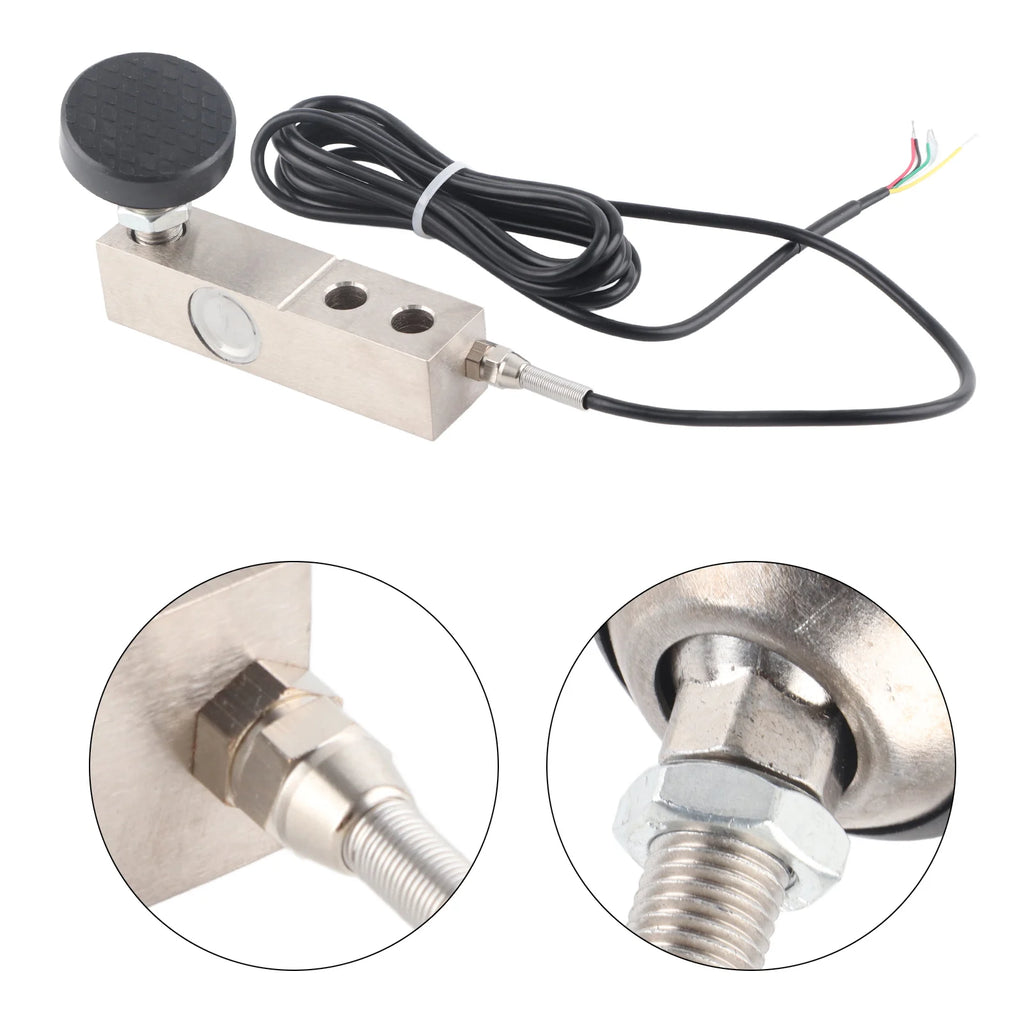

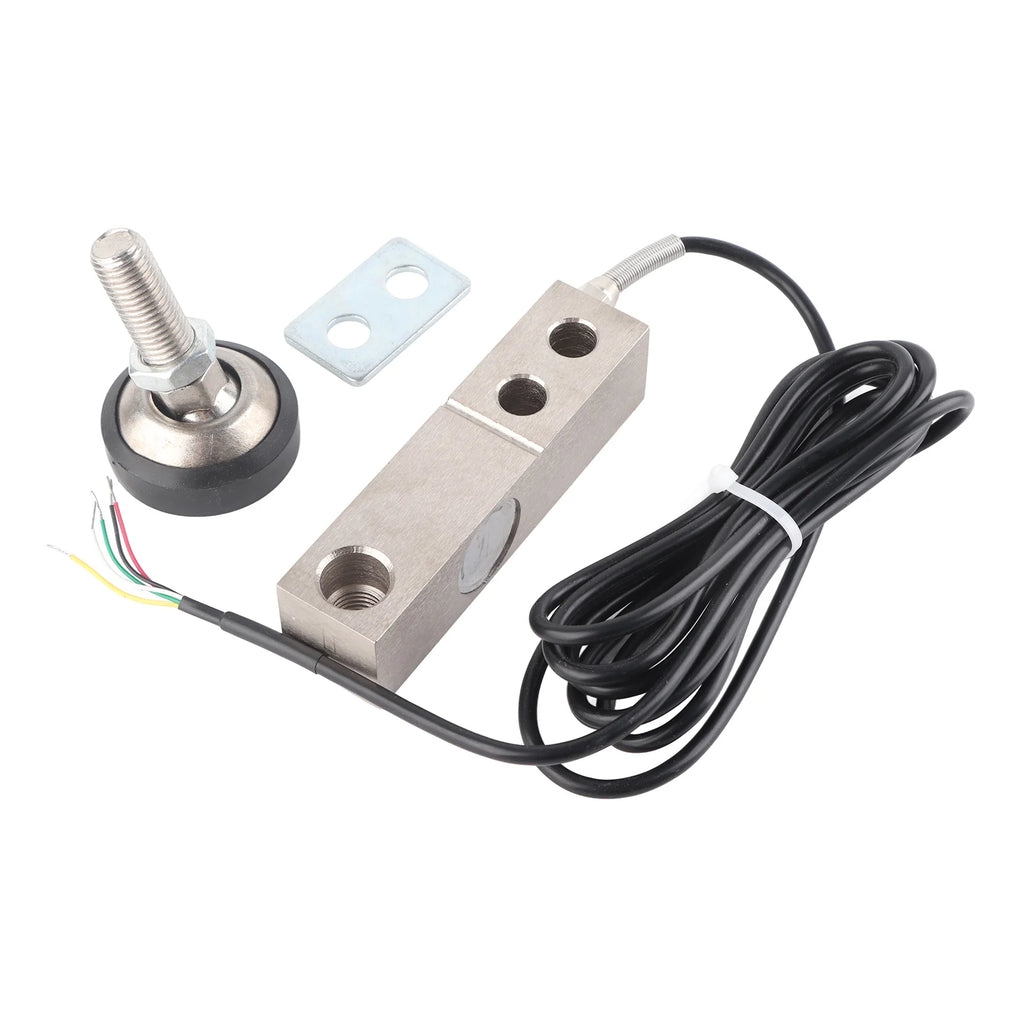

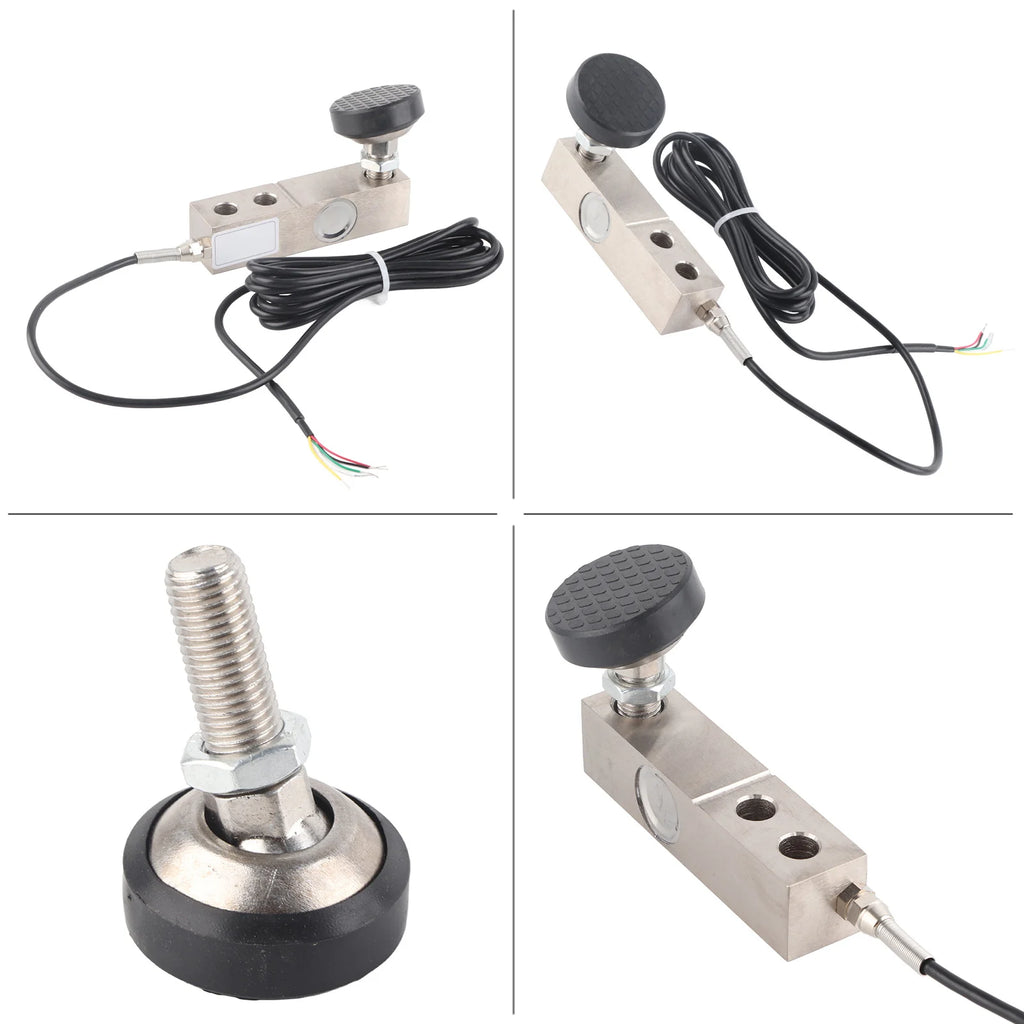

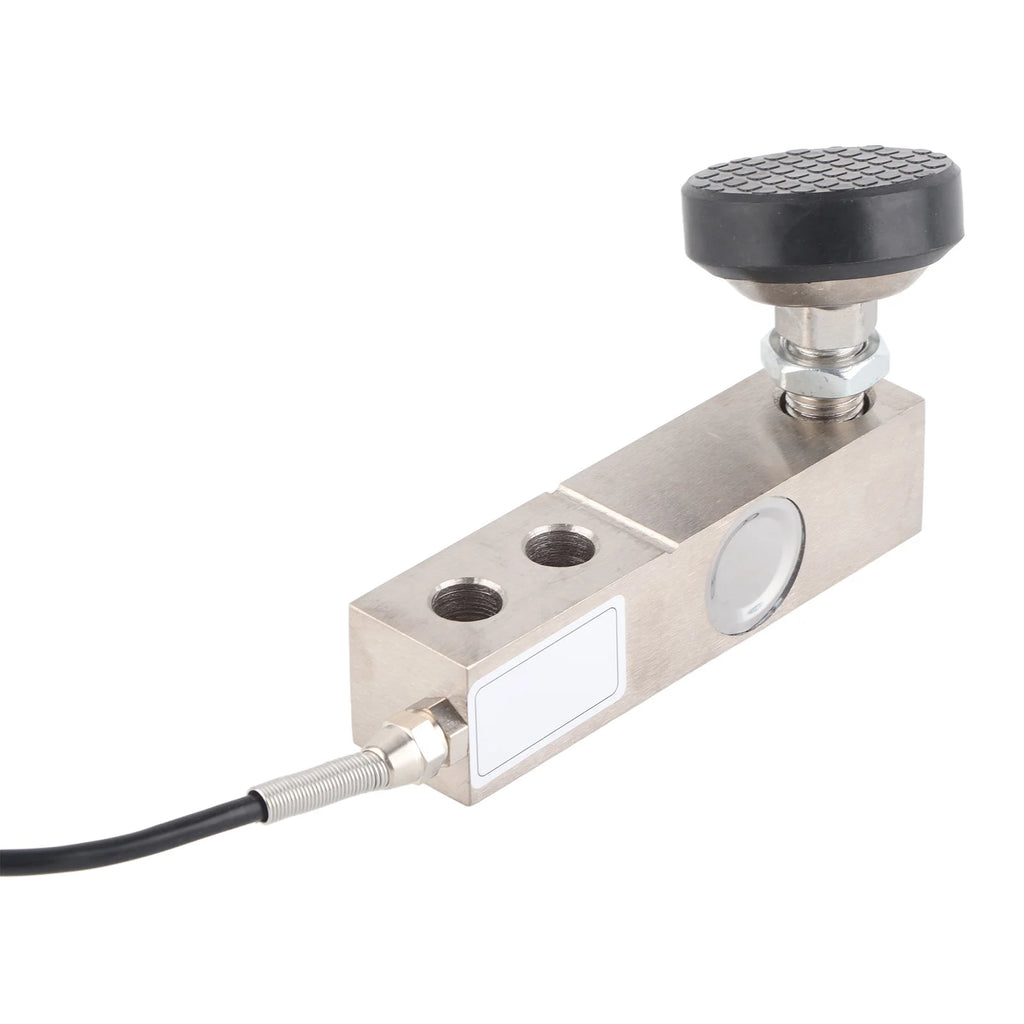

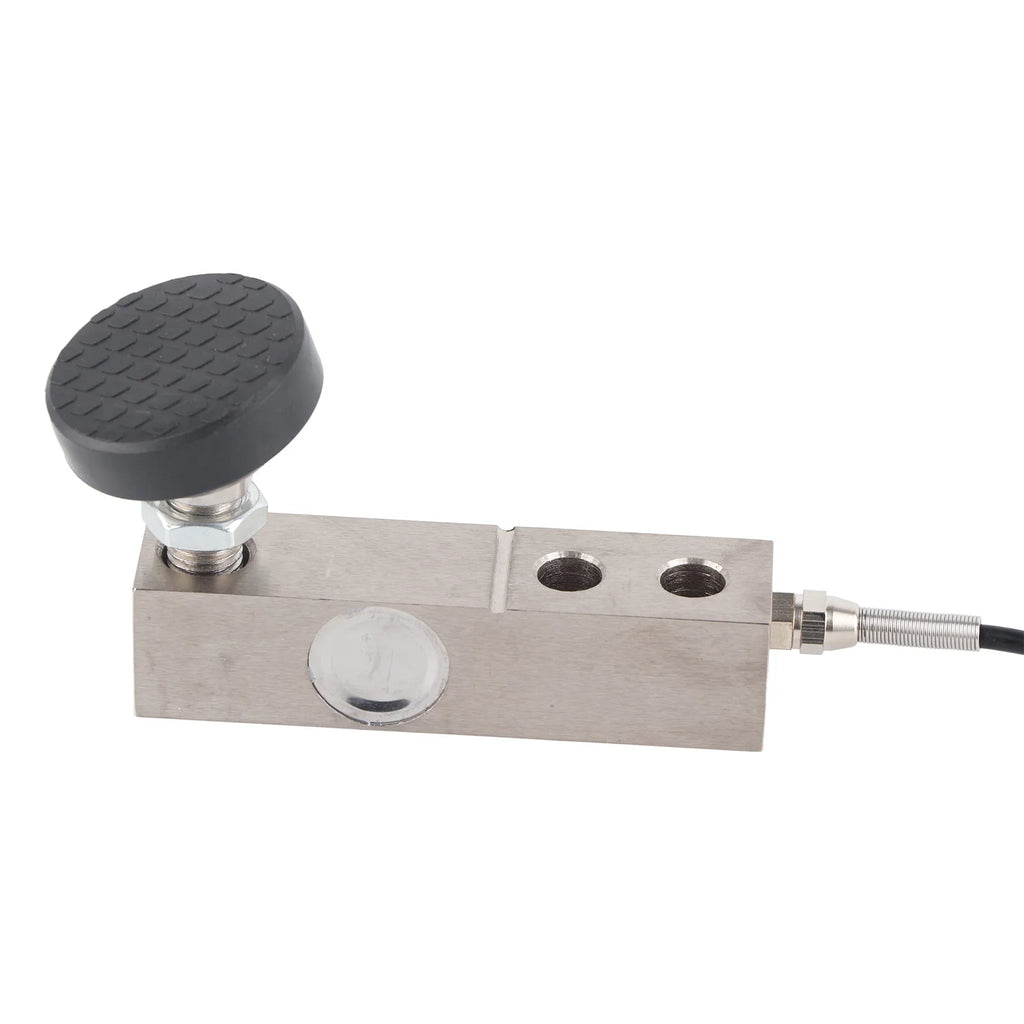

This shear beam load cell sensor adopts alloy steel material, durable in use, features high precision, high sensitivity, and high stability. Applied to electronic platform scale, track scale, automobile weighing equipment.
Features:
This shear beam load cell sensor adopts alloy steel material, durable in use.
Welding seal treatment, the protection level is as high as IP67.
Surface plating nickel anticorrosive treatment.
Applied to electronic platform scale, track scale, automobile weighing equipment.
This weighing sensor adopts 4-Core shielded cable.
This shear beam load cell sensor features high precision, high sensitivity, and high stability.

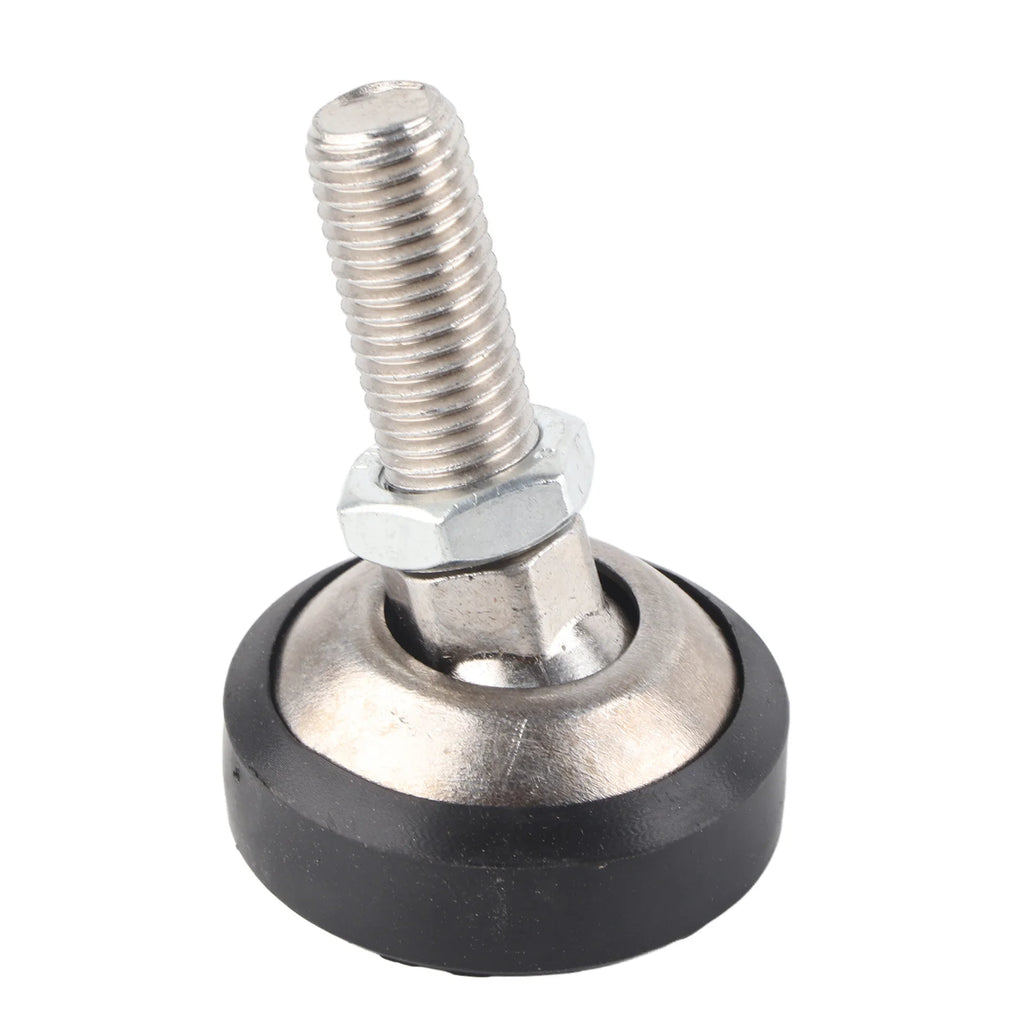

Unique bearing blind hole design.
Simple and quick installation.
Specifications:
Model:PSD - F1
Type: weighing
Material: metal
Protection level: IP67 Rated Load: 0-1000kg
Linearity: ±0.02（%F.S.）
Delay: ±0.02（%F.S.）
Repeatability: ±0.02（%F.S.）
Sensitivity:2.0 ±0.002%
Excitation voltage: 10V DC/AC
Input impedance: 380 Ω±20Ω
Output impedance: 350 Ω±5Ω
Weight:1252g
The wiring mode:
Input +: Red
Input -: Black
Output +: Green
Output -: white
Package Included:
1 x Weighing Sensor
