Shipping Label Printer Label Printer Intelligent Suction Paper Retraction for Computer for Mobile Phone

     Feature:

1. Applicability: No paper storage, quick paper change for external side single box, can print stacking and reeling courier orders; print with thermal paper, no need for ink, ribbon, ribbon and other consumables, saving worry and money .

2. Intelligent Suction Paper Retraction Function: Optical optical positioning, realize automatic suction paper without opening the cover, retraction of the first sheet, automatic calibration, single sheets can be printed, no waste of face sheets.

3. Compatible With Various Devices: Mobile phone BT printing, no computer required, support for BT, USB, WIFI, and can be equipped with mobile computers to run multiple systems.

4. Easy to Use: The blade is incisive, tearing paper easily, improving work efficiency, and printing width can be adjusted freely, and the adjustment range is 40‑120mm.

5. Material: The core of the printer lies in the print head, which uses a thick film print head specially developed for thermal paper, which has a low failure rate, fast printing, and is durable and durable.

   Specification:

   Item Type: Label Printer

Material: ABS

Purpose: Face Sheet Printing

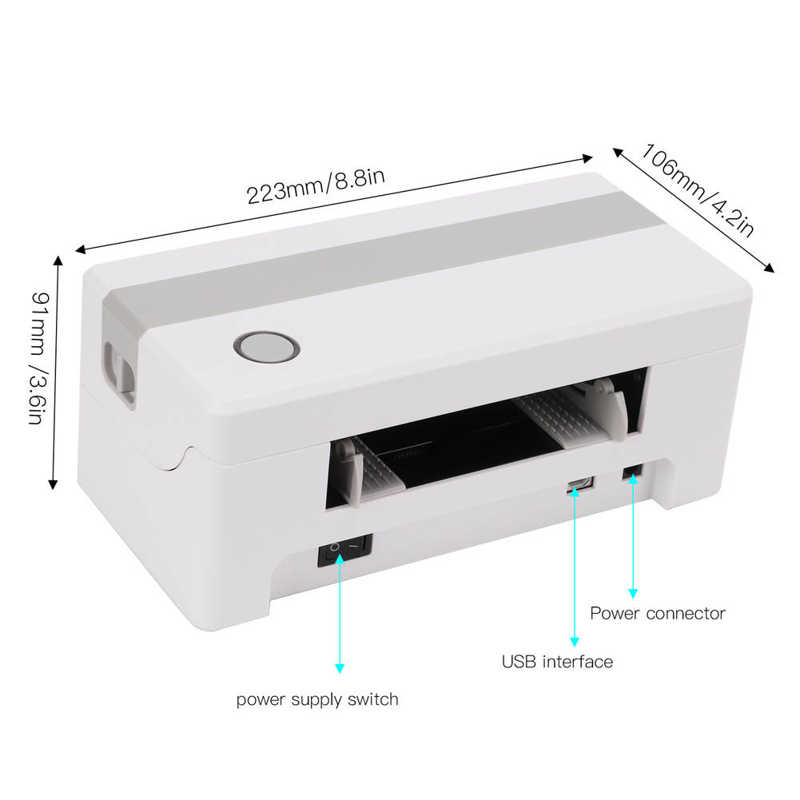

Product Size: Approx.223 x 106 x 91mm / 8.8 x 4.2 x 3.6in

Printing Method: Line Thermal Printing

Printing Speed: 150mm/s

Printing Paper Width: 40-120mm / 1.6-4.7in

Effective Resolution: 203dpi

Printing Paper Thickness: 0.058-0.17mm / 0.002-0.007in

Character Size: ASCIIFontA: 12 x 24 ASCII Font B: 9 x 17 Chinese Characters: 24 x 24

Interface Type: BT, USB Interface (Optional)

Print Characters:

ASCII Codes Character Set: 12 x 24 Points, 1.25 (Width) x 3.00 (Height)mm / 0.05 x 0.1in

National Standard—, Second Level Chinese Character Library: 24 x 24 Dots, 3.00 (Width) x 3.00 (Height)mm / 0.1 x 0.1in

Barcode Type:

One Dimensional Codes: Codes 39, 39C, I25, Codes 93, ITF25, EAN128, Codes 128, Codabar, EAN -8, EAN8 +2, EAN8+ 5, EAN -13, EAN13+ 2, EAN13 +5, UPC-A , UPCA+2, UPCA+5, UPC-E, UPCE +2, UPCE+5M SIC, ITF14, EAN14, CODE11, POST

Two Dimensional Codes: QRCODE, PDF41 7 (Optional)

Extended Character Table: PC437, Katakana, PC850, PC860, PC863, PC865, WPC1252, PC866, PC852, PC858 and Other 10 International Languages.

Power Adapter:

Input: 100-240V 50/60Hz 1.5A EU/US/UK/Australia

Output: 24V = 2.5A

Environmental Requirements:

Working Environment: Working Temperature: 0~50° C, Working Humidity: 20~85%

Storage Environment: Storage Temperature: -20~70° C, Storage Humidity: 5~95%

Environmental Directive:

Driver: for XP,Win7,Win8,Win10, OS; TSPL/ CPCL (Customizable)/ZPL (Customizable)

Print Directive Character Printing: Support Double Width and Double Height Printing of Ank Characters, Custom Characters and Chinese Characters, and the Spacing of Characters Can Be Adjusted

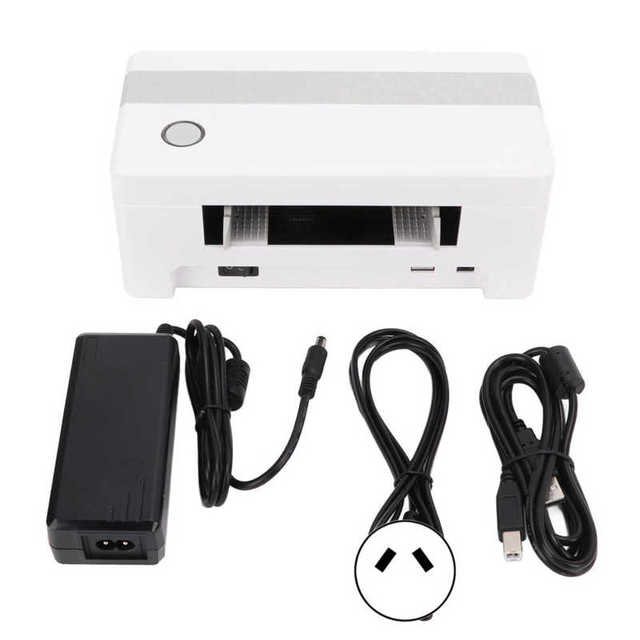

   Package List:

   1 x Printer

   1 x Power Adapter

   1 x Plug

   1 x Connection Line

   1 x User Manual

   Note:

       1. Do not place the product in an environment that is too corrosive, humid and high temperature!

       2. Please supply power according to the operating voltage, using other voltages may cause fire and product damage!
