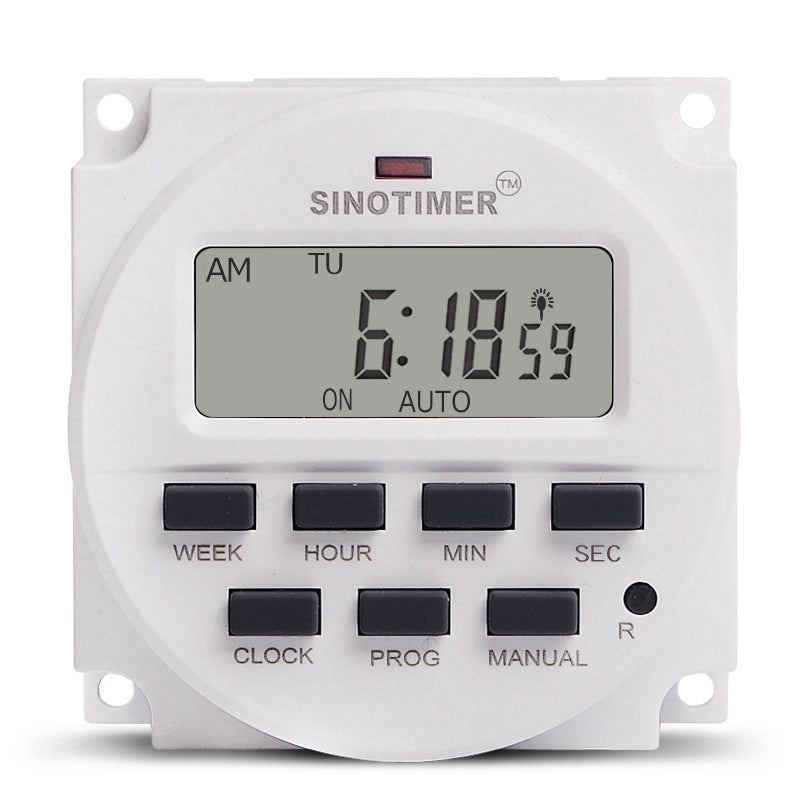

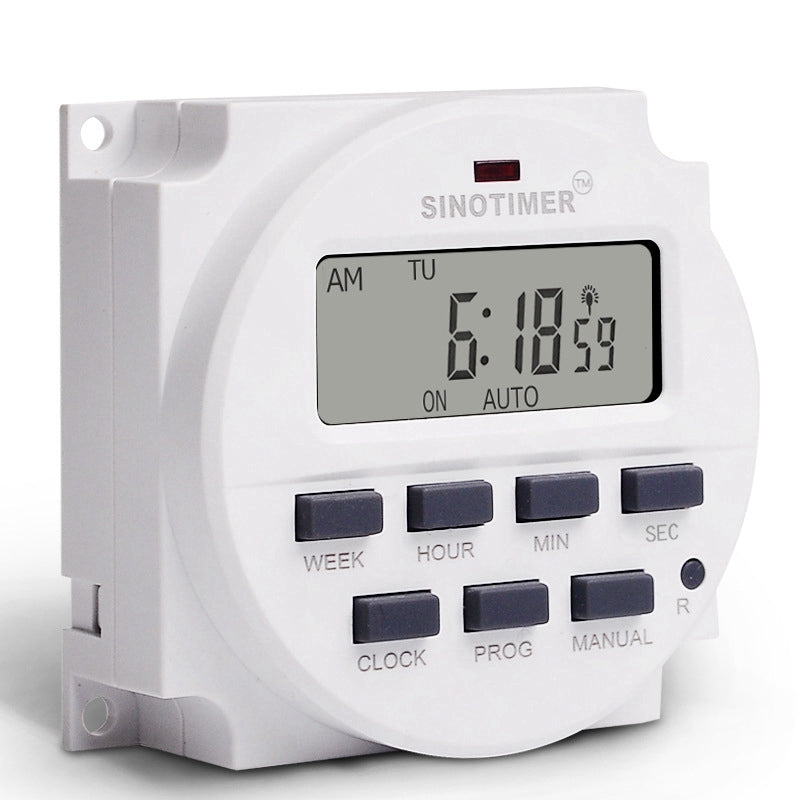

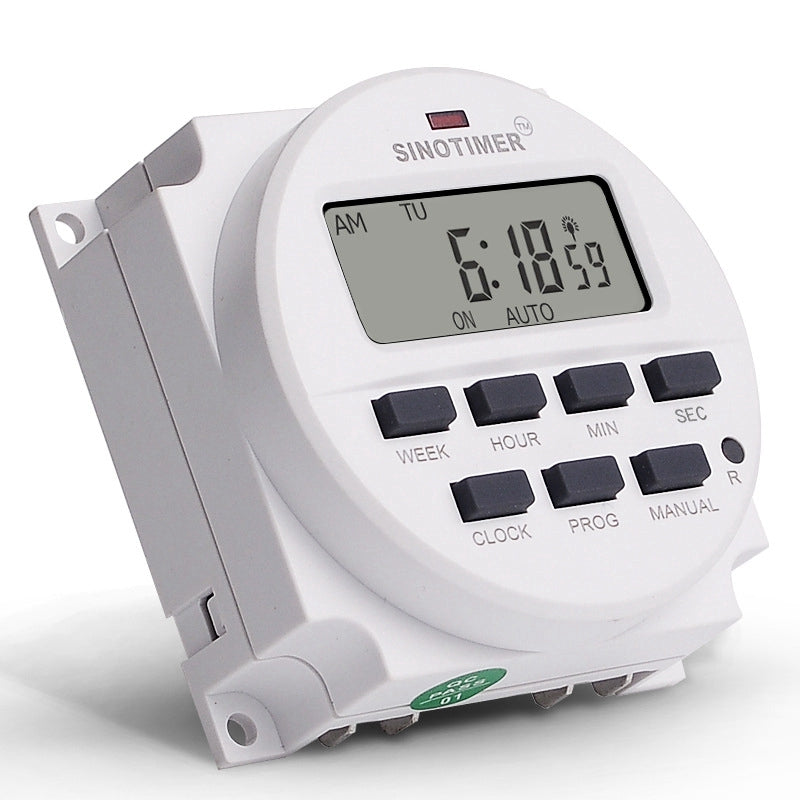

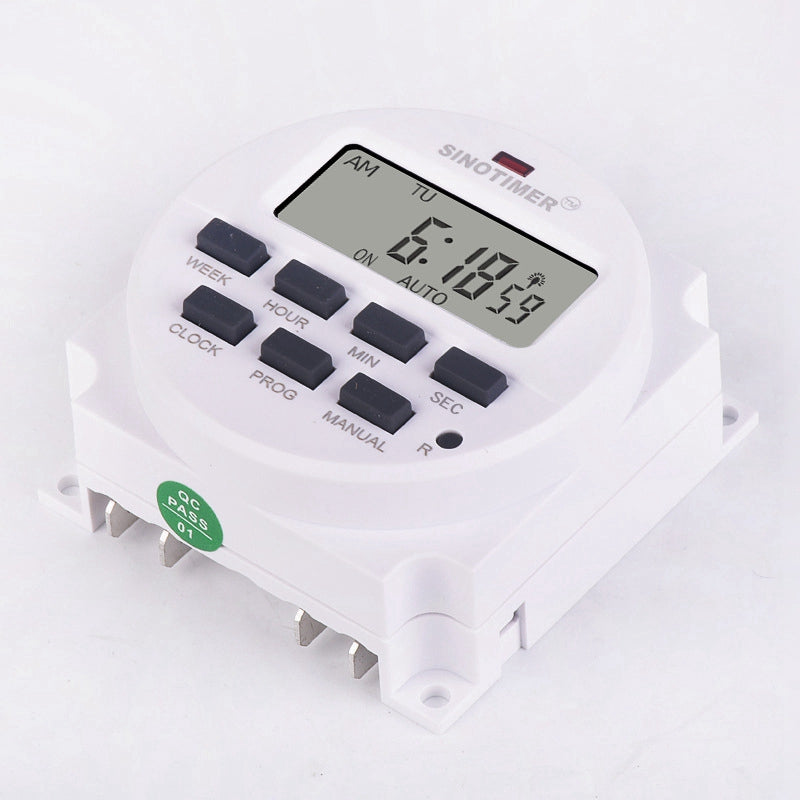

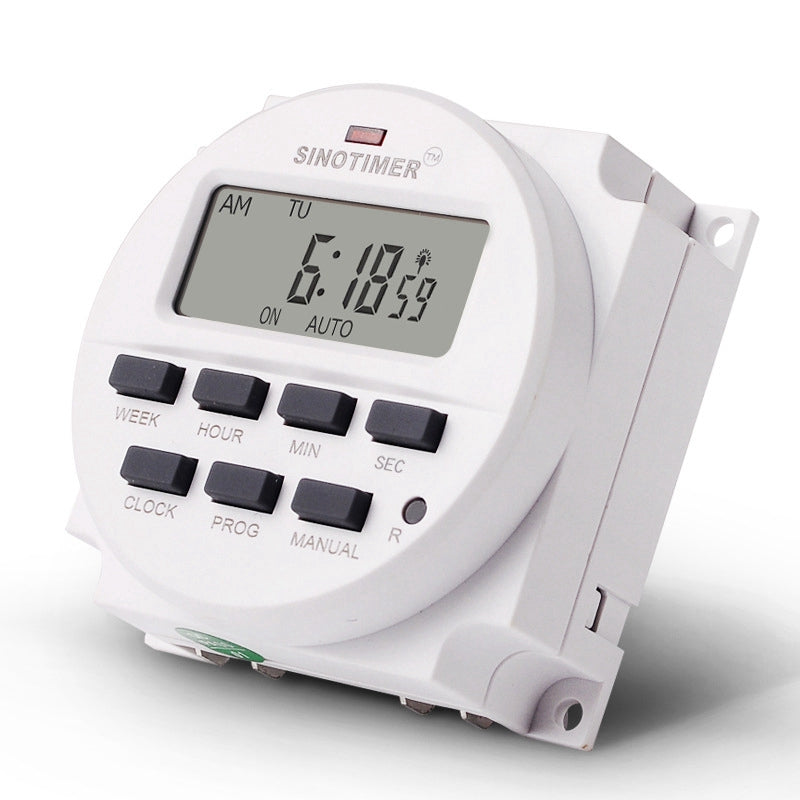

TM618 can automatically switch on and switch off various kinds of electric equipment at a preset time. It is widely used in 7 days programmable control of streetlight, neon light (sign), lamp, water heater, air conditioner, billboard, electric cooker, booster, sprayer, bottler, preheater, agriculture facilities and broadcasting equipment etc. The digital timer switch is within battery, to save the programs for power failiure.
it has the features of low consumption, high-accuracy CMOS chip, strongly anti-jamming, simple and easy to set
perfect for household use in pannel mounted
3500 Watt / 16 Amps, 1NO
24 hours / 7 days a week programmable
Built-in Battery for saving the memory when power failure
Auto time error correction +/- 30 sec, weekly
Repeat programs with 16 on/off settings, and setting on/off manually
color: White
Material: ABS+electronic components
Technical Data:
Model:TM618sH
Temp.range: -20°C+50°C
Power Supply: 110V
Power consumption :4.5 VA (MAX)
Display: LCD
Output:Power direct output
Programs:8 on/off each day or week
Hysteresis 2 sec/day (25°C)
Mini interval: 1 second
Capacity: 16A 250V AC
Black-out: 60 days
Timer range: 1min~168hr
Recharge battery: 1.2V
Average error: 1s/24h, 25°C
Package Contents:
1 x Timer switch
1 x User Manual
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
