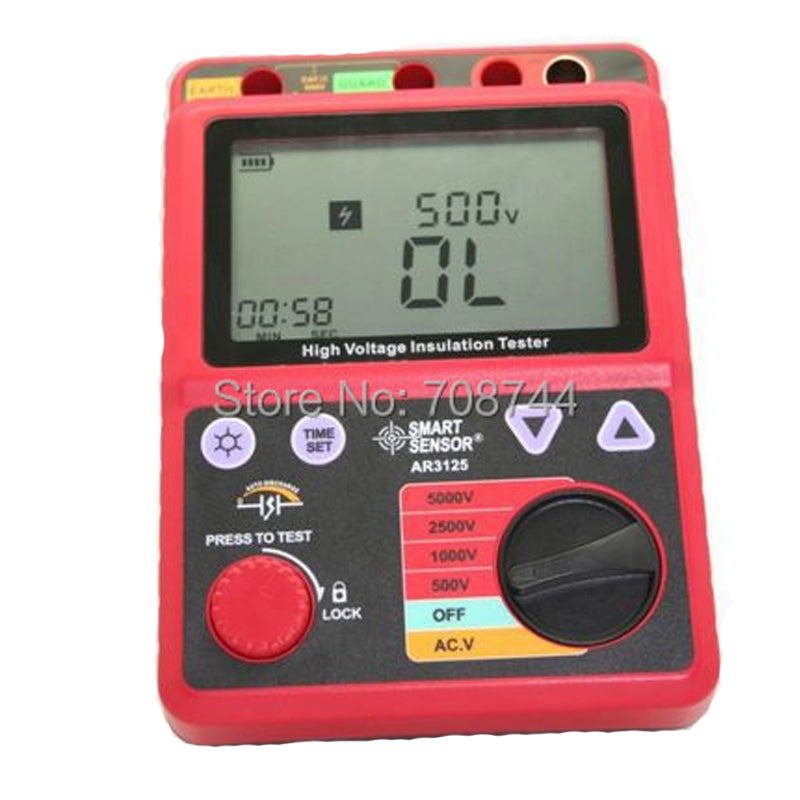

Rated Voltage 500V-5000V 0-1000G ohm AR3125 High Voltage Insulation Tester
Quick Details
Place of Origin:
Guangdong China (Mainland)
Brand Name: SmartSensor
Model Number: AR3125
Display Type: Digital Only
Measuring Range: 0~1TG
Testing Voltage:
500V/1000V/2500V/5000V
Accuracy Class: 5%rdg 5%dgt
Operating Temperature: 0-50

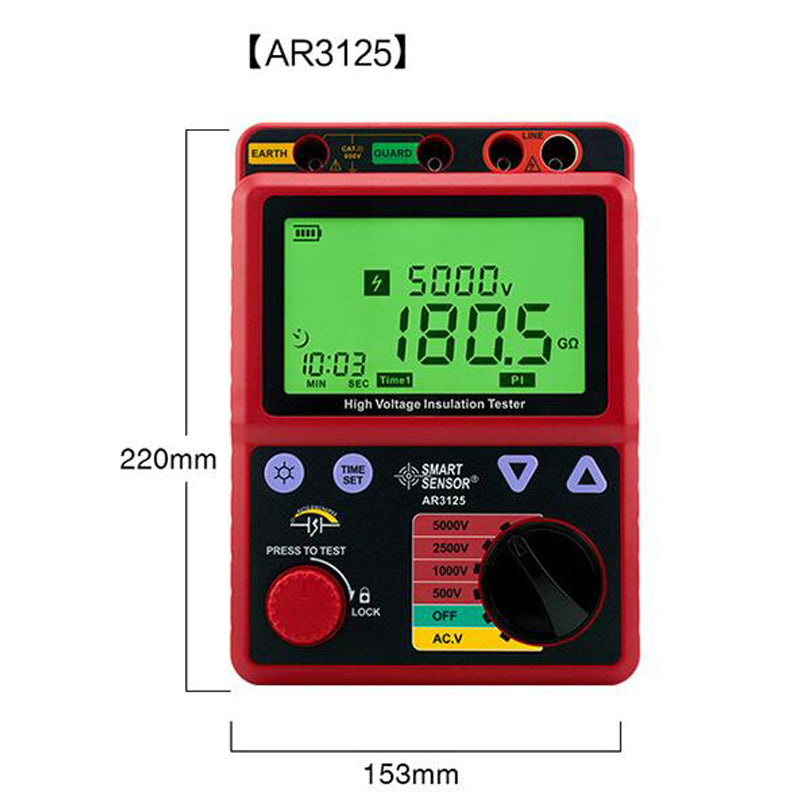

Dimensions: 153x213x95mm
Resistance: 0~1T?
DC/AC voltage: 30~600V
Accuracy: ±5%rdg±5%dgt
Overload protection: AC1200V/10s
Rated voltage: 500V/1000V/2500V/5000V
Resolution: 1.0V
Withstand voltage: AC 8320V/5s
Power: C*8 battery
Net weight: 1027g
Packing style: Knapsack
Specification
Specification
Rated Voltage
500V/1000V/2500V/5000V
Testing Range
500V:0.0~999M
1000V:0.0~1.99G
2500V:0.0~99.9G
5000V:0.0~1000G
Accuracy
±5%rdg±5dgt
DC/AC Voltage Test
30~600V
Resolution
1.0V
Overload Protect
AC 1200V/10sec
Withstand Voltage
AC 8320V/5 sec
Insulated Impedance
1000M?
Max. Short Circuit Current
1.4mA
Polarization Index
External DC Adapter
DAR
---
PACKING INFORMATION
Power
C*8 battery (not included package)
Product Net Weight
1027g
Product Size
153*213*95mm
Packing
knapsack
Standard Quantity Per Carton
3PCS
Standard Carton Size
44.5*33*28.5cm
Standard Carton Gross Weight
6KG
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
