Features：

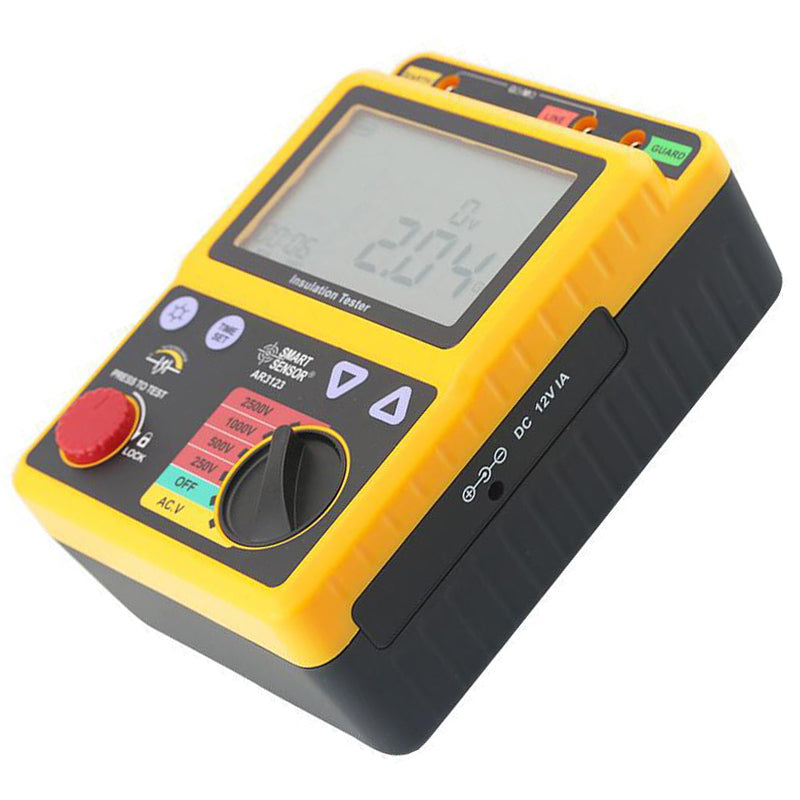

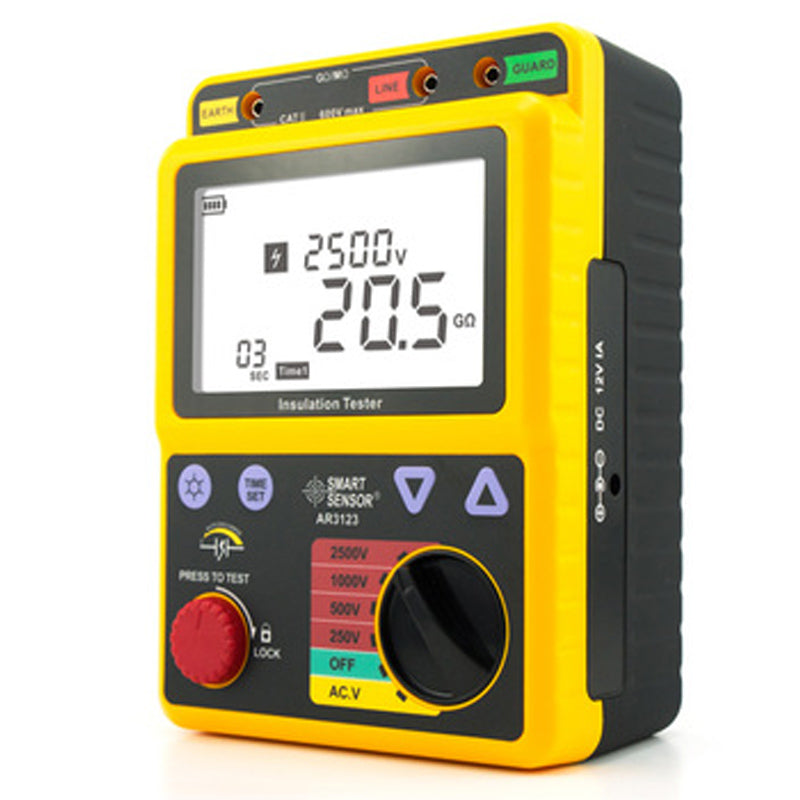

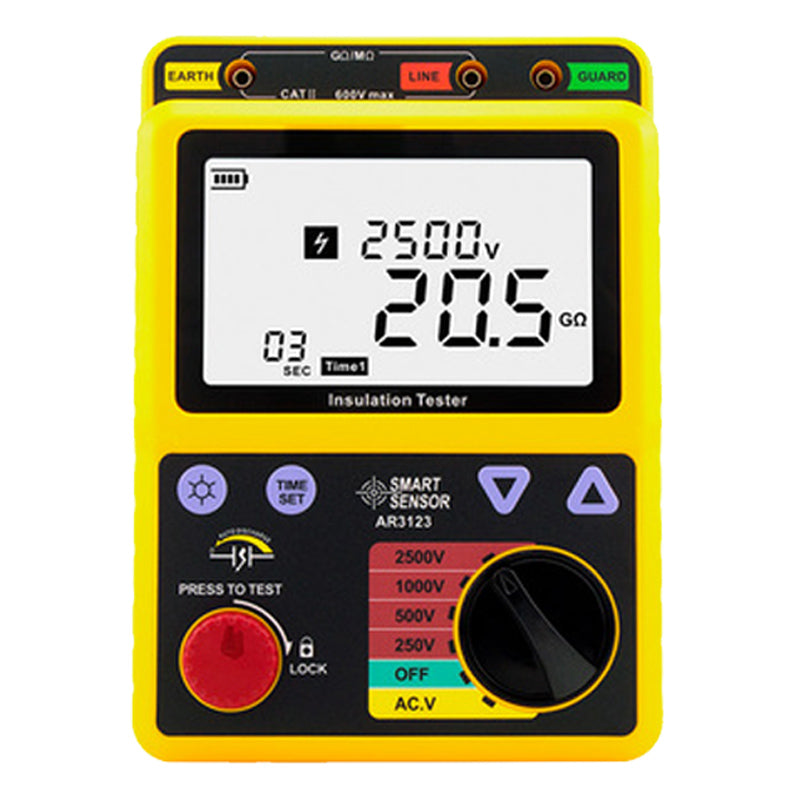

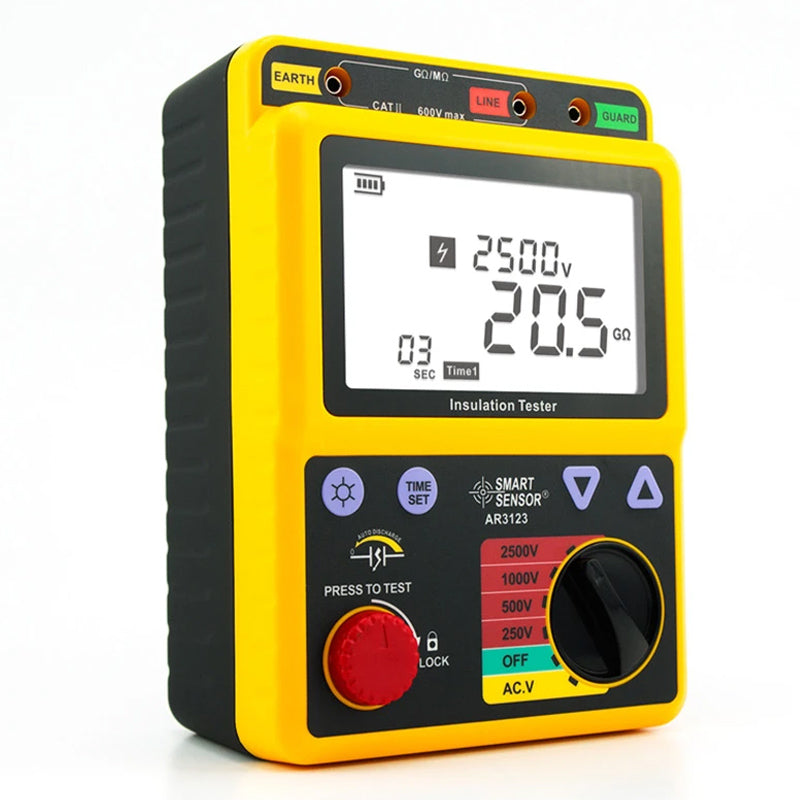

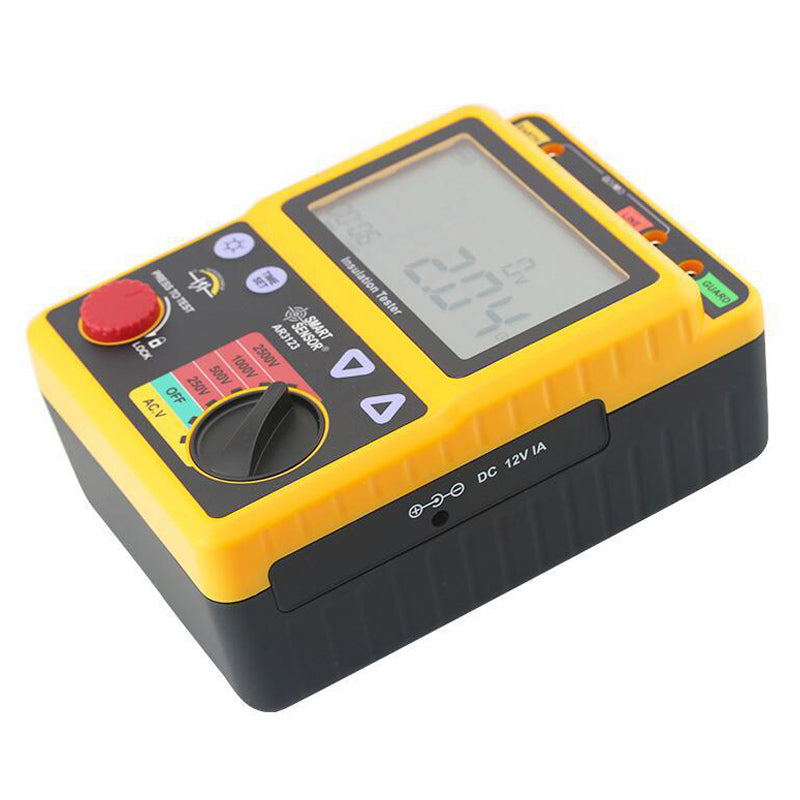

High voltage insulation testers are suitable for non-destructive measurement of insulation resistance in electrical systems, machines, transformers and cables. These testers are useful for preventive maintenance in the generation, transmission and distribution of electrical energy.
Specifications：
Rated voltage
250V / 500V / 1000V / 2500V
Open Circuit
Voltage
DC 250V +30%, -0% ~
DC 2500V +20%, -0%
Insulation Resistance
Testing Range
0.0MΩ~99.9GΩ
Short Circuit Current
1.3 mA Approx
Insulation Resistance
Accuracy
+/-5% rdg +/-3% rdg
Voltage Testing Range
DC : +/-30 ~ +/-600V ; AC : 30 ~ 600V (50/60Hz)
Voltage Resolution
1V
Accuracy
+/-2%rdg +/-3rdg
Sampling Rate
0.5 ~ 10 times / sec
Operation Condition
0C ~ 40C, ≤ 85% RH
Storage Condition
-20C ~ 60C, ≤90% RH
Over Load Protection
√
Auto Discharge
√
Battery Indication
√
Alarm
High Voltage Warning Symbol & Buzzer Alarm
External power supply
DC adapter 12V / 1A
Packing Inormation:
Power
8*1.5V LR14 Battery(not included in package)
Product Net Weight
1027g
Product Size
153*213*95mm
Packing
Gift box
Standard Quantity Per Carton
6
Standard Carton Size
45*32*55cm
Standard Carton Gross Weight
16.23kg
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
