SMART SENSOR AS8805 AS8806 AS8807 AS8808 Portable Mini Clip On Digital Detector

Gas Concentration Monitoring Test Analyzer

 Features:

SMART SENSOR gas detector is a device that detects the presence of gases in an area, often as part of a safety system. This type of equipment is used to detect a gas leak and interface with a control system so a process can be automatically shut down. A gas detector can sound an alarm to operators in the area where the leak is occurring, giving them the opportunity to leave. This type of device is important because there are many gases that can be harmful to organic life.

Gas detectors can be used to detect combustible, flammable and toxic gases, and oxygen depletion, etc. This type of device is widely used in industry and can be found in locations, such as on oil rigs, to monitor manufacture processes and emerging technologies such as photovoltaic. They may also be used in firefighting.

While many of the standard gas detector units were originally fabricated to detect one gas, modern multifunctional or multi-gas devices are capable of detecting several gases at once. Some detectors may be utilized as individual units to monitor small workspace areas, or units can be combined or linked together to create a protection system.

Specifications：

                           Model

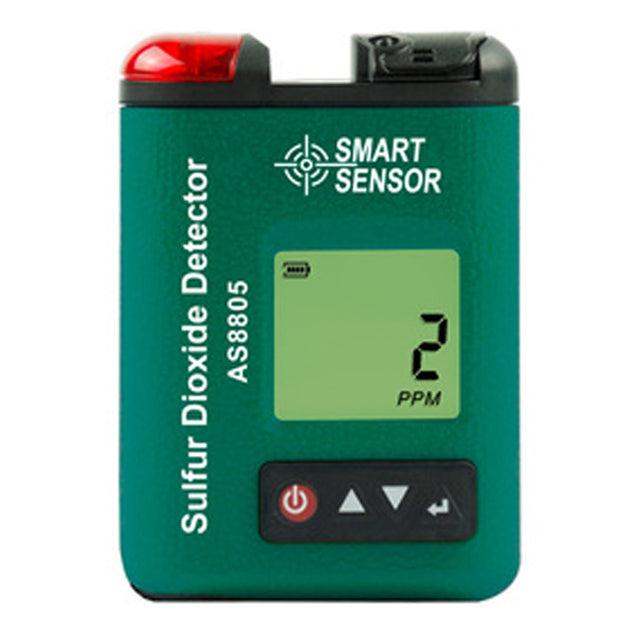

            AS8805

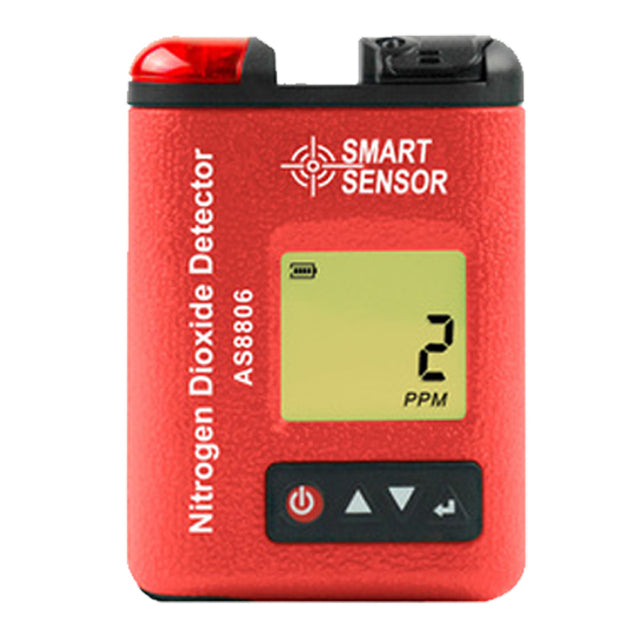

            AS8806

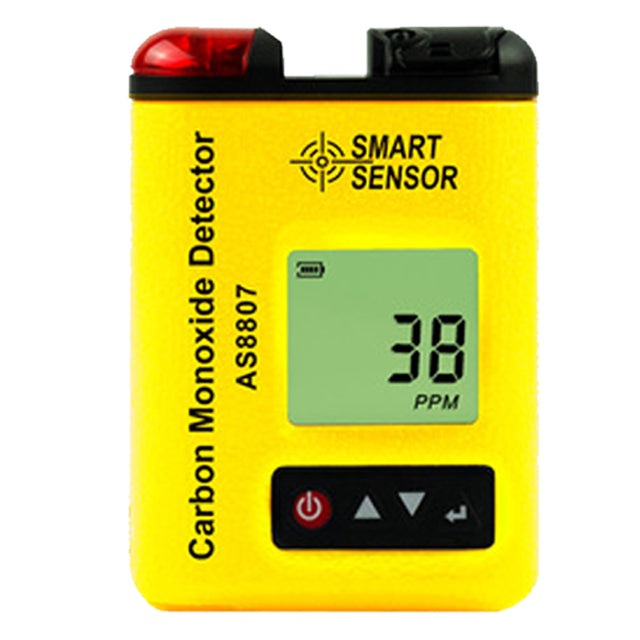

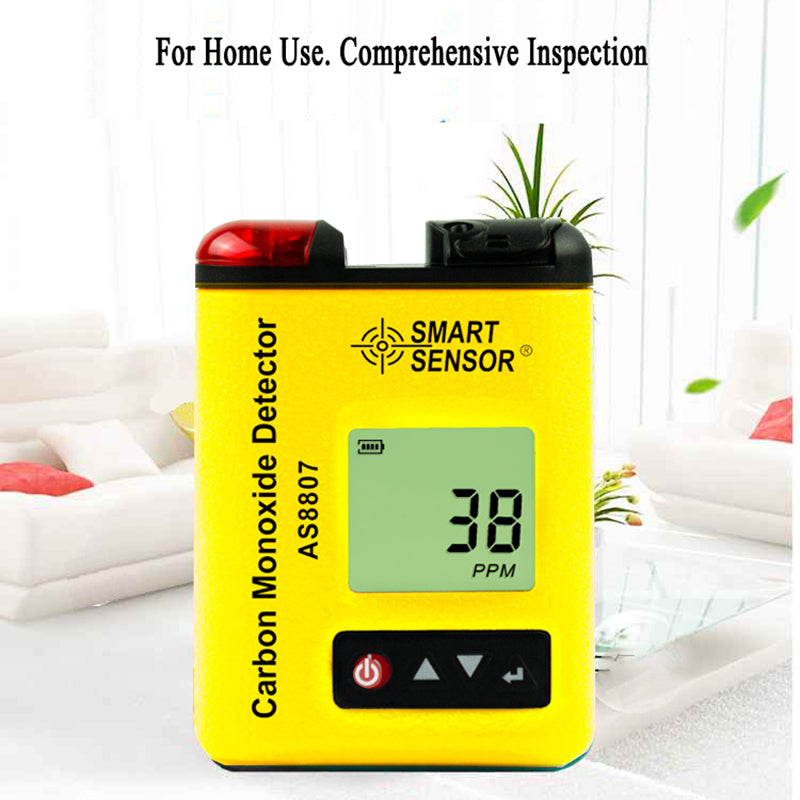

            AS8807

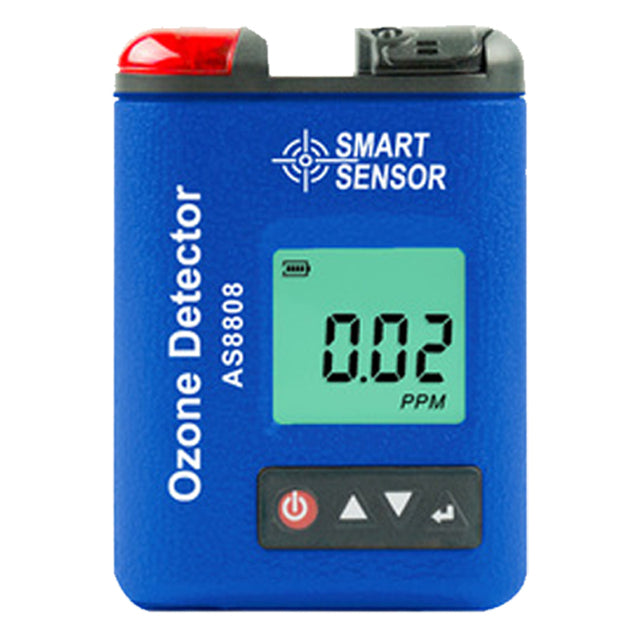

            AS8808

                Gas Type

            Sulfur Dioxide

            Nitrogen Dioxide Gas (NO²)

            Carbon Monoxide Detector

            Gas Analyzers

                Sensor

            Electrochemical Sensor ,

         Two-year Life

                Resolution

            1ppm

            0.1ppm

            1ppm

             0~1PPM T90 30SE

                Measure Range

            0-20ppm T90 30se

                TResolution

            1%

                Measuring Principle

            Electrochemical Principle

            Electrochemical Principle

            Electrochemistry,

         Life for 2 years

       Alarm Level

   Yes

   Yes

   Yes

       Alarm Value

   Alarm Value Can be Set

   Yes

   Yes

   Yes

       Alarm Setting

   Yes

   Yes

   Yes

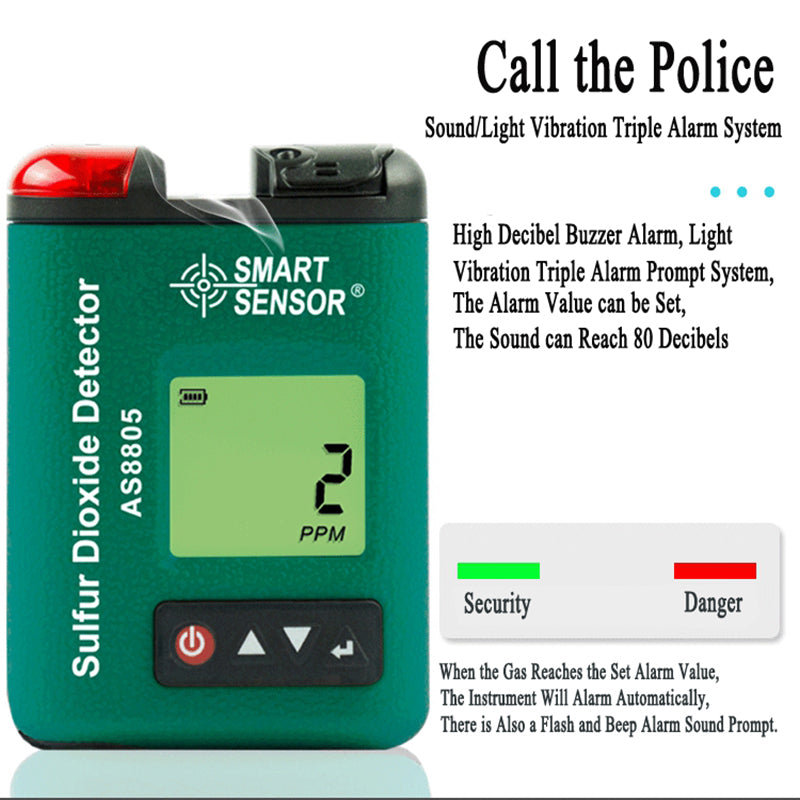

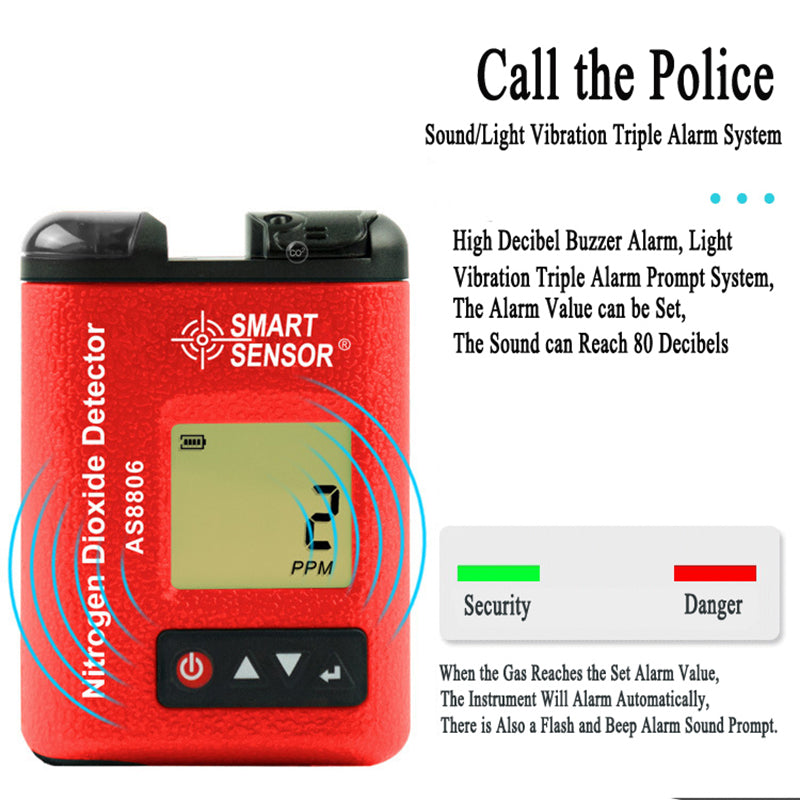

       Alarm

   Low / high concentration alarm

   Sound, Vibrate, Light Alarm Adjustable alarm values, alarm sound up to 80 dB.

   Sound, Vibrate,Light Alarm. Adjustable Alarm values, Alarm sound up to 80 db.

   Sound, Vibrate,Light Alarm.

Adjustable Alarm

       Max Display

   Yes

   Yes

   Yes

   Yes

       Operating

Temperature

   -10~50℃

   -10~50℃

   -10~ 50℃

   -10~ 50℃

       Operating Humidity

   15%-95%RH

   15%-95%RH (Standard)

   15~95 % RH,Typical

   15~95 % RH,Typical

       Auto/Manual

Power Off

   Can be set

       Backlight

   Highlight Backlight

       Low Power Alarm

   Yes

   Yes

   Yes

   Yes

       Low Concentrationalarm

   Yes

   Yes

   Yes

   Yes

       High concentration

Alarm

   Yes

   Yes

   Yes

   Yes

       Power Supply

   3.7V Rechargeable

Lithium-ion Battery

   3.7V Rechargeable

Lithium-ion Battery

   3.7V Rechargeable

Lithium-ion Battery

   3.7V Rechargeable

Lithium-ion Battery

       Battery

Working Runtime

   60 Hours(No Alarm

 Conditions.)

   60 Hours(No Alarm

Conditions.)

   60 Hours(No Alarm

Conditions.)

   60 Hours(No Alarm

Conditions.)

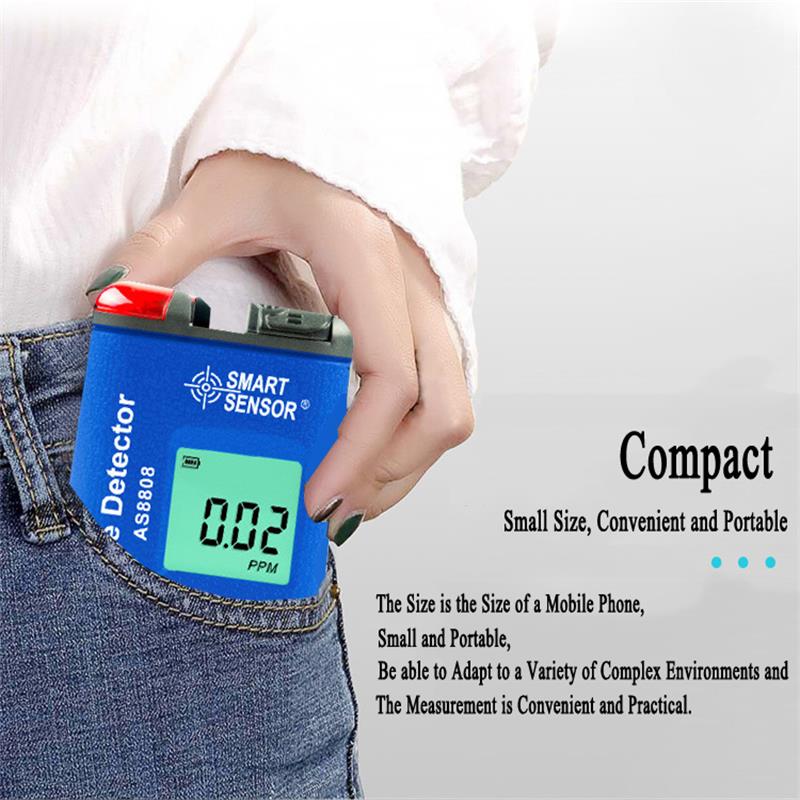

       Size/Weight

   90x 65x30mm/140g

   90x 65x30mm/140g

   90x 65x30mm/140g

   90x 65x30mm/140g
