Please be kindly noted，the listed product is produced and distributed abroad and subject to the laws of its country of origin。
Features:
Easy to Use: after installing the supporting app on your phone, simply insert this device to your phone, then you can easily measure temperature (-10~300℃ range) of the object and view the infrared images directly via mobile phone.

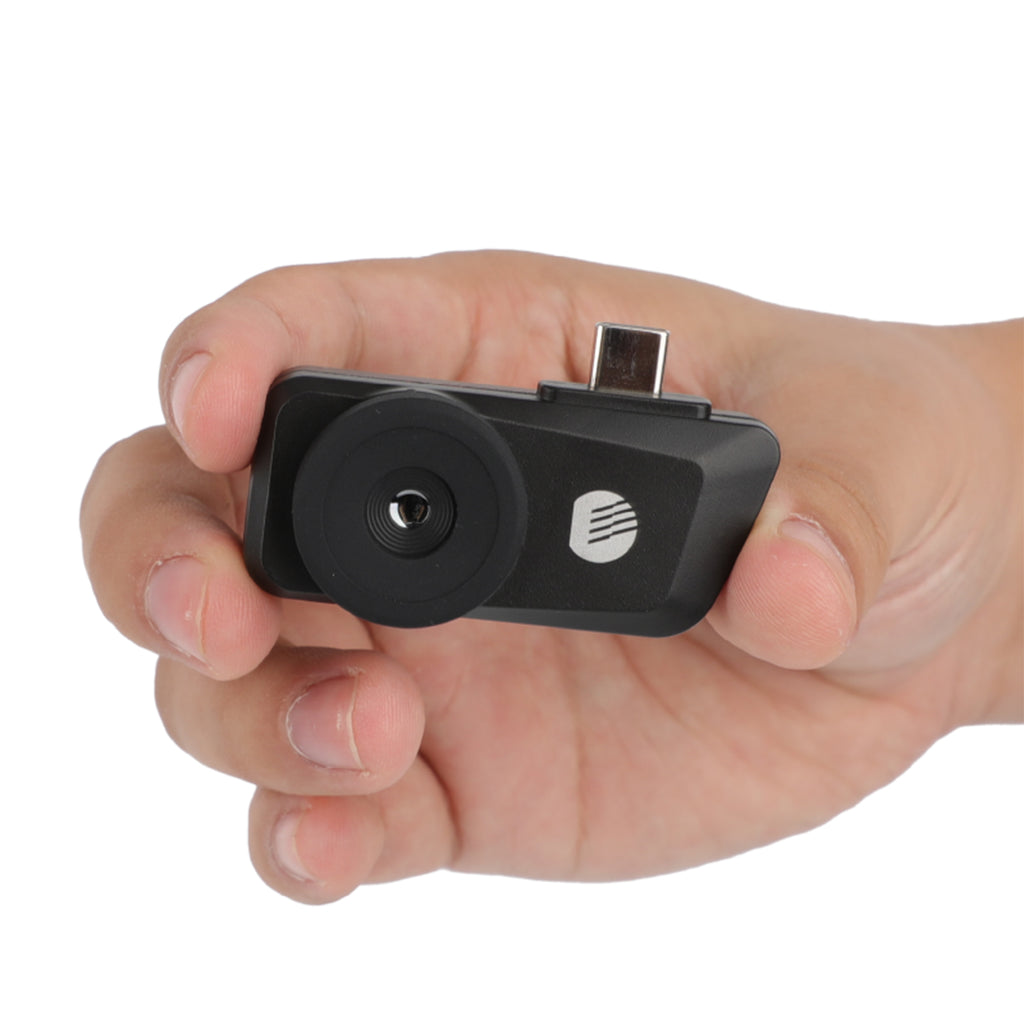

User-friendly Design: its tiny size makes it extremely portable, plug and play design allows you to use it on the go, taking temperatures anytime anywhere fast and conveniently.
High Definition Image: adopts with self-developed UFPA detector and with powerful core, features of 160*120 infrared resolution, infrared image / picture in picture image displayed.
Image Temperature Memory: App supports photographing and video recording functions.

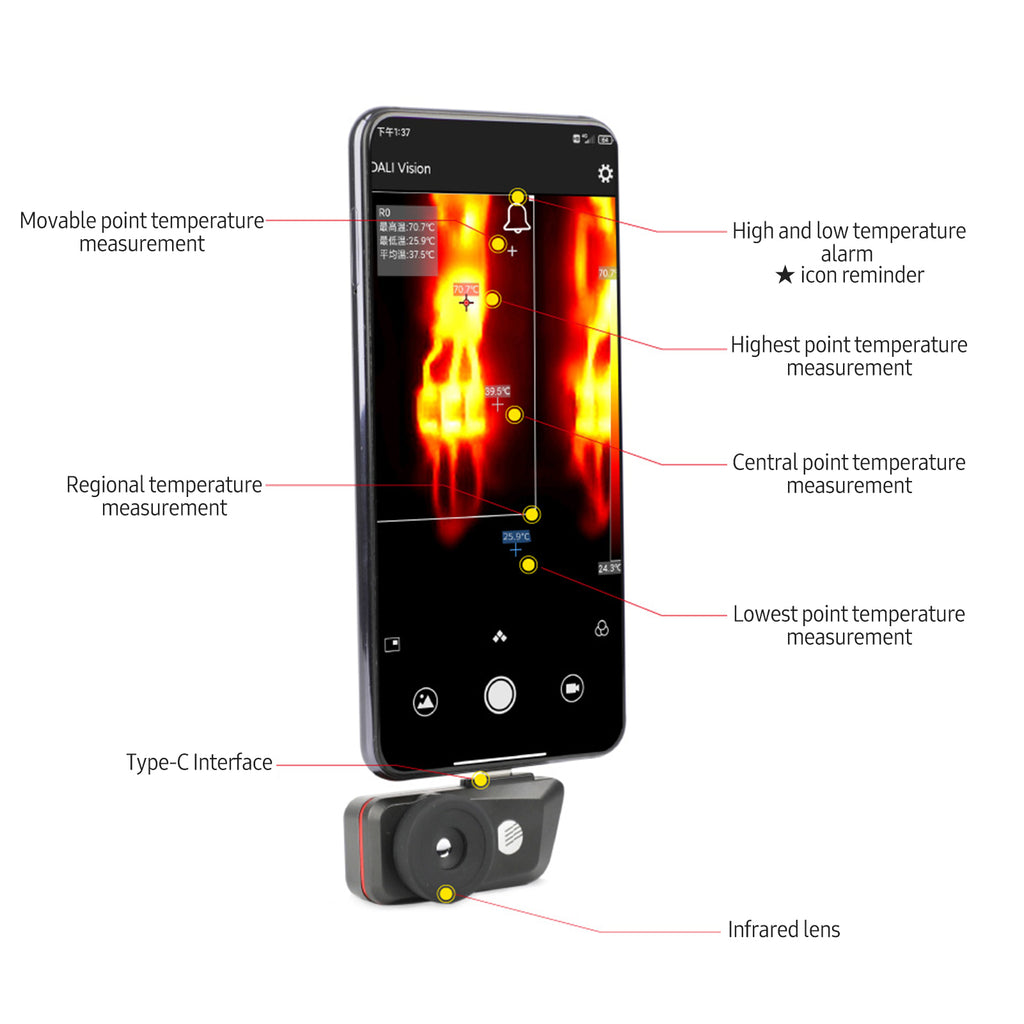

Temperature Measurement Mode: including central point, highest point / lowest point, movable point and area temperature measurement, it has automatic temperature measurement correction.
Temperature Analysis Function: powerful post offline temperature measurement analysis function of point, line and surface.
Super Long Endurance: it is directly inserted into the charging port of the mobile phone and works with the mobile phone's own battery, which can continuously work for a long time, no need extra battery.

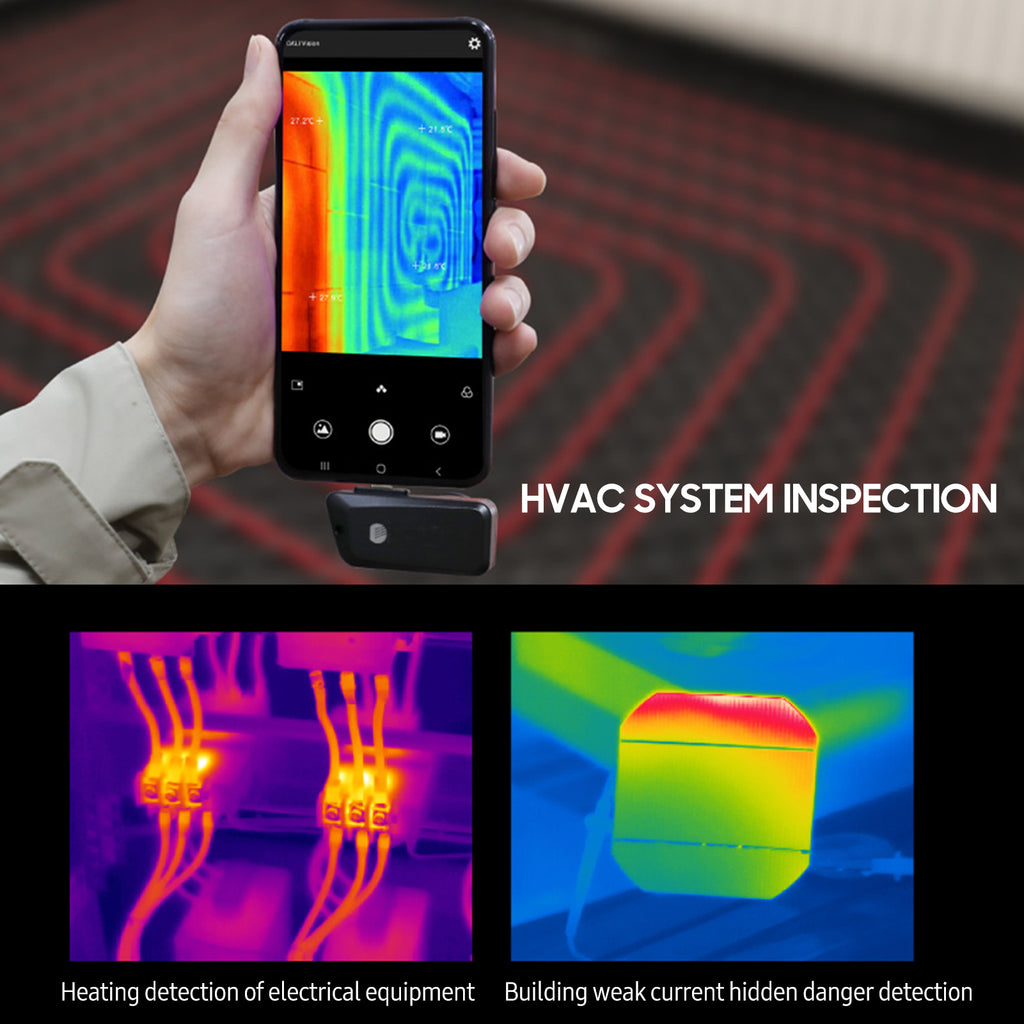

Wide Applications: suitable for the electrical diagnosis, industrial inspection, HVAC maintenance, etc.
Specifications:
Material: ABS+alloy
Detector Type: UFPA
Resolution: 160*120
Spectral Response: 8-14um
Pixel Pitch: 17um
Detector NETD: ≤0.06℃@30℃
Frame Rate: 25Hz
FOV: 37° * 28°
Spatial Resolution: 4mrad
Focus Range: 0.1m~∞
Focusing Mode: No focusing
Measurement Range: -10~300℃
Measurement Accuracy: ±2℃ or ±2%
Power Consumption: 370mW
Operating Temperature: -40~60℃
Storage Temperature: -40~70℃
Humidity: ≤95%
Protective Level: IP54
Support Device: Android 6.0 and above
Interface: Type-C
Drop Test: 2m
Item Size: 57 * 25 * 23.5mm / 2.24 * 0.98 * 0.93in
Item Weight: 34g / 1.23oz
Package Weight: 93g / 3.29oz
Package Size: 10 * 7 * 4cm / 3.94 * 2.76 * 1.57in
Packing List:
1 * Thermal Imager
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
