Feature:
1. The waterproof rating is IP65, the product will not be easily damaged
2. The cooling method adopts natural convection and no fan to ensure that the product will not overheat during operation
3. Excellent performance and complete accessories, easy to install and remove
4. The LED display can provide clear and intuitive indicator
5. High efficiency, the efficiency is 95%
Specification:
Item Type: Solar Inverter
Product Series: SG Series
Model: SG500MD
Input Data (DC, PV)
Number of Input Connectors: 2 Set
MPPT Voltage Range: 24V-40V
Working Voltage Range: 18V-50V
Maximum Input Voltage: 50V
Starting Voltage: 18V
Maximum Input Power: 2 x 250W
Maximum Input Current: 2 x 10A
Output Data (AC)
Single-Phase Grid Type(optional): 120V&230V
Rated Output Power: 495W
Maximum Output Power: 500W
Nominal Output Current: at 120VAC: 4.16A/ at 230VAC: 2.17A
Nominal Output Voltage: 120VAC / 230VAC
Default Output Voltage Range: at 120VAC: 80V-160V / at 230VAC: 180V-280V
Nominal Output Frequency: 50Hz / 60Hz
Default Output Frequency Range: at 50Hz: 47.5Hz-52.5Hz/at 60Hz: 57.5Hz-62.5Hz
Power Factor: > 0.99
Total Harmonic Distortion: <5%
Maximum Units Per Branch: at 120VAC: 5 Units / at 230VAC: 9 units
Efficiency: 95%
CEC Weighted Efficiency: at 120VAC: 92.5％/ at 230VAC: 93.5％
MPPT Nominal Efficiency: 99.9%
Night Power Consumption: <700mw
Working Environment Temperature Range: -40℃ - + 65℃
Storage Temperature Range: -40℃ - + 85℃
AC Bus Cable Maximum Current: 20A
Waterproof Rating: IP65
Communication Method: 2.4G
Output Connector (length cm, Left Male M, Right Female F): M24 + F182
Cooling Method: Natural convection, no fan
Package List:
1 x Solar Inverter

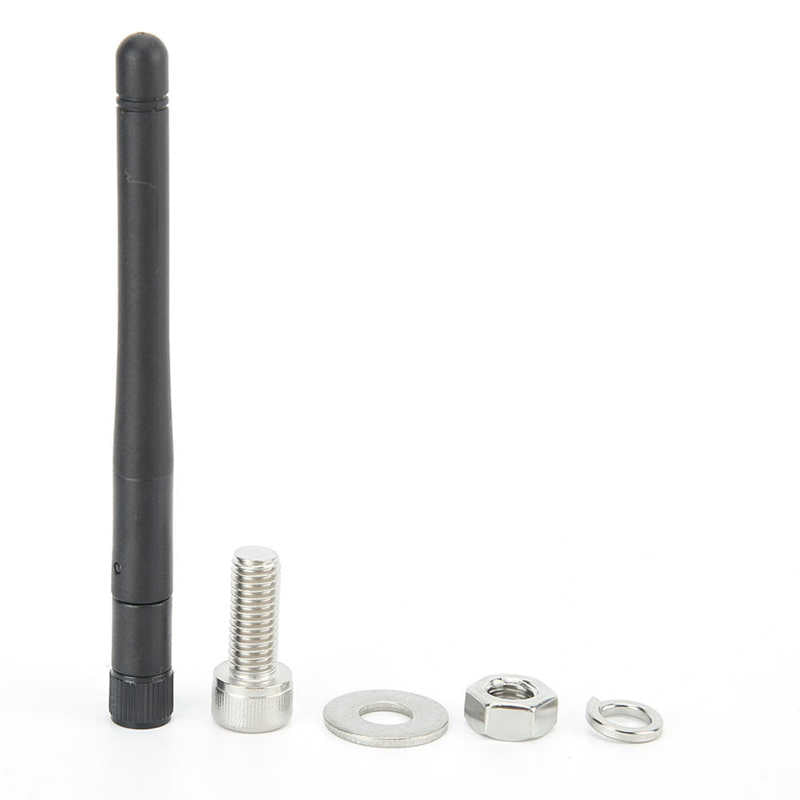

1 Bag Screw
1 x User Manual
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
