SSL 12

 12-in/8-out

 A new class of audio interface

 SSL 12 is a 12-in/8-out USB bus-powered audio interface that enables you to get studio-quality audio into and out of your computer with minimal fuss and maximum creativity. Building upon the success of SSL 2 and SSL 2+, SSL 12 gives you more. More I/O, more performance and more versatility. SSL 12 is fully integrated with SSL 360° software: Your SSL Control Room. Here you can assign monitor controls, create multiple independent headphone mixes, choose your Loopback source, customise the 3 front panel user-buttons and much more. SSL 12 presents a combination of professional features and workflow never seen before in a portable desktop interface.

   Class-leading performance, in the studio and on the road

     Class-Leading Mic Amps

  4 beautifully detailed mic preamps to capture every nuance of every performance, with enough gain to cope with whatever microphone you're plugging in. Our two-stage design uses a mixture of specially chosen discrete low-noise transistors in combination with ICs, resulting in exceptionally low-noise performance (-130 dBu EIN) and a superior gain range (62 dB).

          Full +24 dBu Operating Levels

   Unlike many USB-powered audio interfaces, the balanced line inputs and outputs on SSL 12 work all the way up to +24 dBu, allowing you to seamlessly integrate with your favourite analogue outboard gear and other line-level devices.

                  No Compromise Conversion and Monitoring

     With 32-bit converter technology, impeccable left-right stereo tracking and balanced outputs that deliver greater than 120 dB of Dynamic Range, SSL 12 brings the kind of no compromise monitor section performance fit for a high-end studio straight to your desktop.

       Big studio features, small desktop footprint

       Everything you need and more, from your portable studio centrepiece

       SSL 12 is loaded with an extraordinary amount of professional studio features normally reserved for high-end rackmount interfaces.

       Record

       For tracking, the ADAT connectivity, together with the on-board talkback mic and an incredibly powerful software cue mixer (that allows you to create up to 4 independent near-zero latency performer mixes) will handle the most demanding of recording sessions.

       Mix

       For mixing, alternative monitor switching and assignable front panel control room functions puts everything you need at your fingertips.

       Produce

       For production, USB Loopback, MIDI I/O and DC-coupled outputs for CV control of synths equip you with a serious toolkit to keep the creativity flowing. To top it all off, the ever-expanding SSL Production Pack (packed with a selection of must-have virtual instruments, plug-ins, samples and DAWs) helps to bring your productions to life.

         Total control from SSL 360° - Your SSL control room

         SSL 360° hosts the SSL 12 software mixer, where you can set up low-latency headphone mixes, choose your Loopback source and customise the user-assignable front panel buttons on SSL 12 via the powerful but intuitive console-style mixer on-screen.

       Easily set up multiple near-zero latency headphone mixes

       SSL 12 provides an intuitive, virtual console-style mixer for dialling in headphone mixes. With independent pan, level and mute controls available for each send, the SSL 12 Mixer puts you fully in charge.

         Configure HP A and HP B outputs the way you need them

         Choose from 3 different modes of operation for the headphone outputs that best suit your headphones – Standard, High Sensitivity or High Impedance. Or, you can choose to re-purpose each HP output as a balanced/unbalanced mono output, if you need additional line level outputs from SSL 12.

           Customise the 3 user-assignable front panel buttons

           The 3 front panel switches come pre-assigned to CUT for the monitors, ALT speaker switching and TALKBACK mic engage/disengage but you can choose to change these buttons to any of the following functions to suit your needs - DIM, CUT, MONO SUM, ALT, INVERT PHASE LEFT, TALKBACK.

             Ins and Outs

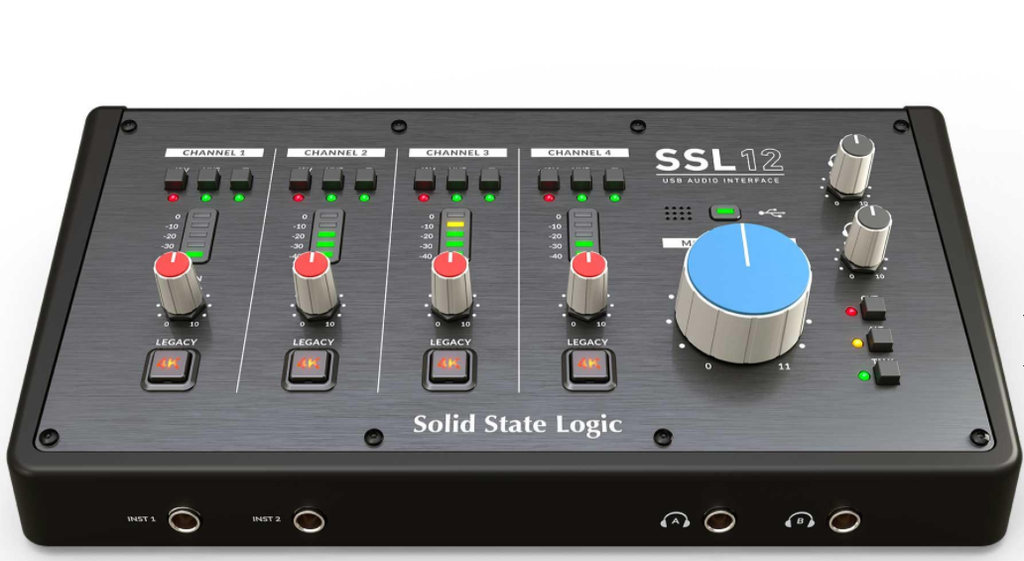

             Front-access jack sockets provide convenient access to 2 instrument DI inputs and 2 independent headphone outputs.

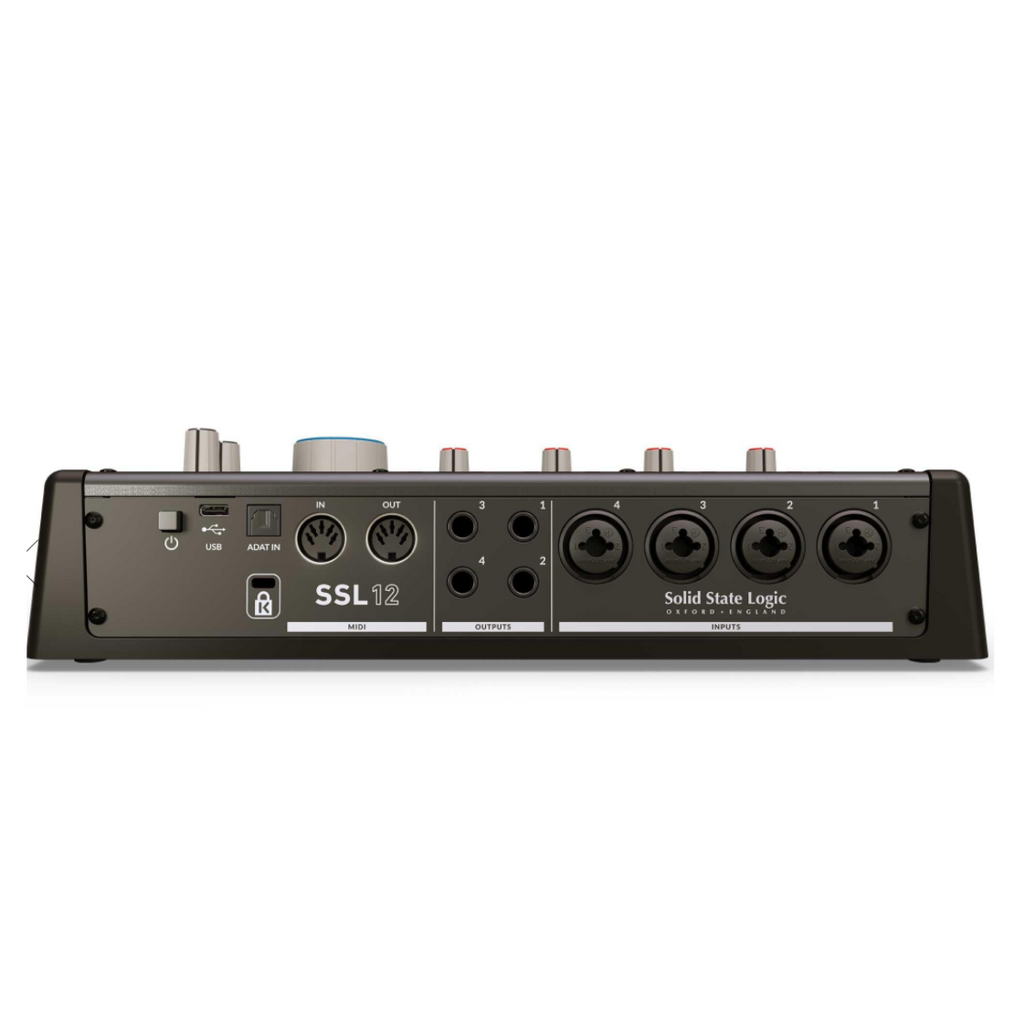

On the rear, SSL 12 provides Neutrik® XLR Combo sockets for Mic/Line inputs, TRS jack outputs for 2 speaker sets, 5 Pin DIN MIDI I/O, 8 channels of digital audio inputs via ADAT, the USB connector and on/off power switch.

   Key Features

   4 x SSL-designed microphone preamps with unrivalled EIN performance and huge gain range for a USB-powered device

   Per-Channel Legacy 4K switches - analogue colour enhancement for any input source, inspired by the 4000-series console

   2 Hi-Z instrument inputs for guitars, bass or vintage instruments

   2 professional-grade headphone outputs, with switchable modes of operation that cater for high impedance or high sensitivity headphones. Or re-purpose each headphone output as an additional “general purpose” balanced/unbalanced line-level output instead

   32-bit / 192 kHz AD/DA Converters - capture and hear all the detail of your creations

   ADAT IN - expand the input channel count with up to 8 channels of digital audio

   Easy-to-use Headphone routing via SSL 360° for critical low-latency monitoring tasks

   Built In Talkback Mic that can be routed to Headphone A, B and Line 3-4 outputs

   4 x dedicated balanced outputs and precision Monitor Level, with stunning dynamic range

   Use Outputs 3-4 to connect an alternative monitor set to or as additional line-level outputs

   USB Loopback with selectable source

   DC-coupled outputs for controlling CV input instruments & FX

   3 user-assignable front panel switches - assign various monitoring functions and talkback open/close

   MIDI I/O

   SSL Production Pack Software Bundle; includes 3-months free subscription to SSL Complete, plus an exclusive collection of 3rd party DAWs, virtual instruments and plug-ins

   USB bus-powered audio interface for Mac/Windows - power is provided by USB 3.0, audio via the USB 2.0 protocol

                  Software Included

   The SSL Production Pack includes:

   3-months free access to SSL Complete subscription

   3-months free access to Auto-Tune Unlimited subscription

   3-months free access to Arcade by Output subscription

   Perpetual licenses for SSL Vocalstrip 2 and Drumstrip plug-ins

   IK Multimedia Amplitube 5 SE

   Celemony Melodyne Essential

   Native Instruments Hybrid Keys & Komplete Start

   Ableton Live 11 Lite

   AAS Session Bundle plug-ins

   1.5 GB Samples from Loopcloud

   Learn more about the incredible SSL production pack here.

       Tech Specs

            System requirements and Specs:

     Mac OS 10.15 or later | Class-Compliant, Plug-and-play

     Windows 10, Windows 11 | Install included ASIO/WDM driver

     Connectivity

     USB 3.0 Type C Connector (Box includes Type C to C and Type C to A)

     Mic Preamps

     4 x XLR-¼" combo (Mic/Line)

     Mic Amp EIN (A-weighted): -130.5 dBu EIN

     Mic Amp Gain: 62 dB

     Instrument/Line

     2 x ¼" (Hi-Z)

     Max Instrument Input Level: +14 dBu

     Max Line Input Level: +24 dBu

     *Specs (Measured to AES17 Standards)

            Monitor Outputs

     Dynamic Range: >120 dB

     Max Output Level: +24 dBu

Headphone Outputs

     2 x ¼"

     Dynamic Range: 112 dB (High Impedance Mode) / 115 dB (Balanced Line Output Mode)

     Max Output: +18 dBu (High Impedance Mode) / 24 dBu (Balanced Line Output Mode)

     Output Impedance: <1 Ω

Digital Inputs

     1 x Optical (ADAT)

Sample rates

     44.1, 48, 88.2, 96, 176.4, 192 kHz

     For the complete list of technical specifications please refer to the user guide

      4 x SSL-Designed Analogue Preamps

   Bus-powered pre's with huge gain range and uncompromising sound

          slide         1     of 5

   Legacy 4K

  Add analogue colour enhancement inspired by the 4000-series console

   ADAT Input

  Expand the input channel count with up to 8 channels of digital audio

      SSL Production Pack

   A unique collection of inspiring software

            SSL 360° Enabled

     Create headphone mixes and much more via the SSL 12 Mixer.

                  Compatible with Mac/Windows

       Plug and play on Mac, ASIO/WDM driver for Windows
