Superbat DAB/DAB+/GPS/FM Car Digital Radio Amplified Aerial Roof Mount Aerial and Fakra Aerial Coaxial Cable for Alpine Ezi-DAB
Specification
DAB
Frequency:174MHz～240MHz (Band III) 1452MHz～1492MHz (L-Band)
Impedance :50 Ω
Amplification：20dB
VSWR:≤2.0:1
Connector :Fakra“G” Male
power supply:+12v
Cable:30cm RG174
Aerial Replacement Cable:Fakra"G"-Fakra"Z" RG174 5M
GPS
Frequency:1575.42MHz
Impedance :50 Ω
Amplification:28±3db
VSWR:≤1.5:1
Gain:32dbi
Connector: FAKRA“C” Male
Cable:30cm RG174
Aerial Extension Cable:Fakra-Fakra RG174 5M
FM
Frequency:87.5-108 MHz
Impedance : 50 Ω
Amplification:20dB
VSWR:≤2.5:1
Connector:FAKRA“B” Male
Power Supply:+12v
Cable:30cm RG174
Aerial Replacement Cable:FARKA"B"-FAKRA"Z" RG174 5M
Voltage : 12V direct feed for both DAB an FM
Current Consumption : 50mA

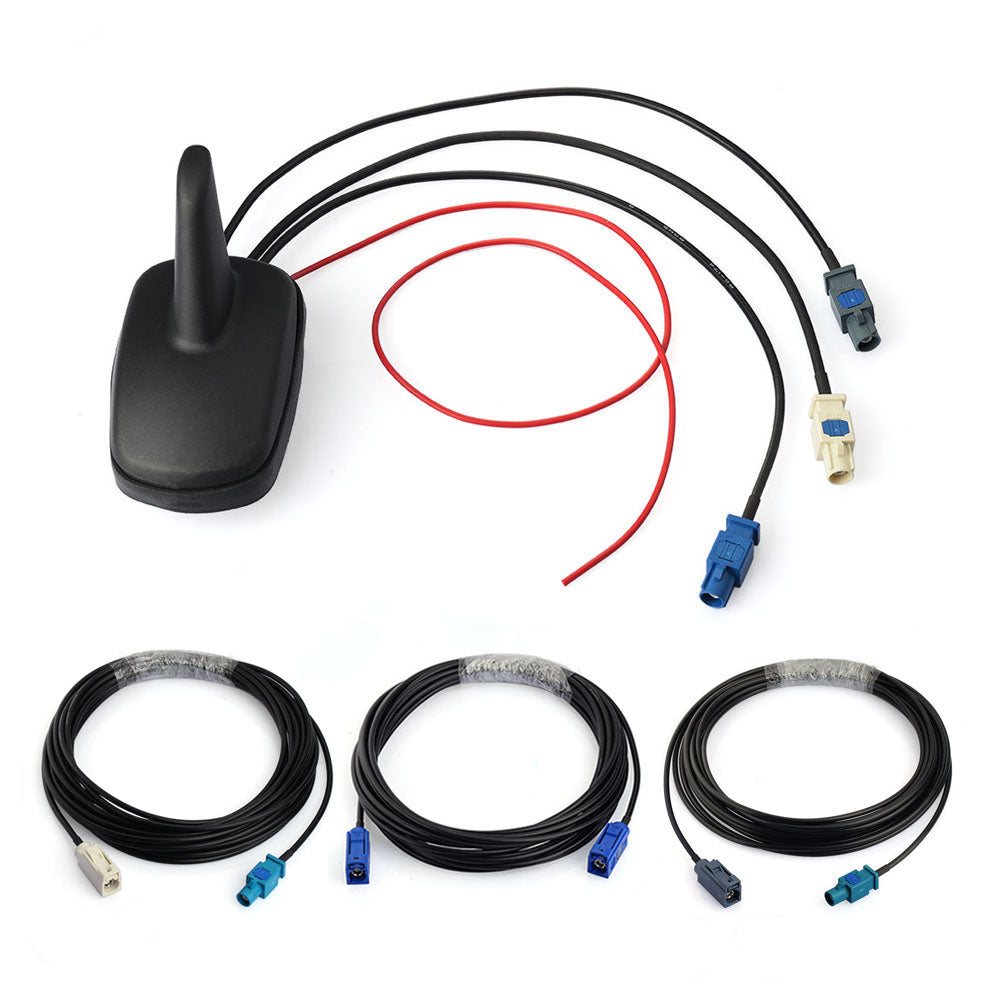

Package Included:

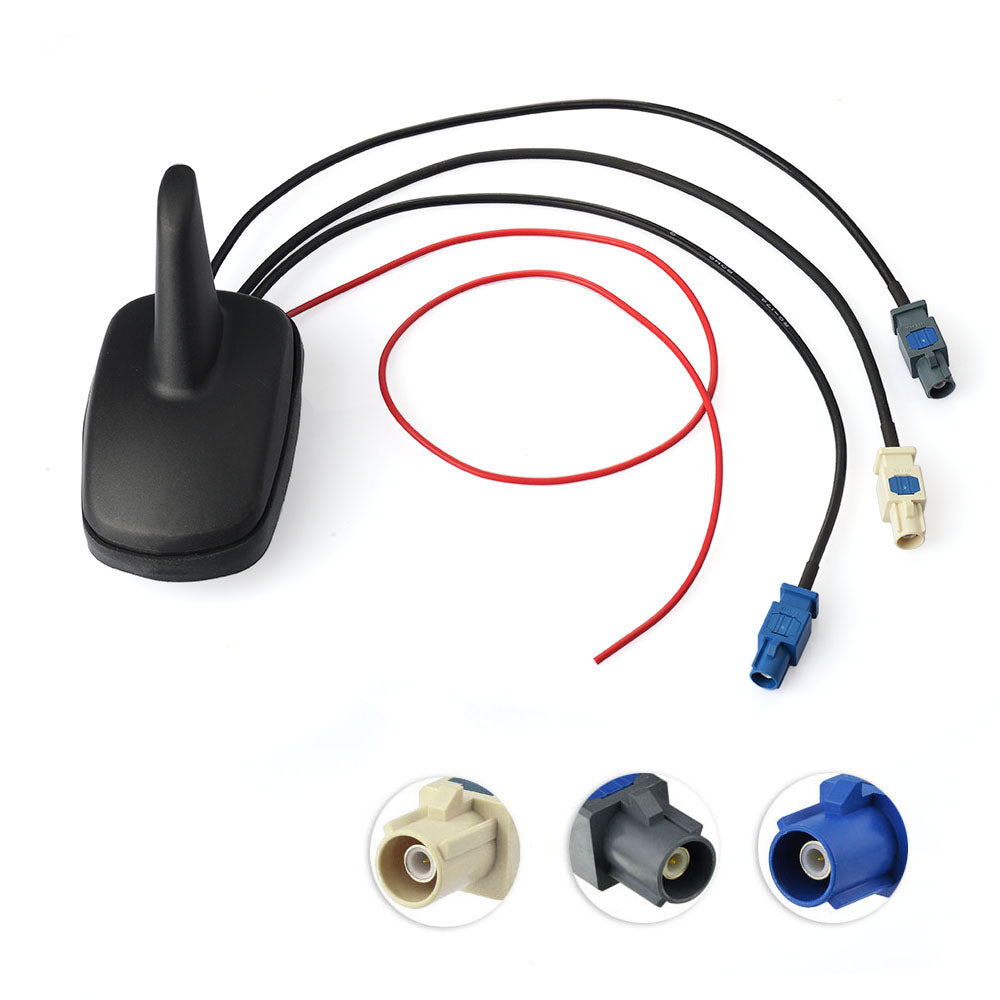

1pcs DAB/FM/GPS Amplified Aerial

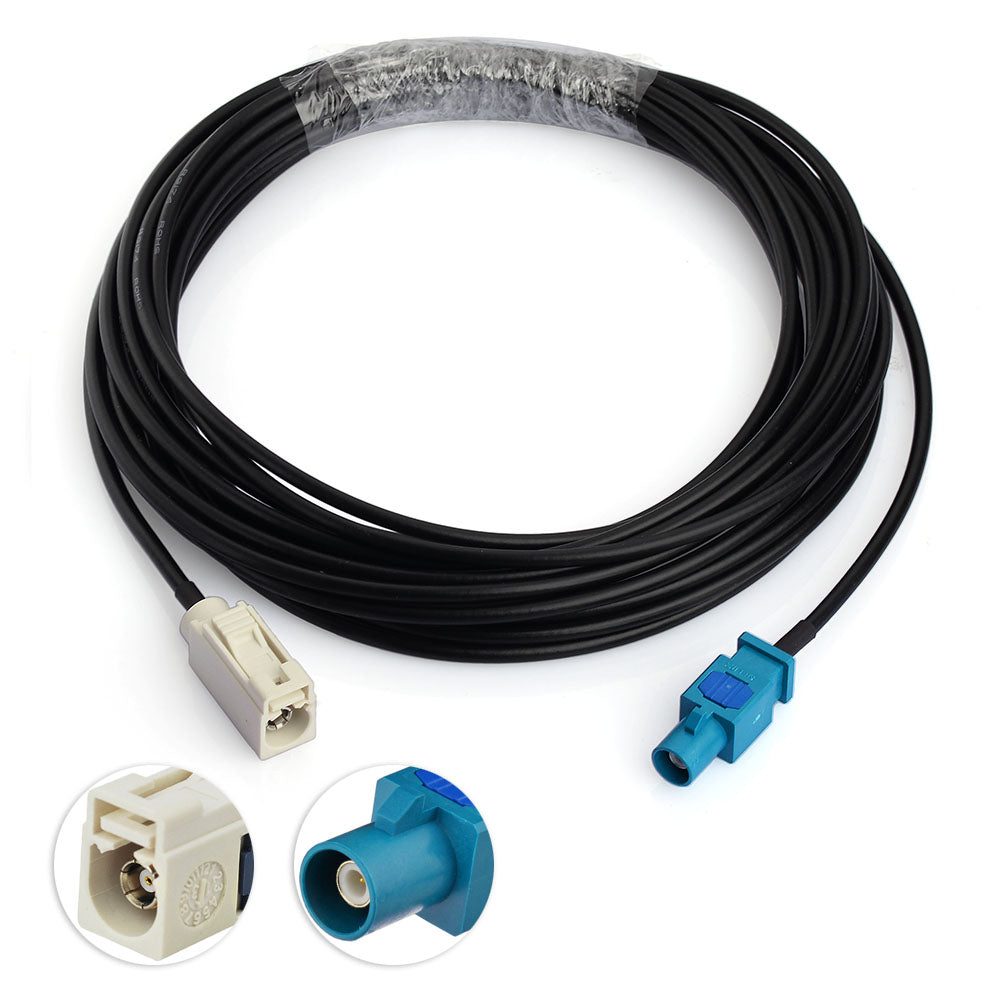

1pcs Fakra"G" to Fakra"Z" 5M Aerial Replacement Cable

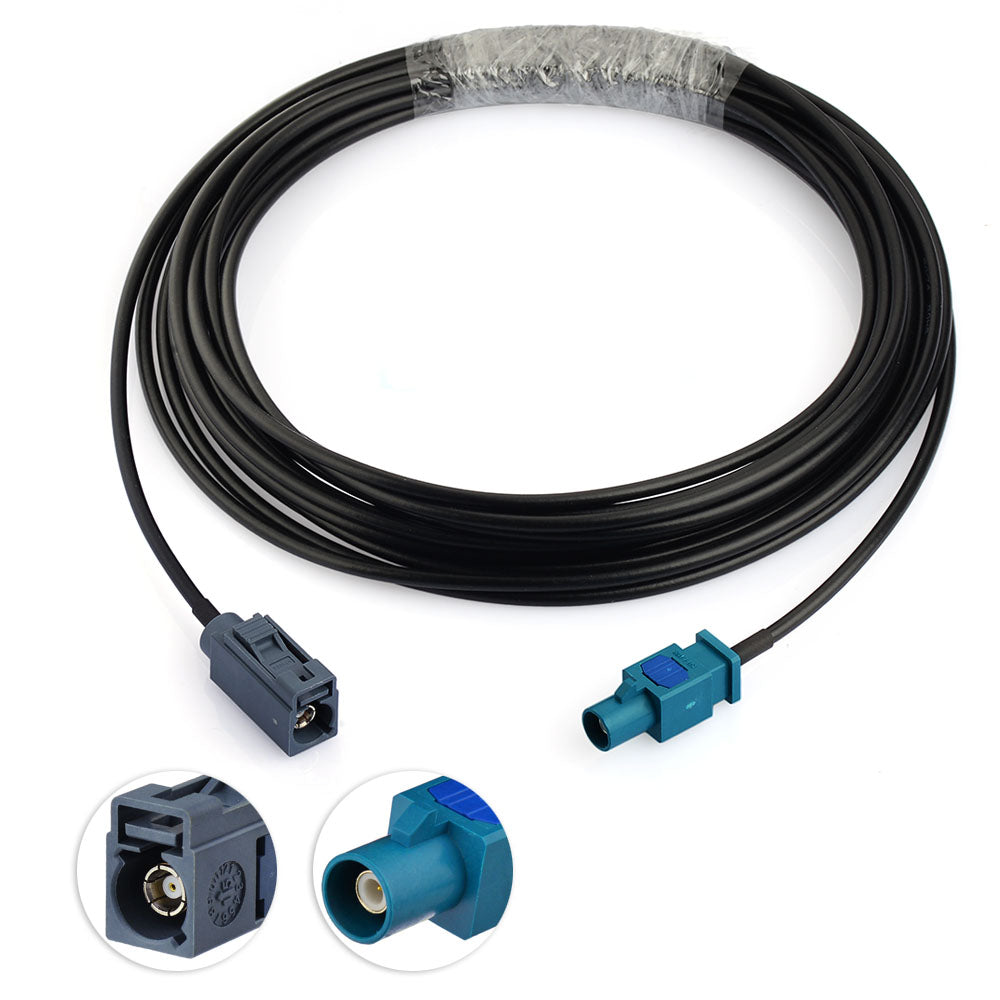

1pcs Fakra"B" to Fakra"Z" 5M Aerial Replacement Cable

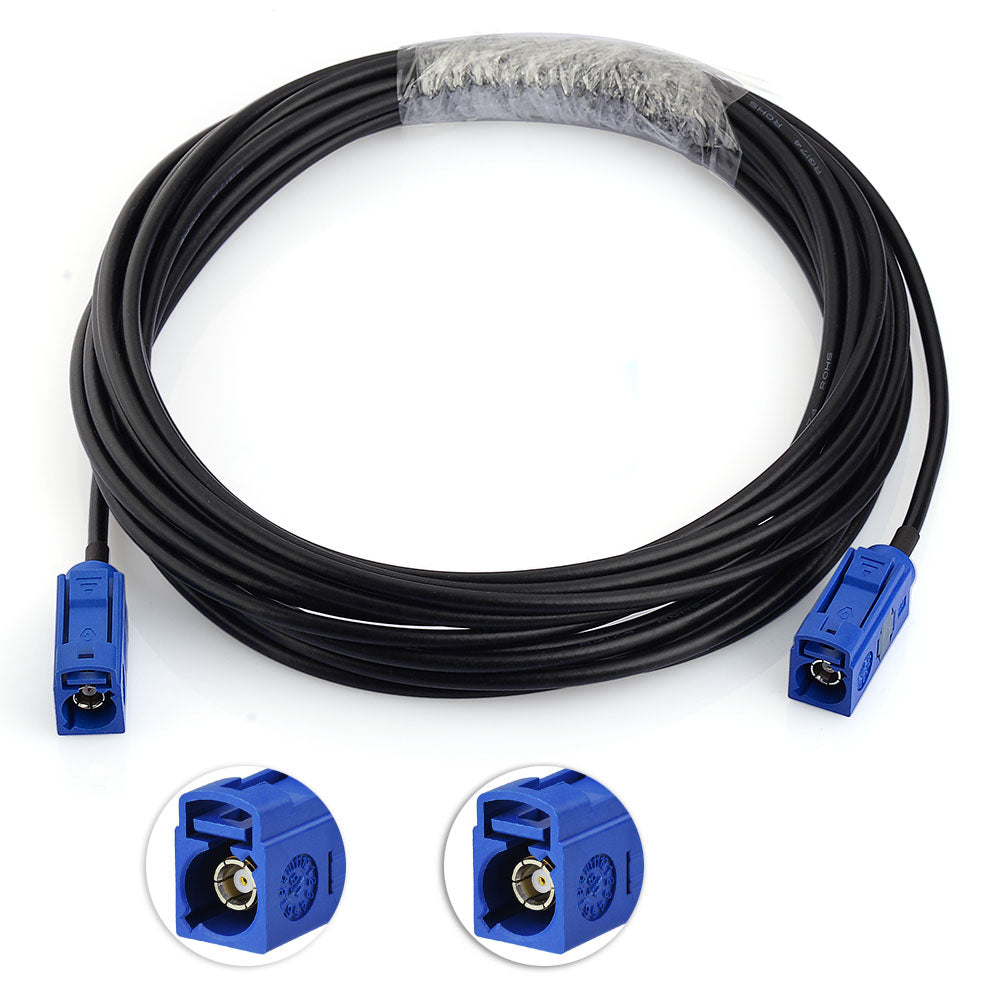

1pcs Fakra"C" to Fakra"C" 5M Aerial Extension Cable
Advantages:
Very neat and stylish.
Roof mount DAB car radio aerial.
No need to unscrew mast for carwash, etc.
Can also be fitted to wing, boot lid etc. (at slight expense of performance)
Vandal resistant.
Amplified
Listing Suitable for the Following DAB Radios：
Alpine Ezi-DAB
Pure Highway 300Di
Cautions:
DAB / FM / GPS only.
FM reception good, but not up to a top quality, full rod aerial.
Not designed for AM reception; will nevertheless receive strong MW signals.
Mounting surface must be flat to within 1.5mm.
Must not be mounted on a panel whose underside is exposed to the elements.
Max panel thickness: 2.5mm
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
