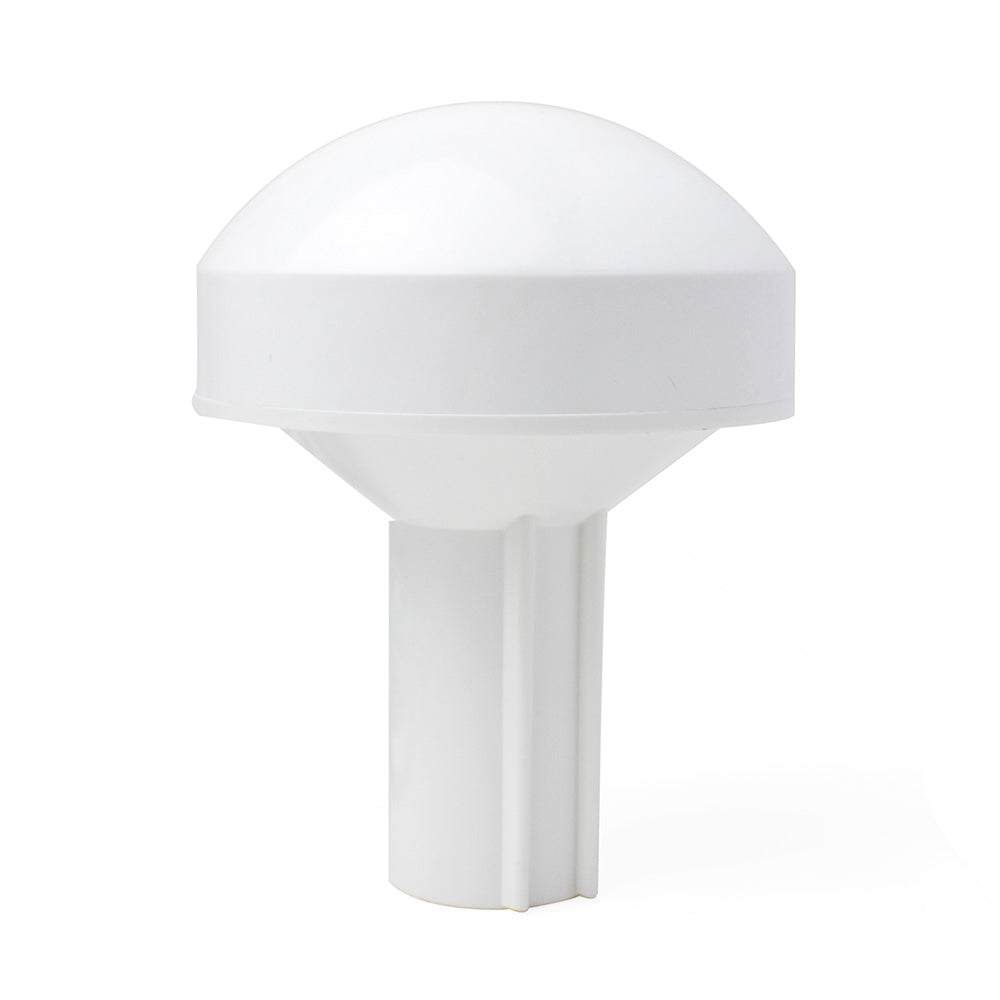

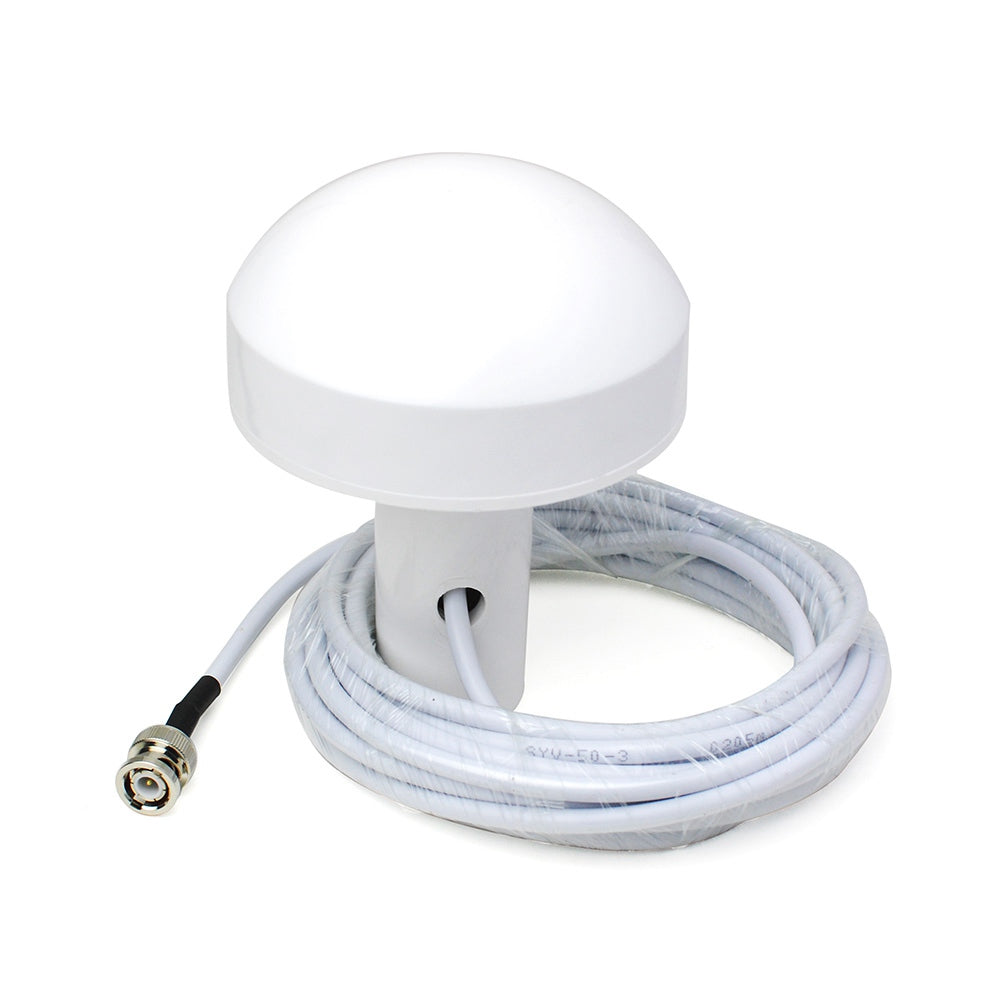

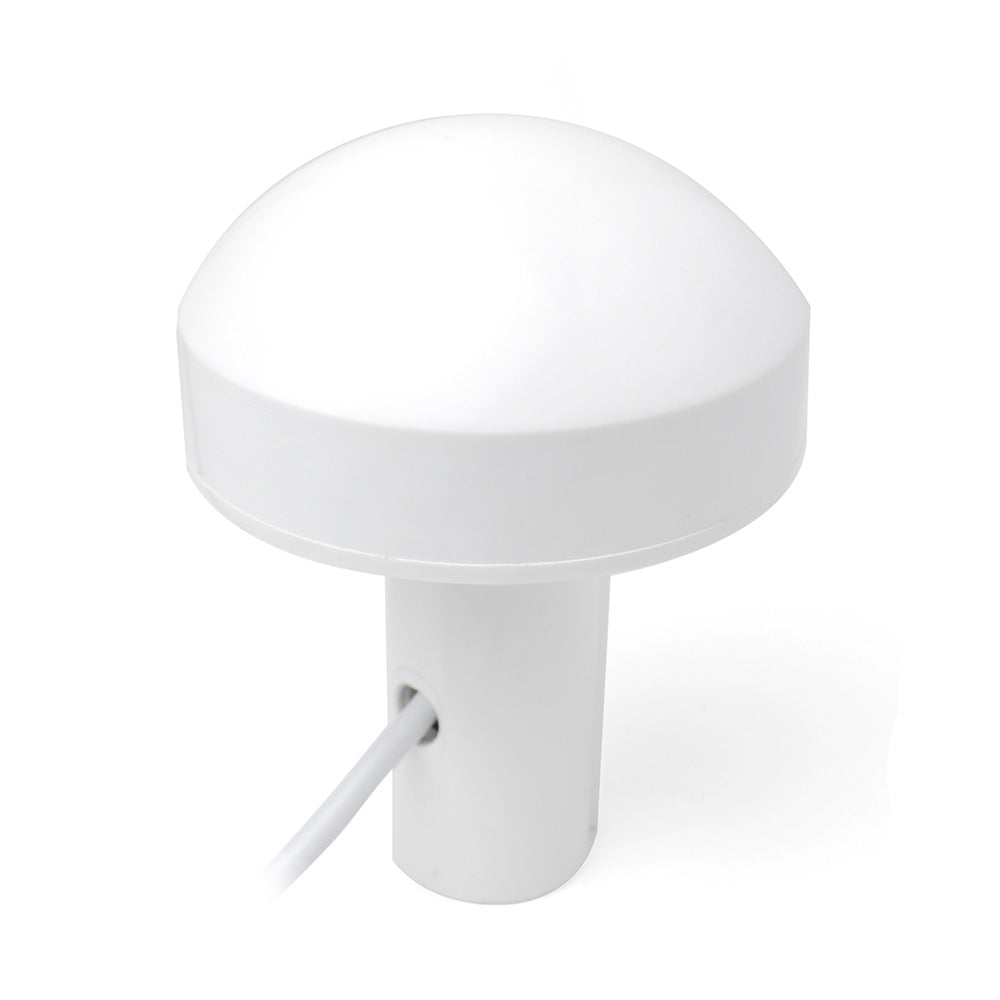

Superbat GPS Aerial Booster Active Marine Navigation Antenna 5M Cable BNC Plug Connector Waterproof Antenna for GARMIN GPS MAP 296 376C 396 498C
Dielectric Antenna Specification
Center Frequency
1575mhz+/-5 MHZ
V. S. W. R
<1.5
Band width
CF±5MHz
Impendence
50 ohm
gain
>=28DBi
Polarization
RHCP
LNA Specification
Lna gain(without cable)
42±2dB
Filter Insertion Loss
<3dB
Noise figure
<1.3
Current Consumption
18~35mA
Dc voltage
3~5V DC
Mechanical Specification
Weight
335g
Cable
SYV-50-3
Cable Length
5M default,(Optional 10meter ,contact us firstly)

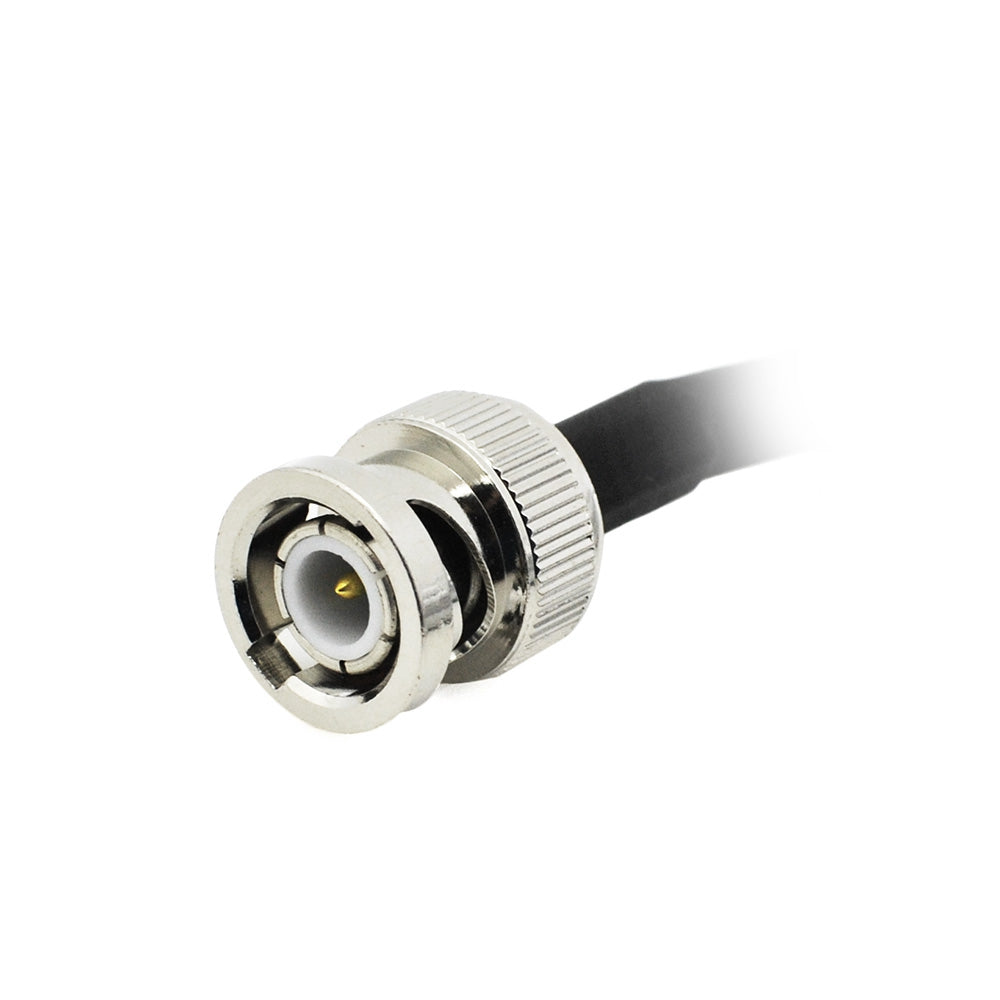

Connector
BNC plug straight(contact us for other connectors)

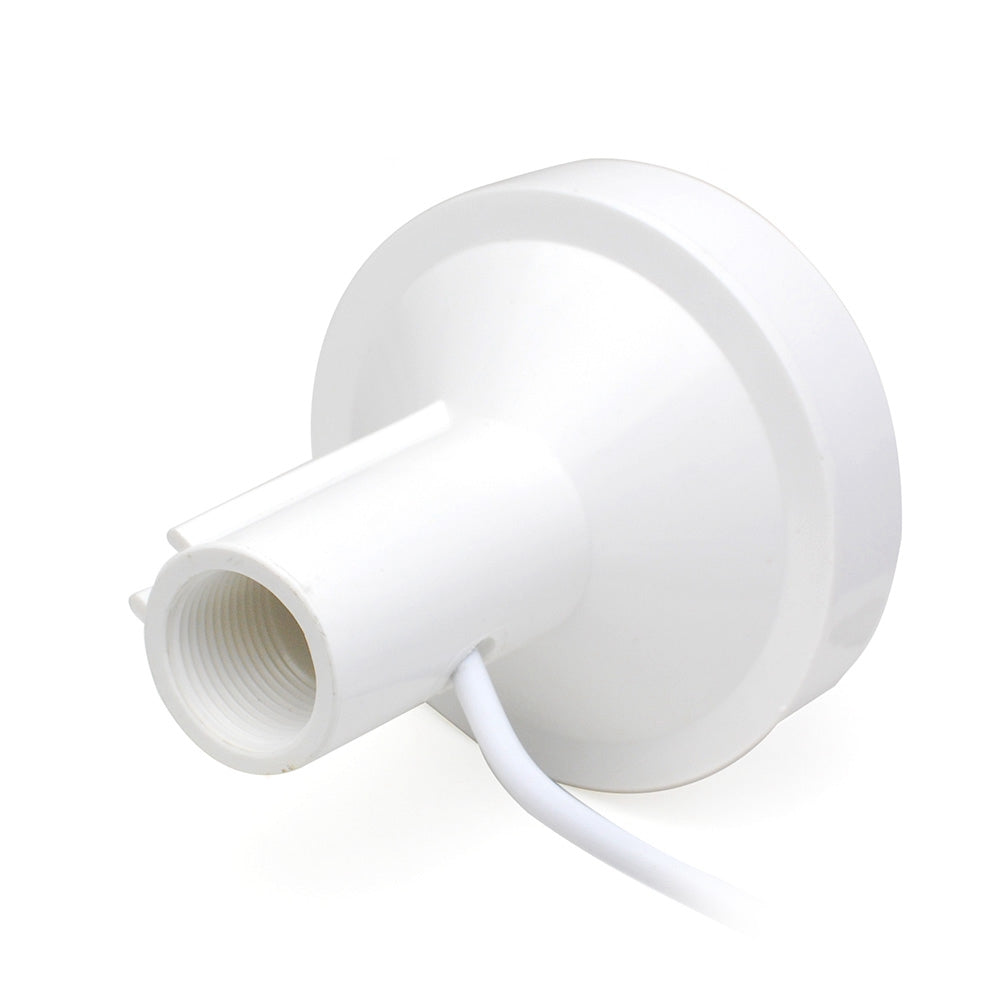

Mounting base
screw thread connection ( G3/4 )
Environmental Specification
Working temp
-40~+60
Storage temp
-50~+85
Vibration sine sweep
1g(0-p)10~50~10hz each axis
Humidity
95%~100%rh
Weatherproof
100%
