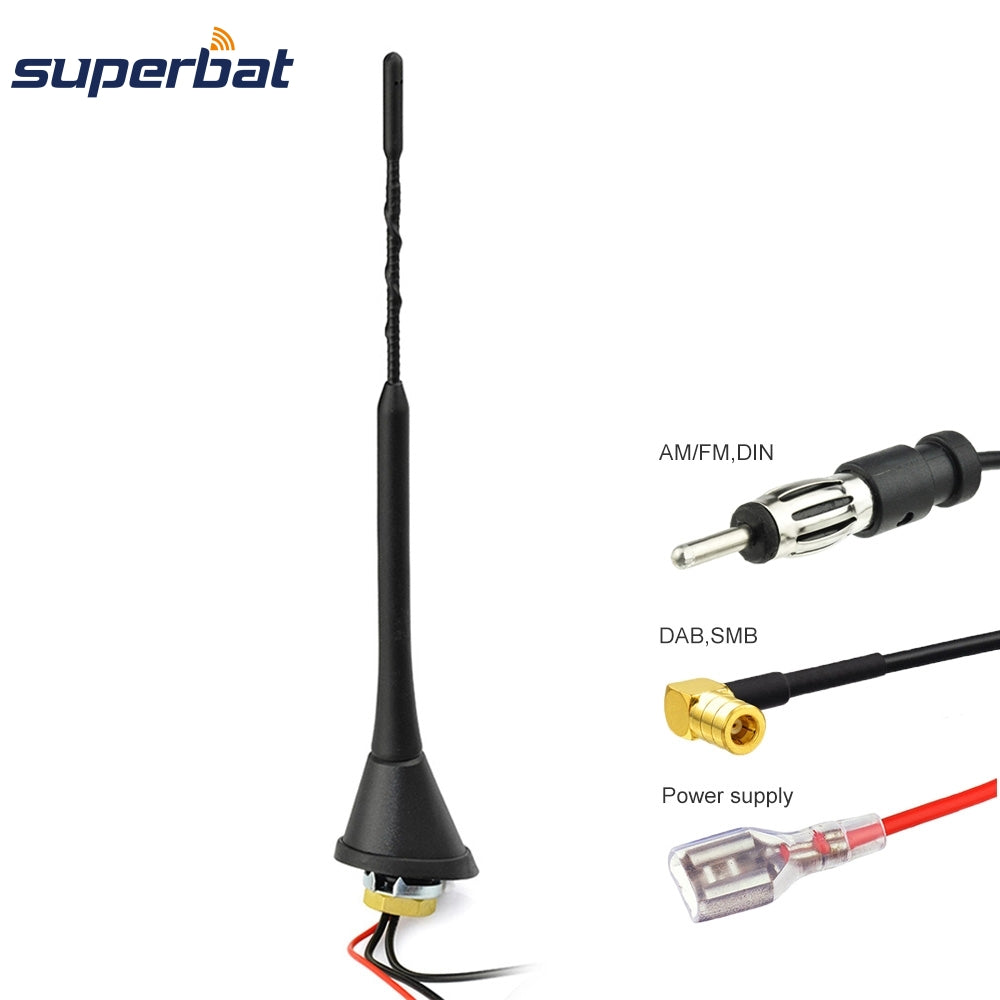

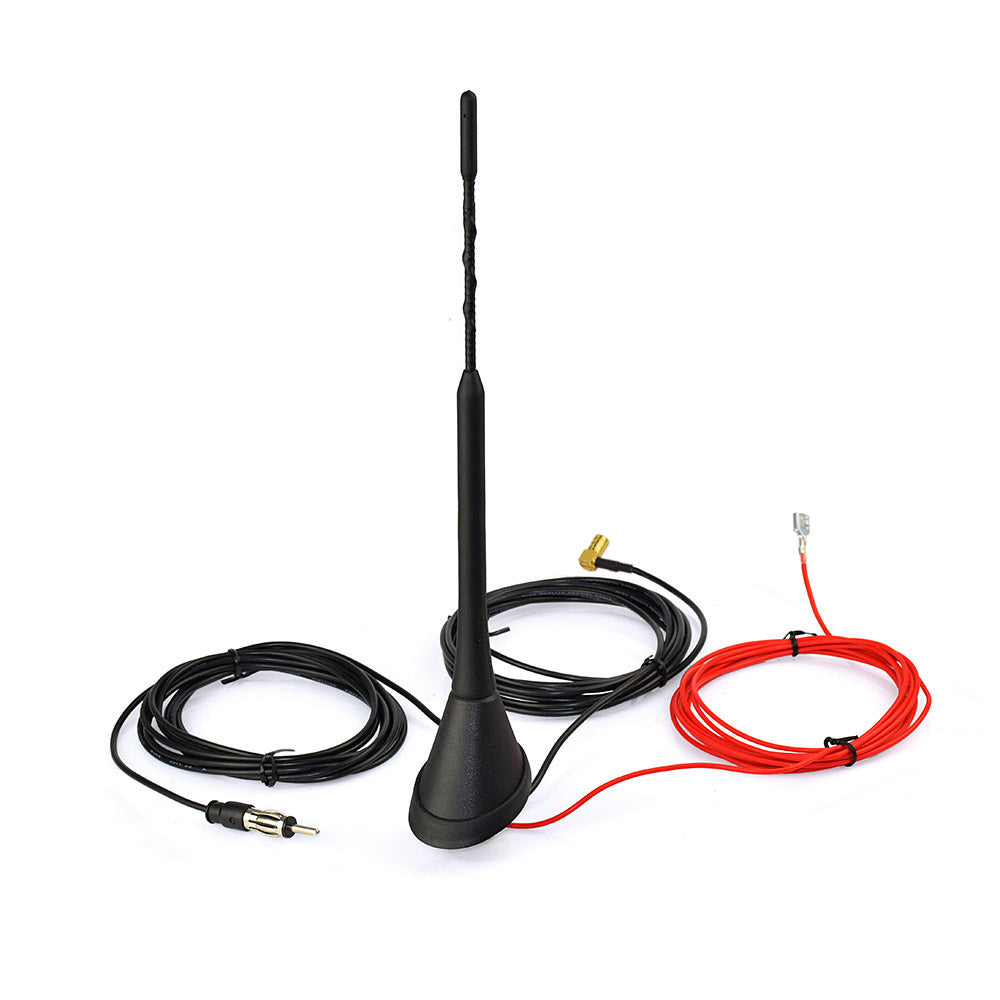

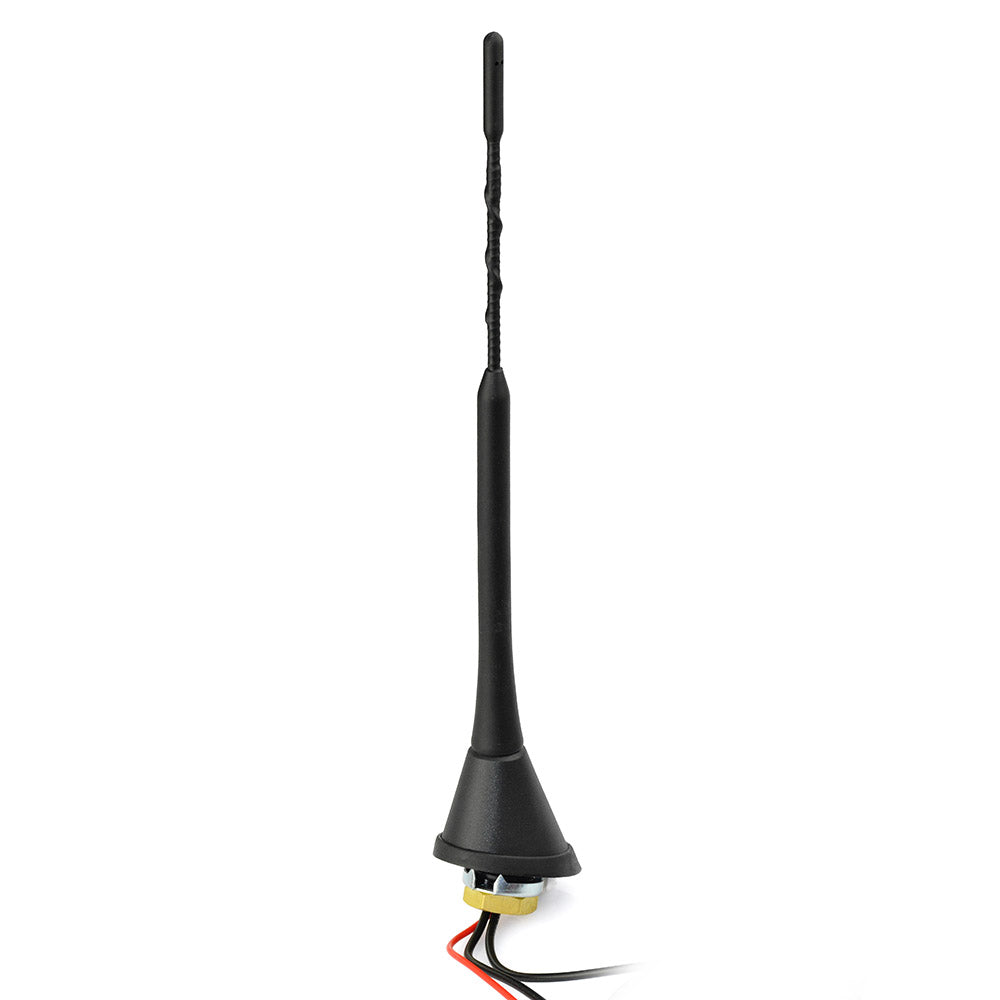

Superbat Universal Roof Mount Digital DAB Antenna with Amplifier for DAB DAB+ AM/FM Car Radio Antenna Aerial SMB Plug Connector
Description:
Highly competitive high performance roof mount DAB and AM/FM antenna.
Roof mounted Combined FM + DAB antenna. This allows the factory roof aerial to be replaced to work with both DAB and FM avoiding the need for adding additional DAB aerials.
The amplifier built into the aerial increases the signal for both DAB and FM allowing reception even in areas that would usually have a poor radio reception.
Features:
Bar Length: Approx. 23 cm
Gain:Approx. 10 dB
Antenna Angle: Approximately 75 °

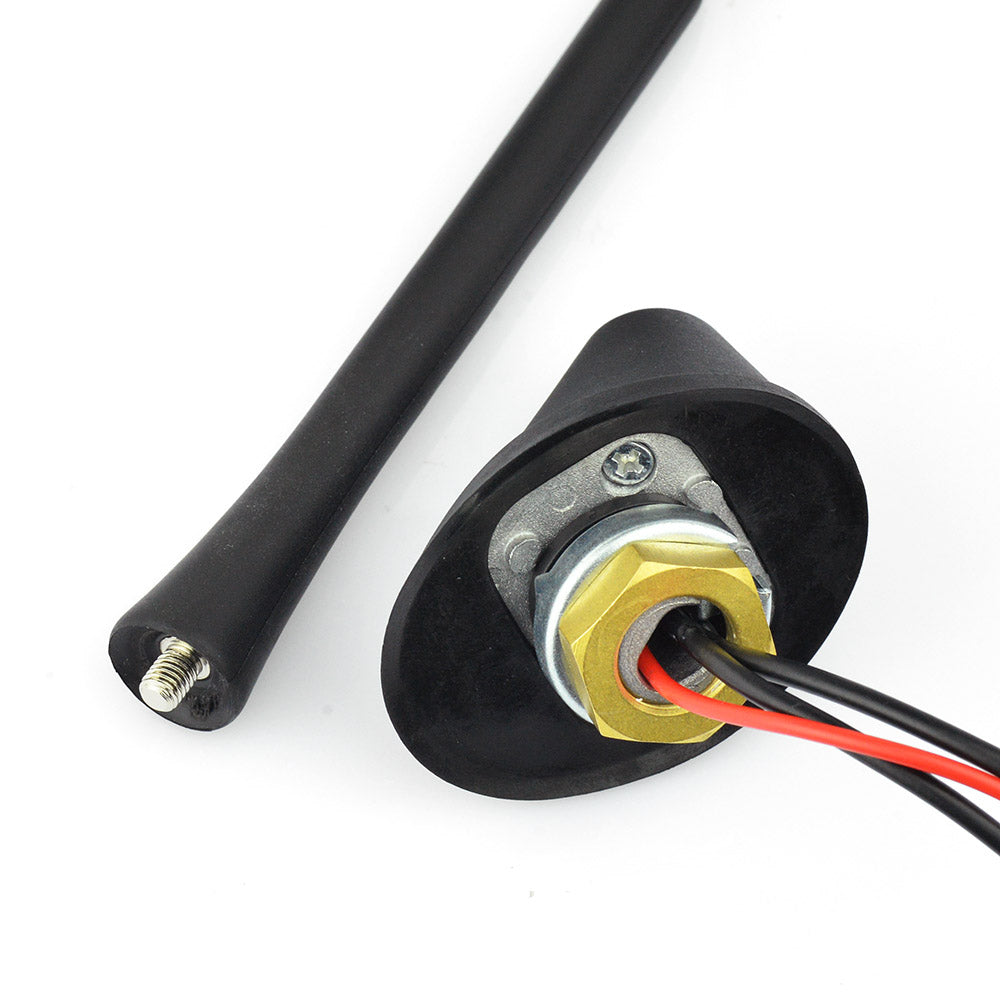

Antenna base with sealing - Dimensions: 58 x 45x 270 mm
Handle Material: Rubber/fibreglass - Antenna rod
Mechanical Cable: RG174
Cable Length:5M

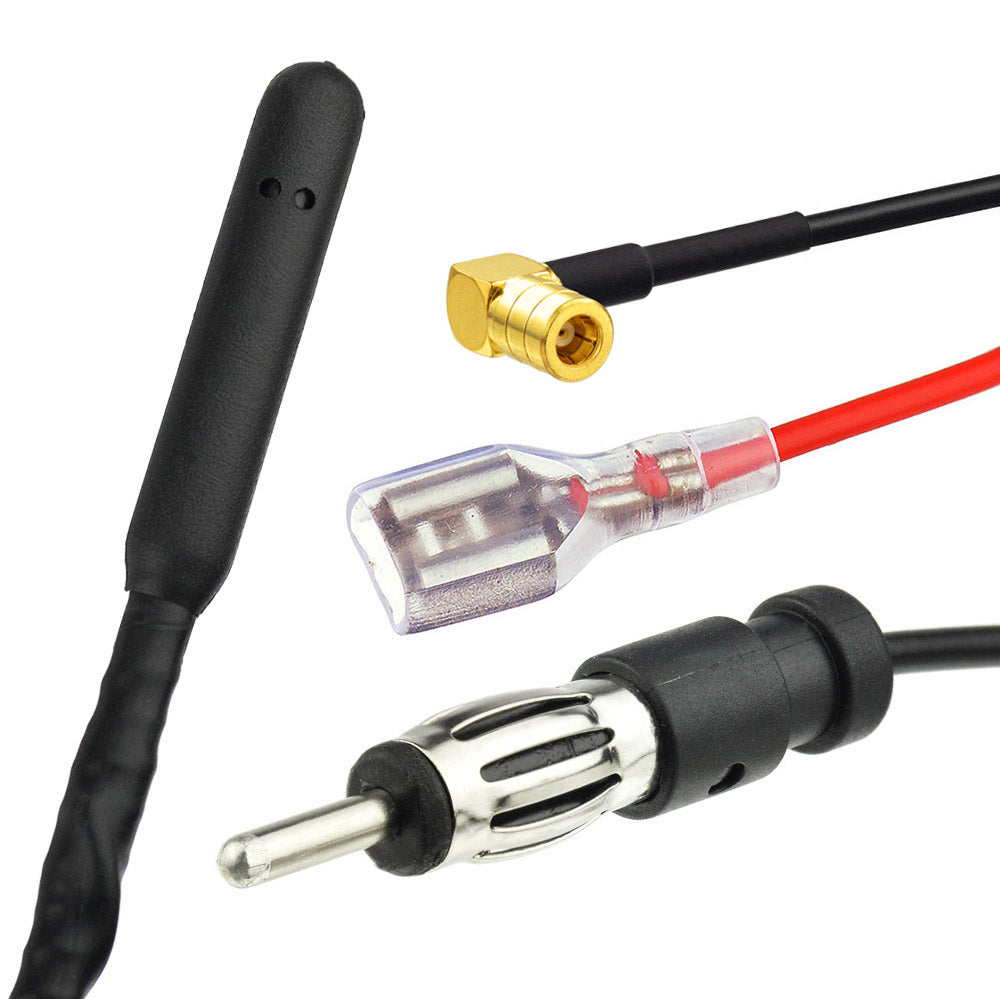

Connector: DAB Antenna:SMB AM/FM Antenna:DIN
Mounting Method:Screw
DAB Antenna&Amplifier
Frequency Range ：174~237MHz/1452~1492MHz
Wave Band：DAB BⅢ/L-Band
Polarization：Linear
Impendance：50Ω
Gain：10±2dB
Supply Voltage：12V DC
Current Consumption：40mA
FM/AM Antenna&Amplifier
Frequency Range: 520~1629KHz/76~108MHz
Wave Band:AM/FM
Connector:DIN
Polarization:Linear
Impendance:AM＜90 pF FM:75~150 Ω
Gain:AM:6dB FM:7dB
Supply Voltage:12V DC
Current Consumption:60mA
Environmental
Operating Temperature:-40℃~+85℃
Relative Humidity:Up to 95%
Ingress Protection:IP65~IP66 (exclude cable outlet)
Vibration:10 to 55Hz with 1.5mm amplitude 2hours
ROHS Compliant
