Features:
1. The diagonal is equipped with thick precision optical plane mirrors with an enhanced 99% reflective dielectric coating
2. Dielectric 1/10 lambda level substrate, optical path length 85.5mm
3. The snap on fixture can achieve ultra fast clamping action
5. The internal safety block can prevent collision with the mirror

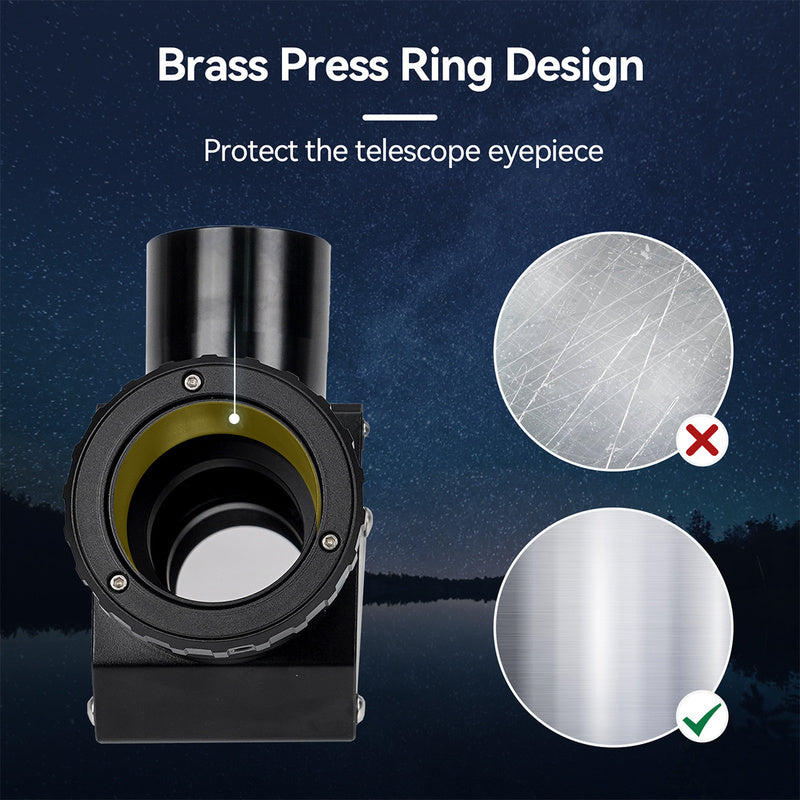

6. Stainless steel compression ring (on diagonal and adapter) can prevent damage to the eyepiece
Specifications:
1. Brand: SVBONY
2. Model: SV223
3. Size: 1.25 inches
4. Optical design: Mirror diagonal
5. Internal connection (lens side): thread M28.5x0.6
6. External Connection (Lens Side): Tube 1.25 inches
7. Internal connection (eyepiece side): clip 1.25 inches
8. Reflective surface: dielectric coating
9. Reflectance:>99%
10. Image direction: Up and down, left and right reversed
11. Optical length: approximately 85.5 millimeters

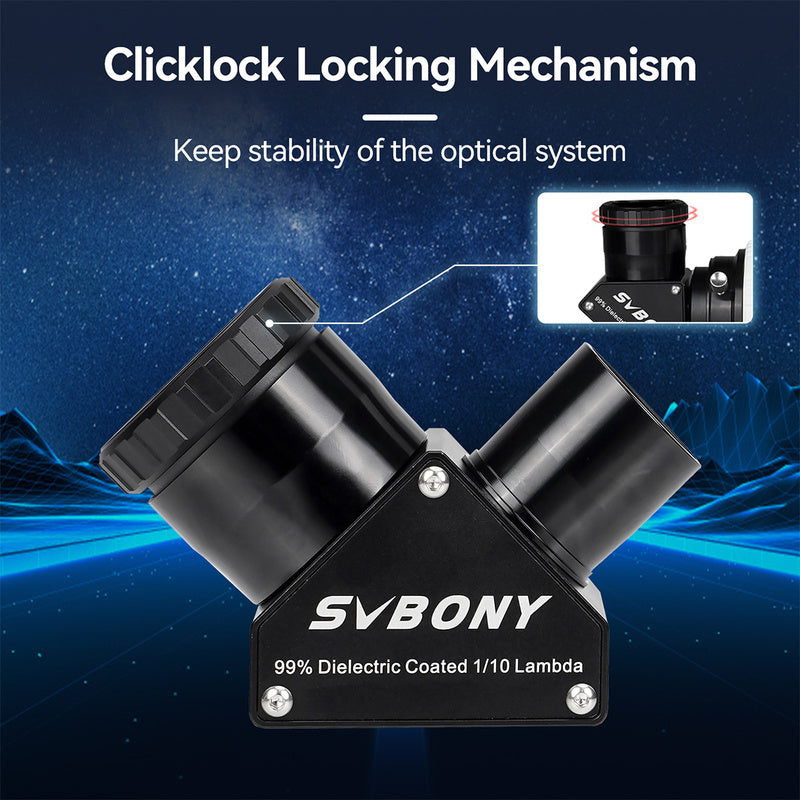

12. Clamping system: Clicklock
13. Deflection angle: 90 °
14. Aperture: 25mm
15. Material: Metal
16. Mirror thickness: 11.5mm
17. Net weight: 249 grams/8.78 ounces

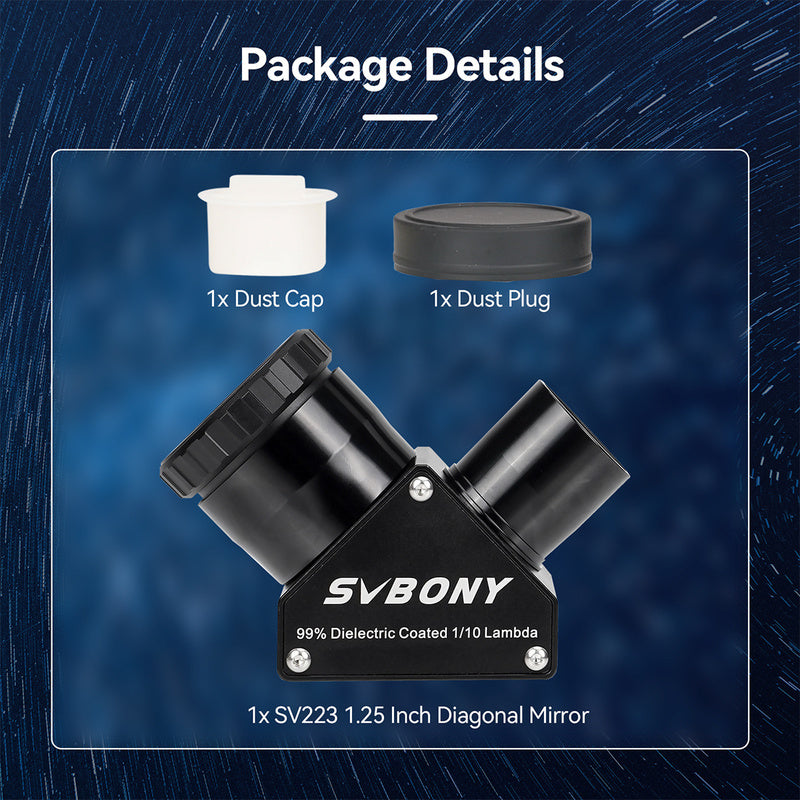

The package includes:
SV223 1.25 "90 degree zenith mirror
1 M4 screw
1PCS dust cap
1PCS dust plug
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
