SX1278 LoRa ESP32 0.96 inch Blue OLED Display Bluetooth WIFI Lora Kit 32 Module Internet Development Board Antenna for

SX1278 LoRa ESP32 0.96 inch Blue OLED Display Bluetooth WIFI Lora Kit 32 Module Internet Development Board Antenna for

Name: SX1278 LoRa ESP32 0.96 inch Blue OLED Display Bluetooth WIFI Lora Kit 32 Module Internet Development Board Antenna for
Brand: mickcara
SKU: 01580-1
Price: 39.00 USD
Availability: InStock

2 sold in last 8 hours

Brand: mickcara

Product Code: 01580-1

Availability: In stock

🔥BUY 3 GET 4th 50% OFF 🔥 CODE:MK50
🔥BUY 2 GET 3rd 35% OFF🔥 CODE: MK35
🔥BUY 1 GET 2nd 35% OFF🔥 CODE: MK20

$39.00

Quantité:

Total: $39.00

283 customers are viewing this product

Tags:

Description

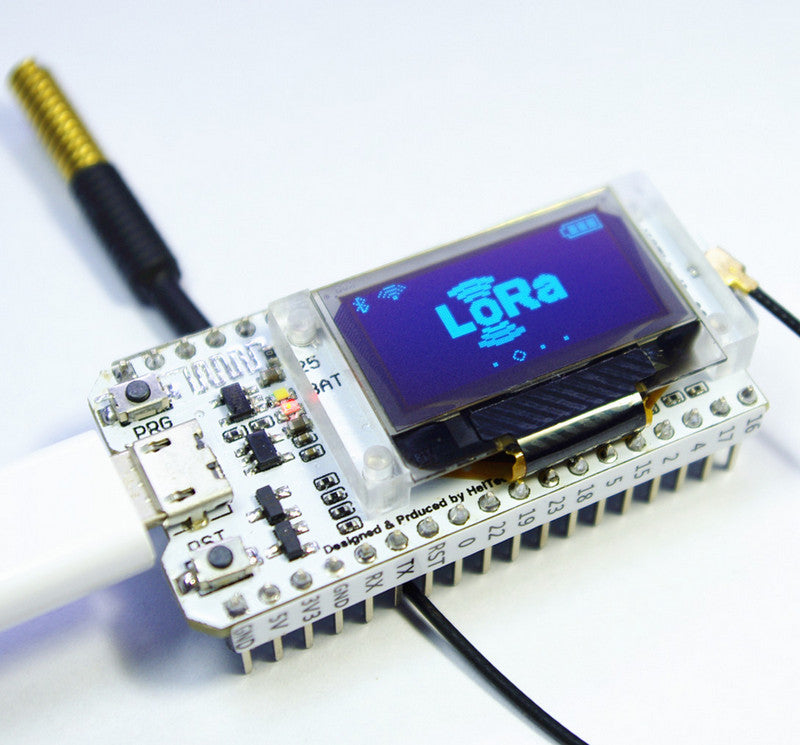

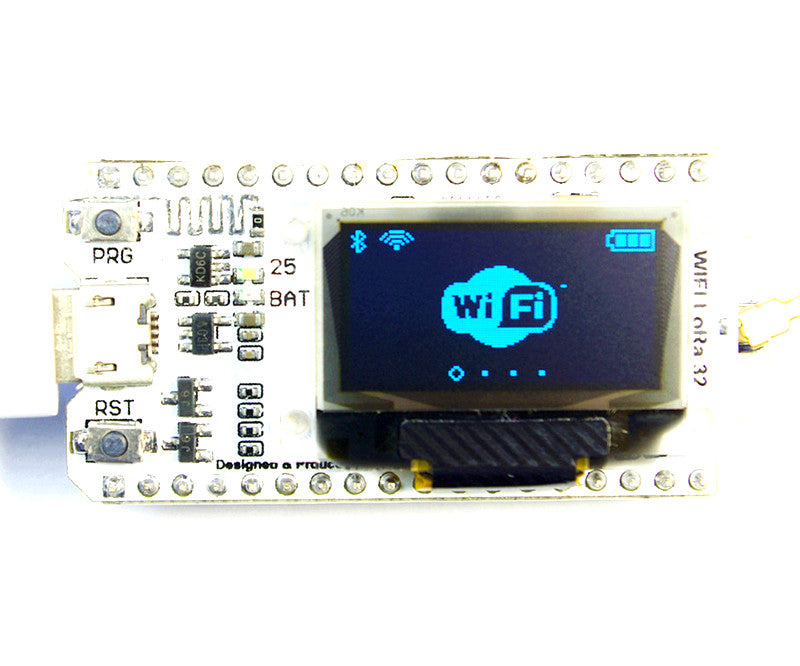

WIFI Kit series is the new development of the cost-effective networking program, the main chip using Lexin ESP32, Tensilica LX6 dual-core processor, clocked at 240MHz, computing power up to 600DMIPS, chip built-in 520 KB SRAM, 802.11 b / g / N HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP, integrated dual-mode Bluetooth (traditional Bluetooth and BLE low power Bluetooth).

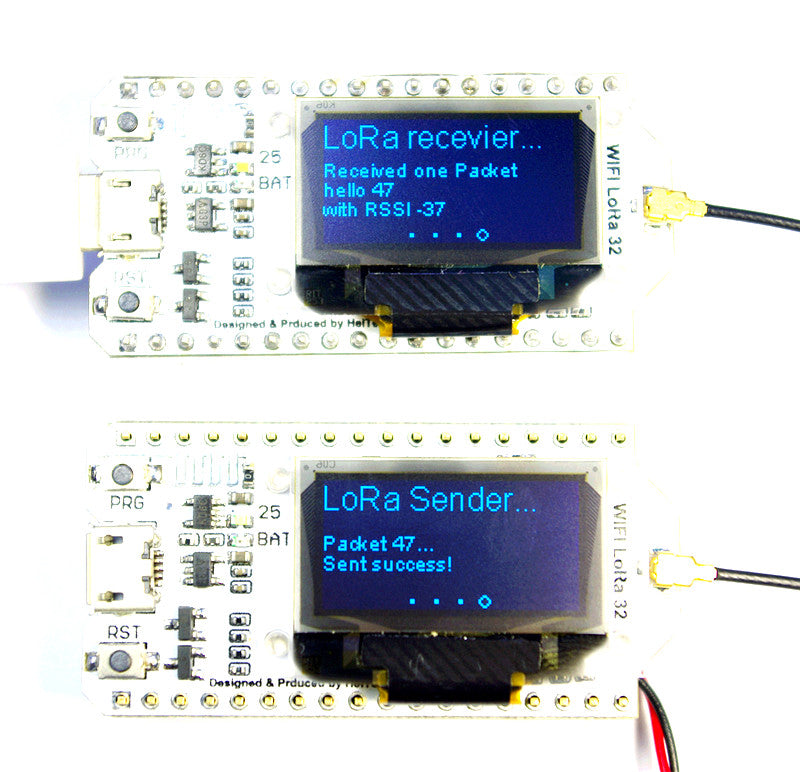

This product is based on the WIFI Kit 32 added SX1278 chip, that is, LoRa ™ remote modem, 433MHz frequency, about -148dBm high sensitivity, +20 dBm power output, high reliability, transmission distance (measured open area communication distance 2.6Km).

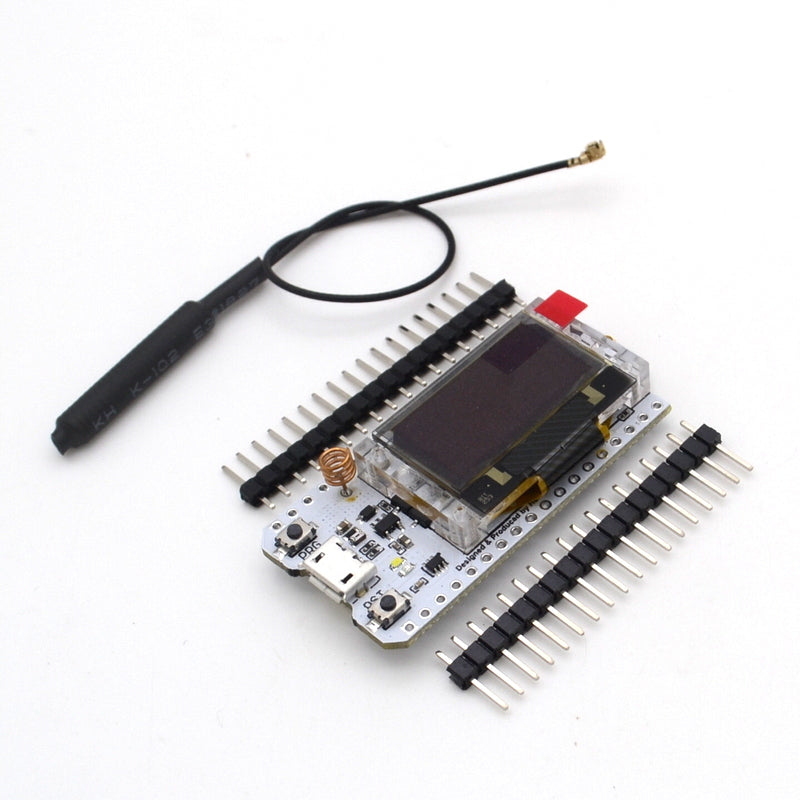

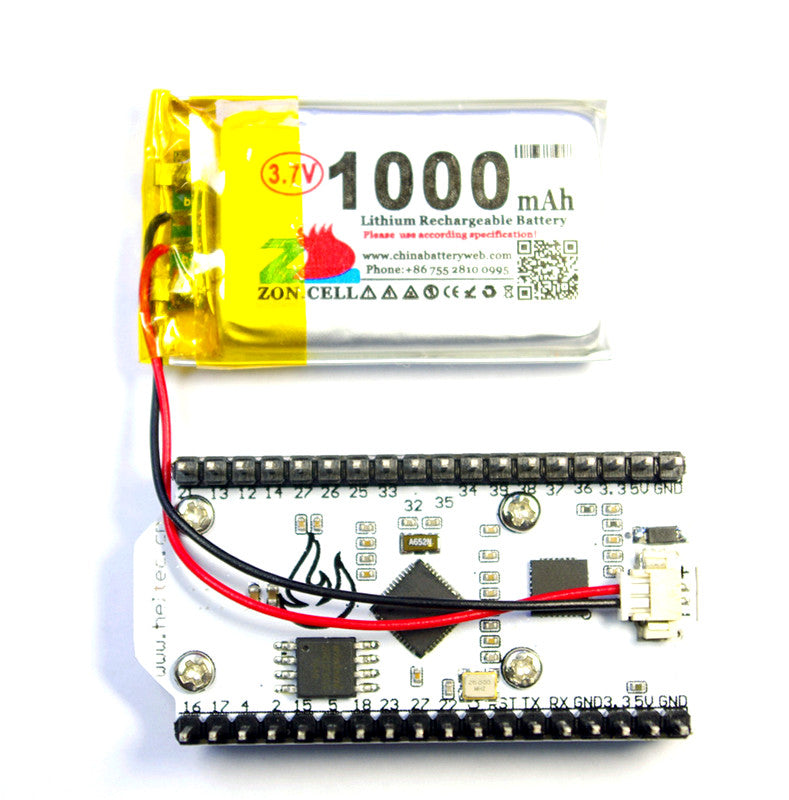

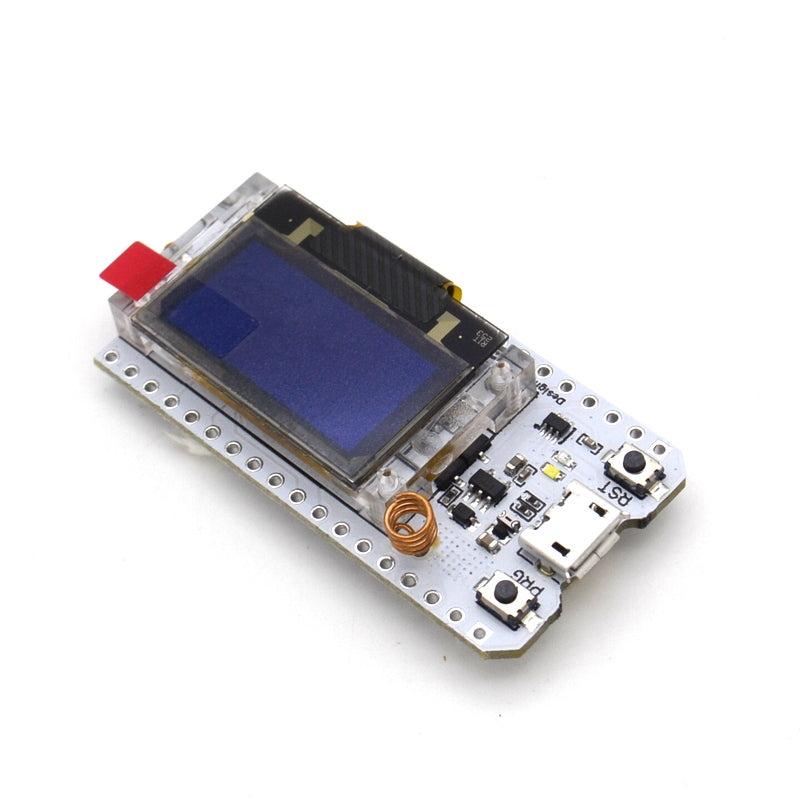

Onboard 32MByte Flash, Wi-Fi antenna, 0.96-inch blue OLED display, lithium battery charging circuit and interface, CP2102 USB to serial chip, the perfect support for development environment, can be very simple and fast for program verification and product development.

Operating voltage: 3.3V to 7V

Operating temperature range: -40 ° C to + 90 ° C

Supports Sniffer, Station, softAP and Wi-Fi Direct modes

Data rate: 150 Mbps @ 11n HT40,72 Mbps @ 11n HT20,54 Mbps @ 11g, 11 Mbps @ 11b

Transmit power: 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n

Receiver sensitivity up to - 98 dBm

UDP continues to throughput by 135 Mbps
