MX1 Set Live Broadcast Sound Card Set

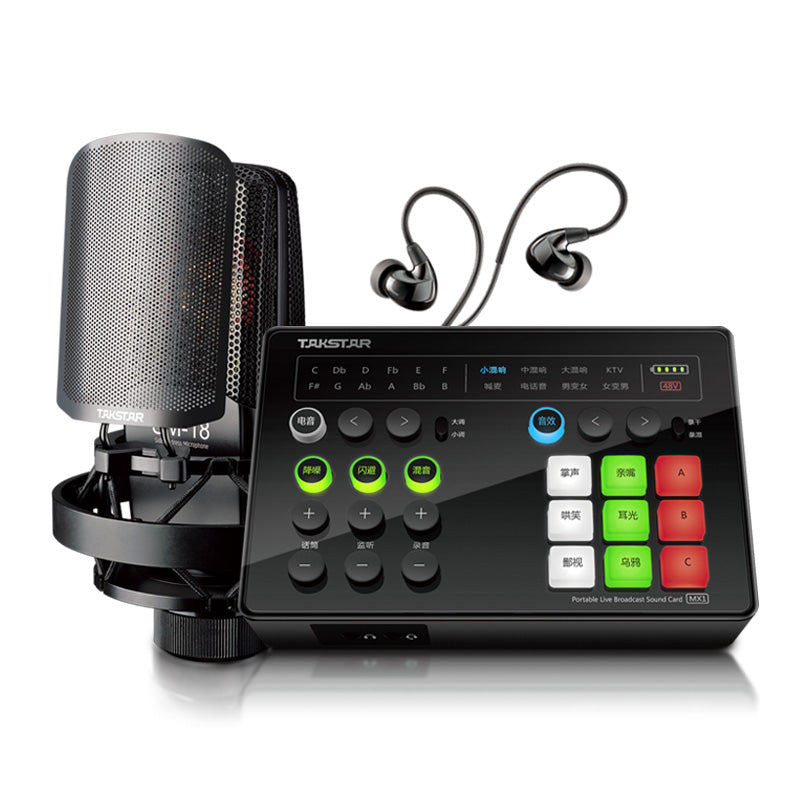

     • MX1 Set is the live broadcast/Karaoke set which consists of MX1 sound card, SM-18 condenser microphone, TS-2260 earphone and accessories.

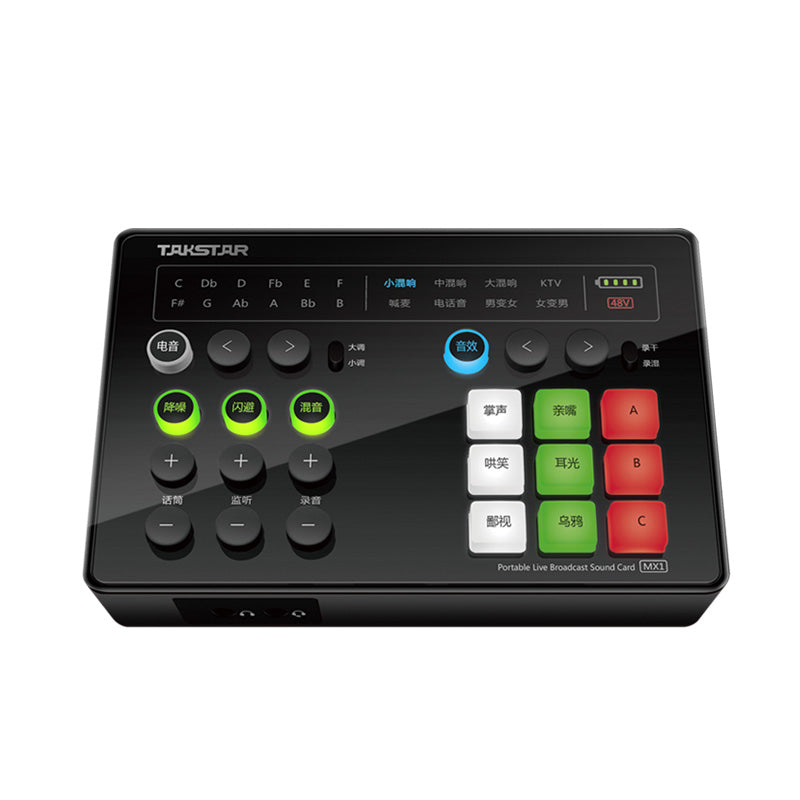

     • The sound card features Li-ion battery, 9 sound effects, 9 camboy/camgirl sound effects, compatible with cell phone/iPad/PC, compact design and easy operation.

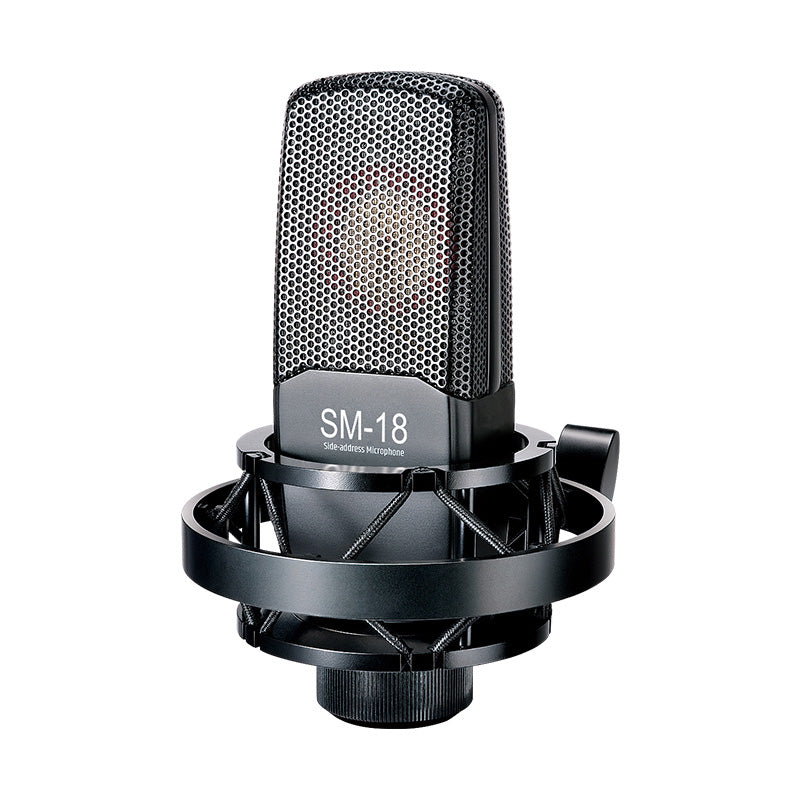

     • The microphone features cartridge of φ34mm large gold plated diaphragm, high sensitivity, wide frequency response, clear sound.

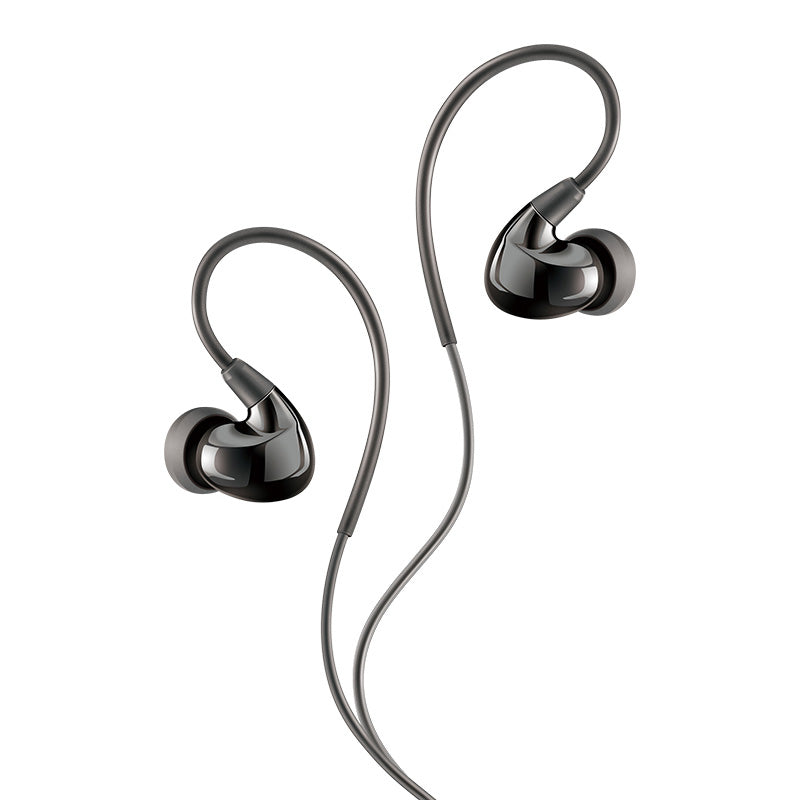

     • The earphone is tailored for monitoring and features Ø9.2mm high resolution driver unit to reproduce rich sound details.

     • The whole set is designed with high quality alloy case for convenient outdoor application.

     Specification

     Sound card specification

     • Data Transmission:  USB2.0

     • Sample Ratio:  48KHz/16bit

     • Frequency Response:  20Hz-20KHz

     • THD:  THD＜0.5% 1KHz

     • Earphone Output Power:  125mW/32Ω

     • Earphone S/N Ratio:  90dB（A-Weighted）

     • Main Chip:  DSP

     • Reverb:  Reverb

     • Autotune:  24 Autotunes

     • EQ:  EQ

     • Type:  Li-ion battery

     • Battery Capacity:  2700mAh

     • Charging:  USB 5V     1.5A

     • Operation Time:  more than 8h（48V off）more than 6h（48V on）

     • Audio Connector:  cell phone connector（3.5mm）, accompaniment connector（3.5mm）,   mic connector1（Mini XLR）, mic connector2（3.5mm）, earphone connector（3.5mm）, earphone mic connector（3.5mm）,

     • Power Connector:  Micro USB

     • Dimension:  142*98*22mm(L*W*H);

     • Net Weight:  approximate 300g

     Earphone Specification

     • Type:  dynamic stereo earphone

     • Unit Diameter:  9.2mm

     • Unit Impedance:  18Ω±15%

     • Frequency Response:  20Hz-20kHz

     • Sensitivity: 95±3dB SPL (94dB SPL=1Pa)  at  1KHz with input=0.126V(1mW)

     • Peak Power:  5mW

     • Rated Power:  3mW

     • Cable:  dia 2.3mmX2m

     • Connector:  3.5mm three conductor gold plated connector

     • Net Weight:  approximate 13g

     Microphone Specification

     • Cartridge:  cartridge of 34mm large gold plated diaphragm

     • Polar Pattern:  unidirectional

     • Frequency Response:  20Hz-20KHz

     • Sensitivity:  -30dB±3dBV(0dB=1V/Pa at 1KHz)

     • Equivalent Noise Level:  ≤20dBA（IEC 581-5）

     • Peak SPL:  135dB（THD≤1% at 1KHz）

     • Output Impedance:  110Ω±30%(at 1kHz)

     • Operation Voltage:  48V phantom power

     • Dimension:  157mmx55x38mm

     • Net Weight:  approximate 372g

     Application

     • Cell phone/iPad/PC: Karaoke, live broadcast, recording

     App: Suitable for various entertainment live broadcast APPs and influencer marketing platforms

     Product Content

     • MX1 sound card1 pc

     • SM-18 condenser microphone     1 pc

     • TS-2260 earphone1 pc

     • Audio cable（Ф3mm*1.2m）  2 pcs

     • Micro USB data cable（Ф4mm*1.2m）1 pc

     • Mini XLR cable（Ф4mm*2m）    1 pc

     • Shock mount1 pc

     • Windscreen        1 pc

     • Ear pad（S/M/L）3 pairs

     • Earphone box     1 pc

     • Al alloy case1 pc

     • User manual1 pc
