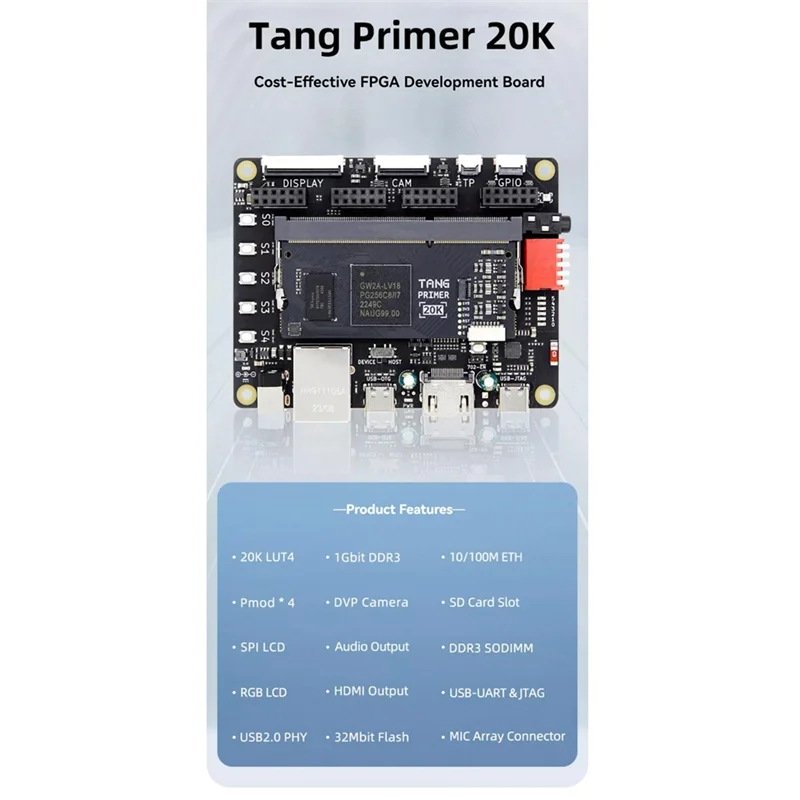

High cost-effective advanced FPGA development board
The core board has onboard DDR3 memory particles and power IC and other peripheral components, allowing users to use the core board alone to quickly develop and verify projects for high-speed and low-cost applications

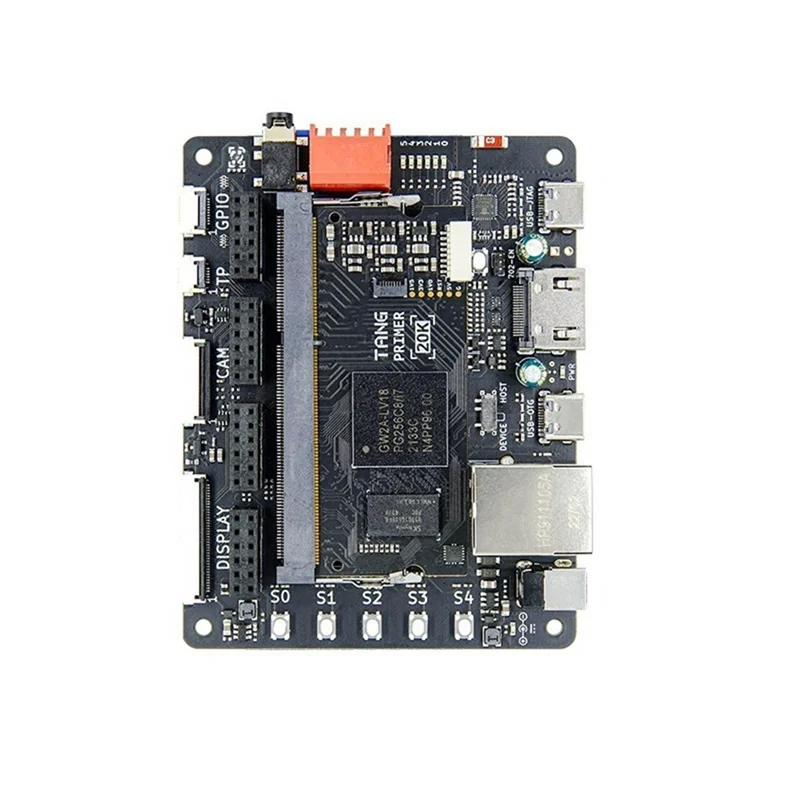

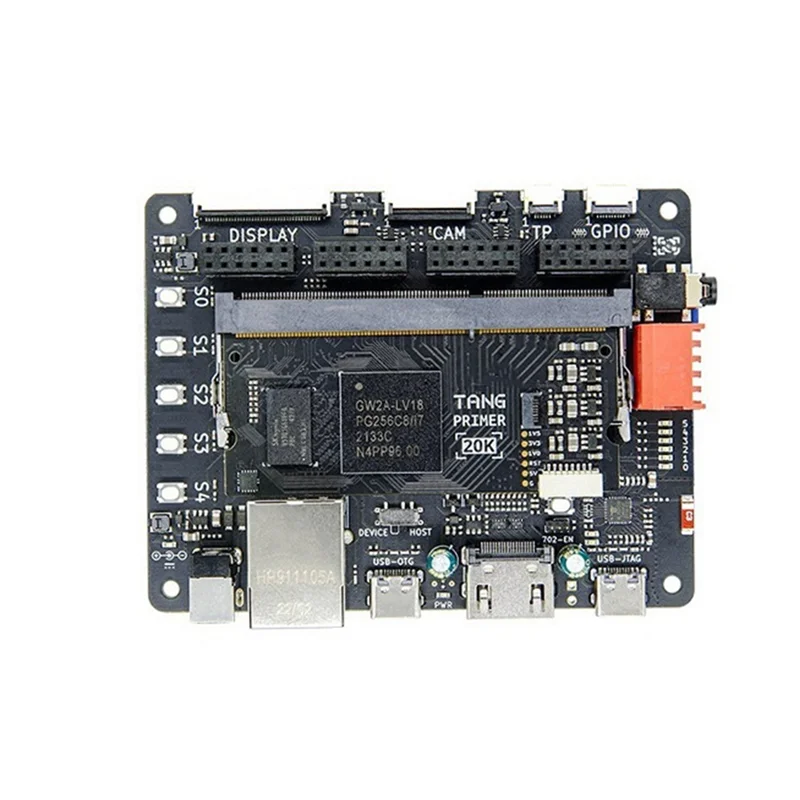

Tang Primer 20K Dock baseboard is equipped with rich peripheral resources, such as onboard USB-JTAG & UART circuits, Ethernet PHY and RJ-45 connectors, USB2.0 PHY, output interface, stereo output circuit and 3.5mm headphone connector, RGB screen connector, DVP camera connector
Multiple ways to play: drive RGB screen, drive SPI screen, screen display camera content, drive display, drive FC game, microphone array test, sound field thermal map, frame difference detection, drive PMOD
Model: Tang Primer 20K DOCK ·
Master model: GW2A-LV18
Logic unit (LUT4): 20736
Block RAM: 828Kbit+41Kbit
Loop detector (18x18): 48
PLLS: 4
DDR3: soft core driver
USB: soft core driver
Ethernet: support
: support
PMOD interface: yes
Download method: onboard downloader
(Due to different batches, the printed words on the product will be different, which does not affect use)
Colour:Black
Material:PCB

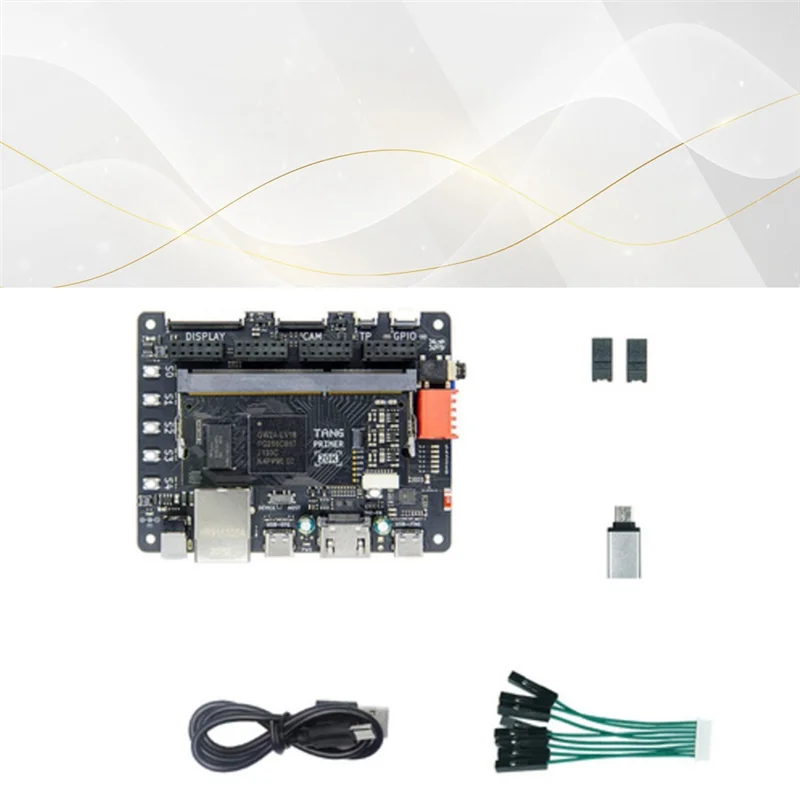

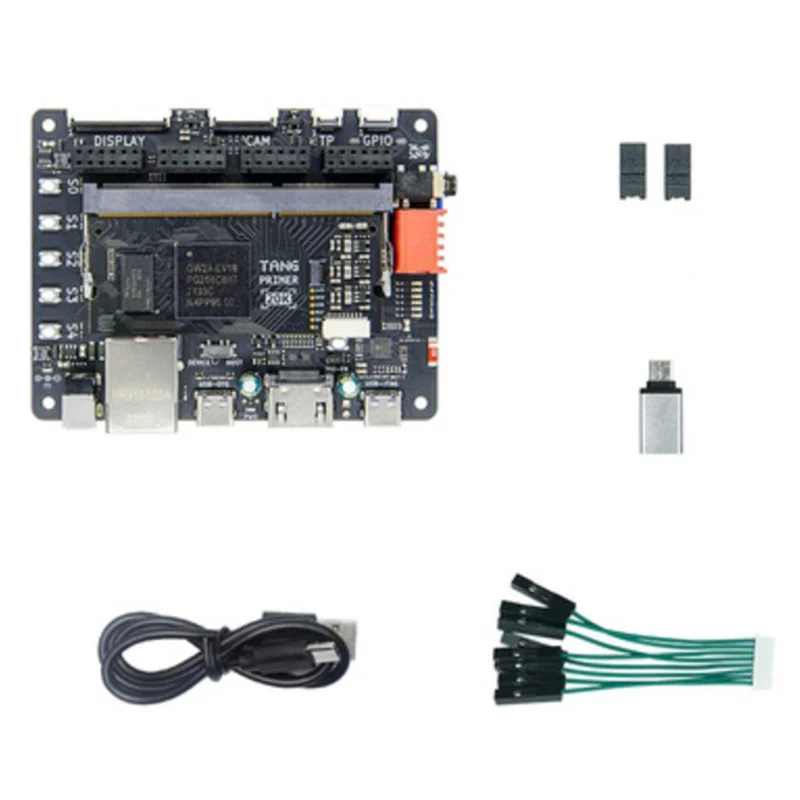

Package Contents:
1 x 20K Dock ext-board
1 x 20K Core Broad
1 x USB-C OTG Convertor
1 x Type-C Data Cabble
1 x Terminal Wires
2 x Black Pin Header Cap
