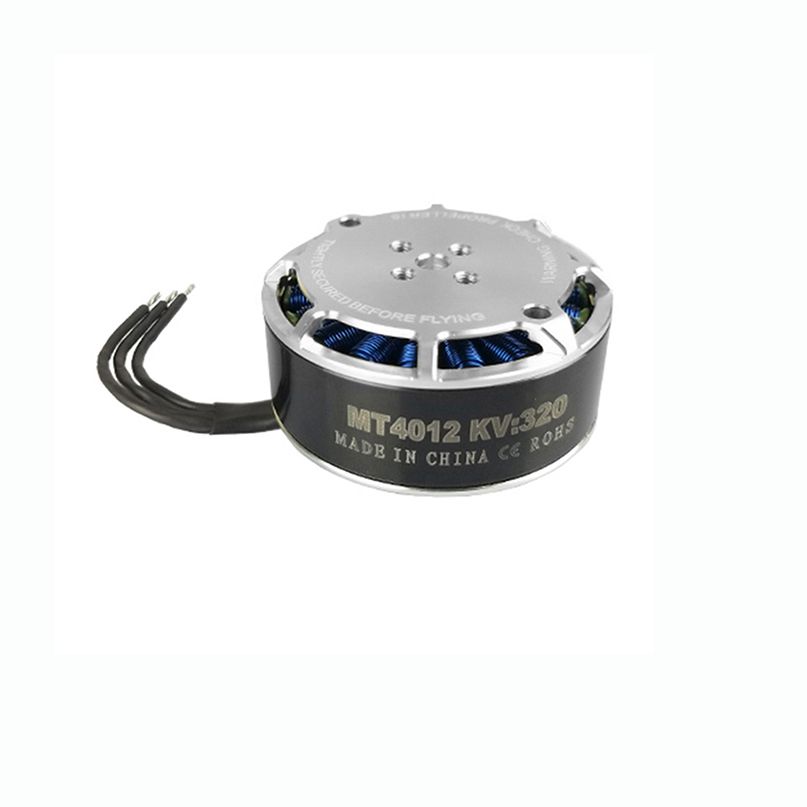

Product description:

  - Martin series long endurance non brush motor applicable to long endurance multi rotor UAV . The overall design of the motor is very low, so as to increase the stability of the motor. The high efficiency active heat sink is provided, which brings the super low temperature, and effectively improves the energy conversion efficiency.

  - TAROT to performance of the CNC lathe and milling composite processing technology, high standard manufacturing the star motor, Martin series belong to the TAROT power matching updating new products, new products all through long time testing and tuning, in order to obtain a low power consumption and high lift to meet requirements of market of long endurance UAV.

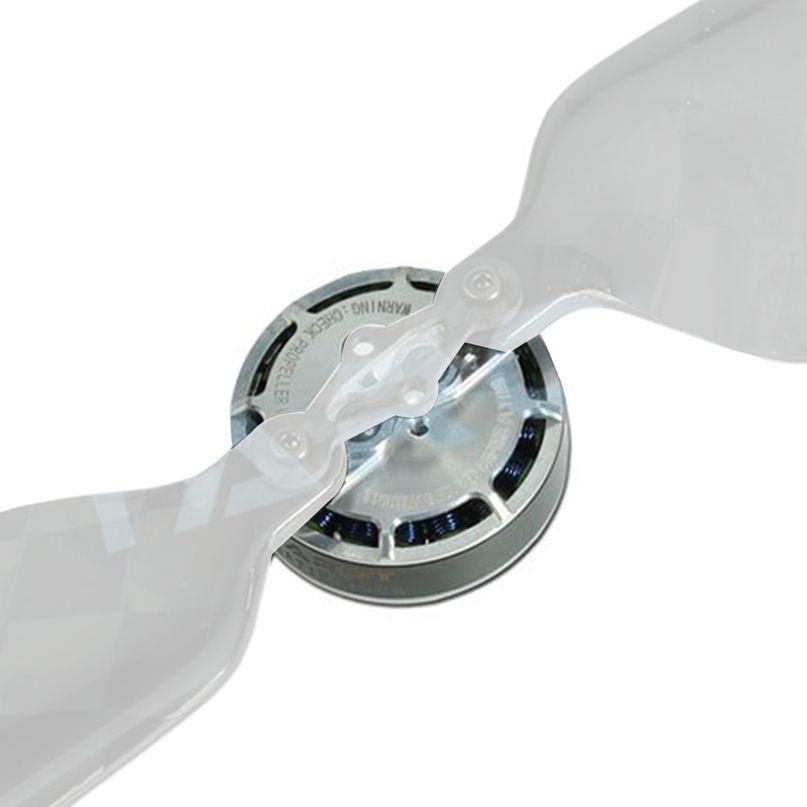

  - The new design of the folding rotor mounting seat adaptability is wide, general purpose conventional propeller and the installation of new Martin folding propeller. The base of the motor is made of high hanging design, which has a protective effect on the coil.

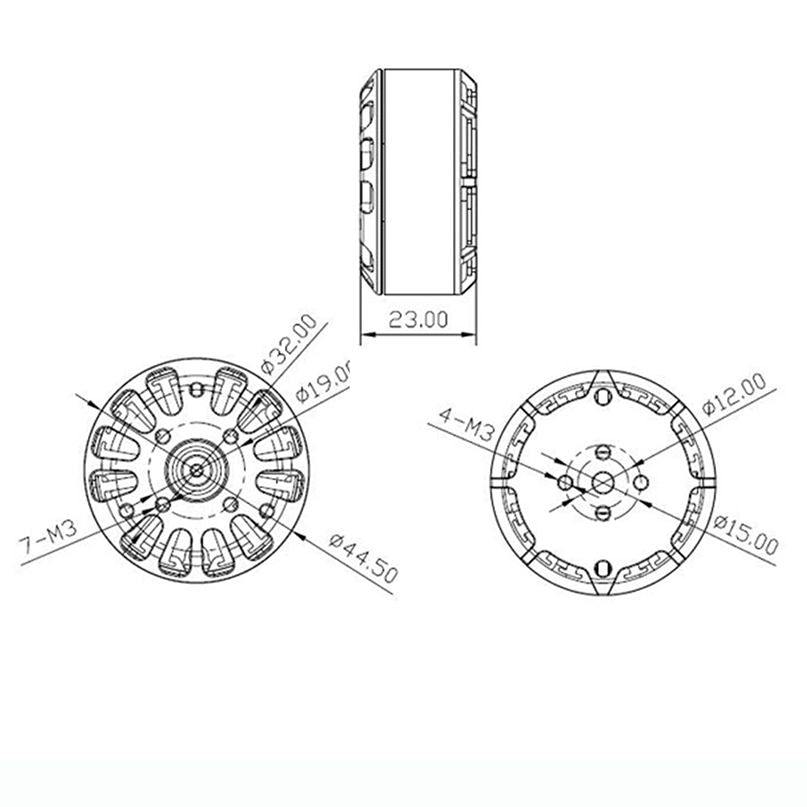

  - Installation hole 19MM/ triangular mounting hole 27.7MM, compatible with the current mainstream of the market on the rack installation, the appearance of the consistency of the consistency with the traditional motor. The advantages of long service life, high efficiency, low power consumption, low noise and stable control of TAROT brushless motor are inherited.

  Product parameters:

  Support lithium section number: 6S

  Recommended Propeller: 16-19 inch

  Stator diameter: 40MM

  No load current(@20V(A)): 0.7A

  Stator end thickness: 12MM

  Motor KV: 320KV

  Motor external diameter: 44.6MM

  Motor height: 23MM

  Maximum continuous power: 580W

  Motor weight: 110g

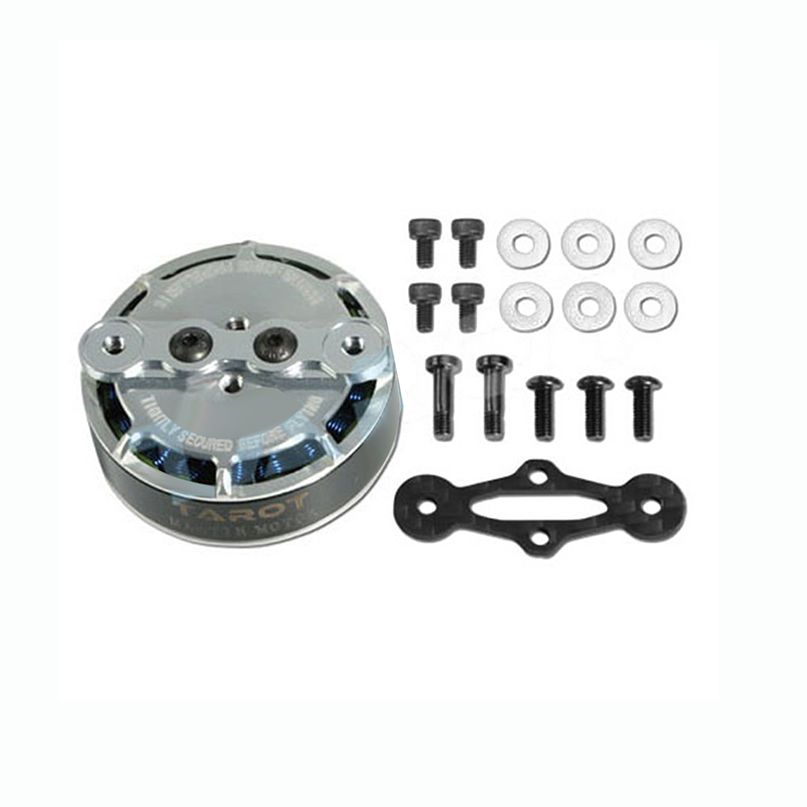

  Product contains:

  40012 Martin brushless motor * 1

  Metal folding propeller base (44 * 10 * 2.5MM) 2.0G * 1

  Carbon fiber folding propeller base clip (44 x 15 x 2.0MM)0.85Gx 1

  A metal folding propeller base mounting screws: M3 * 4MM (half round head screw) 0.4g x 2

  Rotor mounting screw: M3 * 11.3MM( screw sleeve) 0.6g x 2

  Motor mounting screws: M3 * 8MM (half round head screw) 0.4g x 3

  Spare motor mounting screws: M3 * 5MM (cup head screws) 0.4g x4

  Teflon gasket (8 x 6 x 3 x 0.5MM) 0.05g x6

  Note:

  M3*5 screws for 650/680/690 frame

  M3*8 screws for 750S1 Peeper

  With Martin folding propellers, you can get more efficient

  Related product number:

  4008 Martin Hale brushless motor TL2955

  4006 Martin Hale brushless motor TL2954

  19.5 inch 49.53cm /4 TL2949 folding Martin carbon paddle TL2949

  17.5 inch 44.45cm /4 TL2948 folding Martin carbon paddle TL2948

  15.5 inch 39.37cm /4 TL2947 folding Martin carbon paddle TL2947

  1865 Martin quick release carbon paddle TL2934

  1555 Martin quick release carbon paddle TL2933
