2 inputs (1 mic / 1 line) / USB bus power supply

Equipped with 2 inputs (1 mic/1 line) and a USB-C port for USB bus power connection.

Built-in Ultra HDDA microphone preamplifier that supports 192kHz, bringing natural and clear sound qualityAccording to the TASCAM policy, the US-HR series reproduces high resolution to be as close to the original sound as possible. The internally developed UItra HDDA microphone preamplifier combines a newly improved audio loop to enhance audio performance and provide the purest, low-noise sound.

Zero-delay direct monitoring function

Direct monitoring diverges the signal before sending it to the computer, realizing smooth and real-time monitoring during recording and performance, and there is no sound delay.

Create high-quality content using bundled software

The US-HR model is bundled with world-renowned software to improve the user’s production process. The core part of music production includes Steinberg's Cubase LE/Cubasis LE3 DAW, which provides a free mass 30GB sound library containing more than 2,000 different instruments, and IK Multimedia's Sample Tank SE.

The US-HR model can also be subscribed for free for 3 months of Auto-Tune Unlimited with a complete set of industry standard pitch correction and vocal effects.

Podcasting and live streaming interface

US-1x2HR can be connected to a computer or smart phone to easily create podcasts or live broadcasts. The audio can be switched between stereo/mono, and the loopback function allows the audio from the computer to be returned to the streaming software for playback during live broadcast. US-1x2HR supports OBS, which is popular and widely used in the world.

Compatible with iPad and other iOS devices

US-1x2HR can be used as an interface for iPad and other iOS devices.

New audio interface engine

Using our experience as one of the pioneers in the manufacture of USB audio interfaces, the stability of the local driver has been further realized. The size of the audio buffer can be set from 4 samples (only for windows) to provide the best performance for each different environment. While creating a low-latency environment, maximize the use of computer functions.

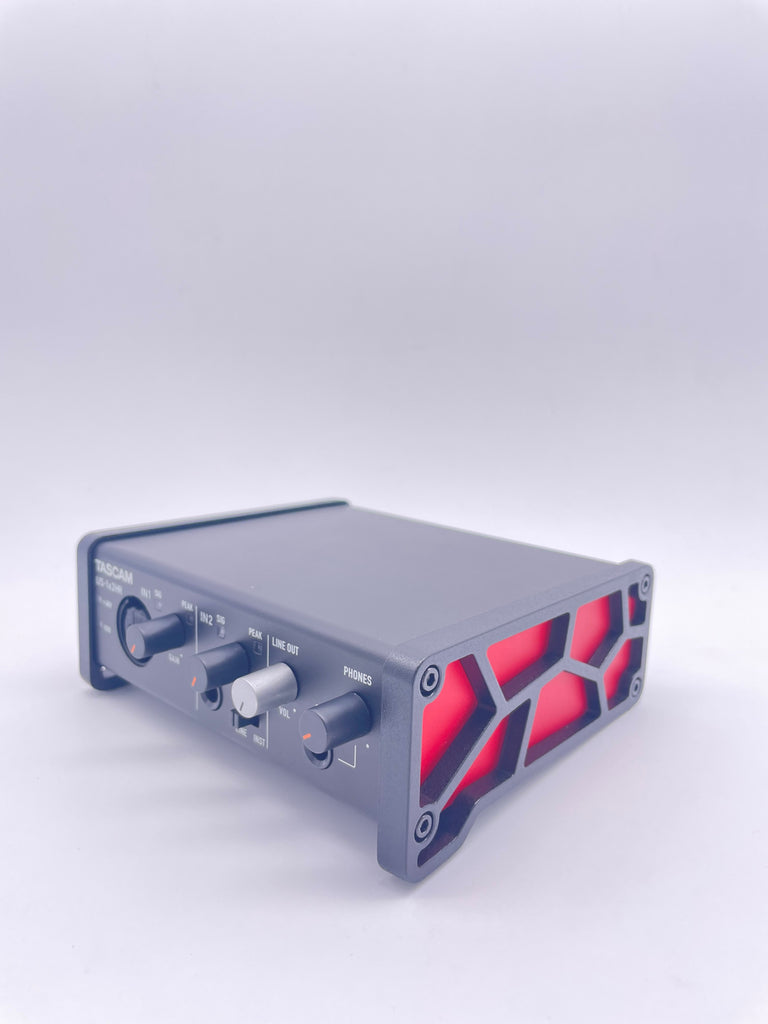

Sturdy metal housing

The US-HR model metal shell is not only sturdy and practical, but also durable, and the appearance design is also fashionable and eye-catching. In addition, all models are of adequate weight and will not move when wiring or disconnecting.

function list

2 in/2 out USB audio interface

Support up to 24bit/192kHz audio format

Improved the TASCAM driver, the buffer size can be selected from 4 samples, thereby providing low latency and stability (Windows: TASCAM native driver)

1 XLR input, equipped with Ultra HDDA microphone preamplifier and +48V phantom power.

1 TRS line/inst input

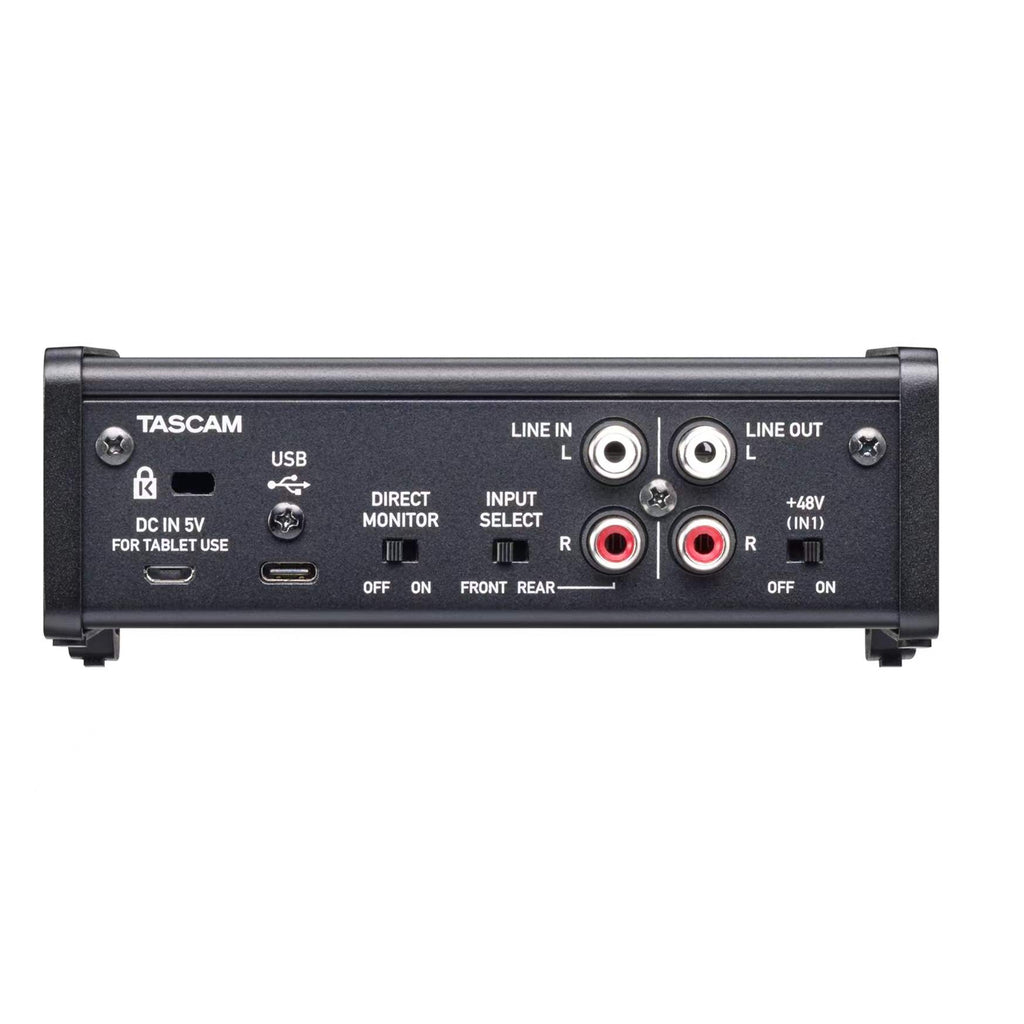

RCA line L/R input

RCA line L/R output

1 headphone output

USB Type-C connection (including USB Type-A-Type-C cable)

USB bus power supply

Direct monitoring with zero delay

Compatible with iPad and other iOS devices

Extensive bundled software

Steinberg Cubase LE, Cubasis LE 3

IK Multimedia Sample Tank 4 SE

Antares AUTO-TUNE UNLIMITED (free use for 3 months)

Verified operation on major DAWs (Pro Tools, Live, Cubase, Studio One, GarageBand, Logic Pro)

Stereo/mono optional loopback function (Windows, Mac, iOS, iPadOS)

Support OBS

Contained items

US-1x2HR

USB cable (Type-A-Type-C)

DAW software installation guide

DAW plug-in software installation guide

User manual (including warranty card)
