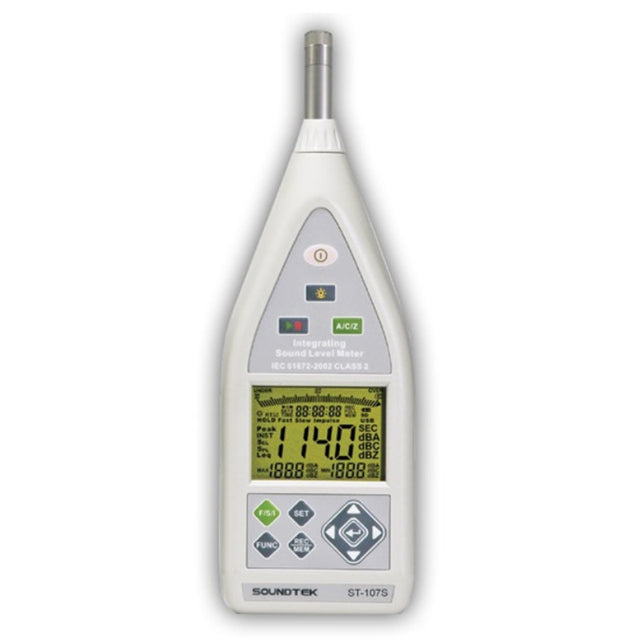

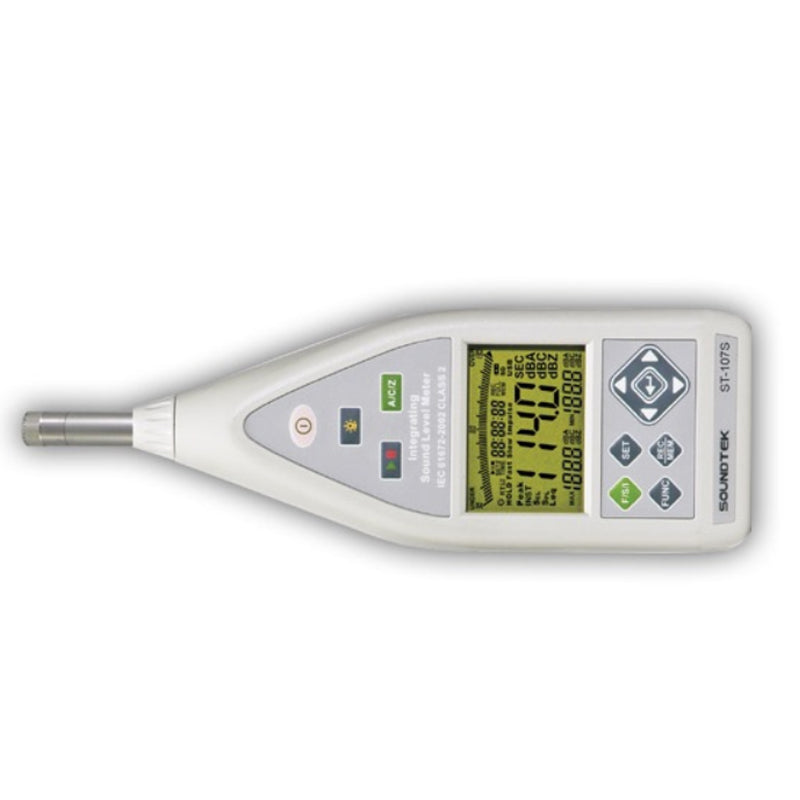

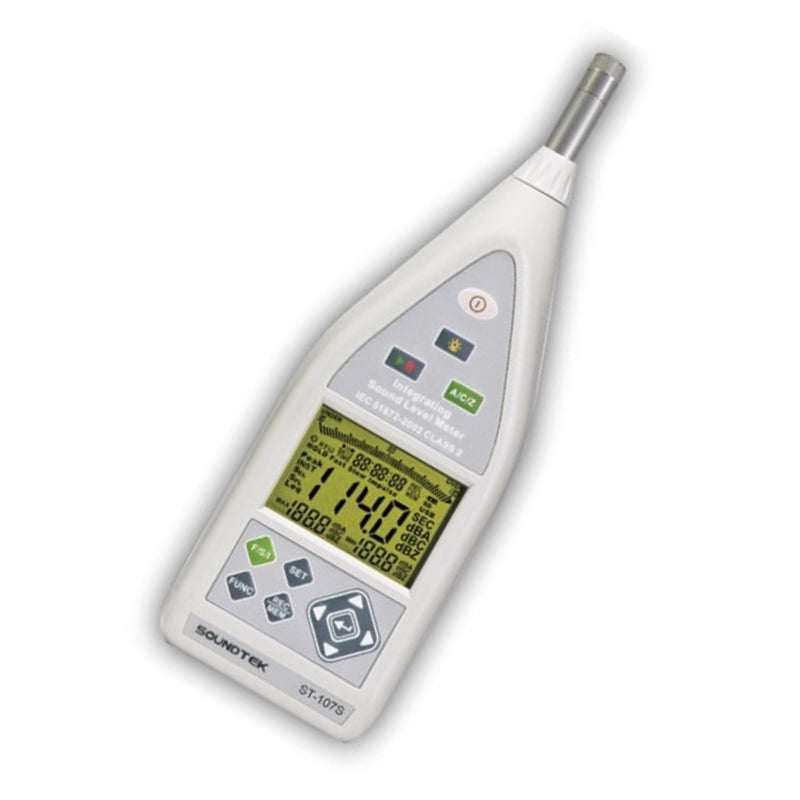

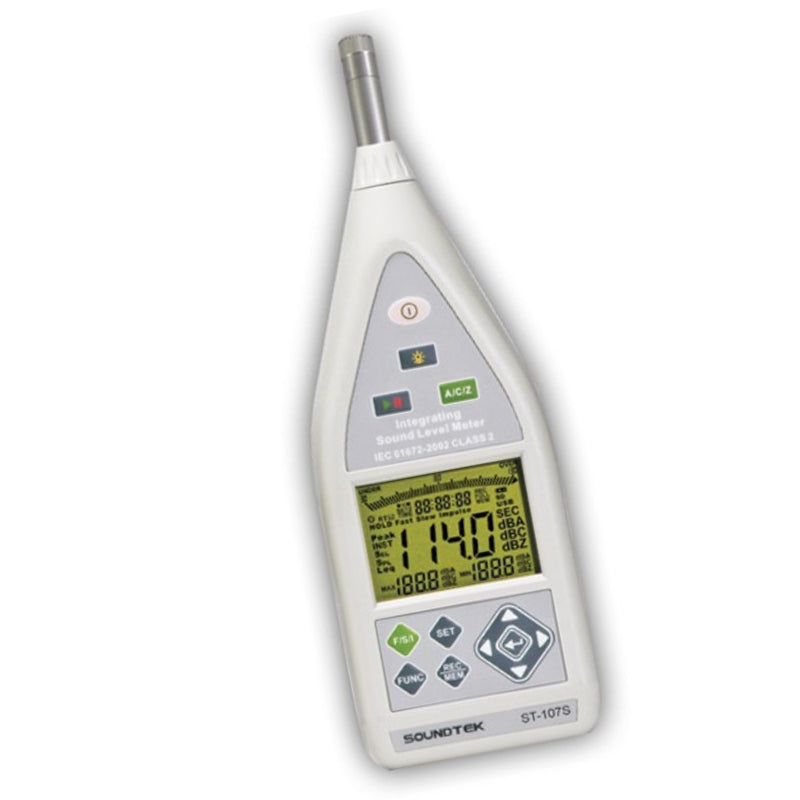

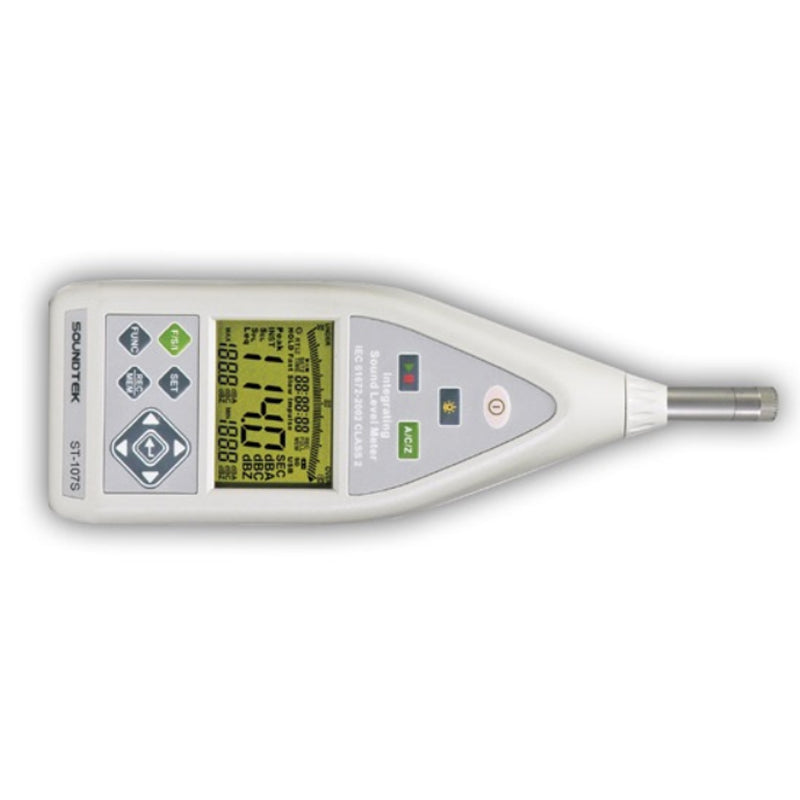

Product Description:
- Comply with IEC-61672-1 2002 Class 2
- Fast, Slow, Impulse response time.
- Frequency range: 31.5Hz ~8KHz.
- Measurement range: 30dB~130dB.
- Dynamic range:100dB.
- A/C/Z frequency
- Storage up to 32,000 records.
- USB interface.
- AC and DC output.
- Bargraph display.
Specifications:
Display
3 1/2 digit backlit LCD display with maximum reading of 1999
Display refresh rate
1 time / per second
Applicable Specifications
- IEC 61672-1 : 2002 Class1 - ANSI S1.4 Type 1
- CNS NO.7129 Type1 - JJG-188-2002 Class1
Microphone
1/2" pre-polarized condenser microphone
Measurement items
30dB ~ 130dB (A), 35dB ~ 130dB (C), 40dB ~ 130dB (Z)
Measurement range
randomly,10s,1m,5m,10m, 30m,1h, 2h,4h,8h,16h,24h
Dynamic Range
100 dB
Integrate Time Setup
randomly,10s,1m,5m,10m, 30m,1h, 2h,4h,8h,16h,24h
Max. peak C sound level
measurement 70~133 dB
Time weighting
Fast, Slow, Impulse, Peak
Frequency weighting
A/C/Z
Frequency Range
31.5Hz~8KHz
DC output
10mV/dB
AC output
2Vrms/130dB
Battery Life
About 30 hours
Power
LR6 1.5V*4 Alkaline batteries(not included package)
AC Adapter
100V~240V
Dimensions
285(L) x 90(W) x 39(H) mm
Weight
550g ( including Batteries)
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
