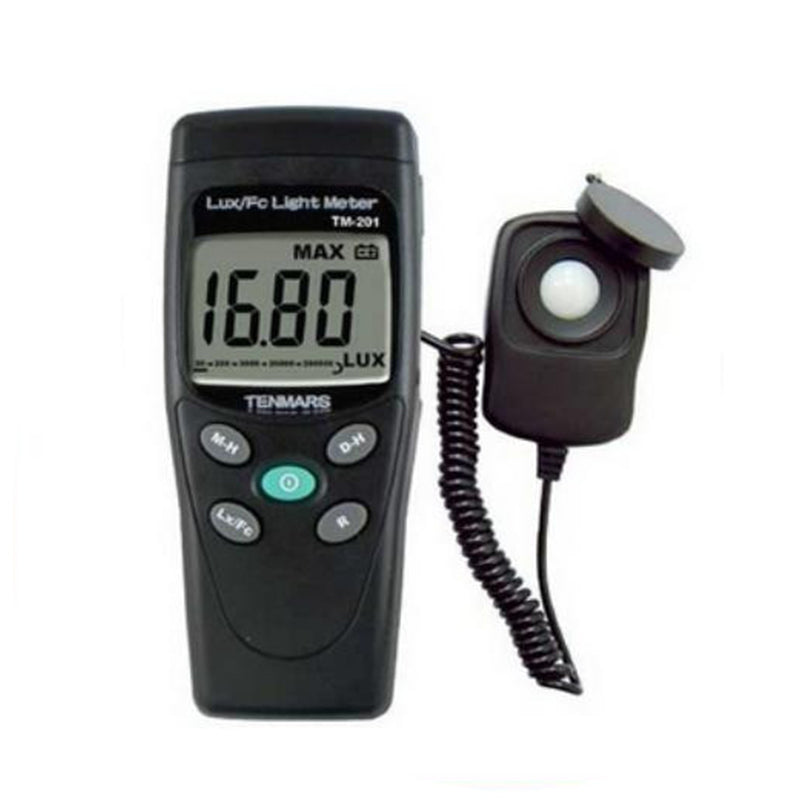

Tenmars TM-201 Measuring Lights Source Include All Visible Range LUX/FC Light
Meter
Product Description:
- 3 digits LCD with maximum reading 2000.
- Overload indication.
- Low battery indication.
- According to JISC1609:1993 and CNS 5119 general A class specifications.
- Spectral response close to CIE luminous spectral efficiency.
- Measuring intensities of illumination in unit of Lux or Foot-candle.
- Measuring lights source include all visible range.
- Length of wire for light sensor: approximately 1.5M.
- Cosine angular corrected.
-The batteries not included package
Application:
- Warehouses, factories, office buildings, restaurants, schools, libraries, hospitals, building security and parking stations.
Specification:
Model
TM-201
TM-202
Data hold
V
V
DC analog output
V
Max/ Min /AVG hold
V
Max hold
V
Zero adjustment
V
V
Sensor
Silicon photodiode and filter
Measuring range
200, 2000, 20000, 200000 Lux
20,200, 2000, 20000 Foot-candle
Accuracy
+/- 3% (Calibrated to standard incandescent lamp 2856º K)
+/- 8% (other visible light source TM-201)
+/- 6% (other visible light source TM-202)
Angle deviation from
cosine characteristics
30º
+/- 2%
60º
+/- 6%
80º
+/- 25%
Dimension:
Meter size (LxWxH)
130x55x38mm
Sensor size (LxWxH)
80x55x25mm
Weight (including battery)
250g
