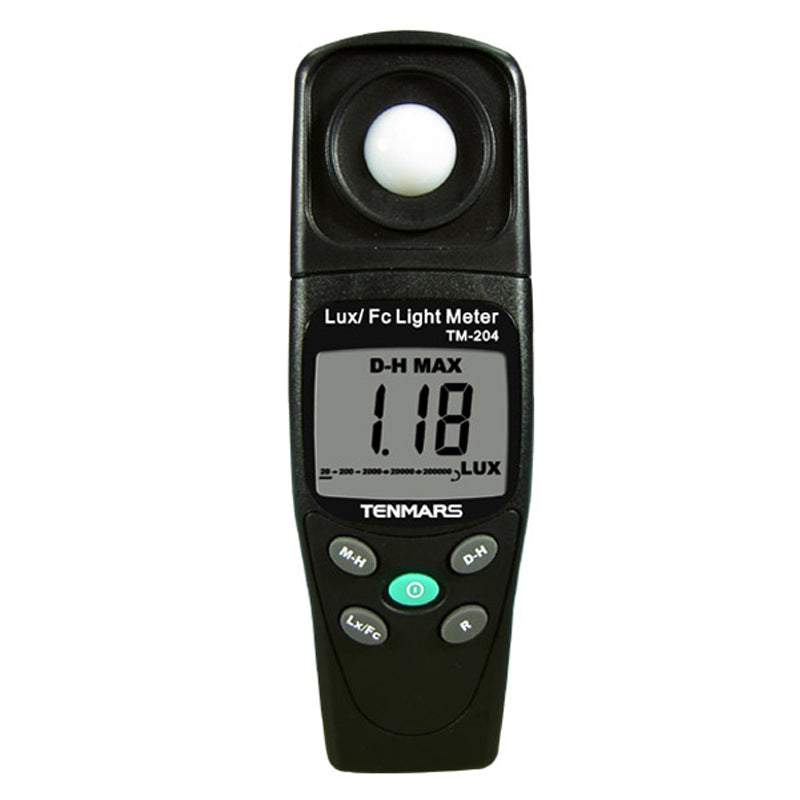

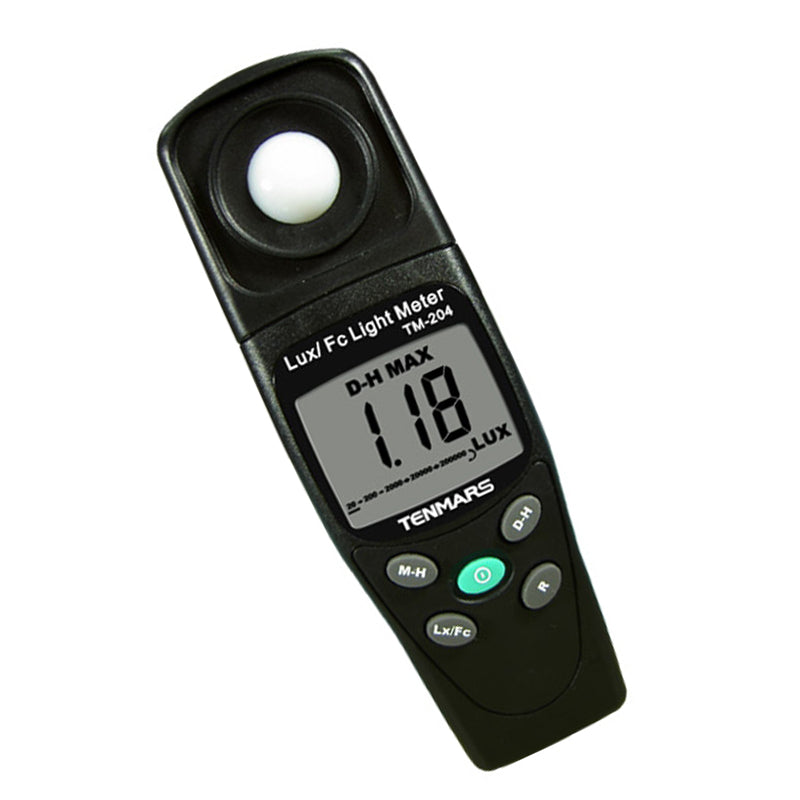

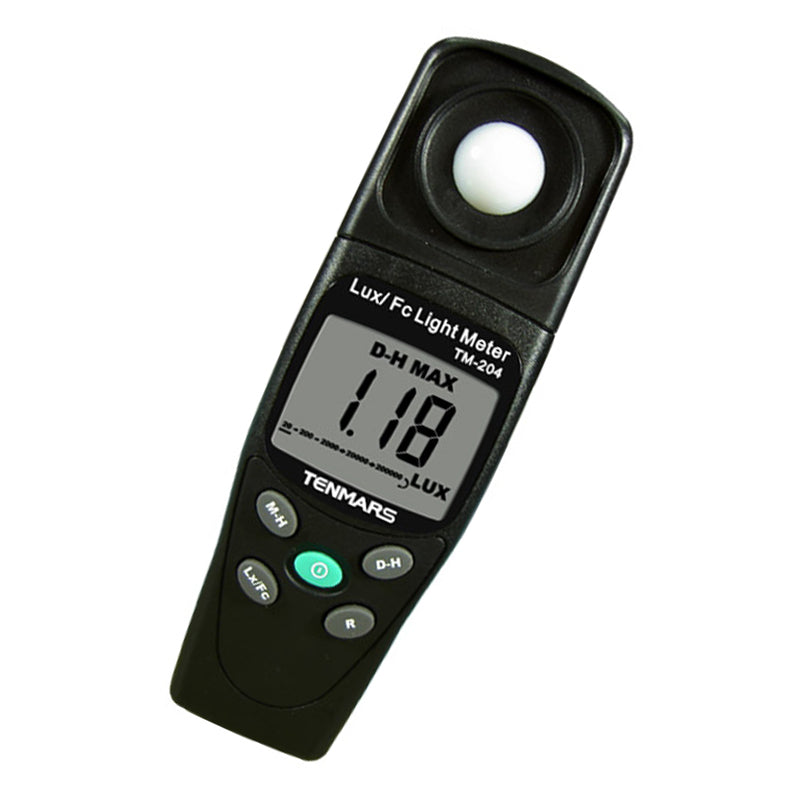

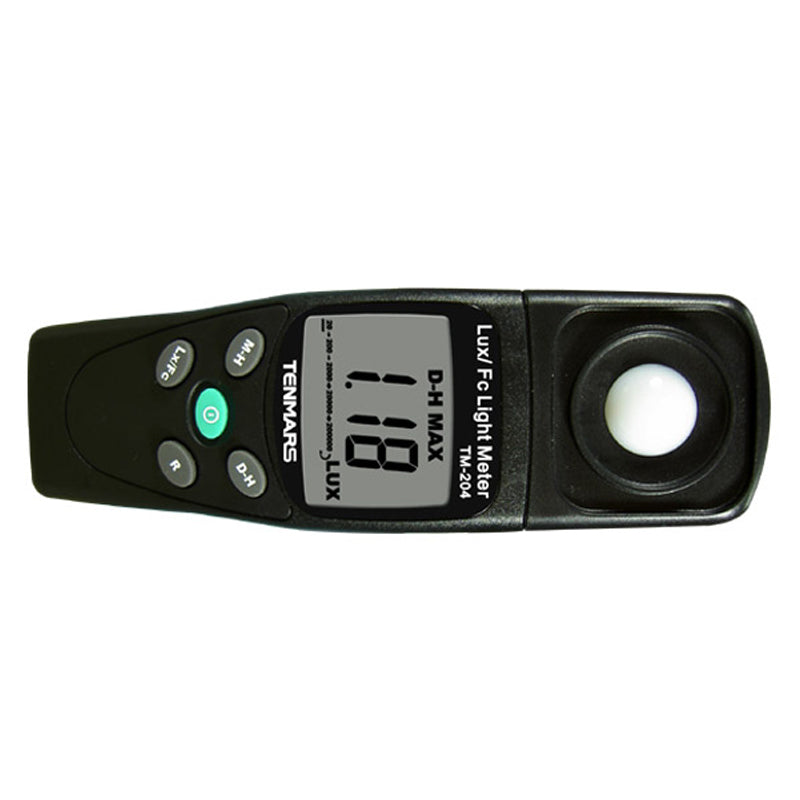

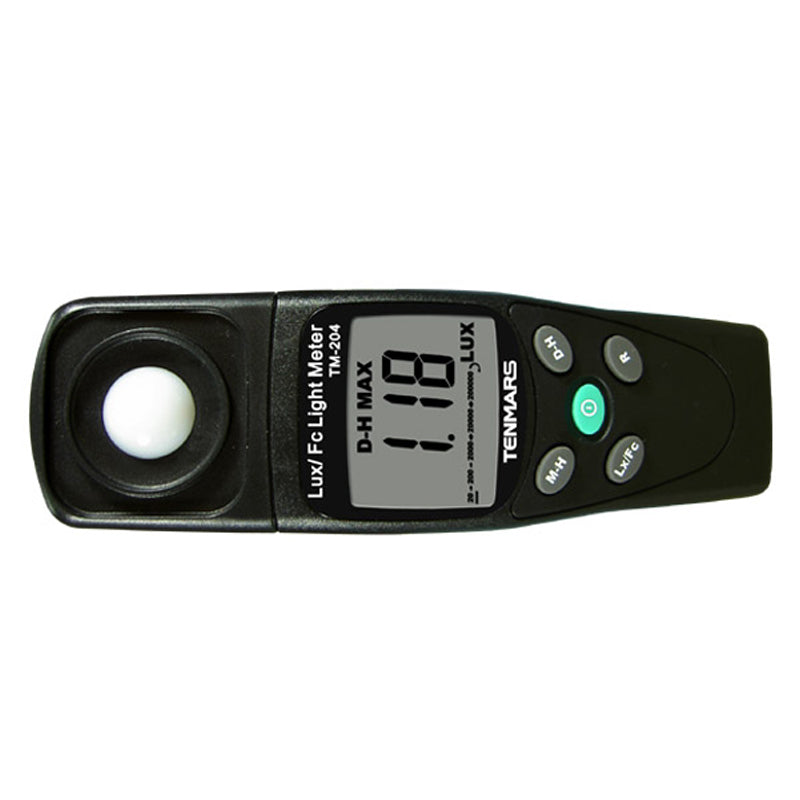

Tenmars TM-204 Integrated Digital Light Meter Lux Photometer
Product Description:
- 3 digits LCD with maximum reading 2000.
- Overload indication.
- Low battery indication.
- According to JISC1609:1993 and CNS 5119 general A class specifications.
- Spectral response close to CIE luminous spectral efficiency.
- Measuring intensities of illumination in unit of Lux or Foot-candle.
- Measuring lights source include all visible range.
- Cosine angular corrected.
Application:
- Warehouses, factories, office buildings, restaurants, schools, library, hospitals, photographic,video, parking garages, museums, art galleries, stadiums, building security.
--The batteries not included package
Specification:
Model
TM-203
TM-204
TM-205
Data hold
V
V
V
Max/ Min /AVG hold
V
Max hold
V
Zero adjustment
V
V
V
Auto ranging
V
V
Auto power off
V
V
Datalogger
V
Sensor
Silicon photodiode and filter
Measuring range
200, 2000, 20000, 200000 Lux
20,200, 2000, 20000 Foot-candle
Accuracy
+/- 3% (Calibrated to standard incandescent lamp 2856º K)
+/- 8% (other visible light source TM-204)
+/- 6%(other visible light source TM-203/205)
Angle deviation from
cosine characteristics
30º
+/- 2%
60º
+/- 6%
80º
+/-25%
Dimension:
Meter size (LxWxH)
172x55x38mm
Weight (including battery)
250g
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
