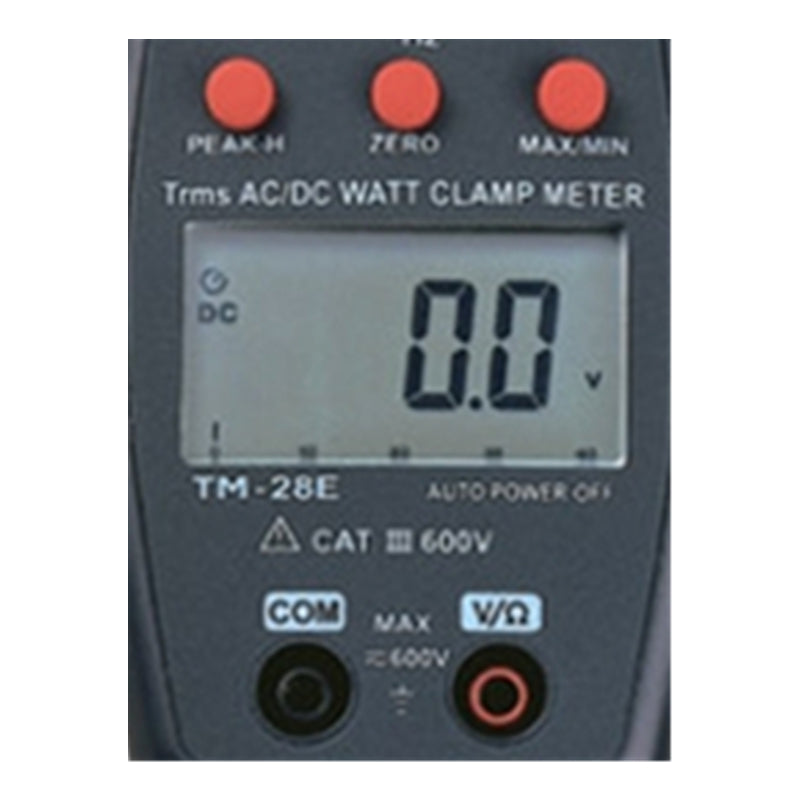

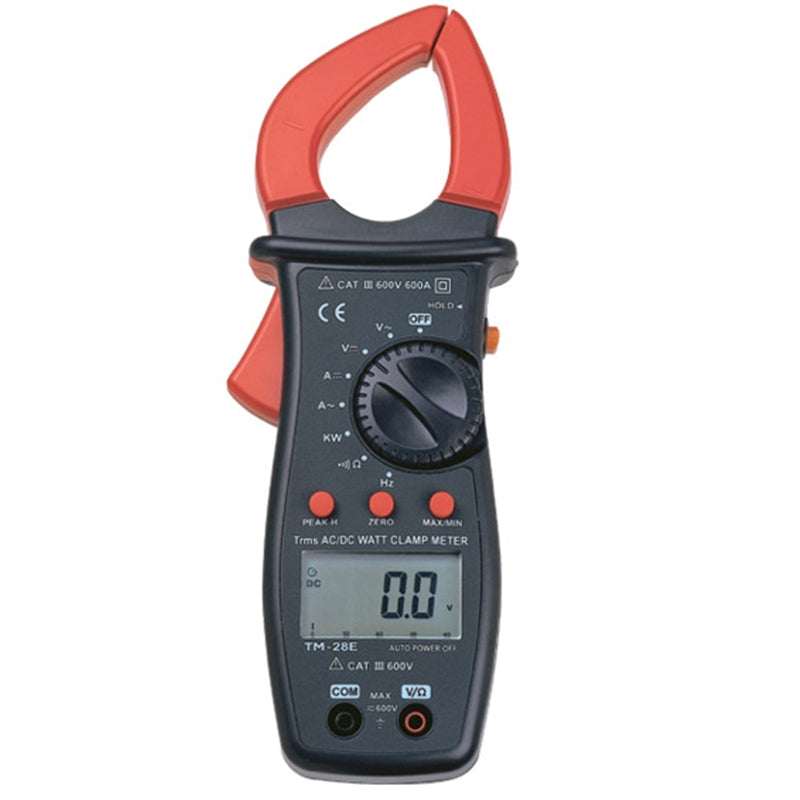

Tenmars TM-28E 600A True RMS Autoranging AC/DC WATT Clamp-On Meter
Product Description:
1.CAT III 600V
2.3-3/4 digit LCD, Backlit Display with maximum reading of 4000.
3.High-speed bargraph.
4.True-Rms.
5.Watt measurement: 400KW
6.Data Hold, Peak Hold, Min/Max, and Zero functions.
7.AC/DC volts, AC/DC current, Resistance, Frequency, Watts, Continuity.
8.Autoranging.
9.Relative (REL) zero adjust.
10.Maximum conductor size 35mm.
11.Low battery indication.
12.Overload indication.
13.Continuity buzzer.
14.Auto power off.
15.the batteries not included package
Specification:
Maximum Current
600 Amps
Display
4000 counts
Max. Conductor Size
35mm
AC Current
0.1A to 600A, (2.0% of rdg + 5 dgts)
AC Voltage
0.1V to 600V, (1.2% of rdg + 7 dgts)
DC Current
0.1A to 600A, (1.5% of rdg + 5 dgts)
DC Voltage
0.1V to 600V, (1.0% of rdg + 3 dgts)
Resistance
1 to 4000,
Continuity Buzzer
Yes
Frequency
1Hz to 400KHz
AC/DC Watts
0.1W to 400KW, (5.0% of rdg + 5 dgts)
Backlit Display
Yes
Autorange
Yes
High Speed Bargraph
Yes
Auto Power Off
Yes
Min/Max
Yes
REL (zero adjust)
Yes
Data Hold and Peak Hold
Yes
Dimensions
218mm (L) x 75mm (W) x 43mm (D)
Weight
375g
